Toyota Hiace Quick Delivery
1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan
Discontinued model
Data version 1995-11

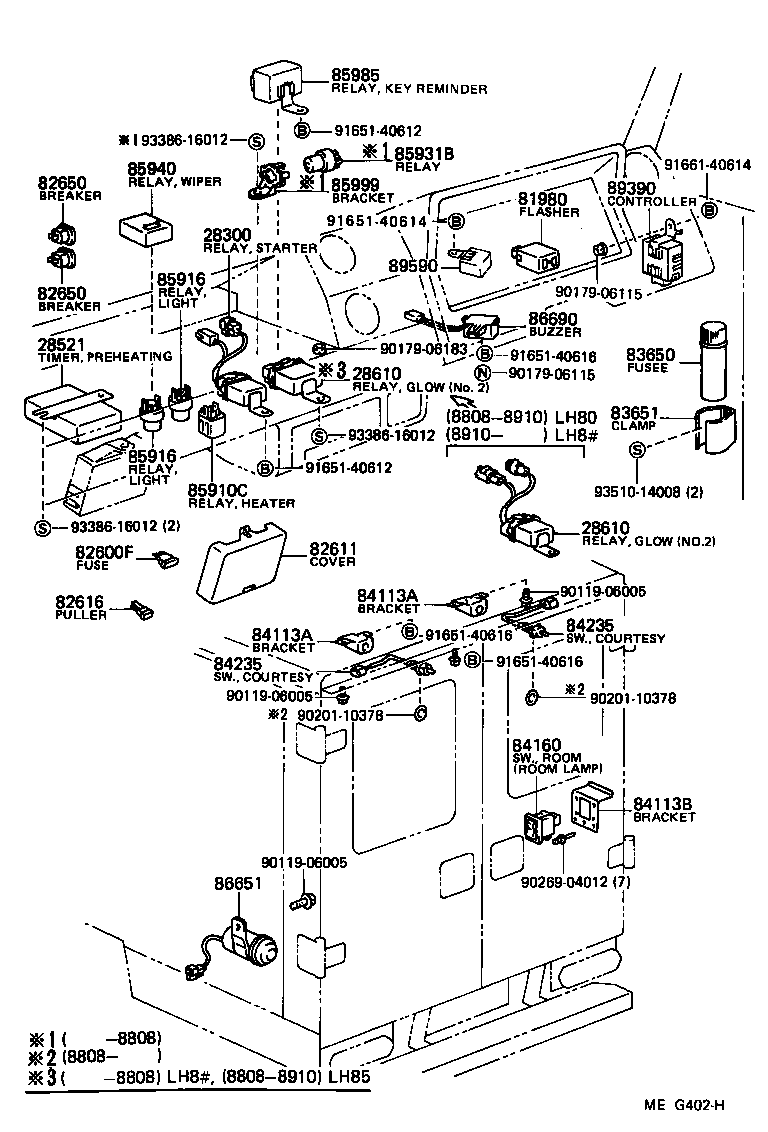

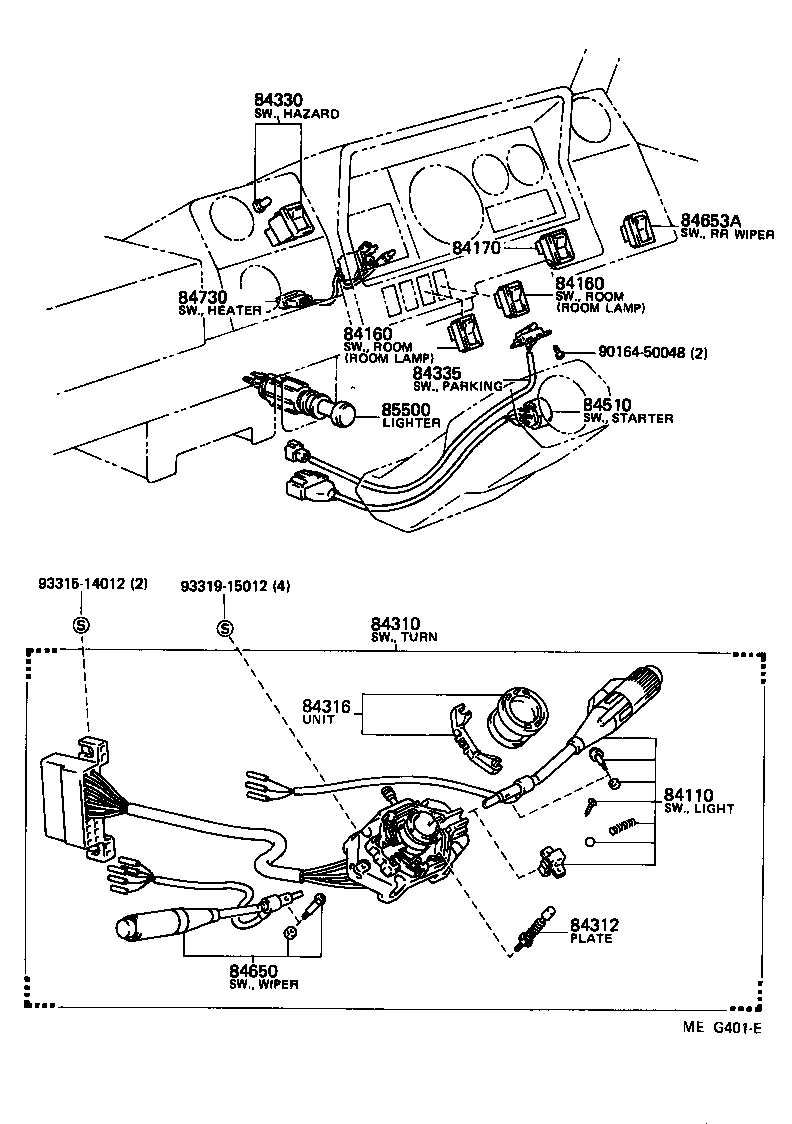

Switch & Relay & Computer
59 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28560A | Block, Heater |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28631 | Sensor, Glow Plug Current |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83651 | Clamp, Fusee |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84113A | Bracket, Switch, NO.1 |
| 84113B | Bracket, Switch, NO.2 |
| 84160 | Switch Assy, Room Lamp |
| 84170 | Switch Assy, Interior Dome Lamp |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84233C | Bracket, Courtesy Switch (FOR FRONT DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84316 | Unit, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84335 | Switch Assy, Parking Lamp |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84461 | Switch, Level Warning |
| 84510 | Switch Assy, Starter |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84750A | Switch Assy, Seat |
| 85500 | Lighter Assy, Cigarette |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85931B | Relay, Fuel Heater |
| 85940 | Relay Assy, Windshield Wiper |
| 85985 | Relay, Key Reminder |
| 85999 | Bracket, Combination Relay |
| 86651 | Buzzer Assy, Back |
| 86690 | Buzzer Assy, Speed Indicator |
| 89390 | Relay, Brake Warning |
| 89429 | Sensor, Oil Temperature |
| 89437 | Cover, Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89590 | Computer Assy, Condition Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
