Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 3 illustrations

Illustrations

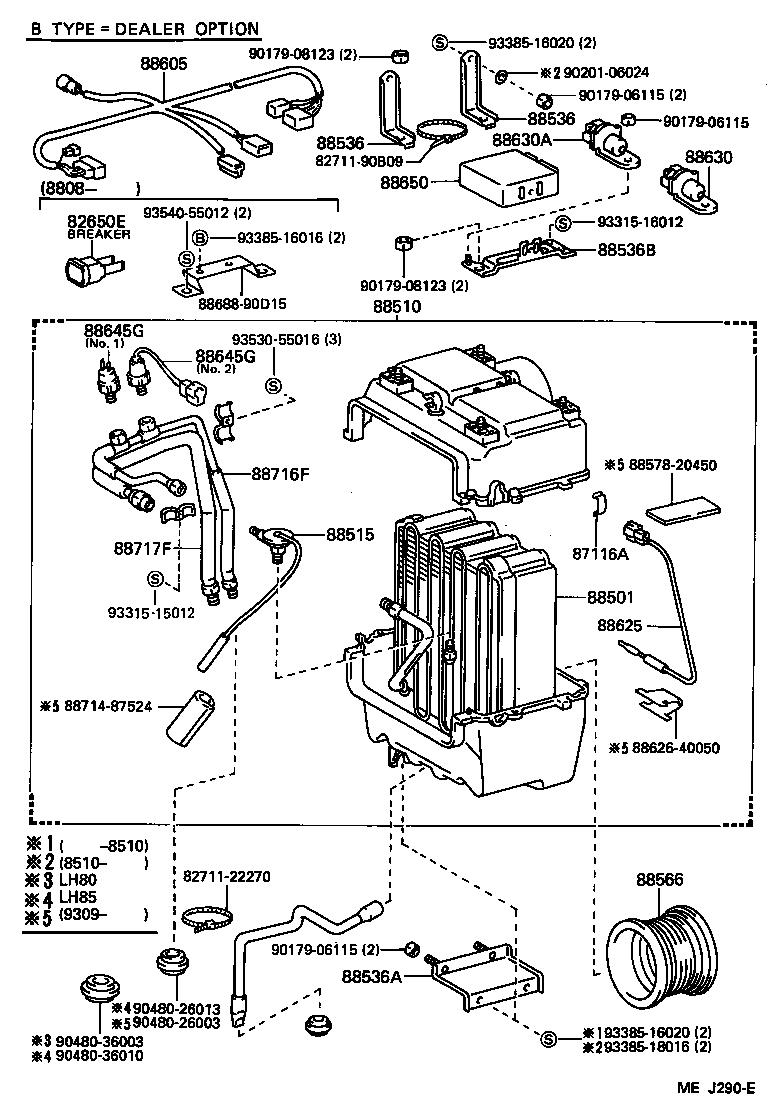

Figure MEG414D MEG414D 1985-08 → — Figure MEL960A MEL960A 1988-08 → — Figure MEJ290E MEJ290E 1985-08 → —

Part groups

PNCDescription
82650E Breaker Assy, Wiring Circuit
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88566 Duct, Cooler Air, NO.1
88594 Bracket, Cooler Relay
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88717F Pipe, Cooler Refrigerant Suction, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
