Toyota Hiace Quick Delivery

1985-08 → 1995-05 · chassis LH8# · catalogue 721120 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

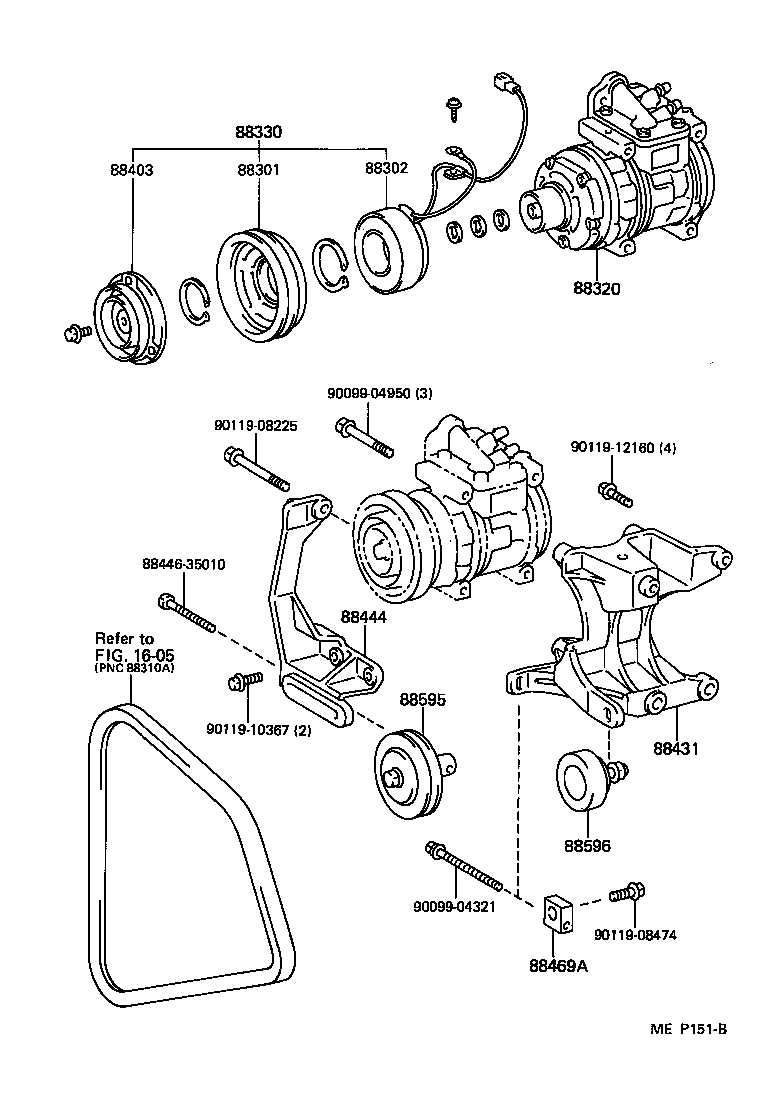

Figure MEG421E MEG421E 1985-08 → 1988-08 Figure MEG421E MEG421E 1987-11 → — Figure MEP151B MEP151B 1988-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88469A Collar, Adjusting
88595 Pulley, Cooler Compressor Idle
88596 Pulley Assy, Idle, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
