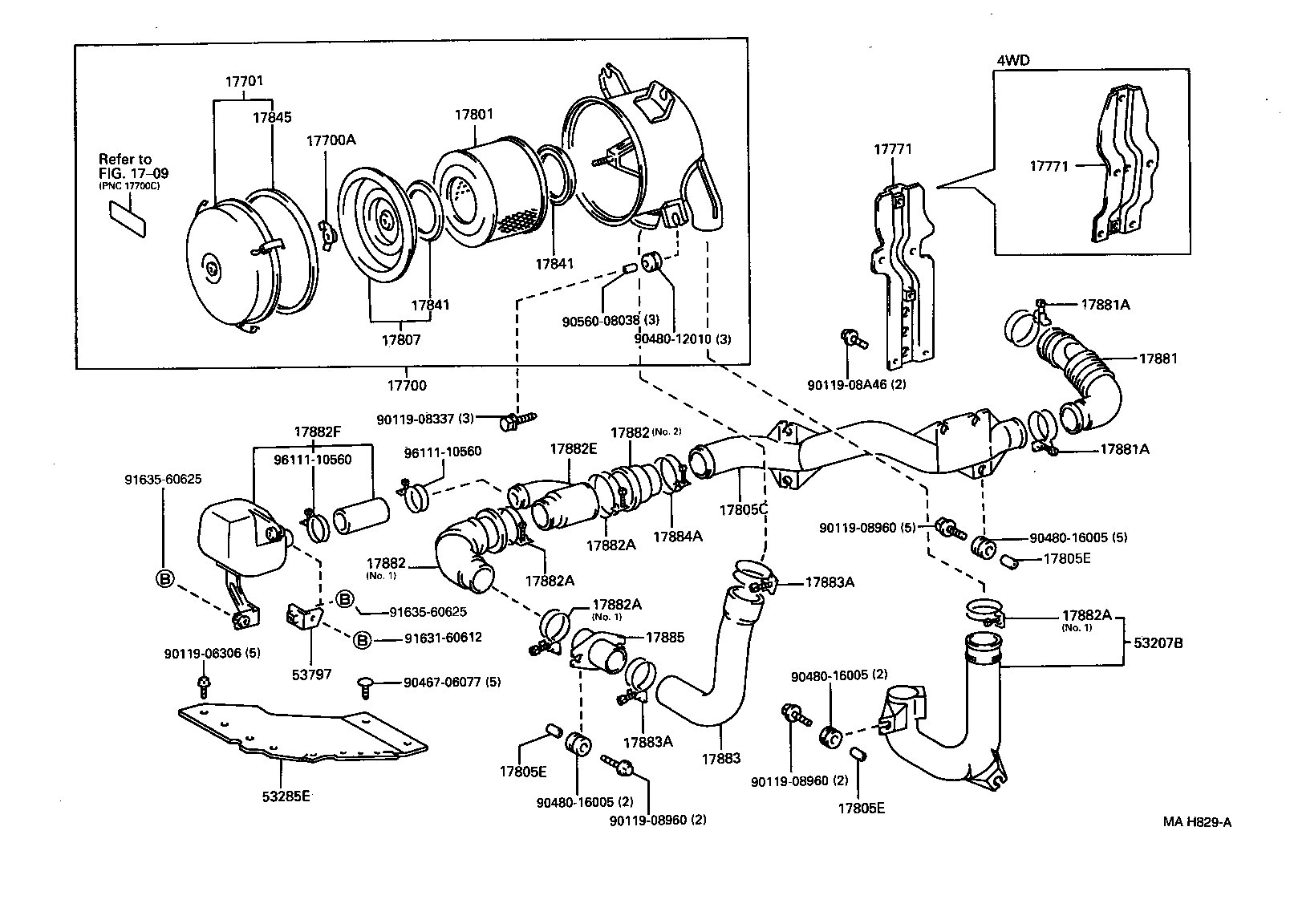

Exploded illustration MAH829A 17701 — CASE SUB-ASSY, AIR CLEANER (3 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (4 parts) 17845 — GASKET, AIR CLEANER CAP (3 parts) 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 17771 — BRACKET, AIR CLEANER INLET DUCT (2 parts) 17771 — BRACKET, AIR CLEANER INLET DUCT (2 parts) 1709 — not listed in this catalogue 17841 — GASKET, FILTER ELEMENT (4 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (6 parts) 17841 — GASKET, FILTER ELEMENT (4 parts) 9056008038 — not listed in this catalogue 9048012010 — not listed in this catalogue 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (3 parts) 17881 — HOSE, AIR CLEANER, NO.1 (3 parts) 9011908A46 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (3 parts) 9011908337 — not listed in this catalogue 17882F — SILENCER SUB-ASSY, COOL AIR INTAKE (1 parts) 17882 — HOSE, AIR CLEANER, NO.2 (2 parts) 17882E — PIPE, COOL AIR INTAKE, NO.2 (1 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (6 parts) 9611110560 — not listed in this catalogue 9611110560 — not listed in this catalogue 9163560625 — not listed in this catalogue 17805C — PIPE SUB-ASSY, AIR CLEANER, NO.1 (2 parts) 9011908960 — not listed in this catalogue 17884A — CLAMP(FOR AIR CLEANER HOSE, NO.4) (1 parts) 9048016005 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17805E — COLLAR(FOR INTAKE AIR CONNECTOR) (1 parts) 17882 — HOSE, AIR CLEANER, NO.2 (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 9163560625 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 9163160612 — not listed in this catalogue 17885 — PIPE, AIR CLEANER (3 parts) 53207B — DUCT SUB-ASSY, COOL AIR (1 parts) 9011906306 — not listed in this catalogue 9048016005 — not listed in this catalogue 53797 — BRACKET, COOL AIR INTAKE SILENCER (1 parts) 9046706077 — not listed in this catalogue 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (2 parts) 17883 — HOSE, AIR CLEANER, NO.3 (1 parts) 17805E — COLLAR(FOR INTAKE AIR CONNECTOR) (1 parts) 9011908960 — not listed in this catalogue 53285E — GUARD, COOL AIR (3 parts) 9048016005 — not listed in this catalogue 17805E — COLLAR(FOR INTAKE AIR CONNECTOR) (1 parts) 9011908960 — not listed in this catalogue
MAH829A · 33 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-54410 Cleaner Assy, Air
1995-05 → —
3B BU68 ¥31,500
17700-54410 Cleaner Assy, Air
1995-05 → —
3L,5L LH8#,LY15# ¥31,500
17700-75210 Cleaner Assy, Air
1996-10 → —
3RZFP RZU68 ¥31,100
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1995-05 → —
3L,5L LH8#,LY15# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1995-05 → —
3B BU68 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1996-10 → —
3RZFP RZU68 —
17701 — Case Sub-assy, Air Cleaner
17701-54210 Case Sub-assy, Air Cleaner
1995-05 → —
3L,5L LH8#,LY15# —
17701-54210 Case Sub-assy, Air Cleaner
1995-05 → —
3B BU68 —
17701-75120 Case Sub-assy, Air Cleaner
1996-10 → —
3RZFP RZU68 ¥0
17771 — Bracket, Air Cleaner Inlet Duct
17771-54030 Bracket, Air Cleaner Inlet Duct
1995-05 → —
3L,5L LY15# ¥2,960
17771-54090 Bracket, Air Cleaner Inlet Duct
1995-05 → —
3L,5L LH8# ¥2,090
17801 — Element Sub-assy, Air Cleaner Filter
17801-56020 Element Sub-assy, Air Cleaner Filter
1995-05 → —
3L,5L LH8#,LY15# ¥4,100
17801-56020 Element Sub-assy, Air Cleaner Filter
1995-05 → —
3B BU68 ¥4,100
17801-56050 note Element Sub-assy, Air Cleaner Filter
1995-05 → —
3B BU68 ¥4,100
17801-73020 Element Sub-assy, Air Cleaner Filter
1996-10 → —
3RZFP RZU68 ¥2,210
17805C — Pipe Sub-assy, Air Cleaner, NO.1
59111-90D02 Pipe Sub-assy, Air Cleaner, NO.1
1995-05 → —
3L,5L LH8# ¥6,400
59111-90D03 Pipe Sub-assy, Air Cleaner, NO.1
1995-05 → —
3L,5L LY15# ¥6,600
17805E — Collar(FOR INTAKE AIR CONNECTOR)
90387-08016 Collar(FOR INTAKE AIR CONNECTOR)
1995-05 → —
3L,5L LH8#,LY15# ¥240
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-56011 Plate Sub-assy, Air Cleaner Filter Set
1995-05 → —
3L,5L LH8#,LY15# —
17807-56011 Plate Sub-assy, Air Cleaner Filter Set
1995-05 → —
3B BU68 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1996-10 → —
3RZFP RZU68 —
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
1995-05 → —
3L,5L LH8#,LY15# —
17841-44030 Gasket, Filter Element
1995-05 → —
3B BU68 —
17841-68010 note Gasket, Filter Element
1996-10 → —
3RZFP RZU68 ¥0
17841-73010 note Gasket, Filter Element
1996-10 → —
3RZFP RZU68 —
17845 — Gasket, Air Cleaner Cap
17845-56020 Gasket, Air Cleaner Cap
1996-10 → —
3RZFP RZU68 —
17845-56020 Gasket, Air Cleaner Cap
1995-05 → —
3L,5L LH8#,LY15# —
17845-56020 Gasket, Air Cleaner Cap
1995-05 → —
3B BU68 —
17881 — Hose, Air Cleaner, NO.1
17881-54391 Hose, Air Cleaner, NO.1
1995-05 → —
3L,5L LH8#,LY15# ¥4,920
17881-58140 Hose, Air Cleaner, NO.1
1995-05 → —
3B BU68 ¥4,150
17881-75090 Hose, Air Cleaner, NO.1
1996-10 → —
3RZFP RZU68 ¥4,940
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3B BU68 ¥160
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-10 → —
3RZFP RZU68 ¥160
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3L,5L LH8#,LY15# ¥180
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3L,5L LH8#,LY15# ¥240
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3B BU68 ¥240
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-10 → —
3RZFP RZU68 ¥240
17882 — Hose, Air Cleaner, NO.2
59133-90D00 note Hose, Air Cleaner, NO.2
1995-05 → —
3L,5L LH8#,LY15# ¥2,600
59134-90D00 note Hose, Air Cleaner, NO.2
1995-05 → —
3L,5L LH8#,LY15# ¥2,600
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1995-05 → —
3L,5L LH8#,LY15# ¥160
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1995-05 → —
3L,5L LH8#,LY15# ¥410
17882E — Pipe, Cool Air Intake, NO.2
59112-90D00 Pipe, Cool Air Intake, NO.2
1995-05 → —
3L,5L LH8#,LY15# ¥510
17882F — Silencer Sub-assy, Cool Air Intake
53205-90D00 Silencer Sub-assy, Cool Air Intake
1995-05 → —
3L,5L LH8#,LY15# ¥9,600
17883 — Hose, Air Cleaner, NO.3
59131-90D01 Hose, Air Cleaner, NO.3
1995-05 → —
3L,5L LH8#,LY15# ¥4,460
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1995-05 → —
3L,5L LH8#,LY15# ¥190
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.3)
1995-05 → —
3L,5L LH8#,LY15# ¥160
17884A — Clamp(FOR AIR CLEANER HOSE, NO.4)
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.4)
1995-05 → —
3L,5L LH8#,LY15# ¥190
17885 — Pipe, Air Cleaner
17885-58250 Pipe, Air Cleaner
1995-05 → —
3B BU68 ¥7,500
17885-58250 Pipe, Air Cleaner
1996-10 → —
3RZFP RZU68 ¥7,500
53297-90D00 Pipe, Air Cleaner
1995-05 → —
3L,5L LH8#,LY15# ¥3,400
53207B — Duct Sub-assy, Cool Air
53207-90D00 Duct Sub-assy, Cool Air
1995-05 → —
LH8#,LY15# ¥5,100
53285E — Guard, Cool Air
53285-25010 Guard, Cool Air
1995-05 → —
BU68 ¥3,440
53285-25010 Guard, Cool Air
1996-10 → —
RZU68 ¥3,440
53285-26010 Guard, Cool Air
1995-05 → —
LH8#,LY15# ¥2,600
53797 — Bracket, Cool Air Intake Silencer
53797-90D00 Bracket, Cool Air Intake Silencer
1995-05 → —
LH8#,LY15# ¥380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
