Engine Oil Pump

18 part groups · 4 illustrations

Illustrations

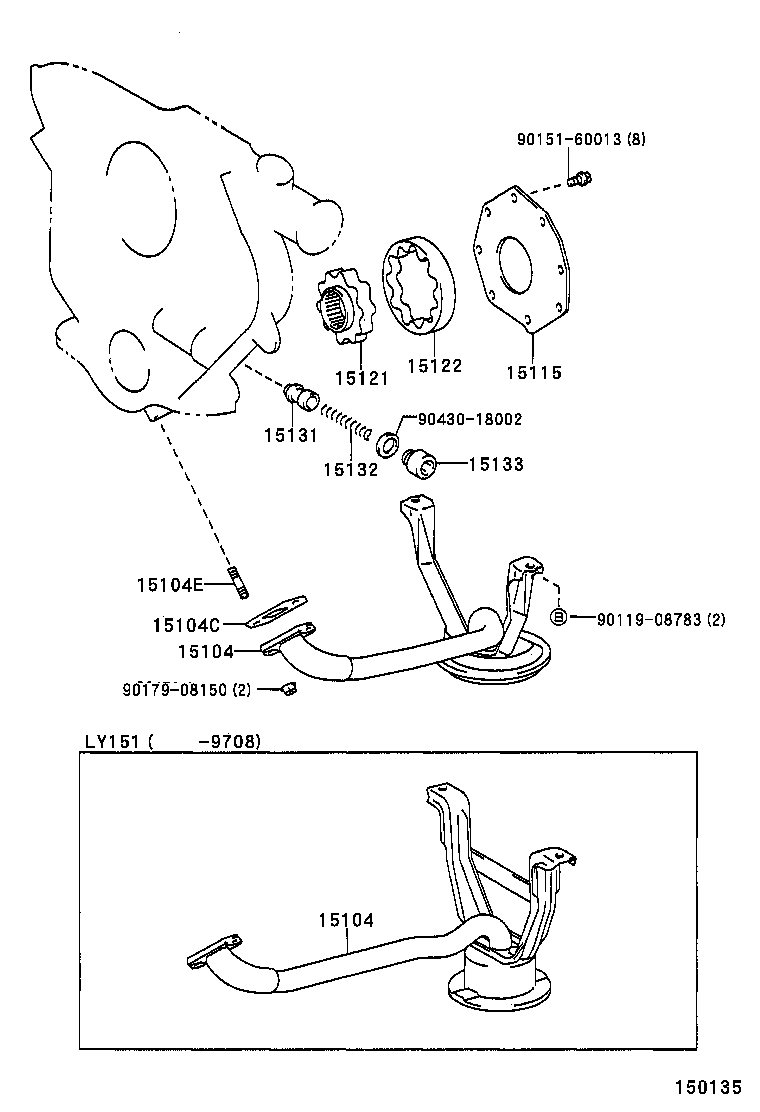

Figure MAH844 MAH844 1995-05 → 1999-08 Figure 150135 150135 1995-05 → 1999-05 Figure 150135 150135 1999-05 → — Figure 150473 150473 1996-10 → —

Part groups

PNCDescription
15100B Ring, O(FOR OIL PUMP)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
