Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01
Clutch Booster

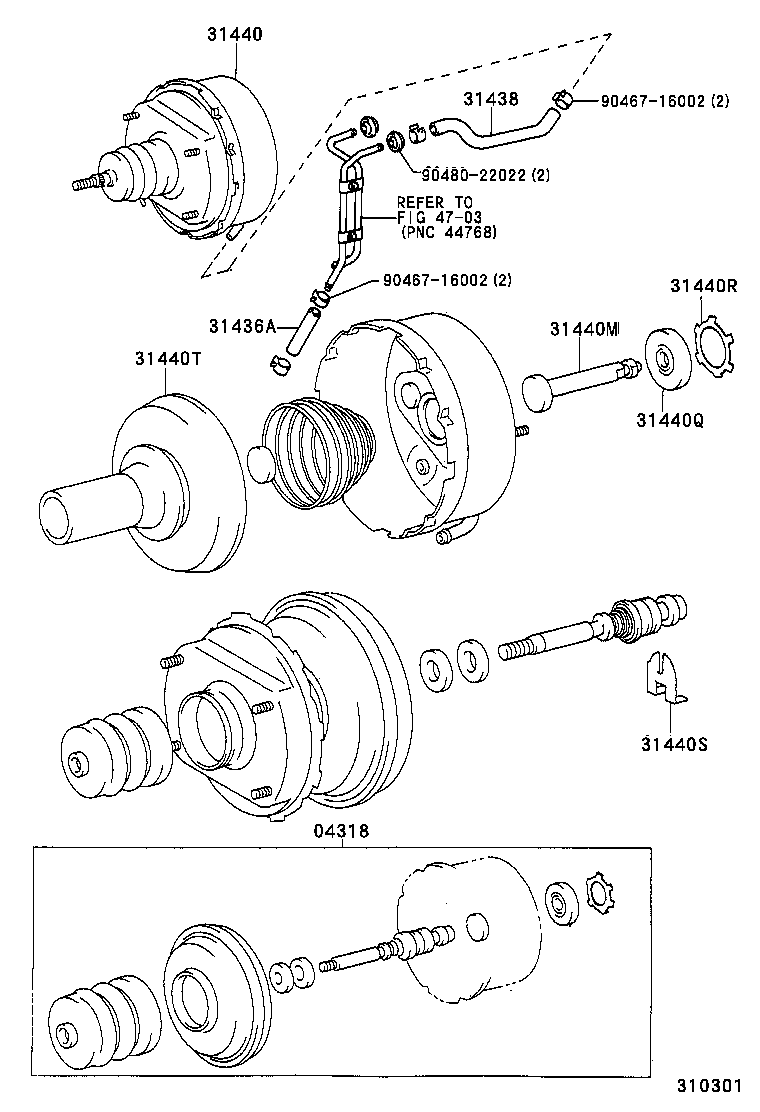

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04318 | Booster Kit, Clutch |
| 31436A | Hose, NO.1(FOR CLUTCH BOOSTER VACUUM) |
| 31438 | Hose, NO.3(FOR CLUTCH BOOSTER VACUUM) |
| 31440 | Booster Assy, Clutch W/Air Cleaner |
| 31440M | Rod Sub-assy, Clutch Booster Piston |
| 31440Q | Gasket, Brake Booster Bracket |
| 31440R | Ring, Circular Intern(FOR CLUTCH BOOSTER AIR VALVE) |
| 31440S | Key, Valve Stopper(FOR CLUTCH BOOSTER) |
| 31440T | Piston, Booster(FOR CLUTCH BOOSTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
