Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01

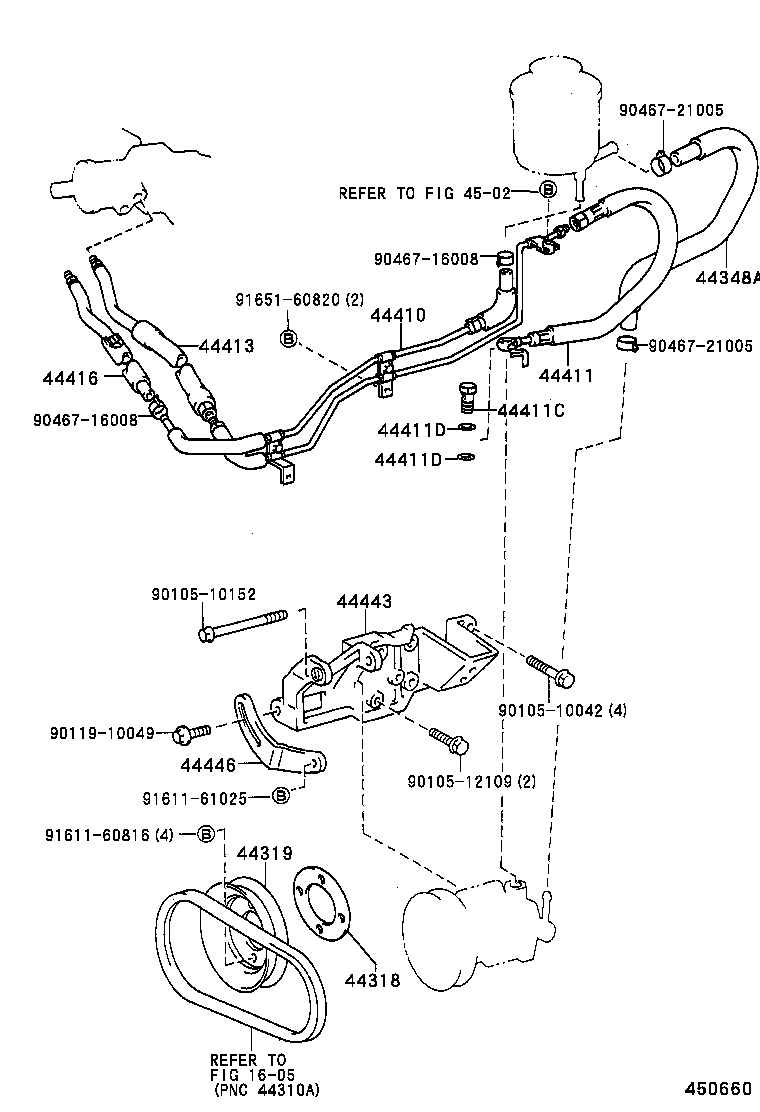

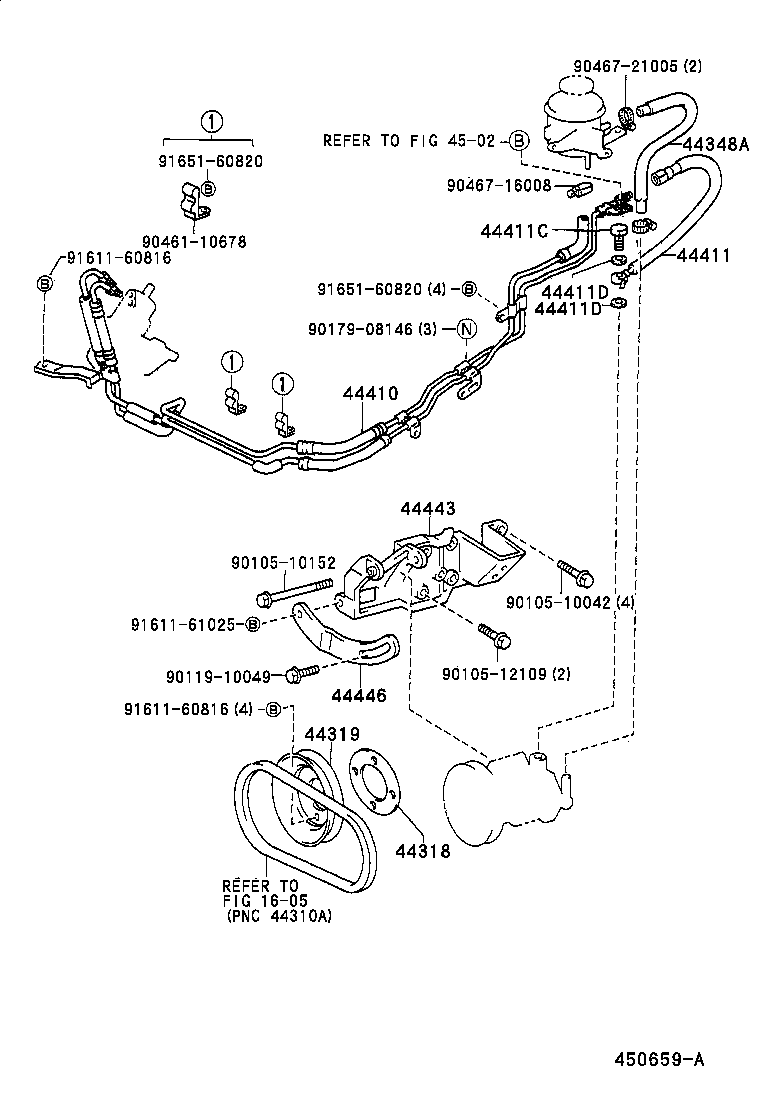

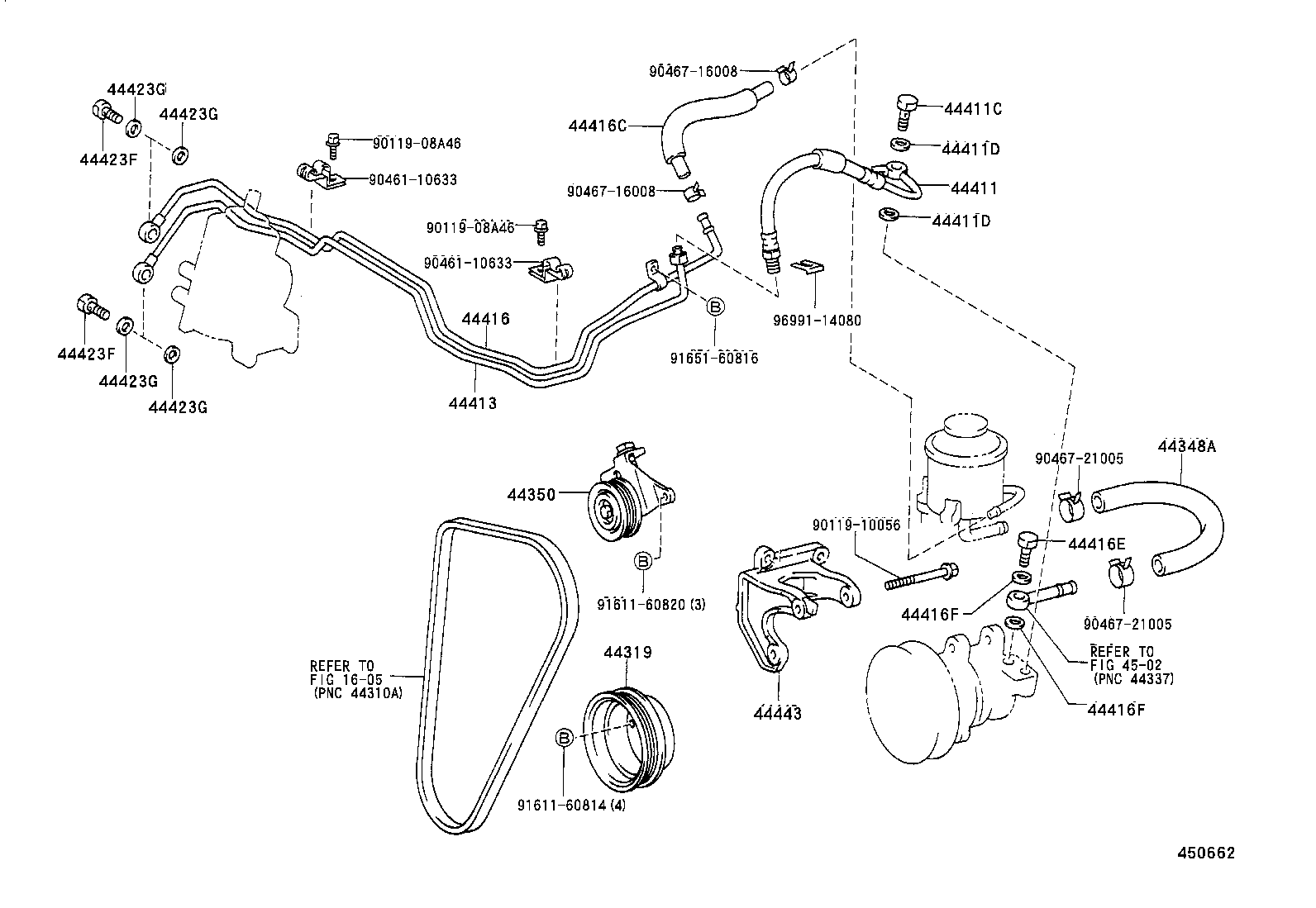

Power Steering Tube
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44350 | Pulley Assy, Power Steering Idle |
| 44369 | Bracket, Oil Reservoir, NO.1 |
| 44379 | Bracket, Oil Reservoir, NO.2 |
| 44386A | Support, Oil Reservoir |
| 44389 | Bracket, Oil Reservoir, NO.3 |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44411D | Gasket(FOR PRESSURE FEED HOSE) |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44416C | Hose(FOR RETURN TUBE TO RESERVIOR) |
| 44416E | Bolt, Union(FOR RETURN TUBE) |
| 44416F | Gasket(FOR RETURN TUBE) |
| 44423 | Tube, Oil Pump TO Gear Box |
| 44423F | Bolt, Union |
| 44423G | Gasket, Union Bolt |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
| 44447A | Bracket, Hose Support, NO.1 |
| 44457B | Bracket, Power Steering Tube Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
