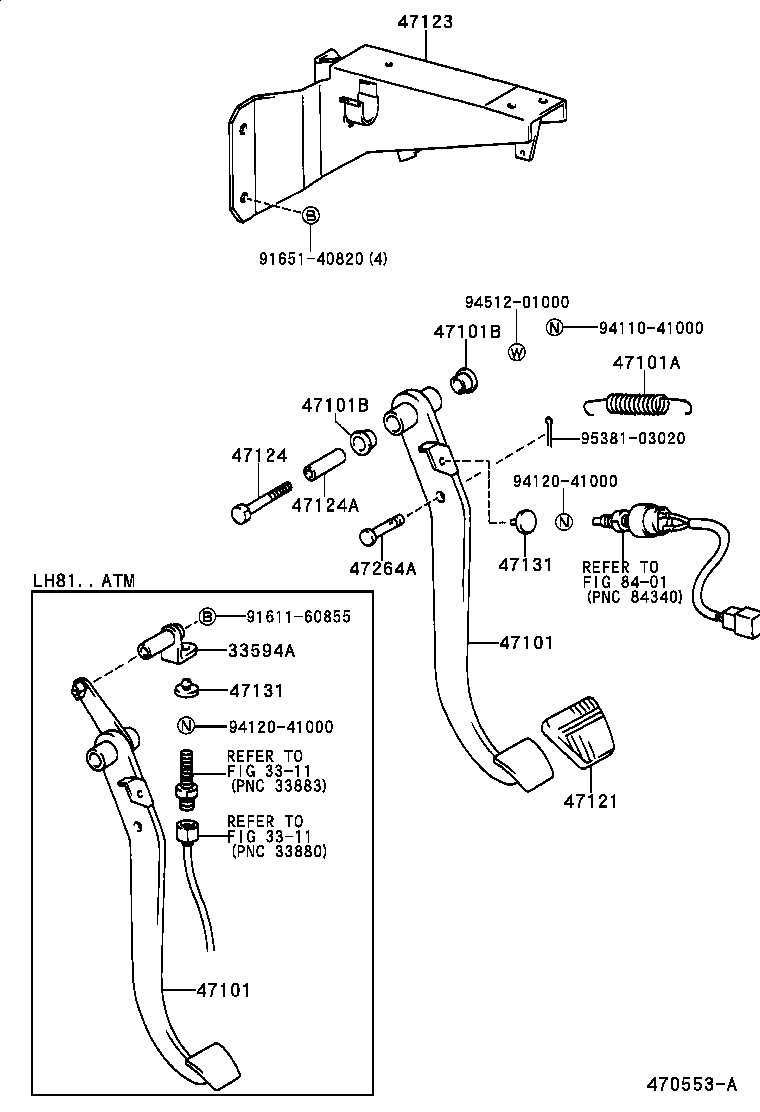

Brake Pedal & Bracket
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33594A | Plate, Shift Lock |
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47121 | Pad, Brake Pedal |
| 47123 | Bracket, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
| 55150 | Bracket Assy, Pedal |
| 55159 | Stay, Pedal Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
