Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01
Rear Drum Brake Wheel Cylinder & Backing Plate

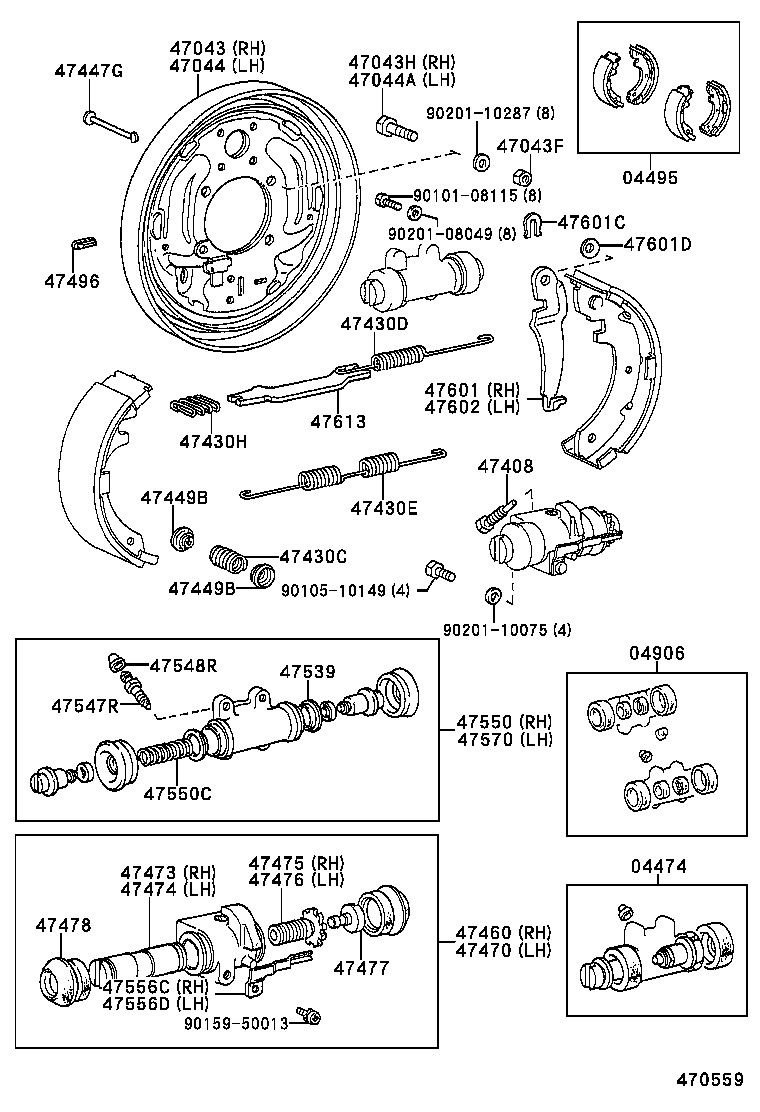

50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043H | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE RH) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47044A | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE LH) |
| 47408 | Bolt Sub-assy, Retracting Spring Clamp |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430H | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47473 | Nut, Rear Wheel Cylinder Adjusting, RH(FOR REAR BRAKE) |
| 47474 | Nut, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47477 | Piece, Shoe Support (FOR REAR BRAKE) |
| 47478 | Boot, Adjuster Cylinder(FOR REAR BRAKE) |
| 47492B | Plug, Shoe Inspection(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47529S | Seal, Rear Brake Adjust Nut Dust, RH |
| 47529T | Seal, Rear Brake Adjust Nut Dust, LH |
| 47532A | Insert, Rear Wheel Cylinder Piston, RH |
| 47532B | Insert, Rear Wheel Cylinder Piston, LH |
| 47539 | Retainer, Wheel Cylinder Boot |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47549S | Seat, Rear Brake Automatic Adjust Nut, RH |
| 47549T | Seat, Rear Brake Automatic Adjust Nut, LH |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550H | Bolt(FOR REAR WHEEL CYLINDER) |
| 47550Q | Washer(FOR REAR WHEEL CYLINDER) |
| 47556C | Spring, Adjuster Lock, RH(FOR REAR BRAKE) |
| 47556D | Spring, Adjuster Lock, LH(FOR REAR BRAKE) |
| 47559D | Spring, Rear Brake Automatic Adjust Lever Support, RH |
| 47559E | Spring, Rear Brake Automatic Adjust Lever Support, LH |
| 47560 | Cylinder Assy, Rear Wheel Brake(FOR RH, REAR OR LOWER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47580 | Cylinder Assy, Rear Wheel Brake(FOR LH, REAR OR LOWER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47601D | Washer, Wave(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47613 | Strut, Parking Brake Shoe (FOR REAR BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
