1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01

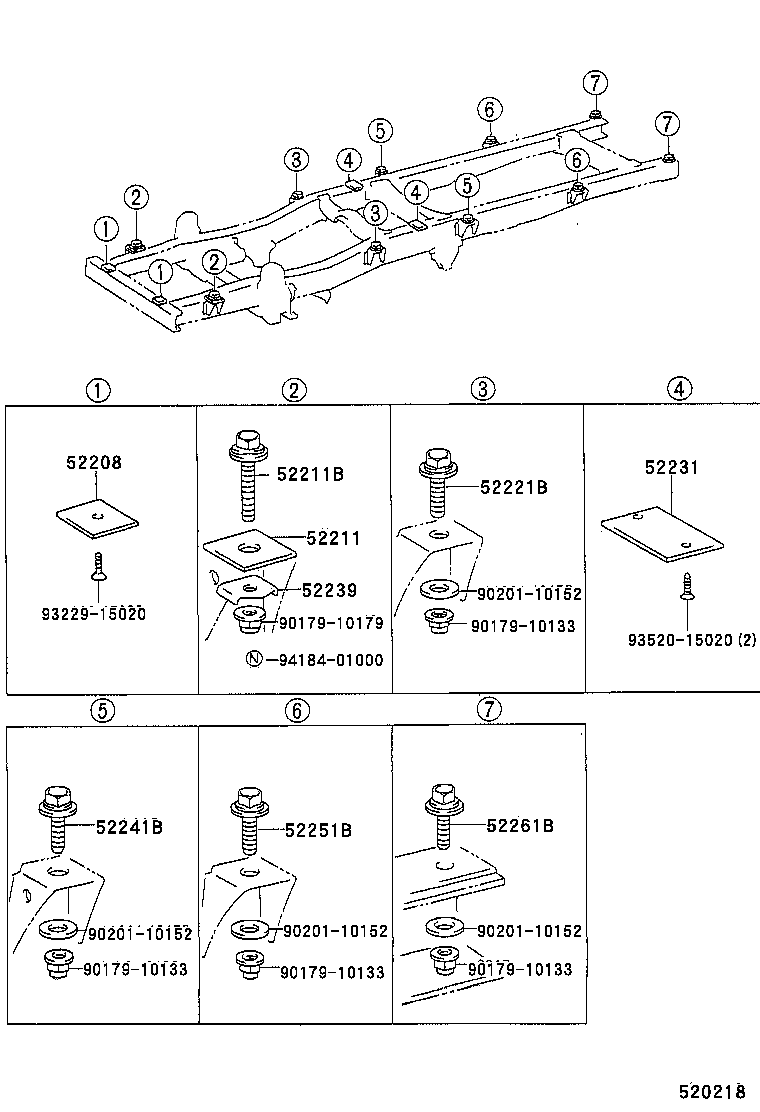

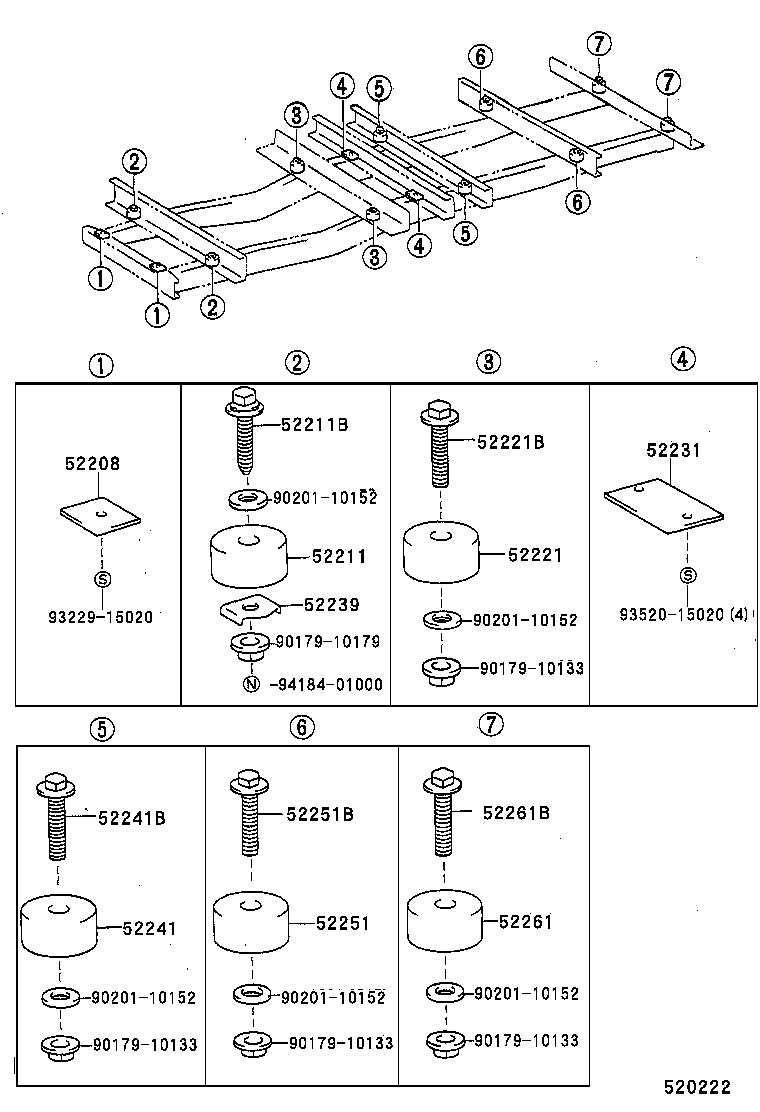

Cab Mounting & Body Mounting
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52208 | Shim Sub-assy, Body Mounting |
| 52211 | Cushion, Body Mounting, NO.1 Upper |
| 52211B | Bolt(FOR BODY MOUNTING NO.1 CUSHION) |
| 52221 | Cushion, Body Mount, NO.2 Upper |
| 52221B | Bolt(FOR BODY MOUNT NO.2 CUSHION) |
| 52226A | Cushion, Body Rear Mounting, Upper |
| 52231 | Cushion, Body Mount, NO.3 Upper |
| 52231B | Bolt(FOR BODY MOUNT NO.3 CUSHION) |
| 52239 | Plate, Body Mounting |
| 52241 | Cushion, Body Mount, NO.4 Upper |
| 52241B | Bolt(FOR BODY MOUNT NO.4 CUSHION) |
| 52251 | Cushion, Body Mount, NO.5 Upper |
| 52251B | Bolt(FOR BODY MOUNT NO.5 CUSHION) |
| 52261 | Bar, Tilt Cab Torsion |
| 52261B | Bolt(FOR BODY MOUNT NO.6 CUSHION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
