Front Fender Apron & Dash Panel

11 part groups · 2 illustrations

Illustrations

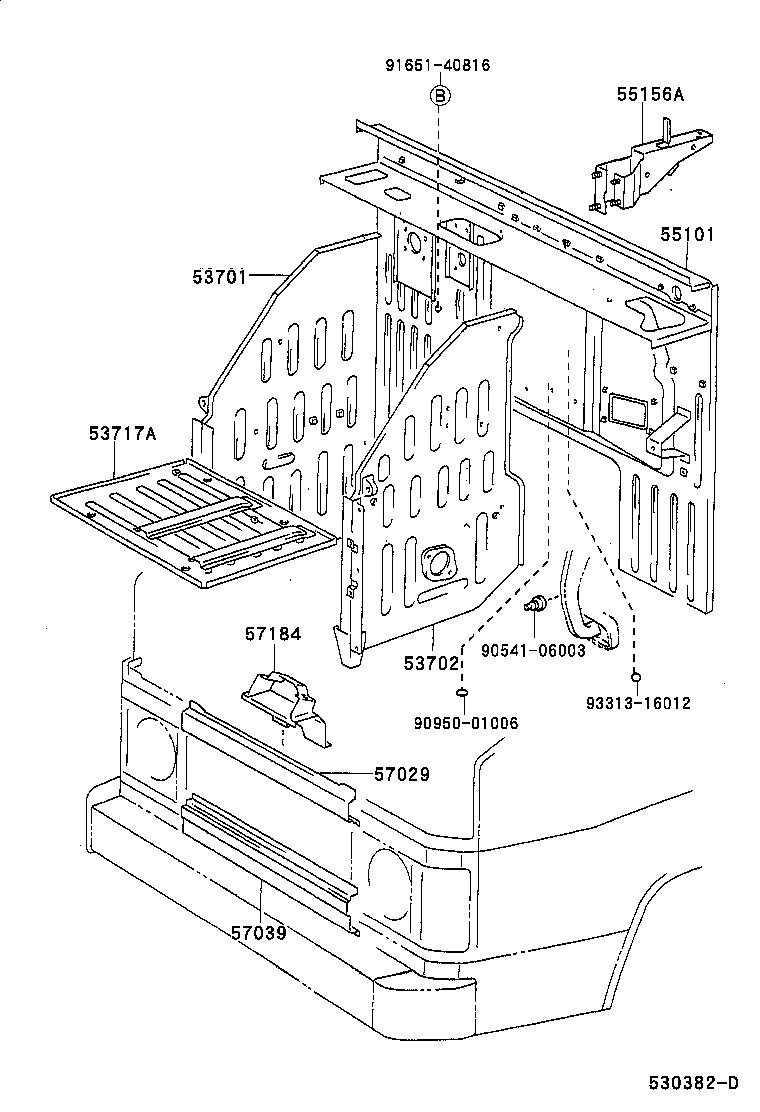

Figure 530381 530381 1995-05 → — Figure 530382D 530382D 1995-05 → —

Part groups

PNCDescription
53217A Brace, Hood Lock Support
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53705A Brace Sub-assy, Fender Apron, RH
53717A Plate, Fender Apron
53777A Support, Battery Carrier, NO.2
55101 Panel Sub-assy, Dash
55156A Bracket, Instrument Panel
57029 Member Sub-assy, Front Cross, Upper
57039 Member Sub-assy, Front Cross, Lower
57184 Bracket, Hood Lock Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
