Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01

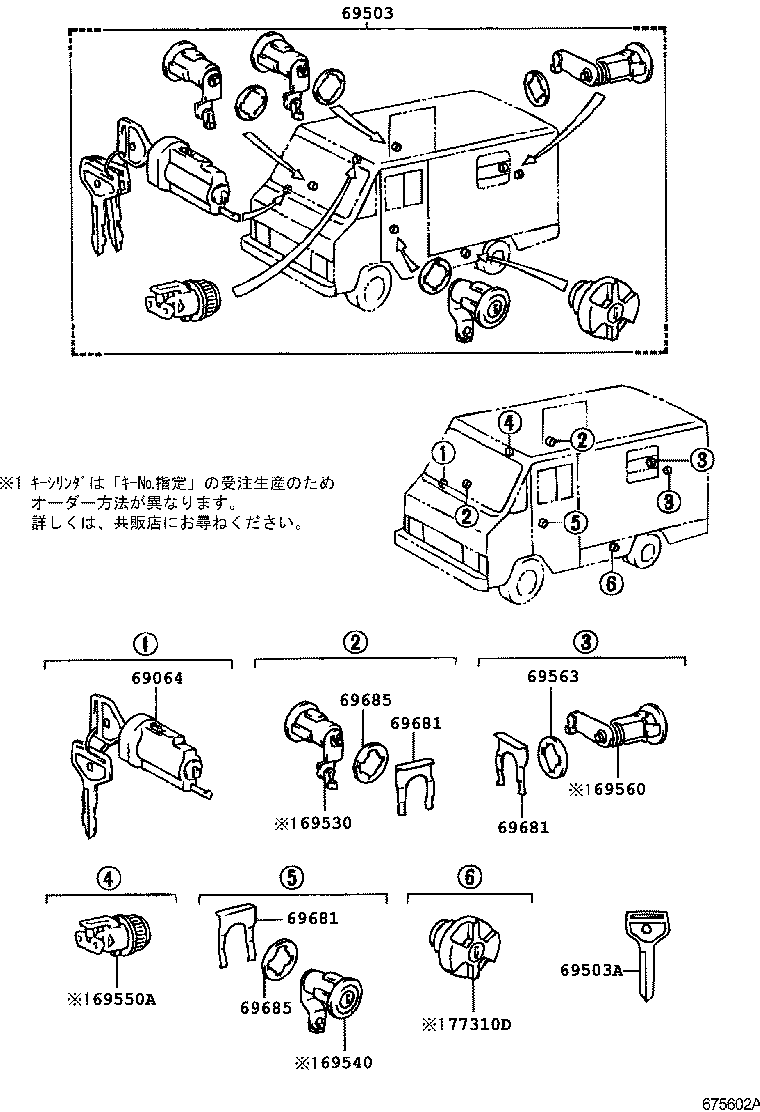

Lock Cylinder Set
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69530 | Cylinder Assy, Slide Door Lock, RH |
| 69540 | Cylinder Assy, Slide Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69560 | Cylinder Assy, Back Door Lock |
| 69563 | Pad, Back Door Lock Cylinder |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 69685 | Pad, Lock Cylinder |
| 77310D | Cap Assy, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
