Toyota Quick Delivery

1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

15 part groups · 3 illustrations

Illustrations

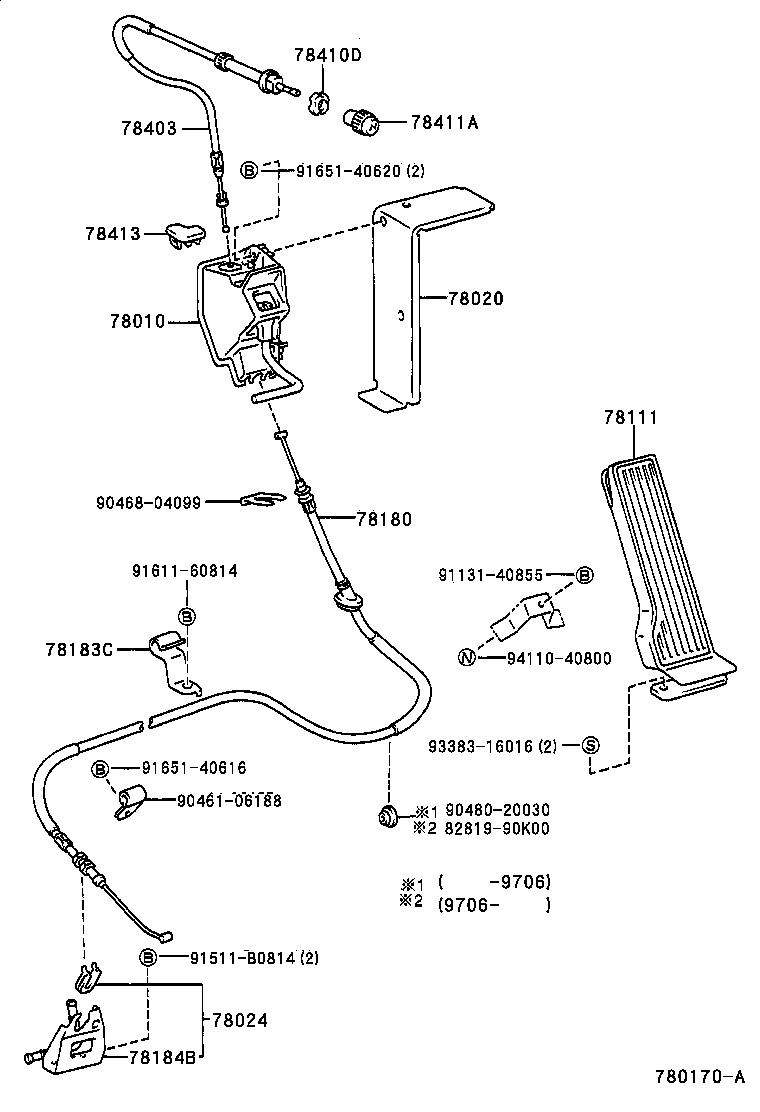

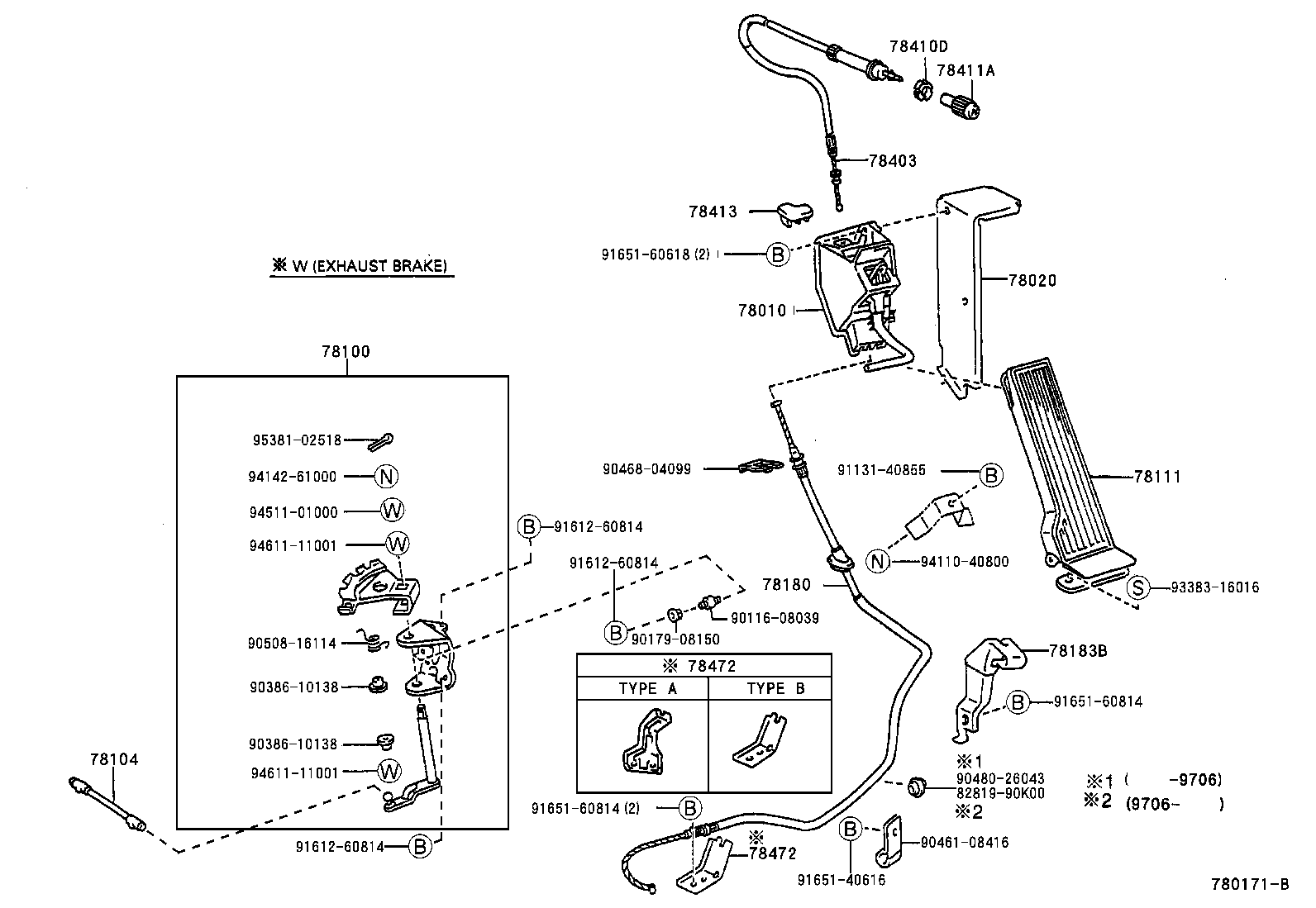

Figure 780169A 780169A 1995-05 → — Figure 780170A 780170A 1996-10 → — Figure 780171B 780171B 1995-05 → —

Part groups

PNCDescription
78010 Link, Accelerator
78020 Bracket Assy, Accelerator Control
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78403 Cable Sub-assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78413 Cover, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
