Toyota Quick Delivery

1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 9 illustrations

Illustrations

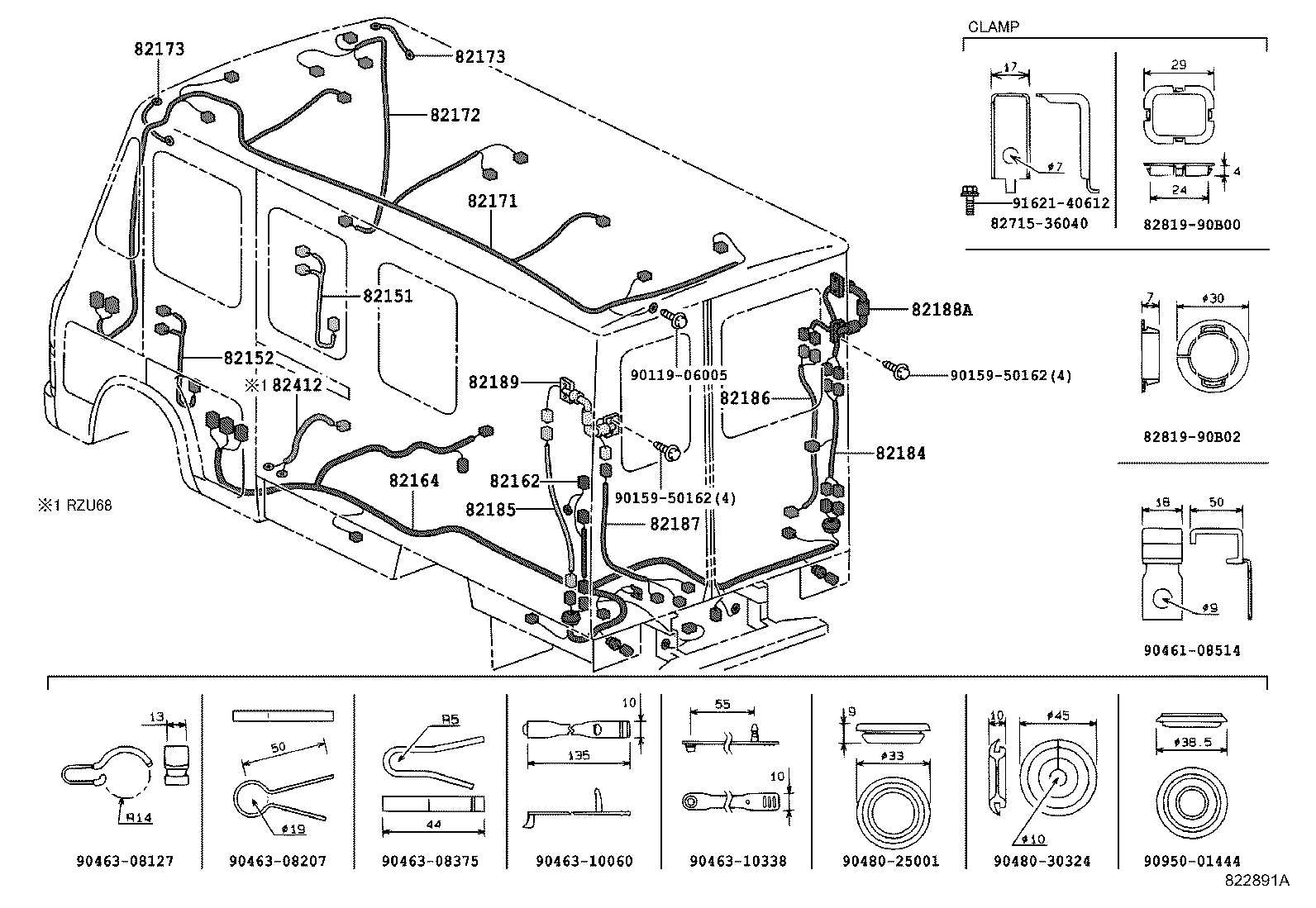

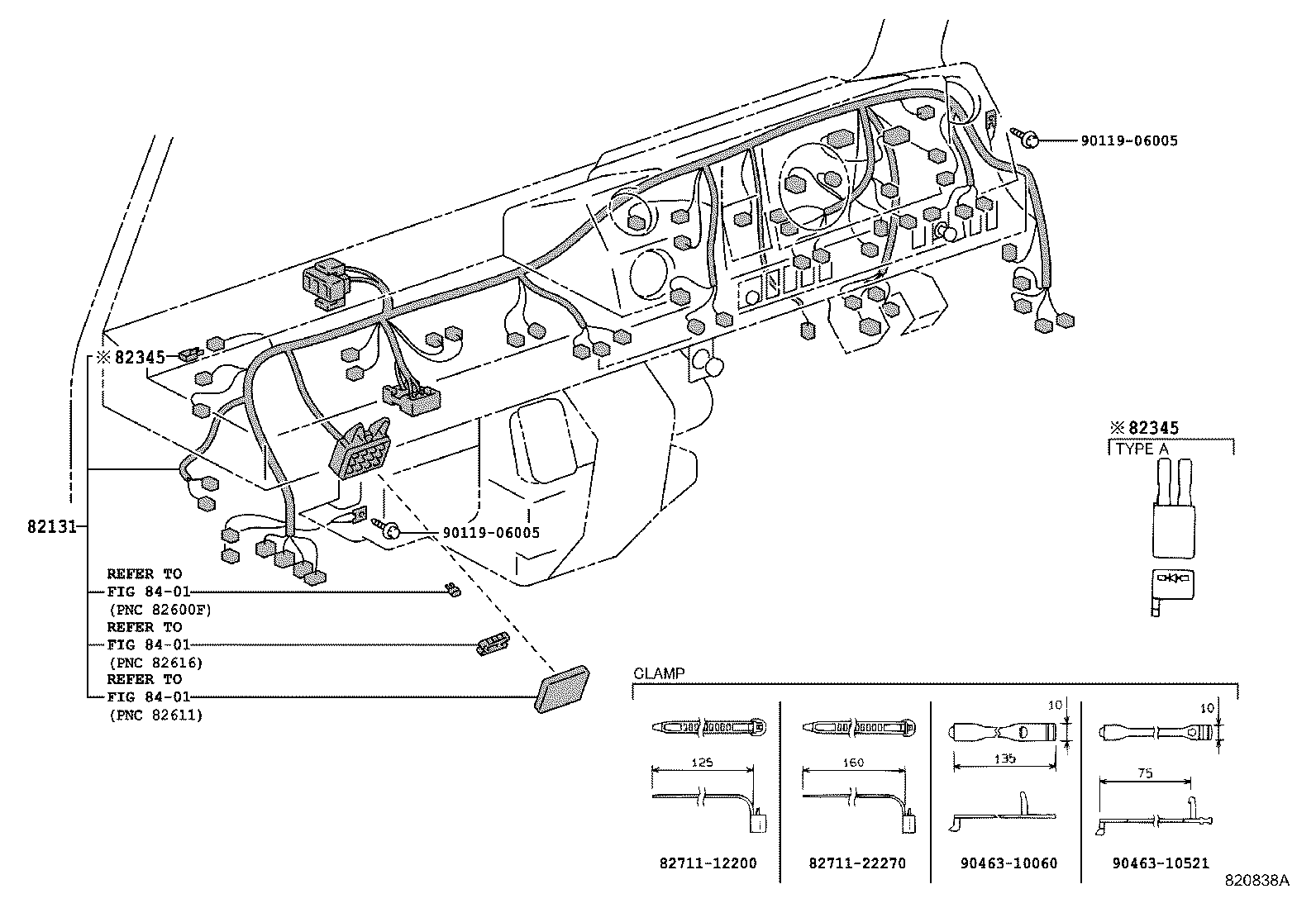

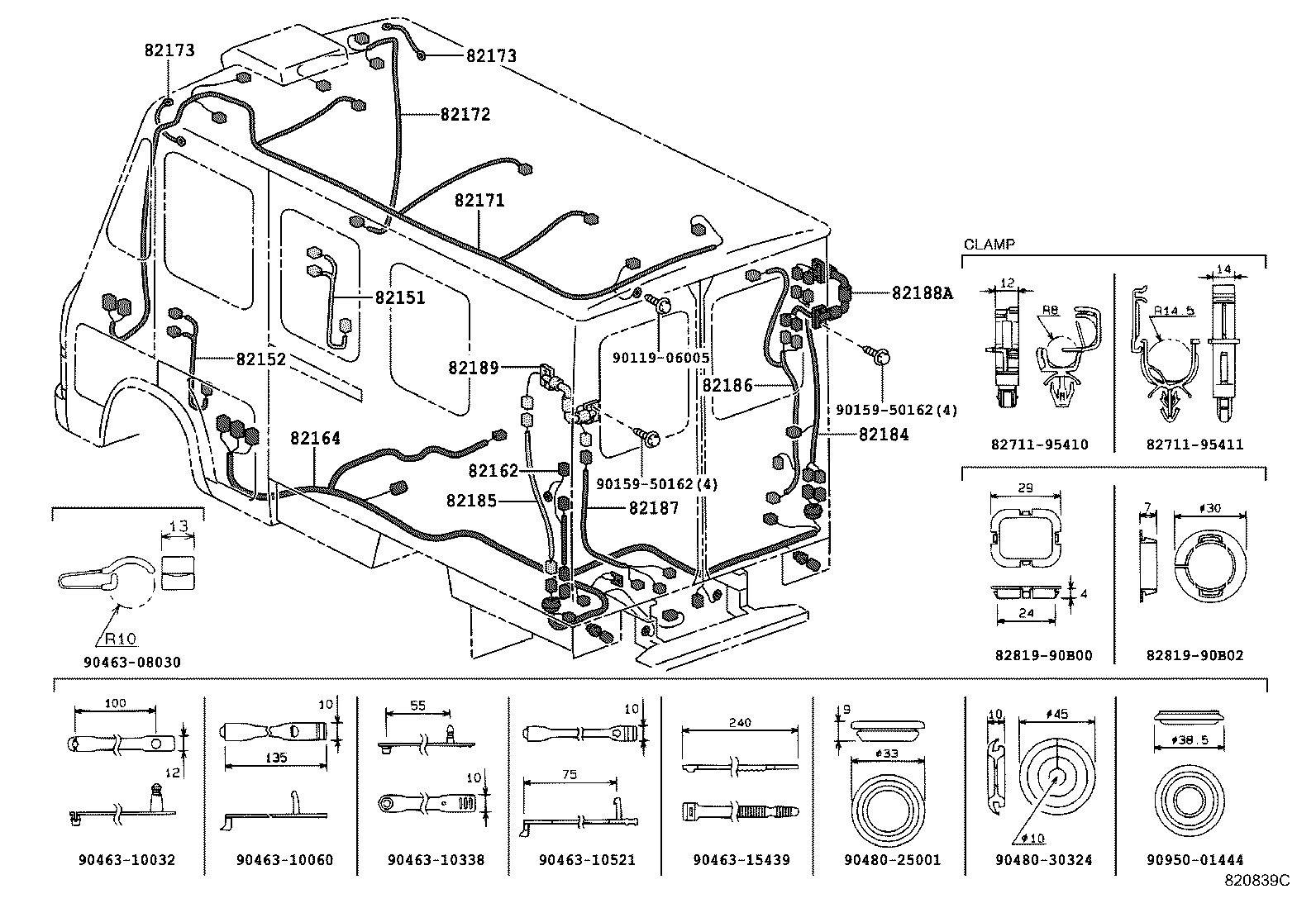

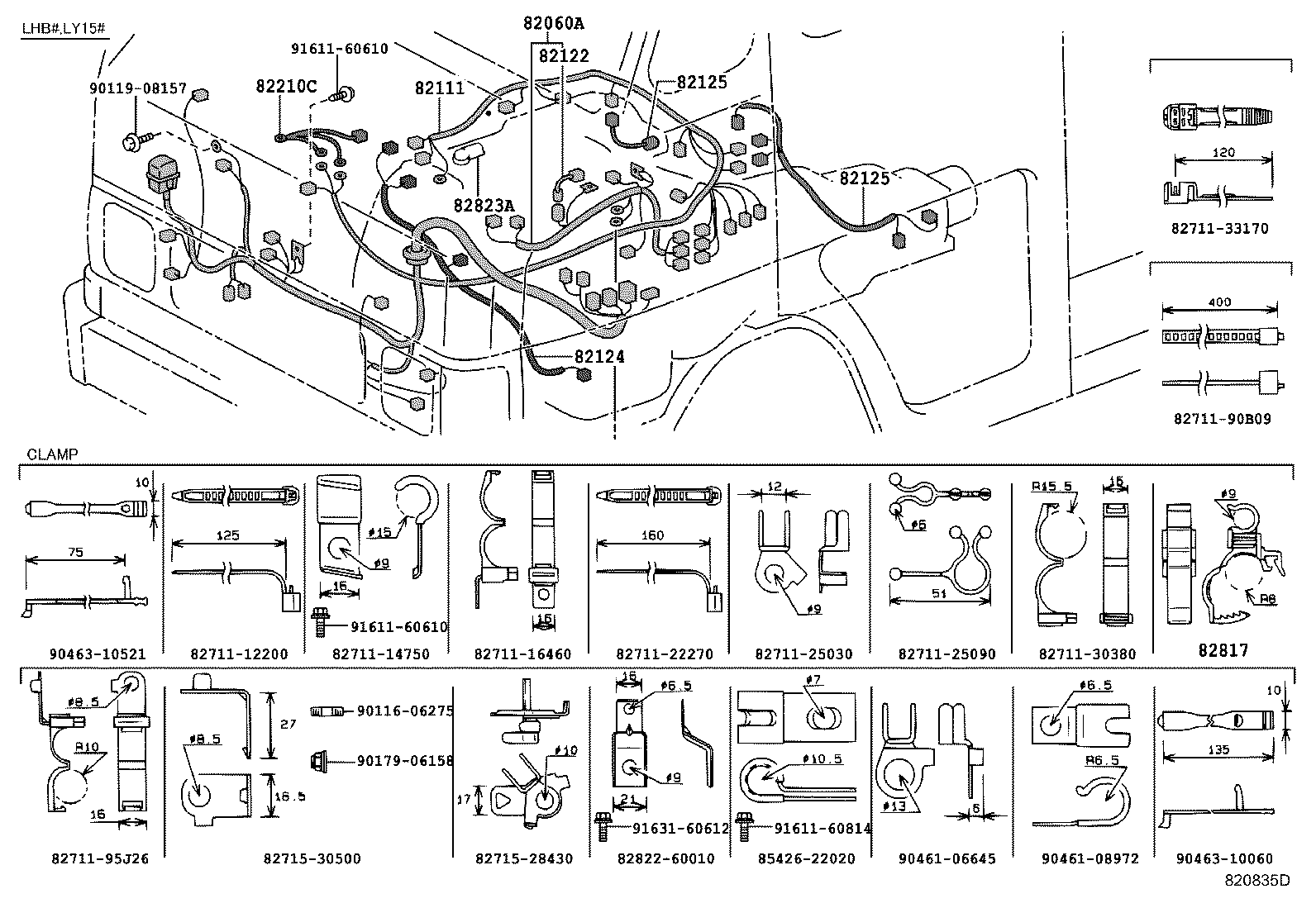

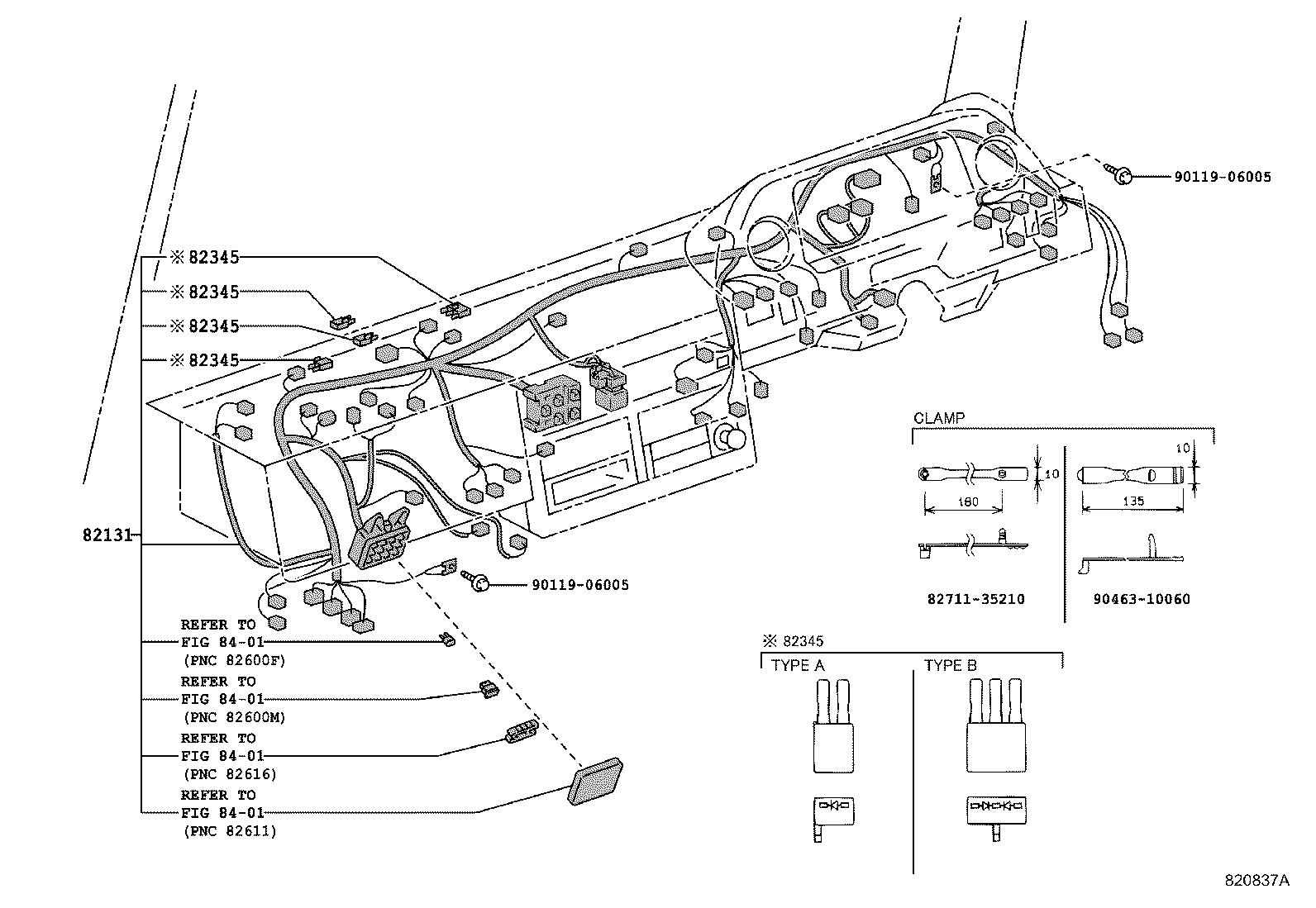

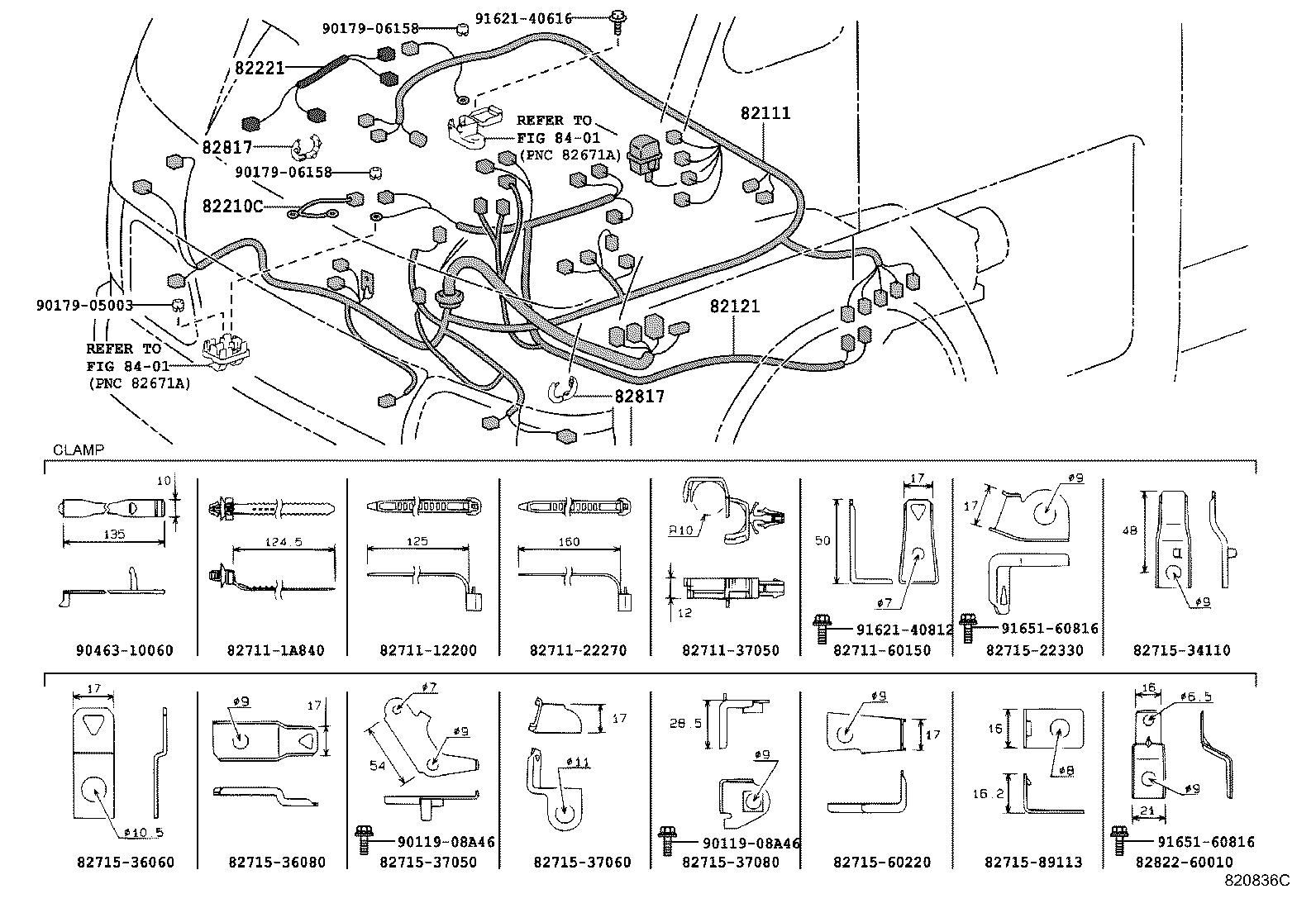

Figure 820834A 820834A 1995-05 → — Figure 820835D 820835D 1995-05 → — Figure 820836C 820836C 1996-10 → — Figure 820837A 820837A 1995-05 → — Figure 820837A 820837A 1996-10 → — Figure 820838A 820838A 1995-05 → — Figure 822891A 822891A 1995-05 → — Figure 822891A 822891A 1996-10 → — Figure 820839C 820839C 1995-05 → —

Part groups

PNCDescription
82060A Wire Assy, Engine, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82261A Wire, Alternator
82345 Diode
82412 Wire, Fuel Gage
82817 Protector, Wiring Harness, NO.1
82823A Cap, Terminal, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
