1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

26 part groups · 9 illustrations

Illustrations

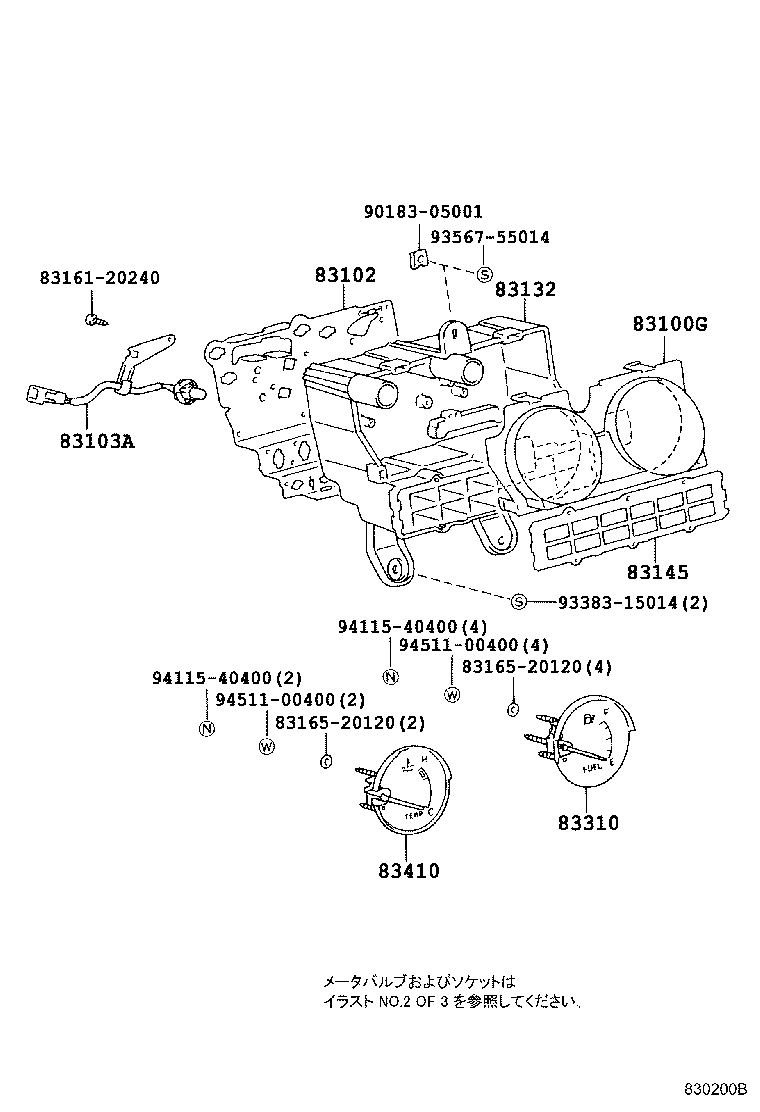

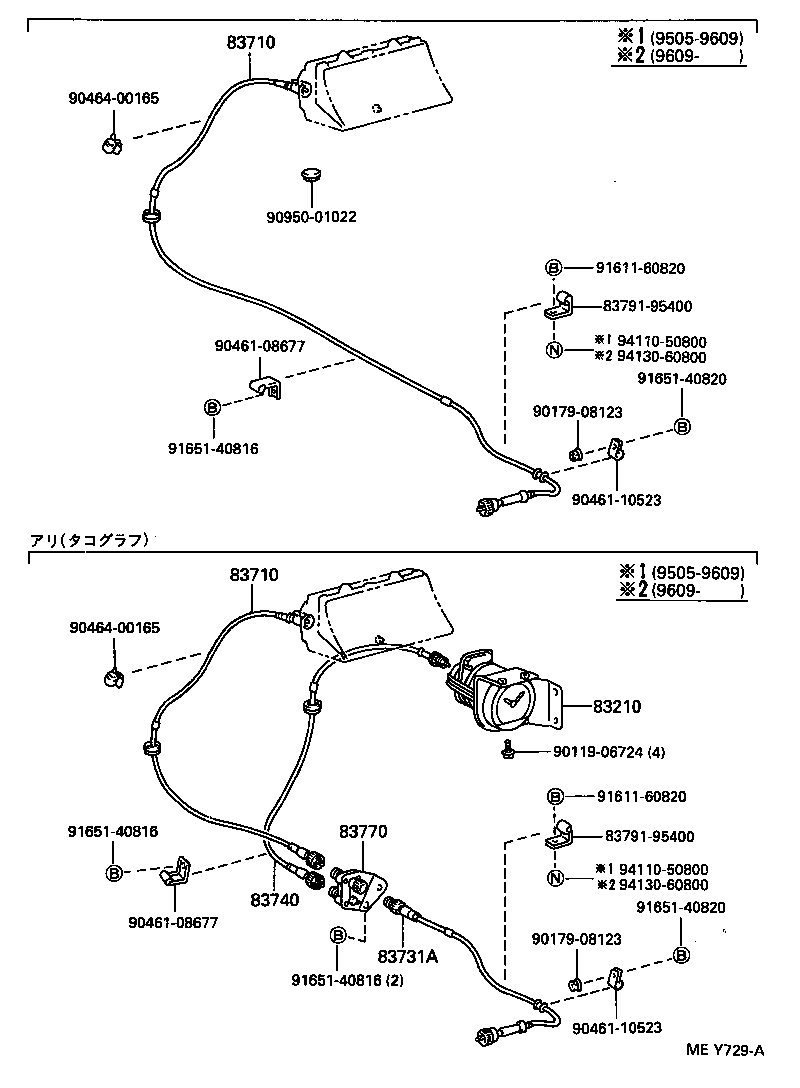

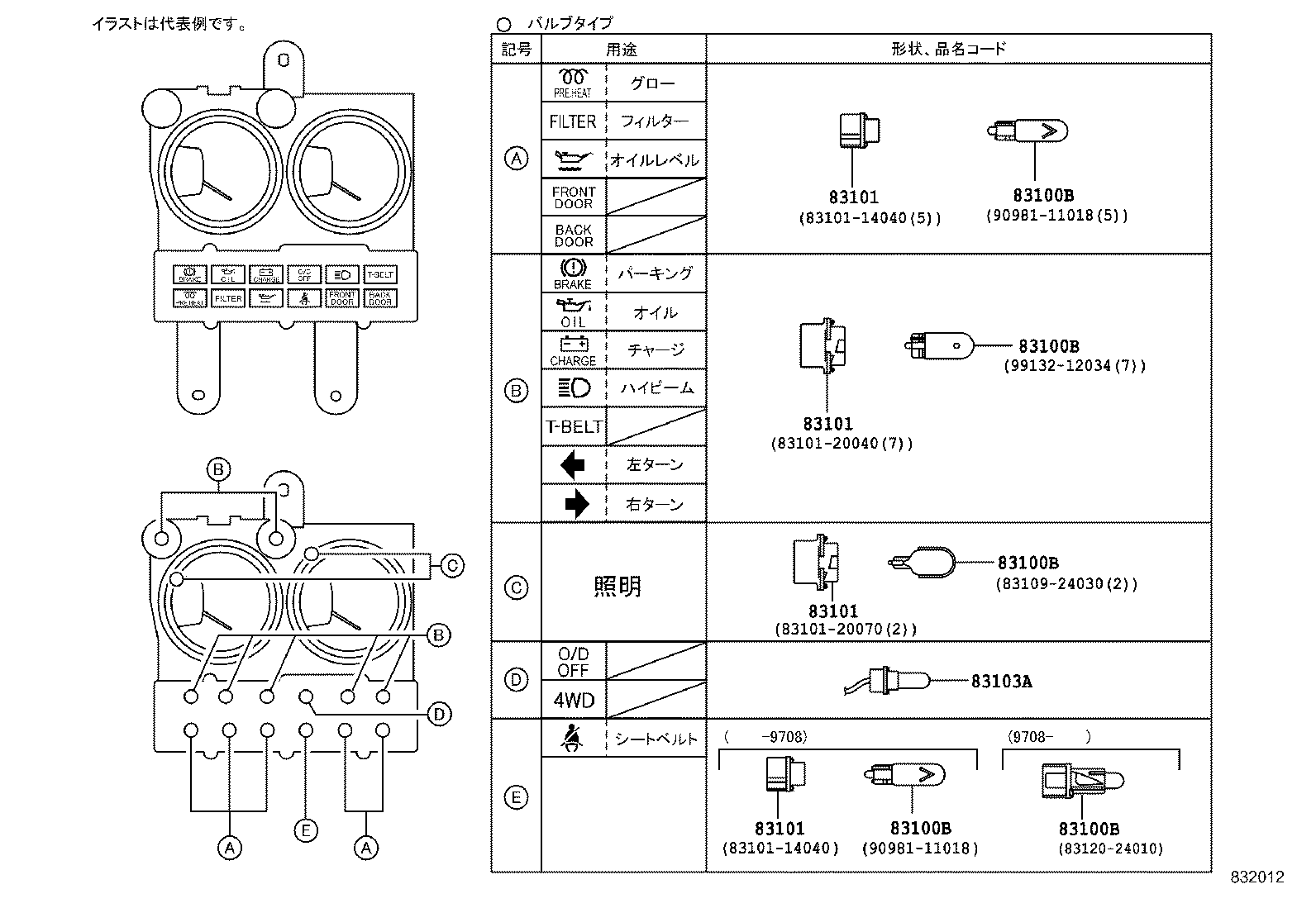

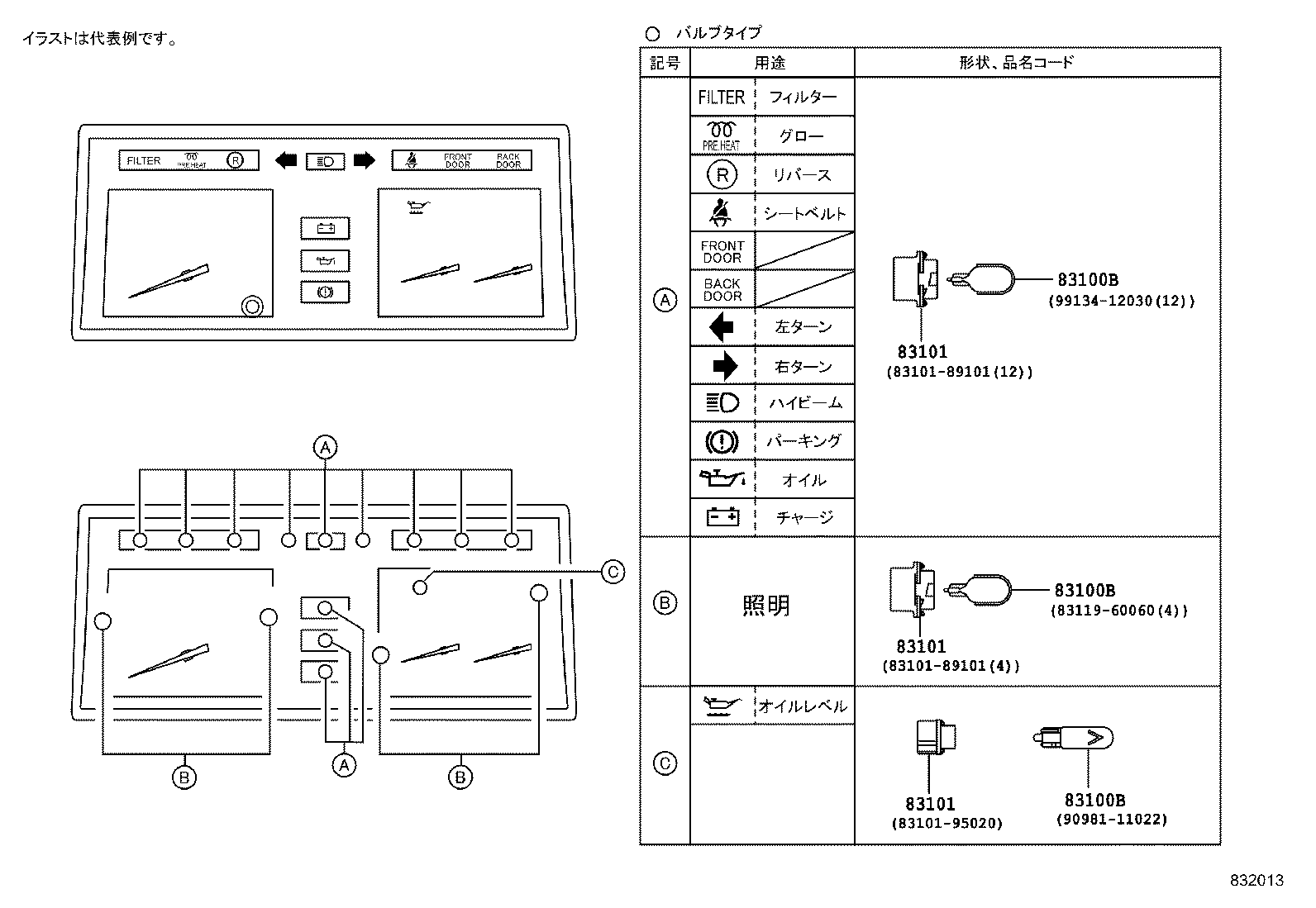

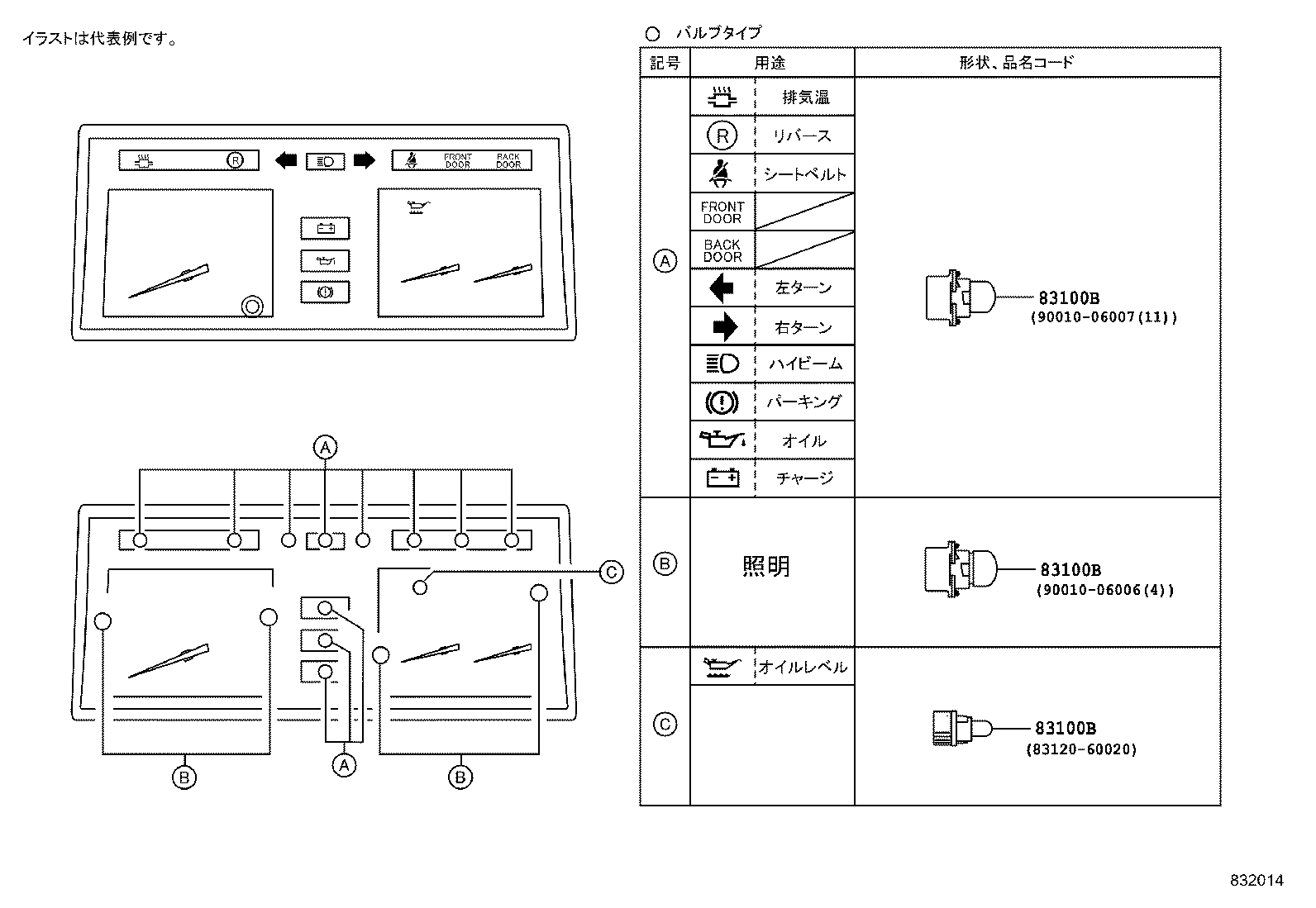

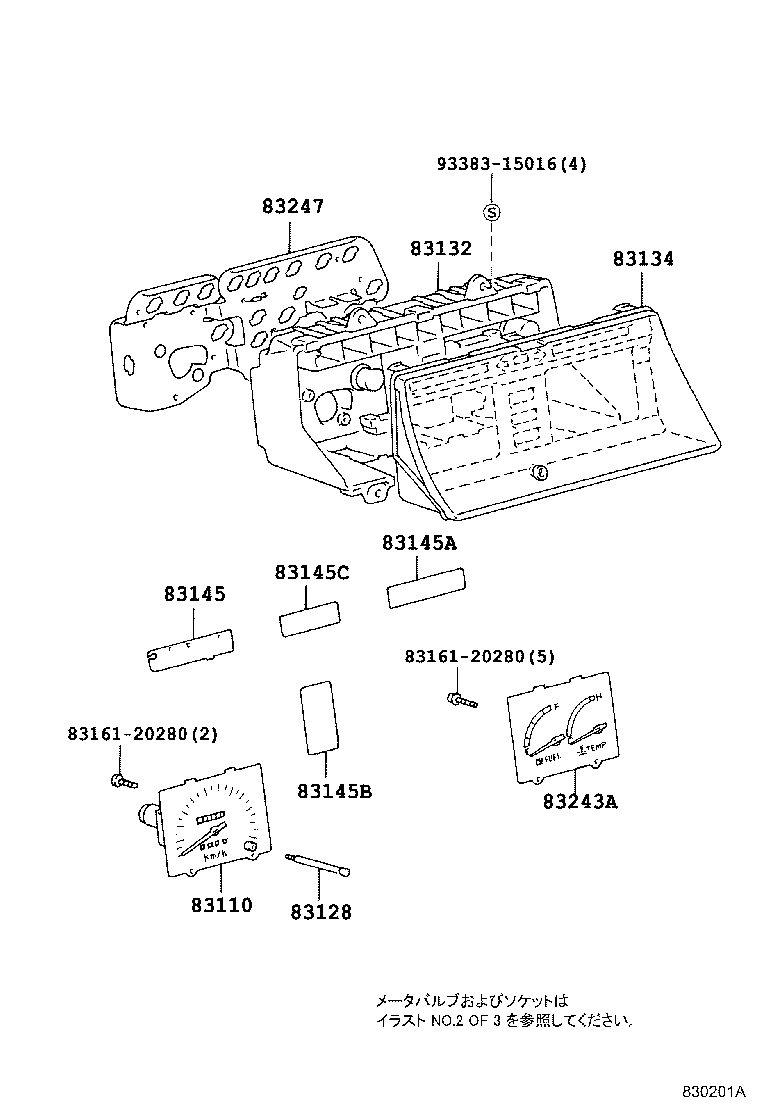

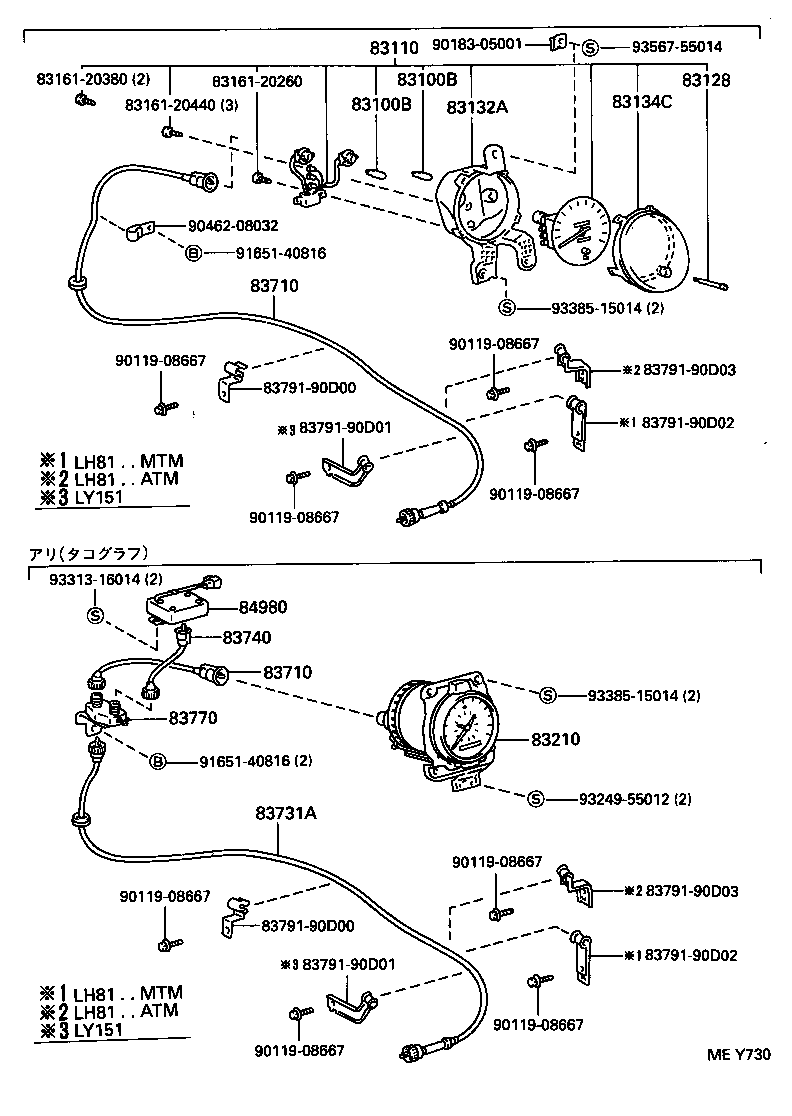

Figure 830199A 830199A 1995-05 → — Figure 830200B 830200B 1995-05 → — Figure 830201A 830201A 1996-10 → — Figure 832013 832013 1995-05 → — Figure 832012 832012 1995-05 → — Figure 832014 832014 1996-10 → — Figure MEY729A MEY729A 1995-05 → — Figure MEY730 MEY730 1995-05 → — Figure NE2704 NE2704 1996-10 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103A Lamp Sub-assy, Meter
83110 Speedometer Assy
83128 Knob, Trip Counter
83131B Droper, Meter
83132 Case, Combination Meter
83132A Case, Meter
83134 Cover, Combination Meter, NO.1
83134C Cover, Speedometer
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83210 Tachograph Assy
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83731A Cable, Speed Control
83740 Cable Assy, Tachograph Drive
83770 Adapter Assy, Speedometer Cable
84980 Switch Assy, Timing Belt Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
