Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01

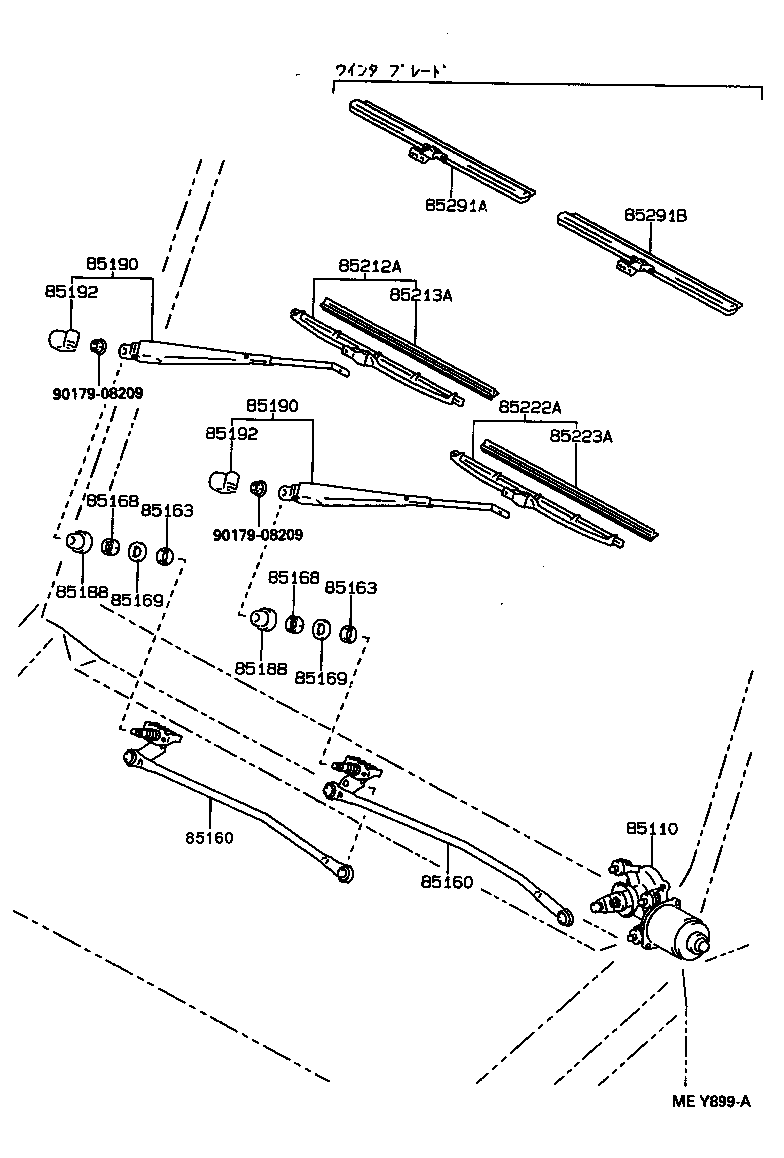

Windshield Wiper
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85070 | Motor & Bracket Assy, Front Wiper |
| 85110 | Motor Assy, Windshield Wiper |
| 85112A | Cover, Windshield Wiper Shaft, NO.1 |
| 85150B | Link Assy, Wiper |
| 85154 | Packing, Front Wiper Shaft |
| 85160 | Link Assy, Windshield Wiper |
| 85161B | Rod, Windoshield Wiper Link |
| 85163 | Packing, Windshield Wiper Pivot |
| 85168 | Nut, Windshield Wiper Link Pivot |
| 85169 | Washer, Windshield Wiper Link Pivot, NO.1 |
| 85188 | Cap, Windshield Wiper Pivot, NO.1 |
| 85190 | Arm Assy, Windshield Wiper |
| 85192 | Cover, Windshield Wiper Arm |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85213A | Rubber, Wiper Blade, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85223A | Rubber, Front Wiper Blade, LH |
| 85224A | Plate, Wiper Rubber Backing, NO.1 |
| 85224B | Plate, Wiper Rubber Backing, NO.2 |
| 85224C | Plate, Wiper Rubber Backing, NO.3 |
| 85224D | Plate, Wiper Rubber Backing, NO.4 |
| 85291A | Blade, Front Wiper, Winter, RH |
| 85291B | Blade, Front Wiper, Winter, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
