1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 3 illustrations

Illustrations

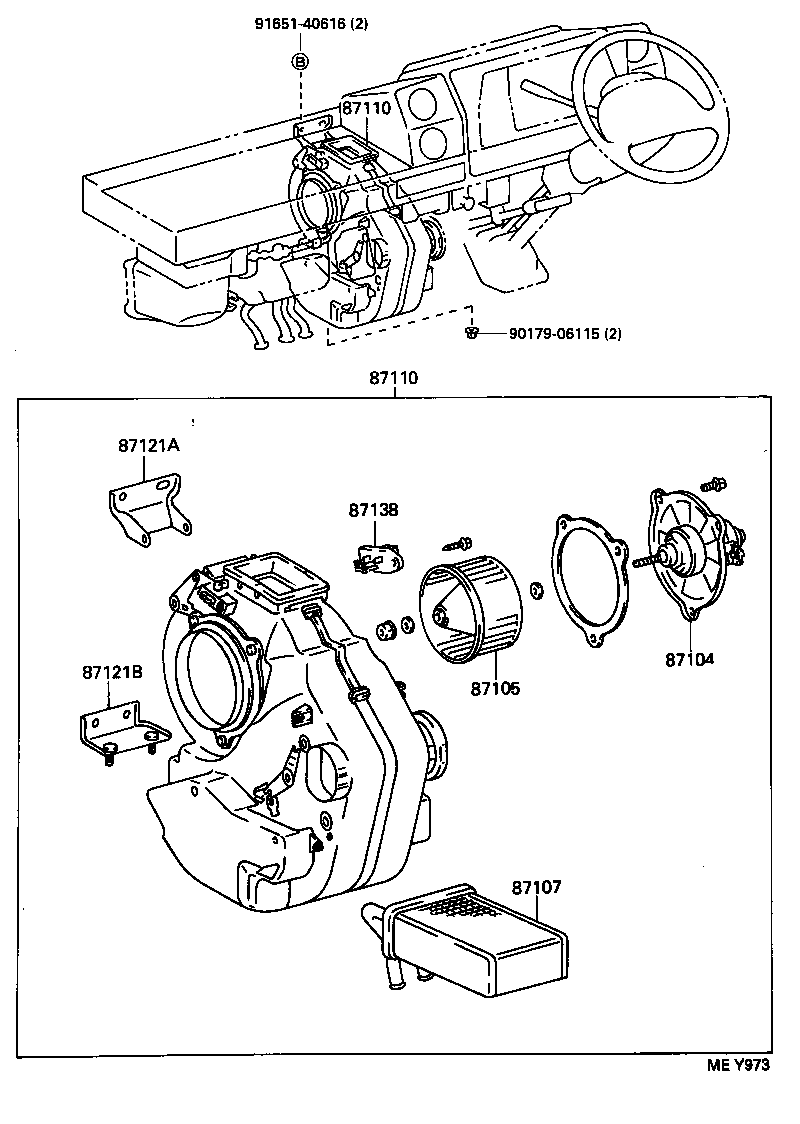

Figure 871357A 871357A 1995-05 → — Figure 871357A 871357A 1996-10 → — Figure MEY973 MEY973 1995-05 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87121A Bracket, Heater
87121B Bracket, Heater
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87214N Bracket, Air Duct, NO.1
87214P Bracket, Air Duct, NO.2
87214Q Bracket, Air Duct, NO.3
87236A Cover, Heater Blower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
