Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01

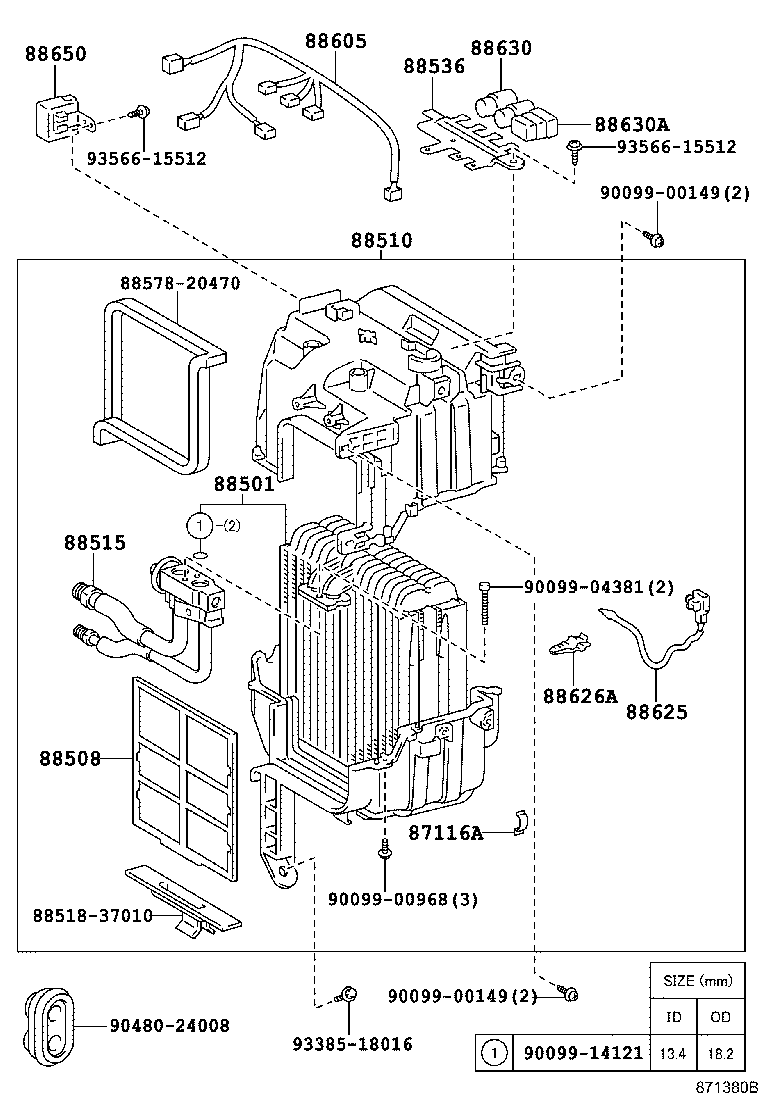

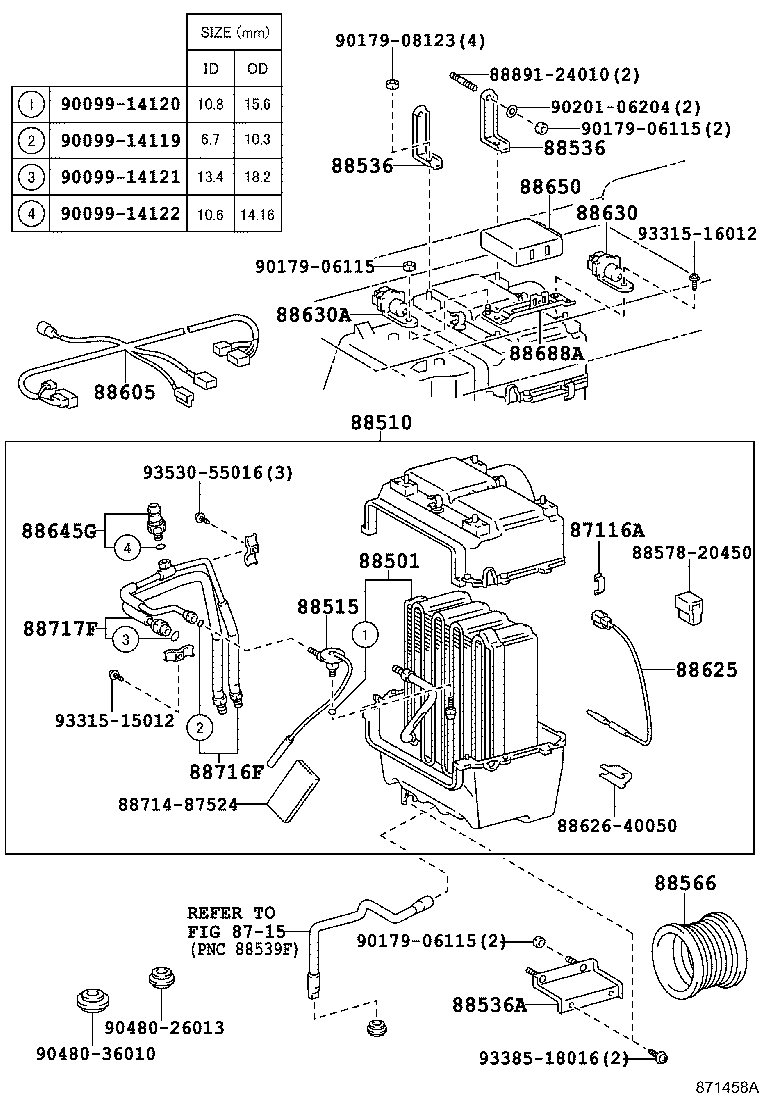

Heating & Air Conditioning - Cooler Unit
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82650E | Breaker Assy, Wiring Circuit |
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88508 | Filter Sub-assy, Clean Air |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88566 | Duct, Cooler Air, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88626A | Holder, Thermistor |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88645G | Switch, Pressure |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88717F | Pipe, Cooler Refrigerant Suction, F |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
