Toyota Quick Delivery
1995-05 → 2001-08 · chassis BU68,LH81,82,LY151,152,RZU68 · catalogue 721130 · Japan
Discontinued model
Data version 2002-01

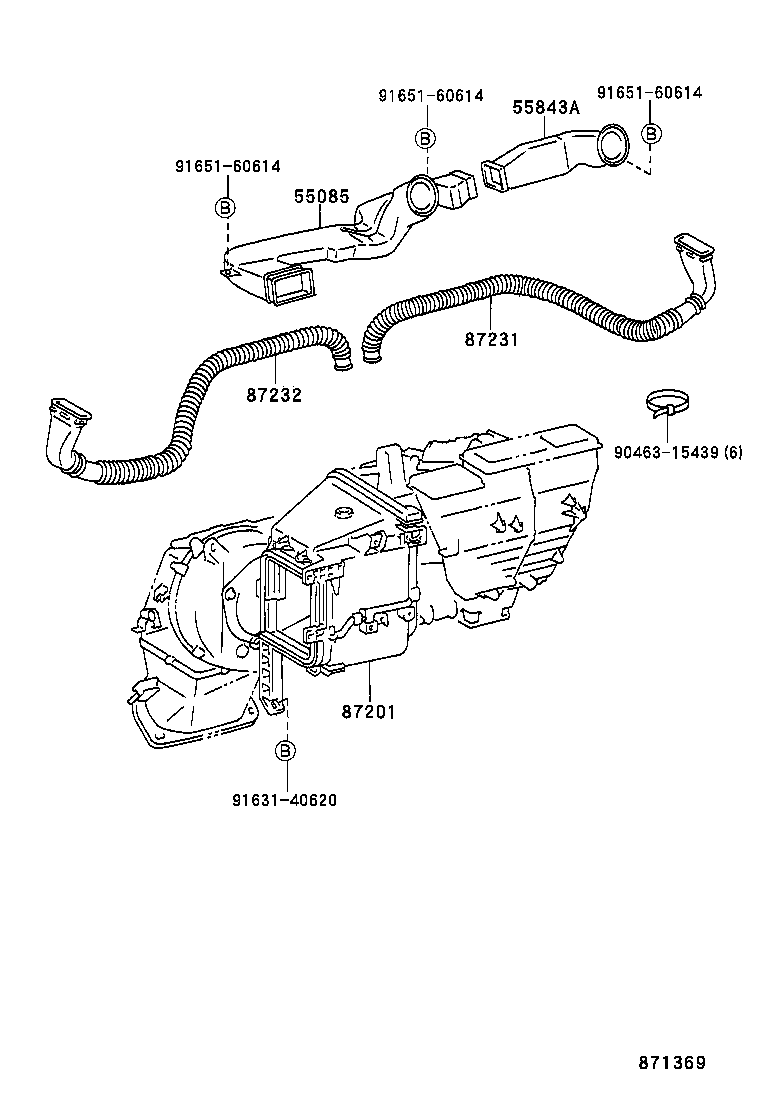

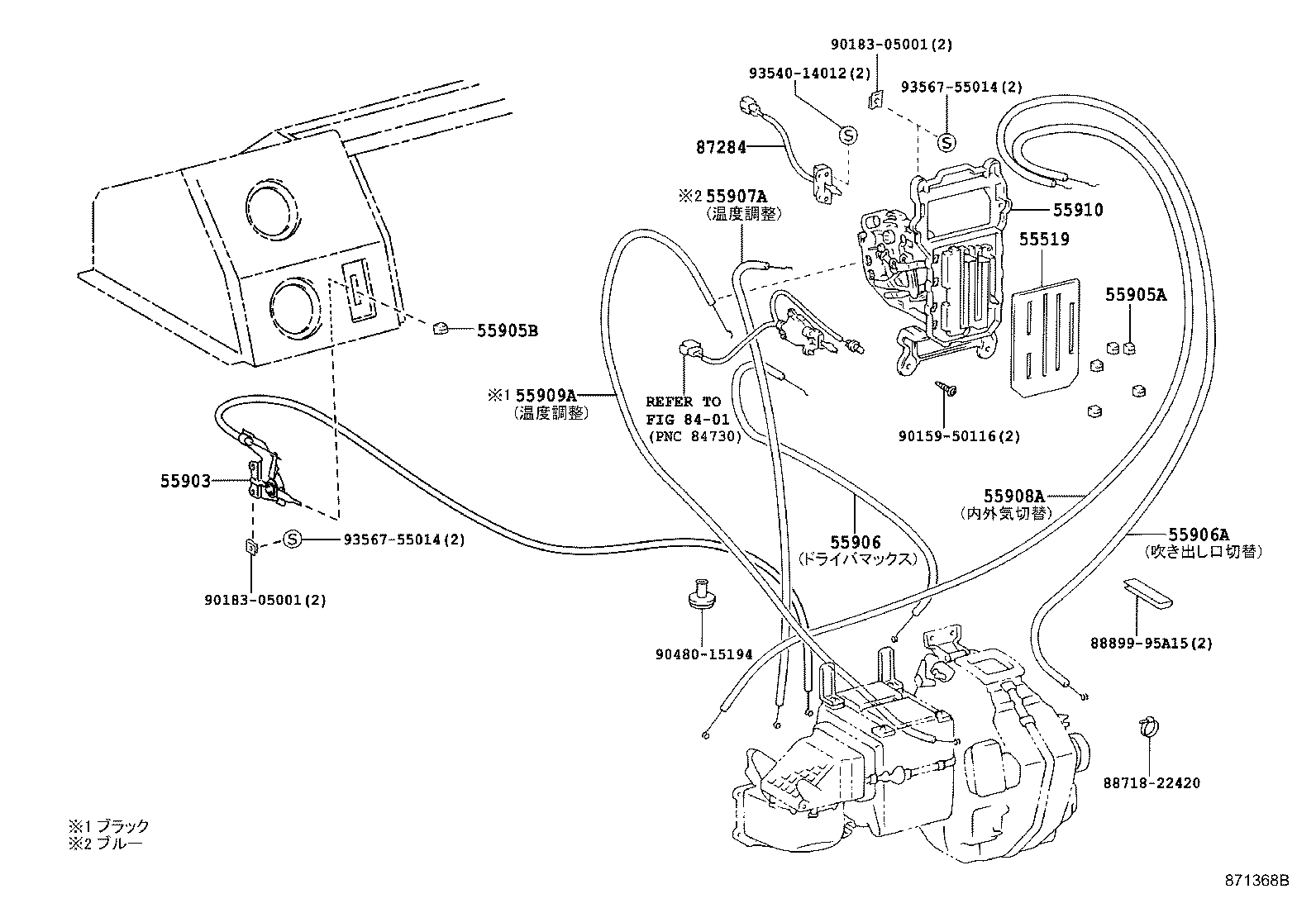

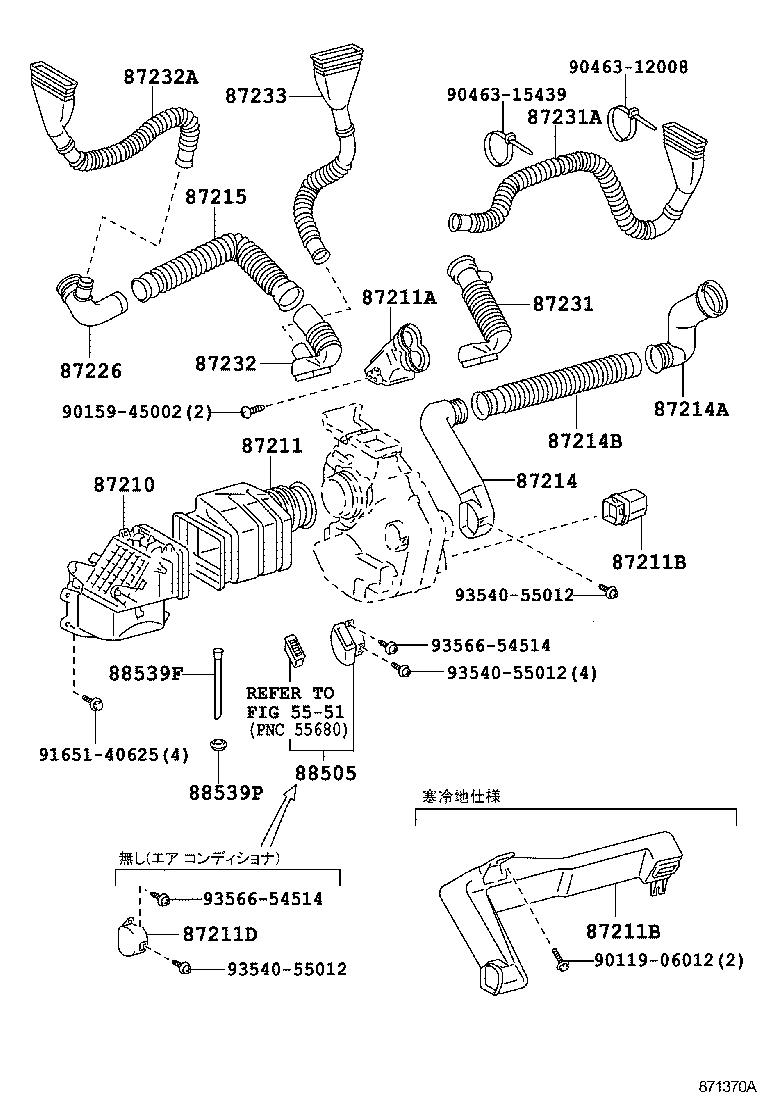

Heating & Air Conditioning - Control & Air Duct
33 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55519 | Plate, Heater Control Name |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55903 | Lever Sub-assy, Heater Control |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906 | Cable Sub-assy, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87210 | Damper Assy, Air |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211D | Cover, Heater Air Duct Hole |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214A | Duct, Air, Side NO.2 RH |
| 87214B | Duct, Air, Side NO.3 RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 87226 | Adapter, Air Duct |
| 87231 | Hose, Heater Defroster, RH |
| 87231A | Duct, Heater Defroster, Side NO.1 RH |
| 87232 | Hose, Heater Defroster, LH |
| 87232A | Duct, Heater Defroster, Side NO.1 LH |
| 87233 | Hose, Heater Defroster, Center |
| 87284 | Resistor Sub-assy, Variable |
| 88505 | Duct Sub-assy,Air Conditioner |
| 88539F | Hose, Drain |
| 88539P | Grommet(FOR DRAIN HOSE) |
| 88890B | Switch Assy, Thermostat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
