Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

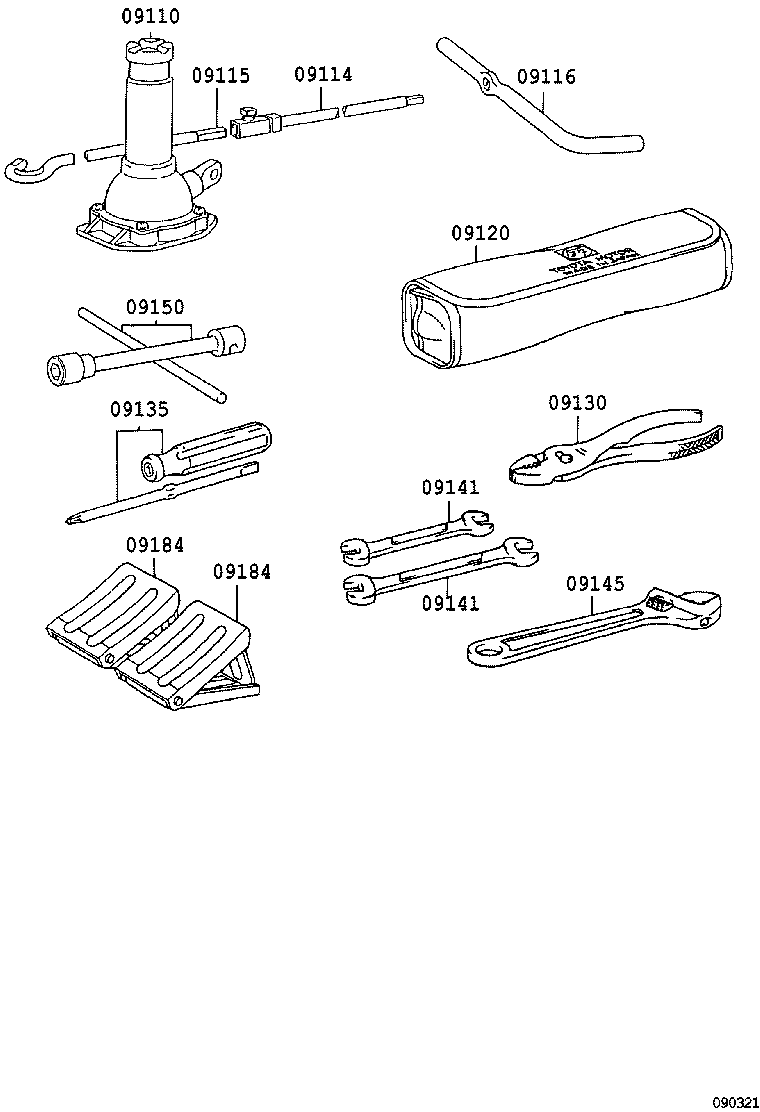

Standard Tool
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09114 | Extension Sub-assy, Jack Handle |
| 09115 | Rod Sub-assy, Jack Handle |
| 09116 | Lever, Jack Handle |
| 09120 | Bag, Tool |
| 09130 | Pliers |
| 09135 | Driver, Screw |
| 09141 | Spanner |
| 09145 | Wrench, Monkey |
| 09150 | Wrench, Hub Nut Box |
| 09155 | Wrench, Spark Plug |
| 09184 | Stopper, Wheel |
| 09187 | Handle, Spare Wheel Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
