Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 16 illustrations

Illustrations

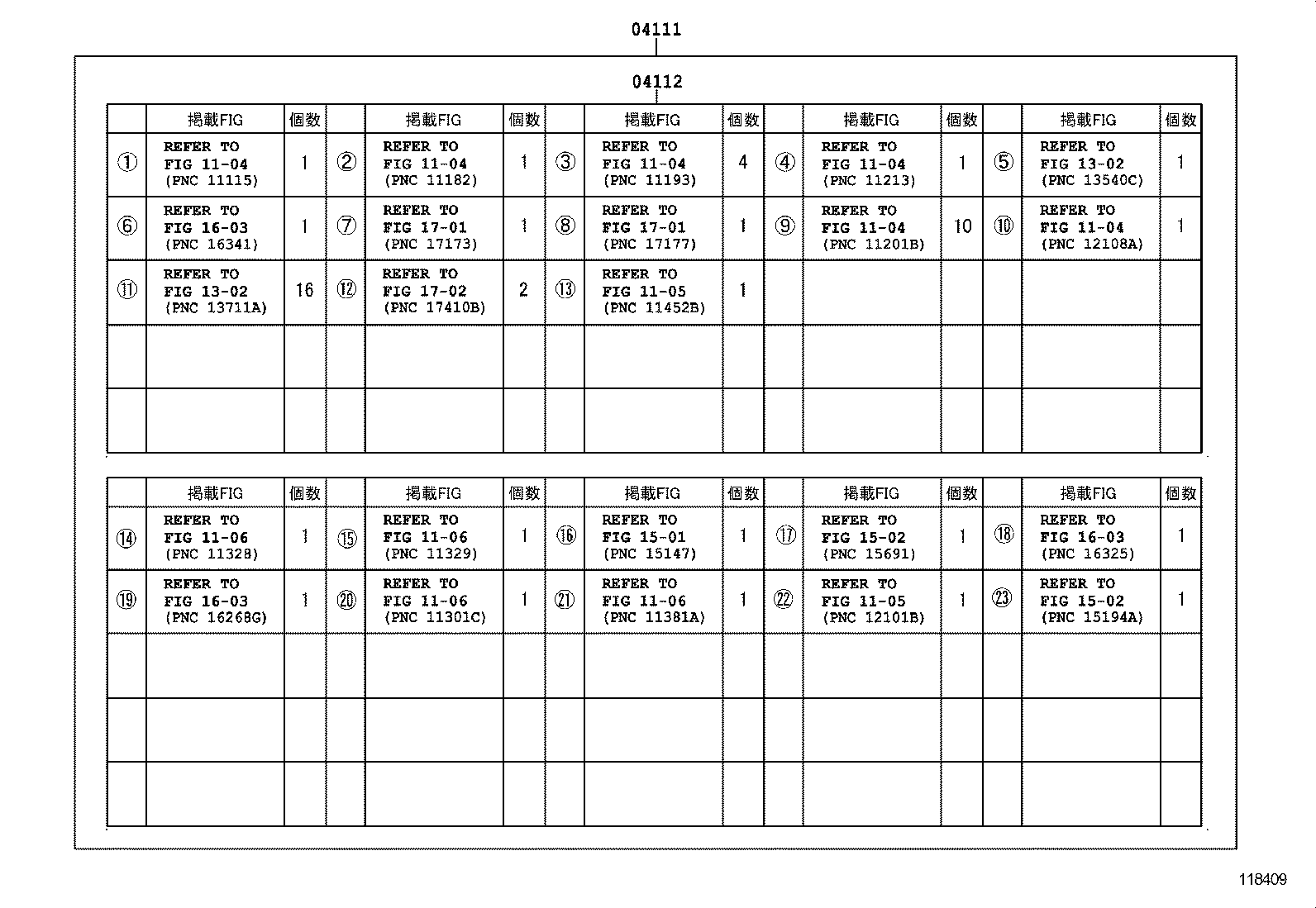

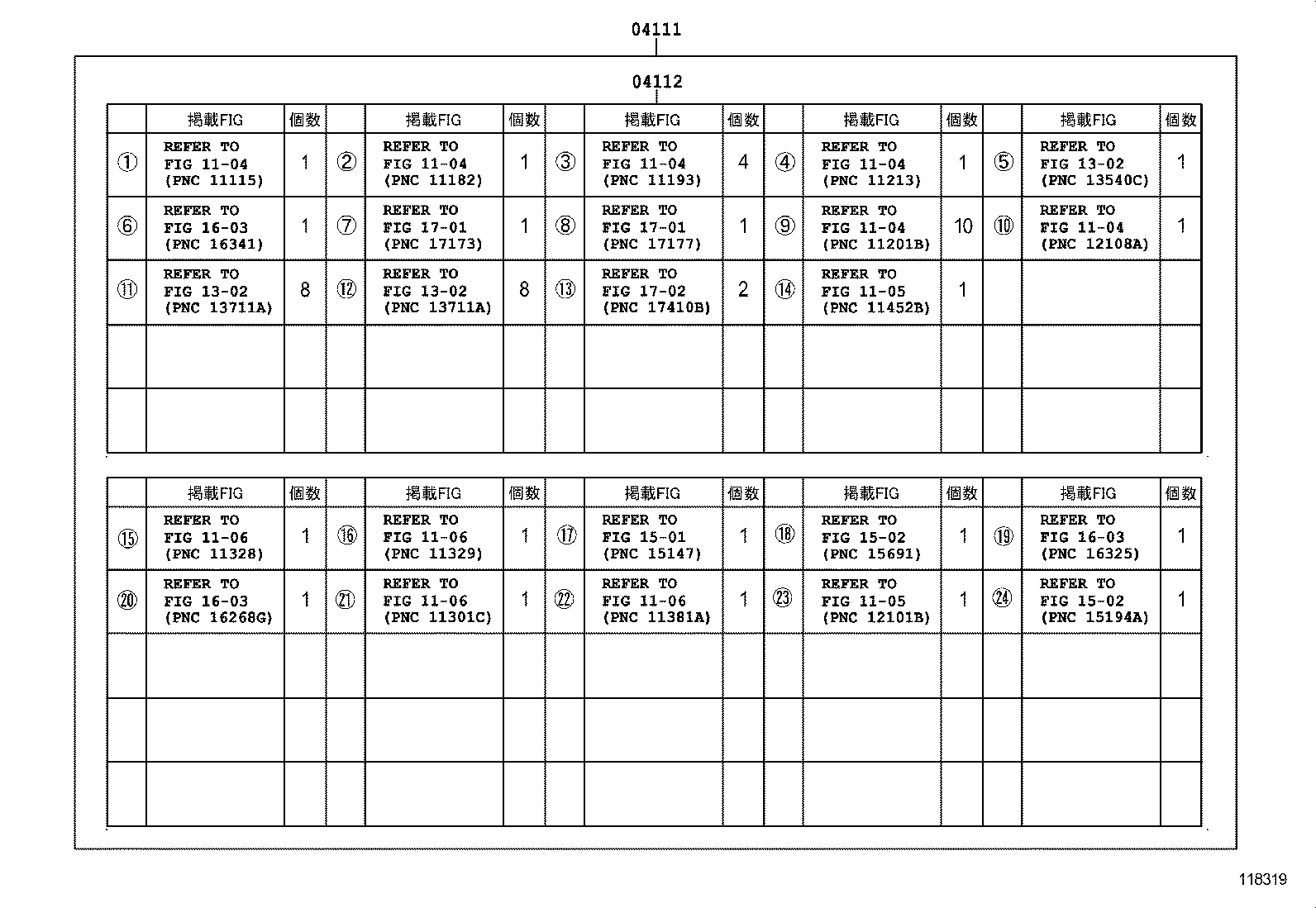

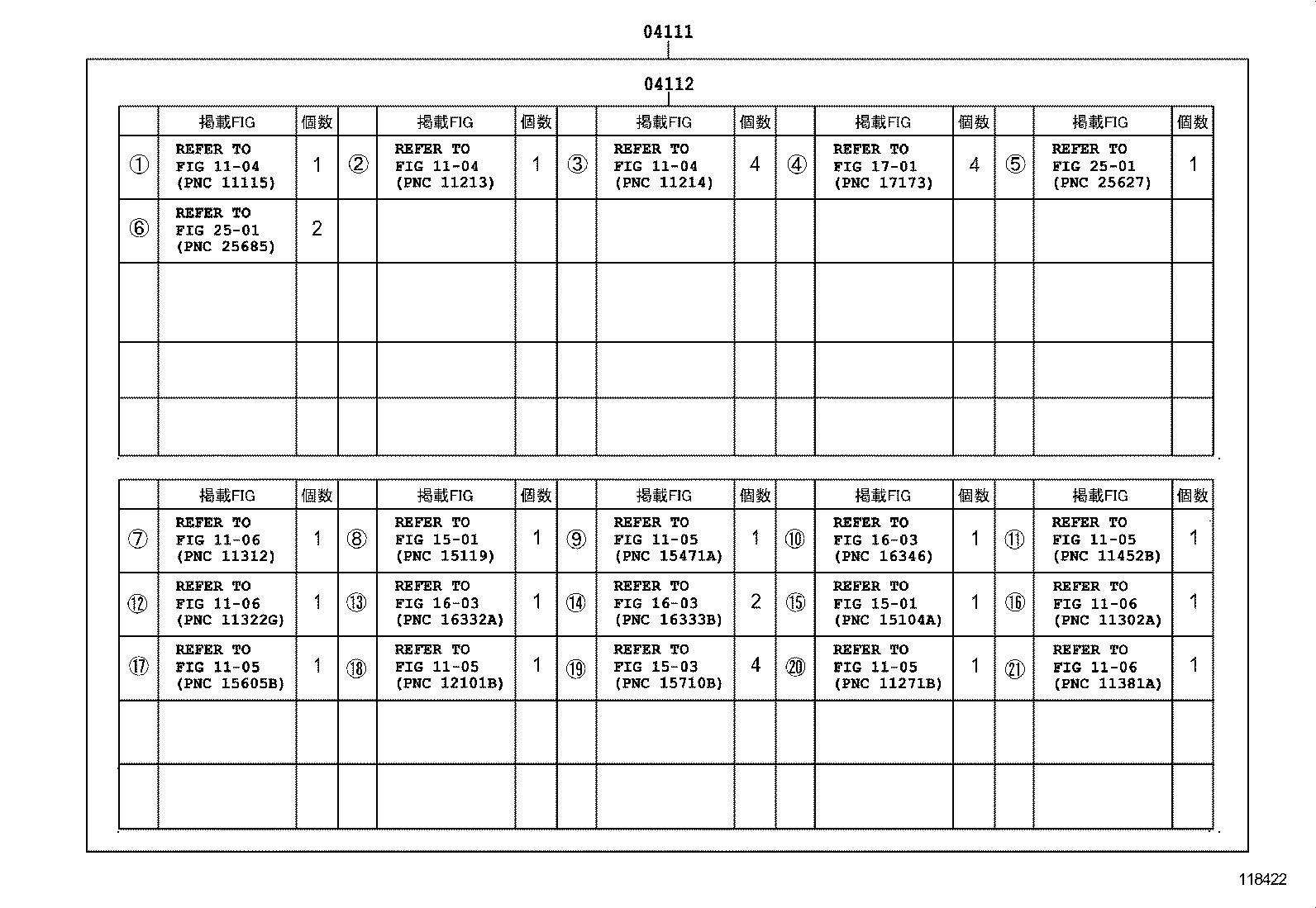

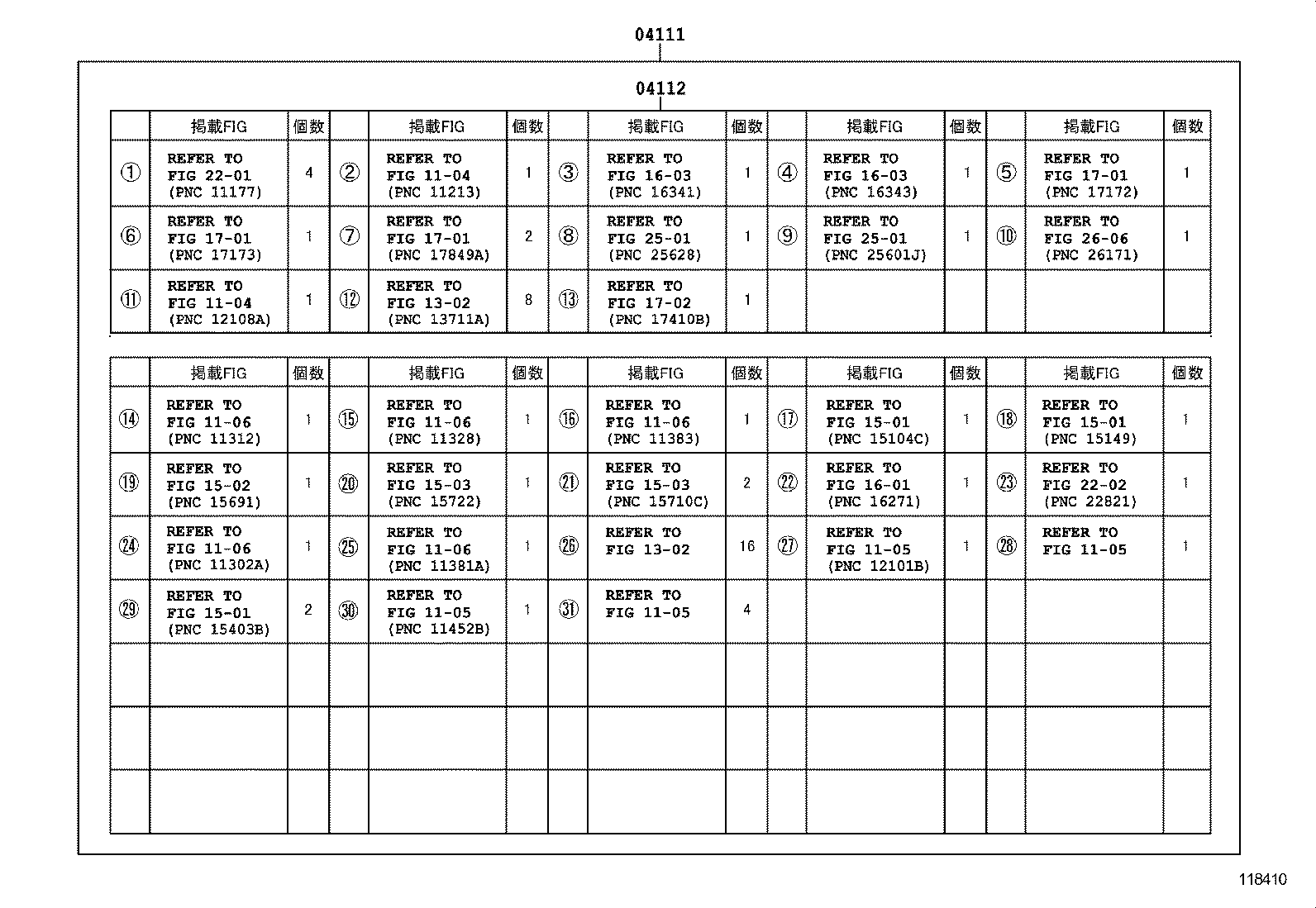

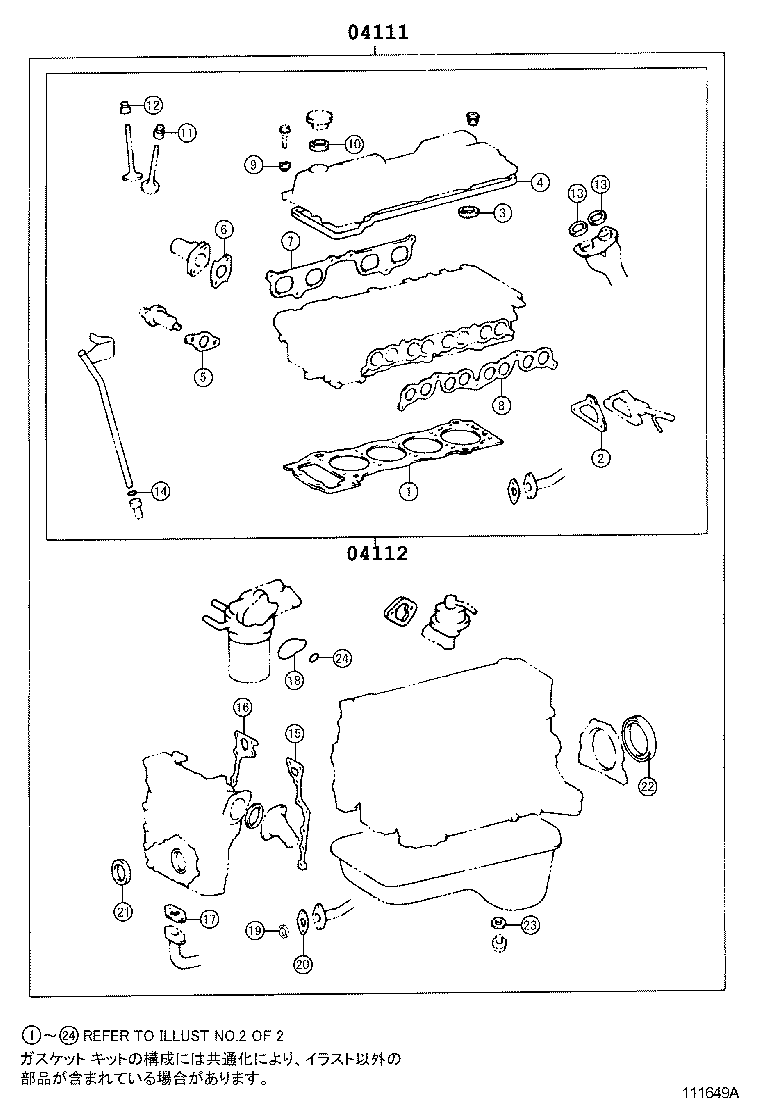

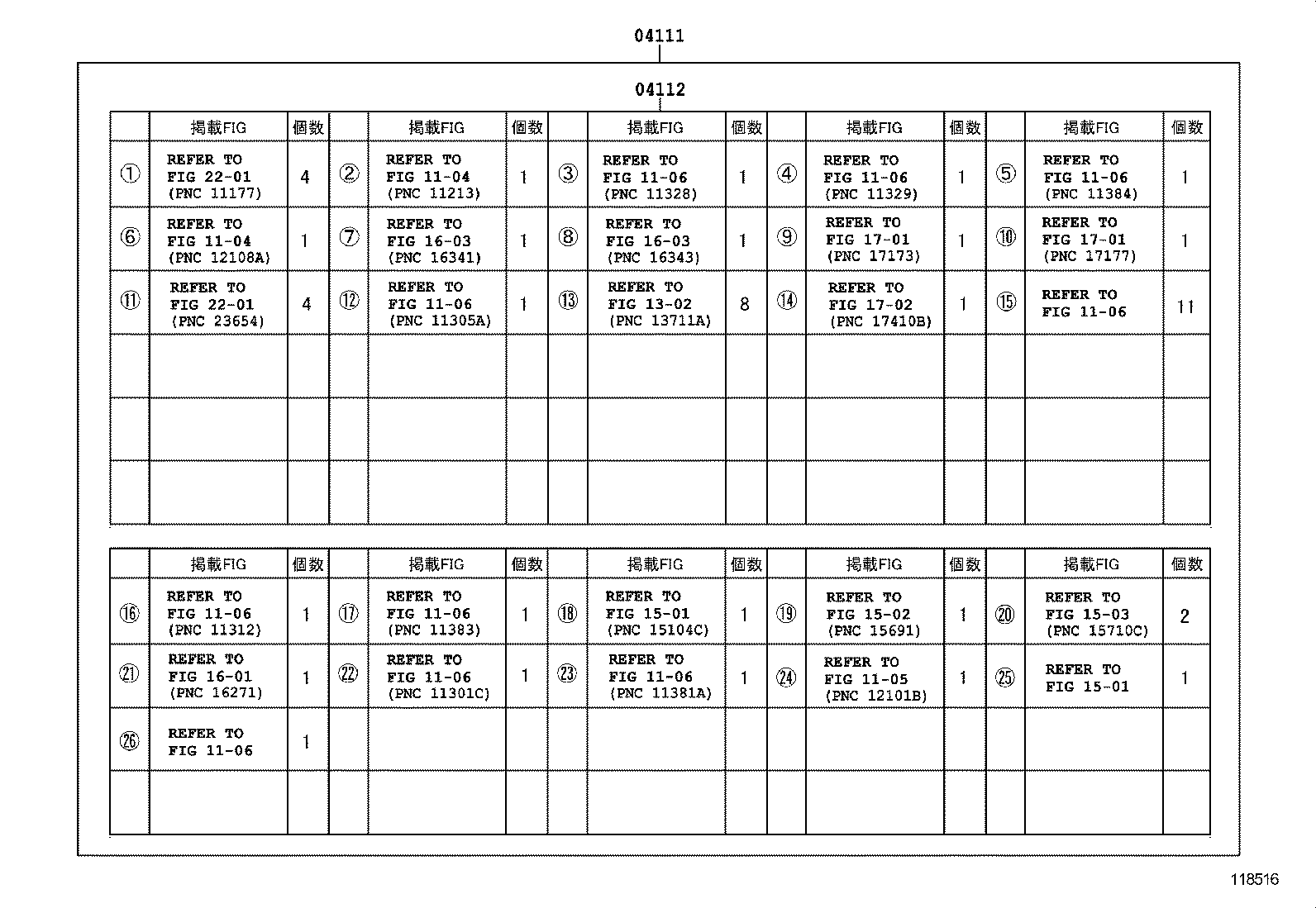

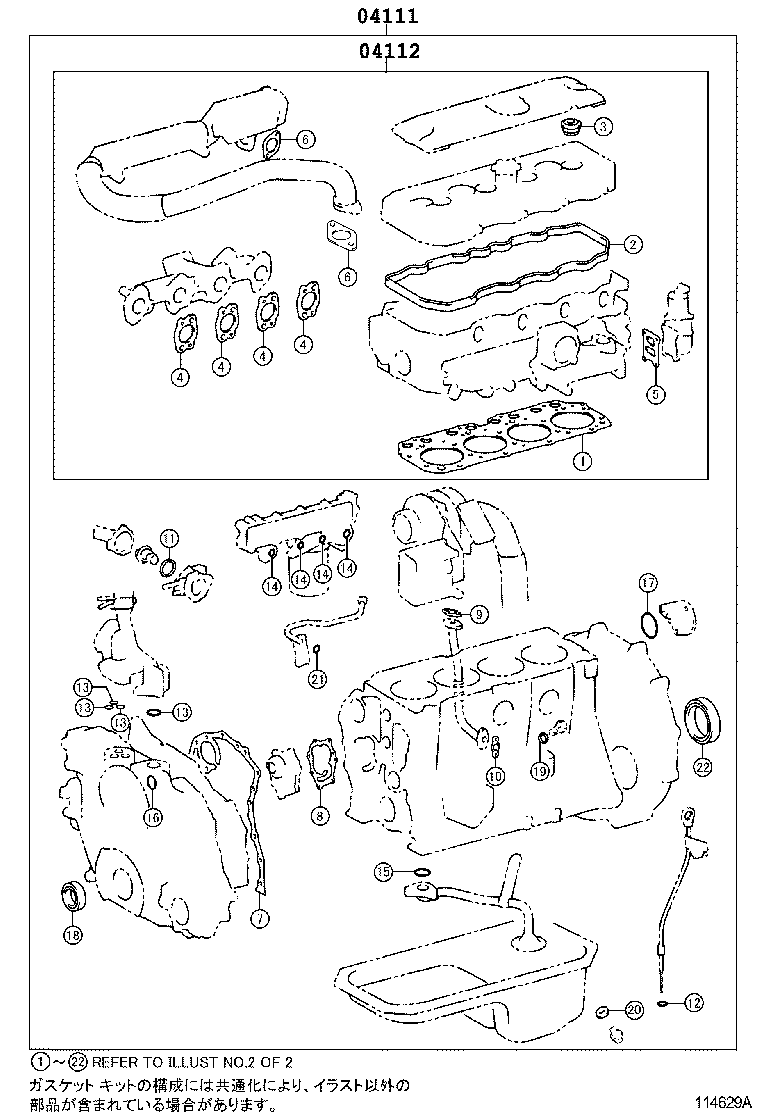

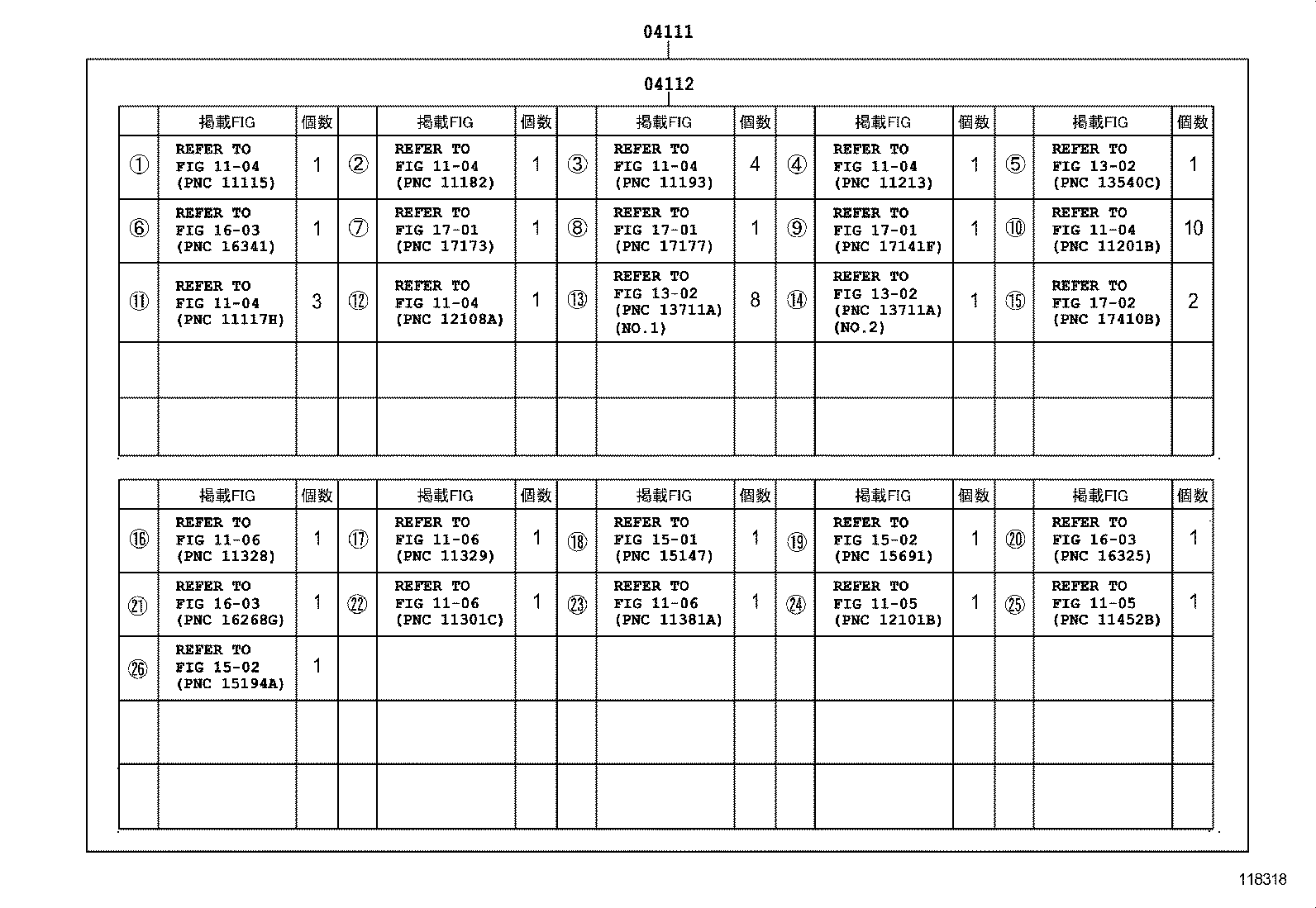

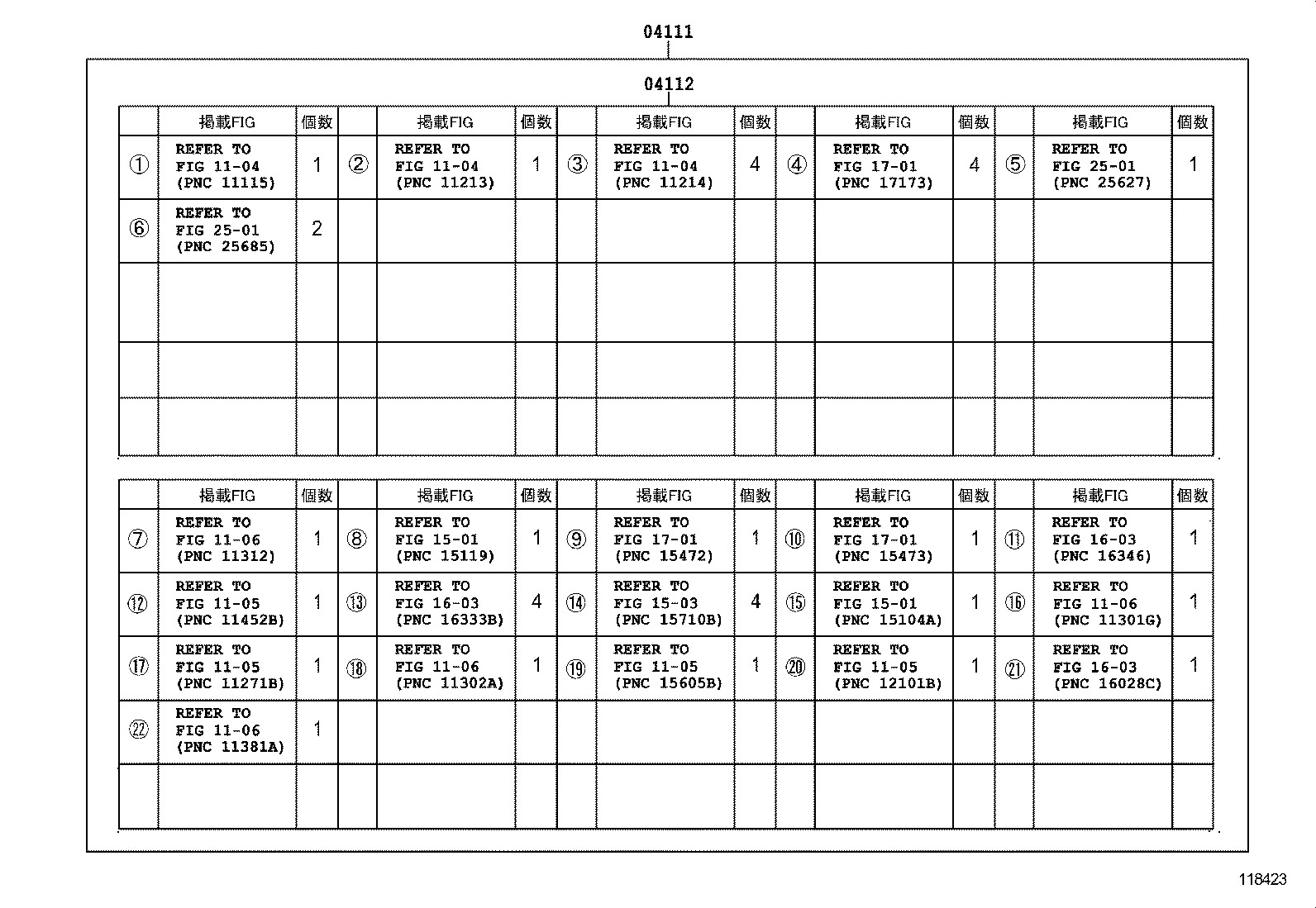

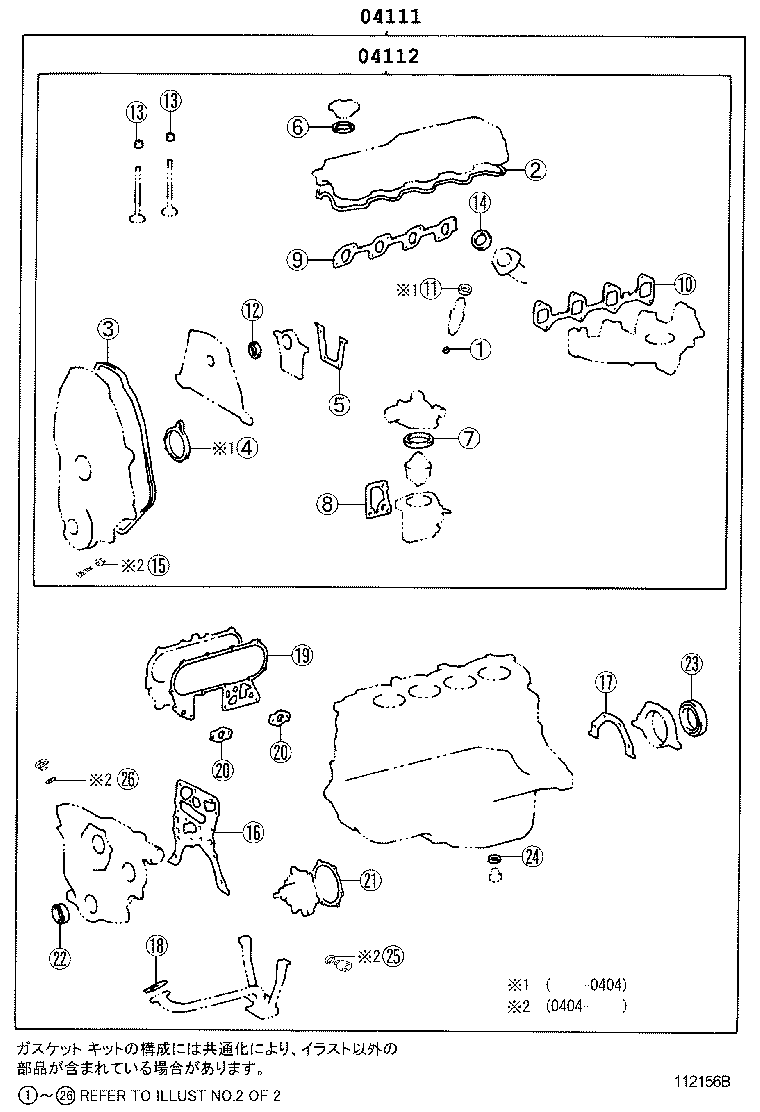

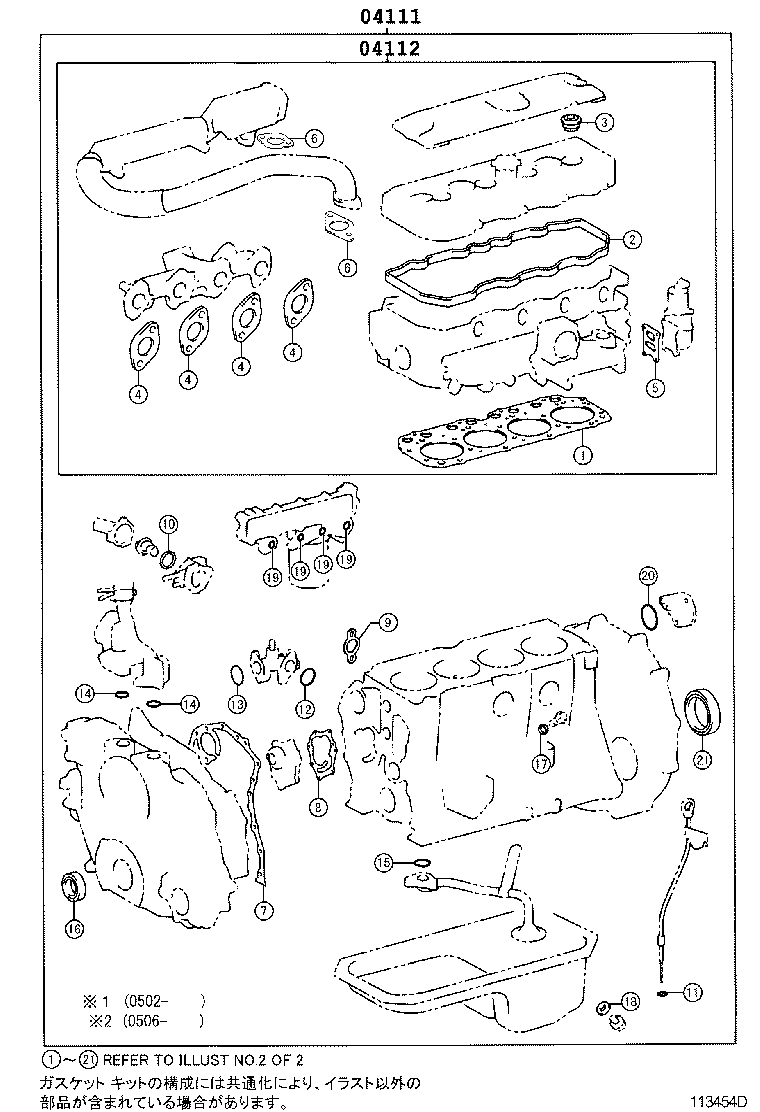

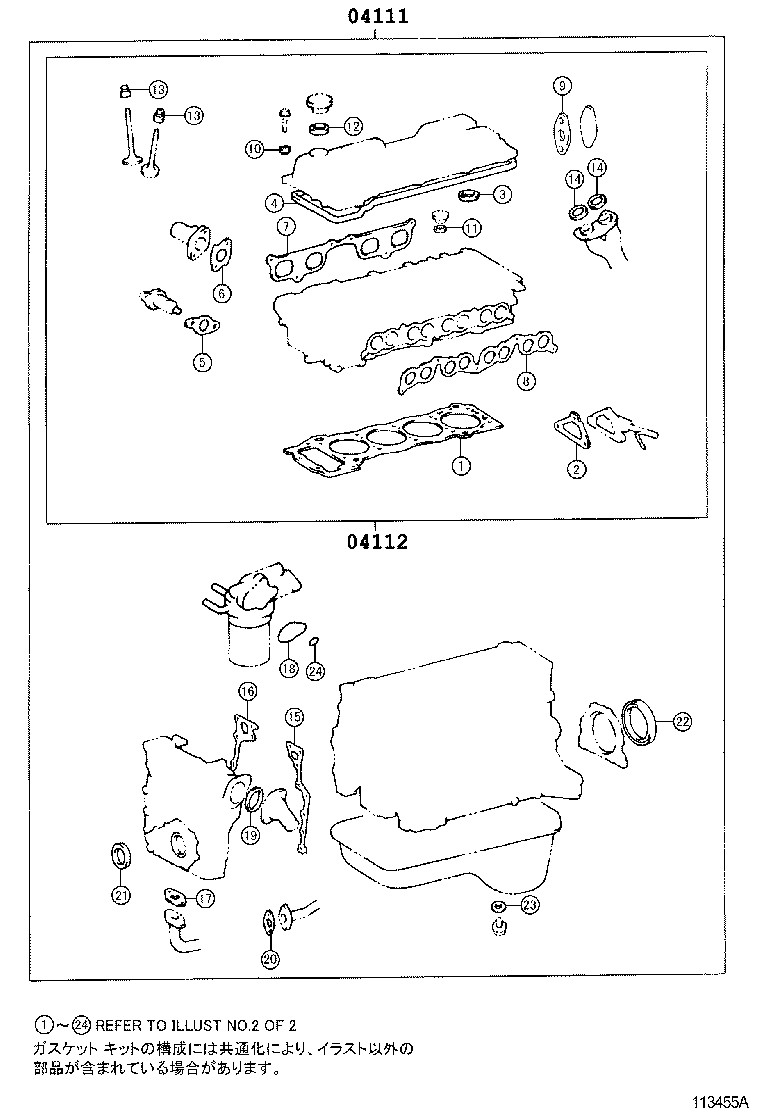

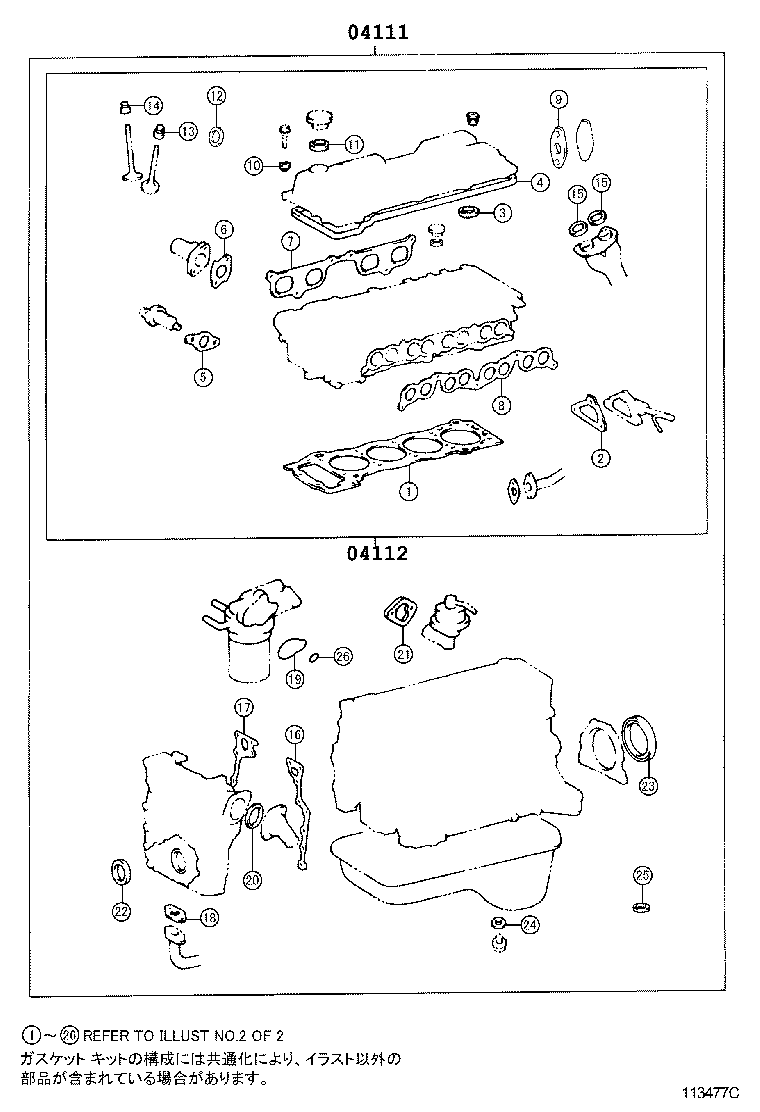

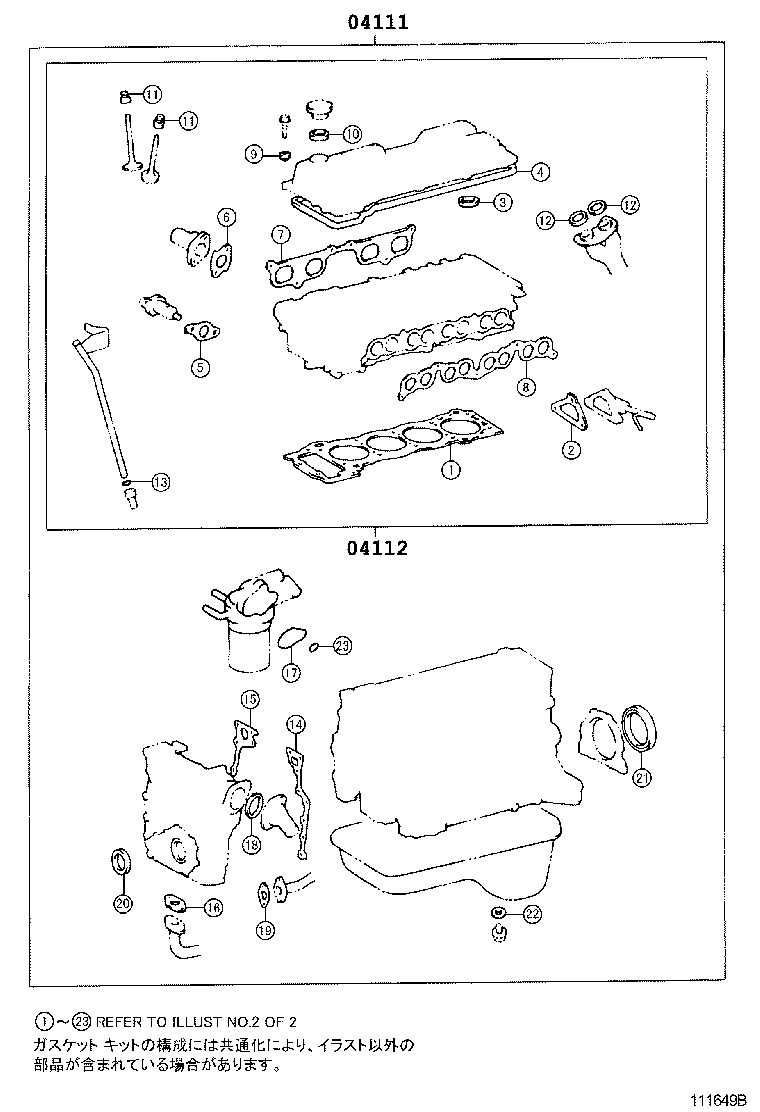

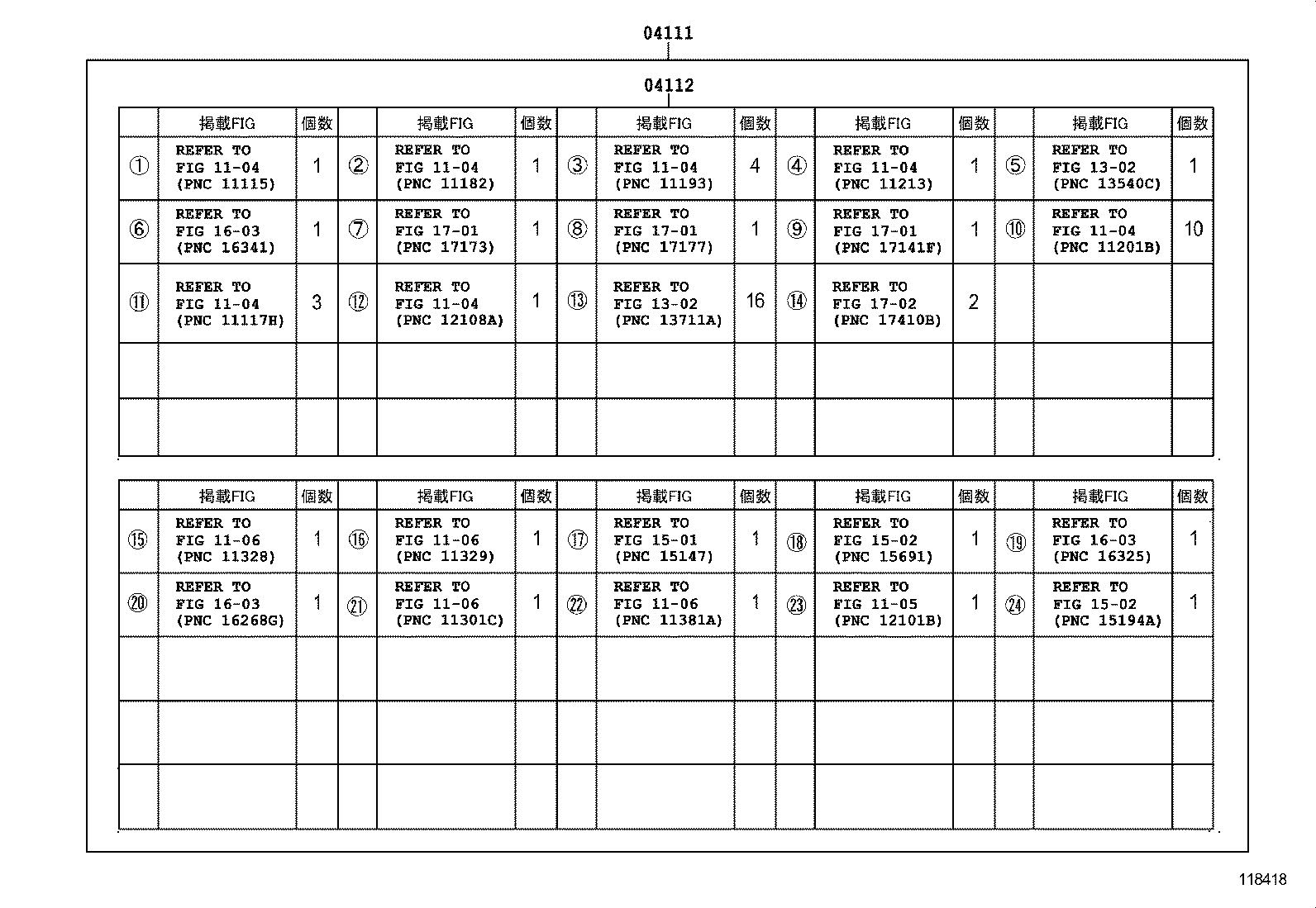

Figure 111382C 111382C 1999-08 → — Figure 111649B 111649B 2000-01 → — Figure 118410 118410 1999-08 → — Figure 118409 118409 2000-01 → — Figure 112156B 112156B 2001-08 → 2004-07 Figure 118516 118516 2001-08 → 2004-07 Figure 111649A 111649A 2003-06 → 2004-04 Figure 113477C 113477C 2004-04 → — Figure 118319 118319 2003-06 → 2004-04 Figure 118318 118318 2004-04 → — Figure 113454D 113454D 2004-06 → 2006-10 Figure 113455A 113455A 2004-06 → 2006-10 Figure 114629A 114629A 2006-10 → — Figure 118422 118422 2004-06 → 2006-10 Figure 118418 118418 2004-06 → 2006-10 Figure 118423 118423 2006-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
