Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

49 part groups · 8 illustrations

Illustrations

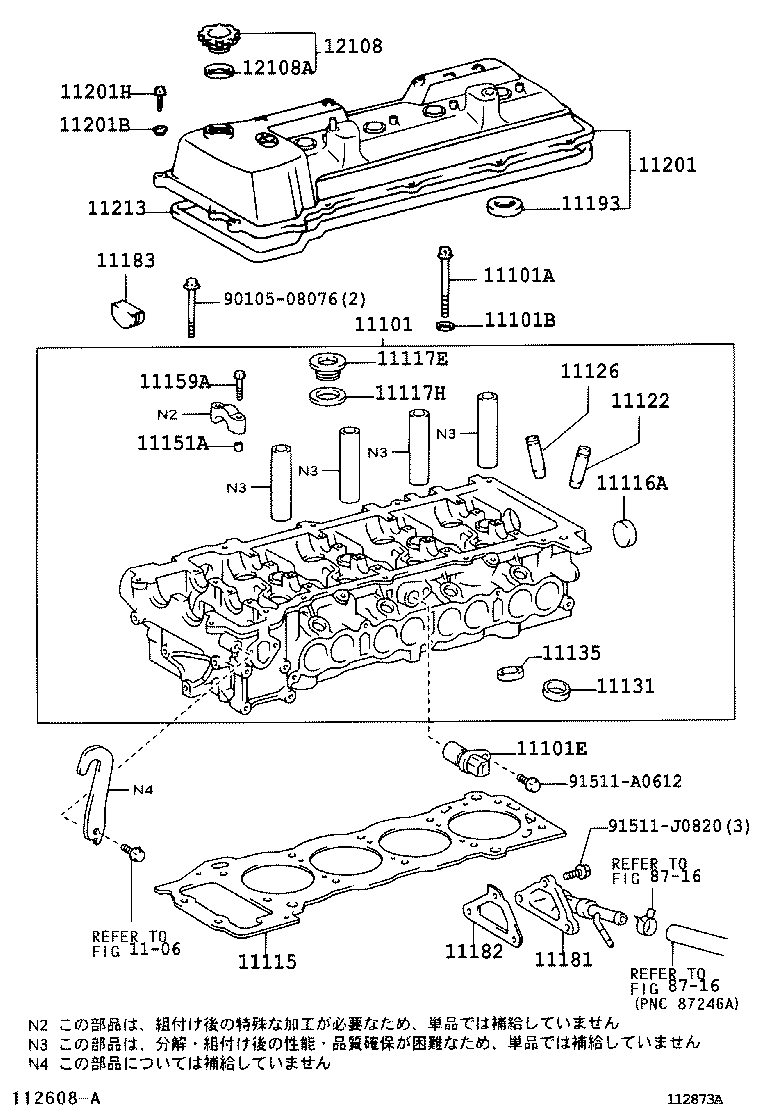

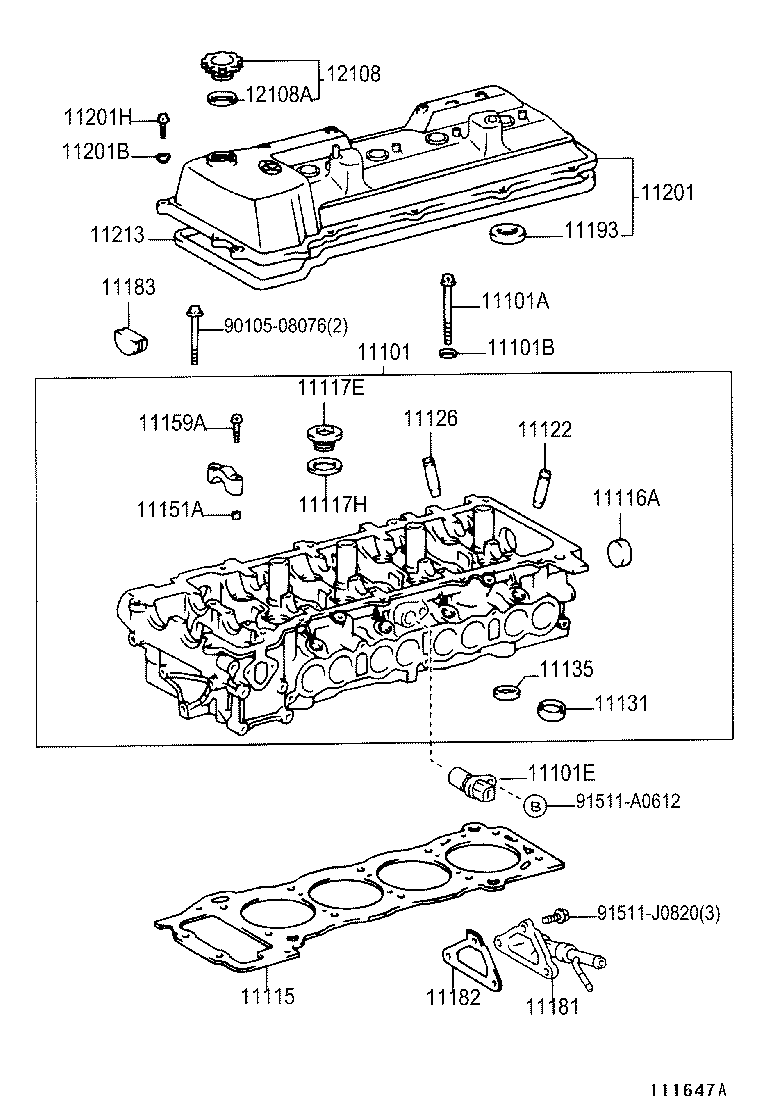

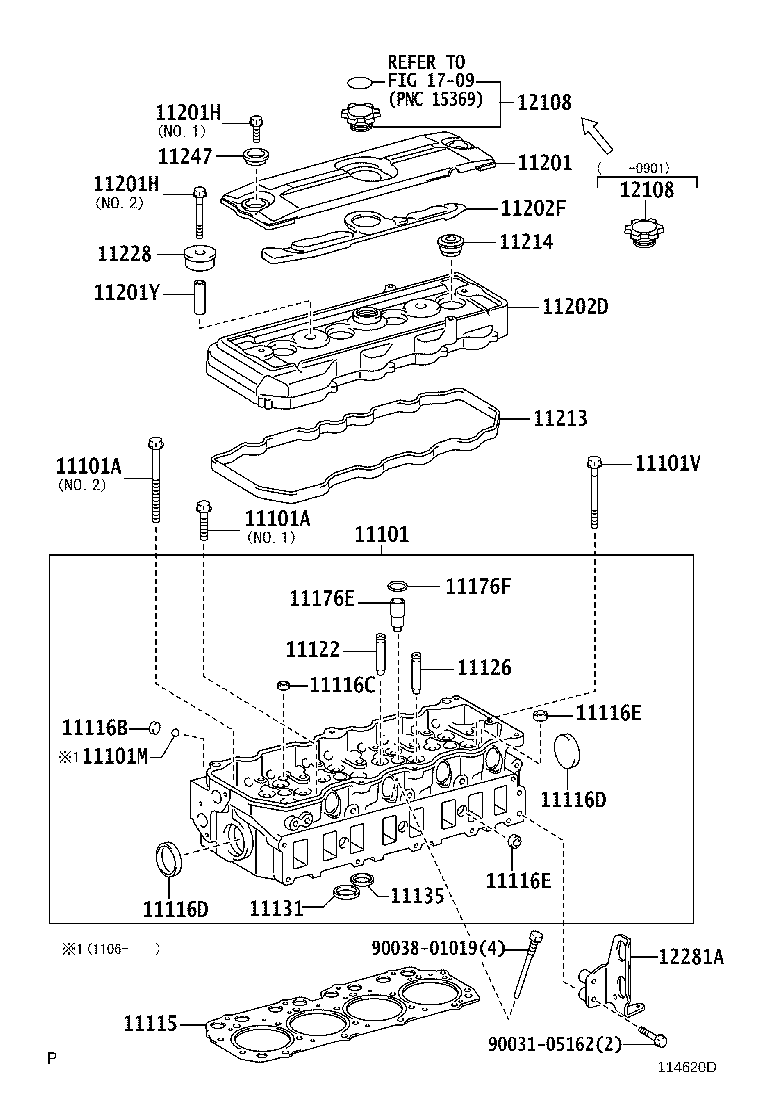

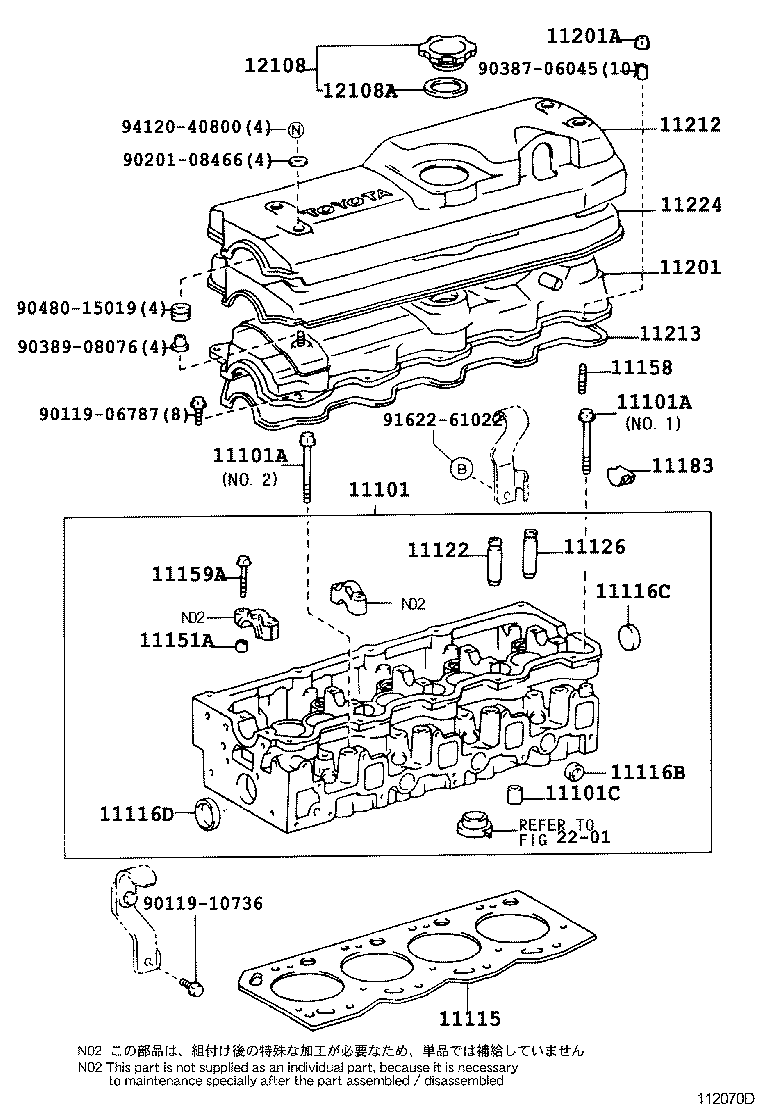

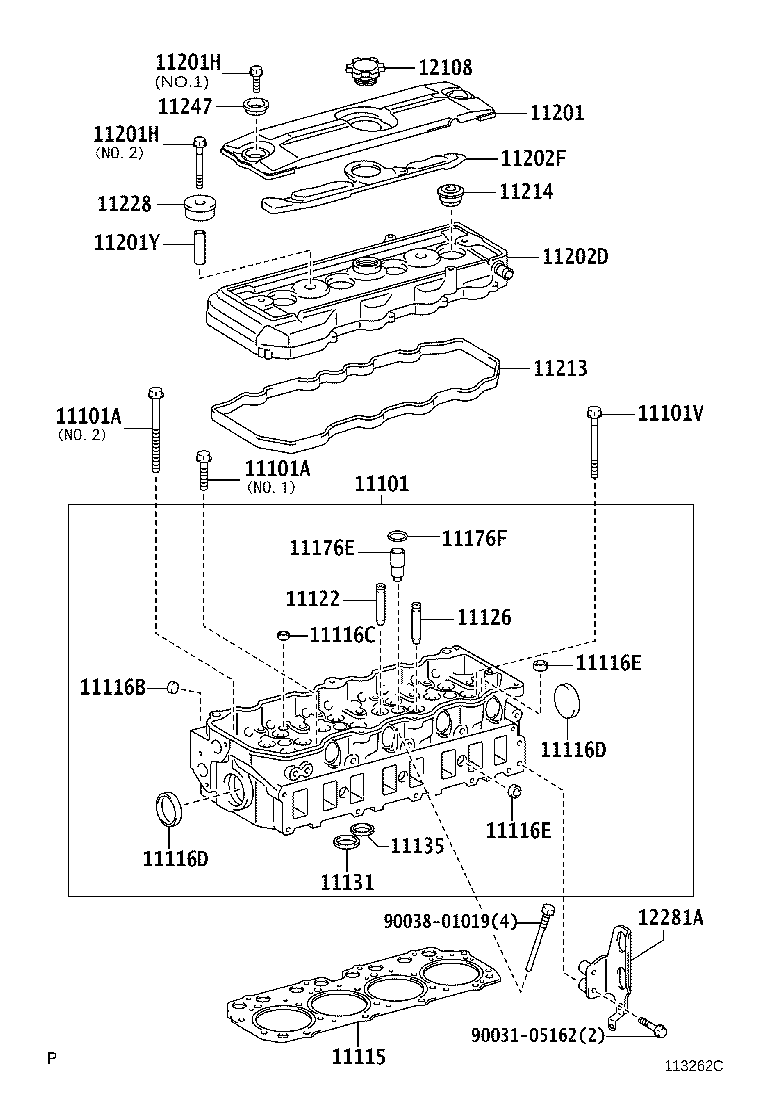

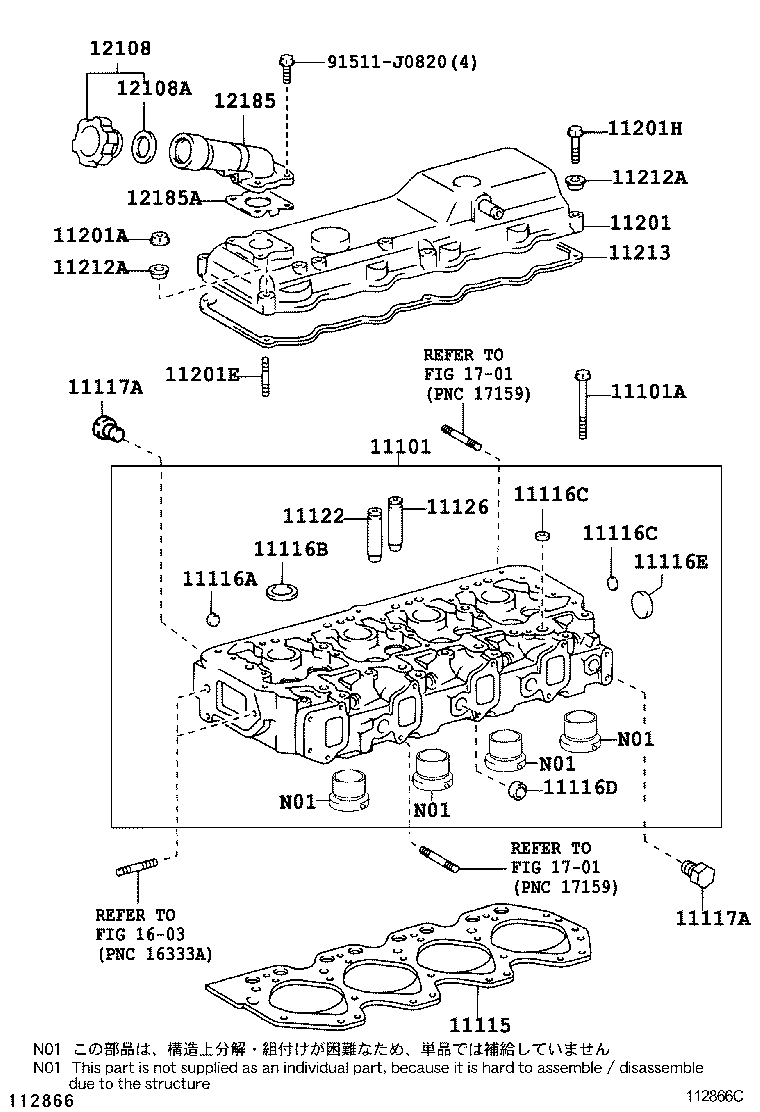

Figure 111495E 111495E 1999-08 → 2003-02 Figure 112866C 112866C 2003-02 → 2004-06 Figure 111647A 111647A 2000-01 → 2003-06 Figure 112070D 112070D 2001-08 → 2004-07 Figure 112873A 112873A 2003-06 → — Figure 113262C 113262C 2004-06 → 2006-10 Figure 112873A 112873A 2004-06 → 2006-10 Figure 114620D 114620D 2006-10 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101E Sensor, Cam Position
11101M Ball NO.1(FOR CYLINDER HEAD)
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11117A Plug, W/Head Taper Screw, NO.1
11117E Plug, W/Head Straight Screw, NO.1
11117H Gasket(FOR WATER HOLE)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11176E Seat, Injection Nozzle
11176F Gasket (FOR INJECTION NOZZLE SEAT)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201E Bolt, Stud(FOR CYLINDER HEAD COVER SET)
11201H Bolt(FOR CYLINDER HEAD COVER)
11201Y Spacer(FOR CYLINDER HEAD COVER)
11202D Cover Sub-assy, Cylinder Head, NO.2
11202F Rubber, Cushion(FOR CYLINDER HEAD COVER)
11212 Cover, Cylinder Head, NO.2
11212A Cushion, Cylinder Head Cover
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11224 Silencer, Cylinder Head Cover
11228 Cushion, Cylinder Head Cover
11247 Stay, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12185 Housing, Oil Filler Cap
12185A Gasket, Oil Filler Cap Housing
12281A Hanger, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
