Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

44 part groups · 9 illustrations

Illustrations

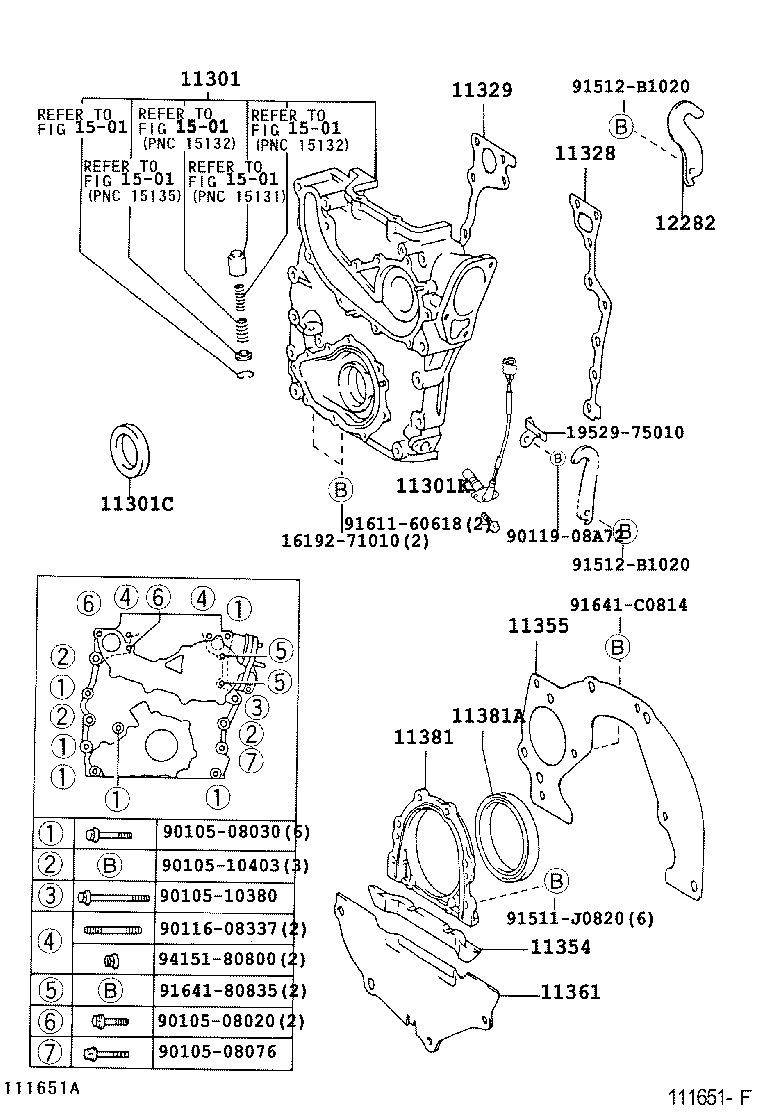

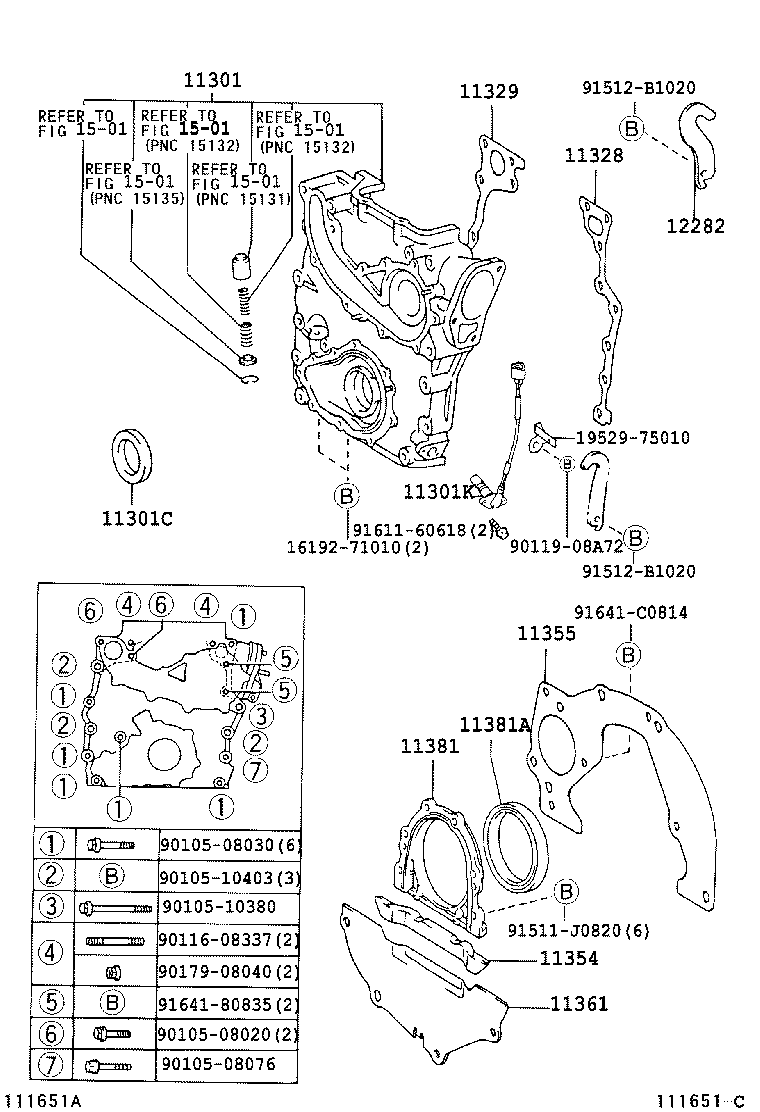

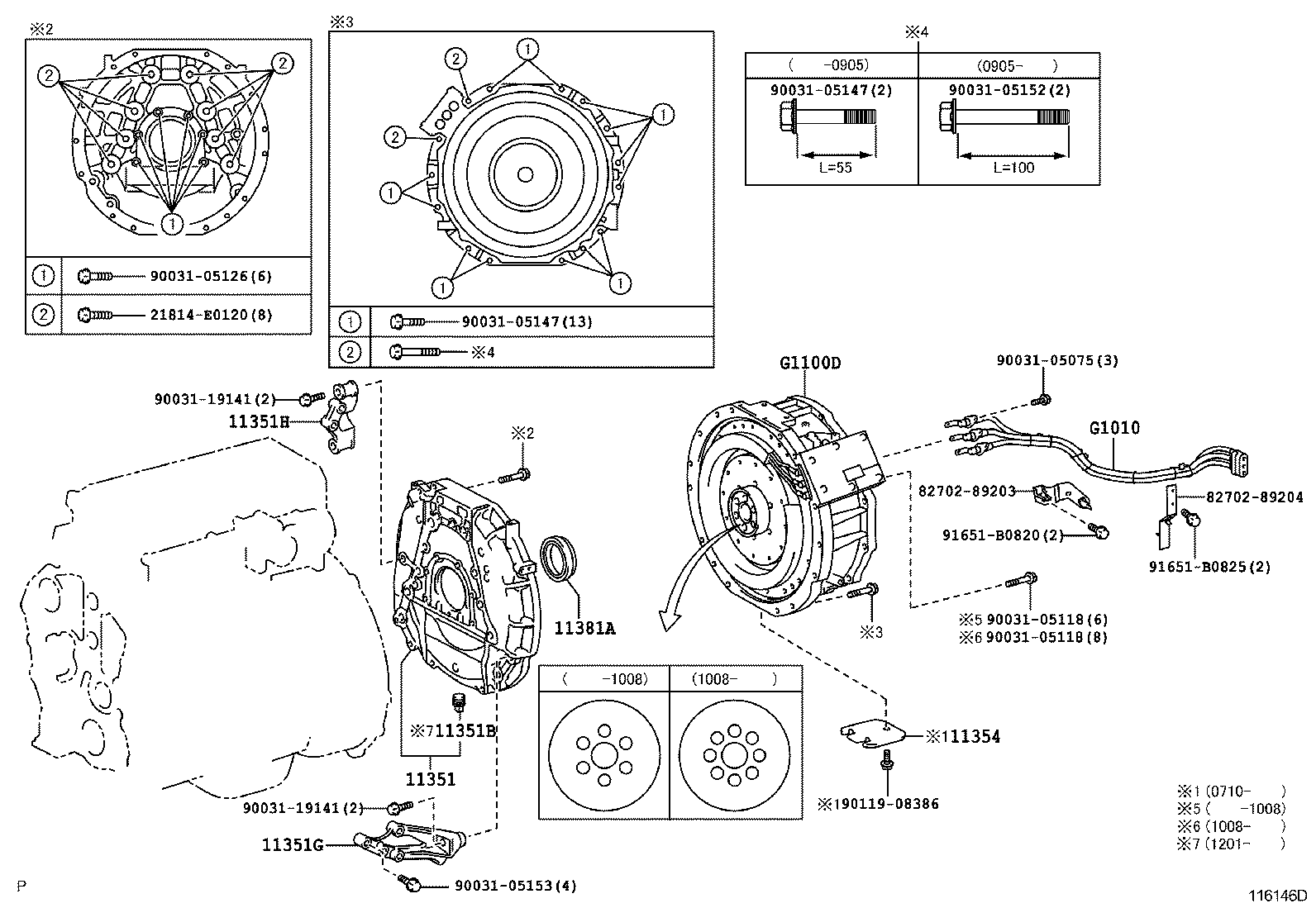

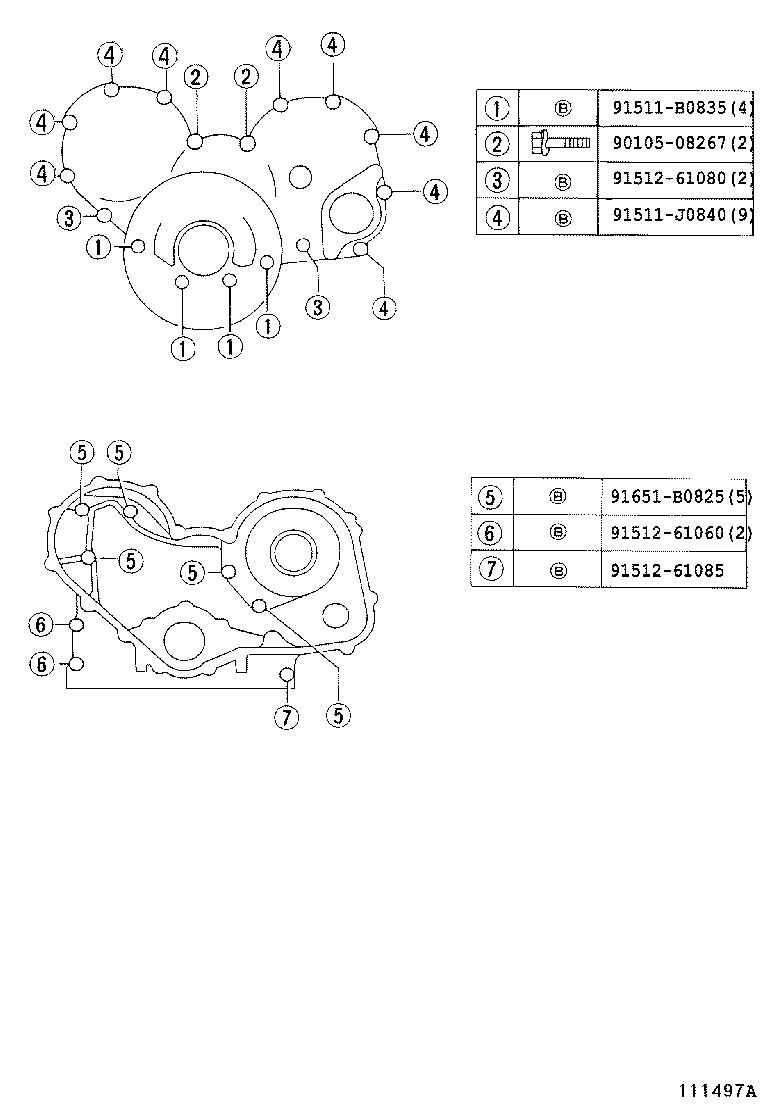

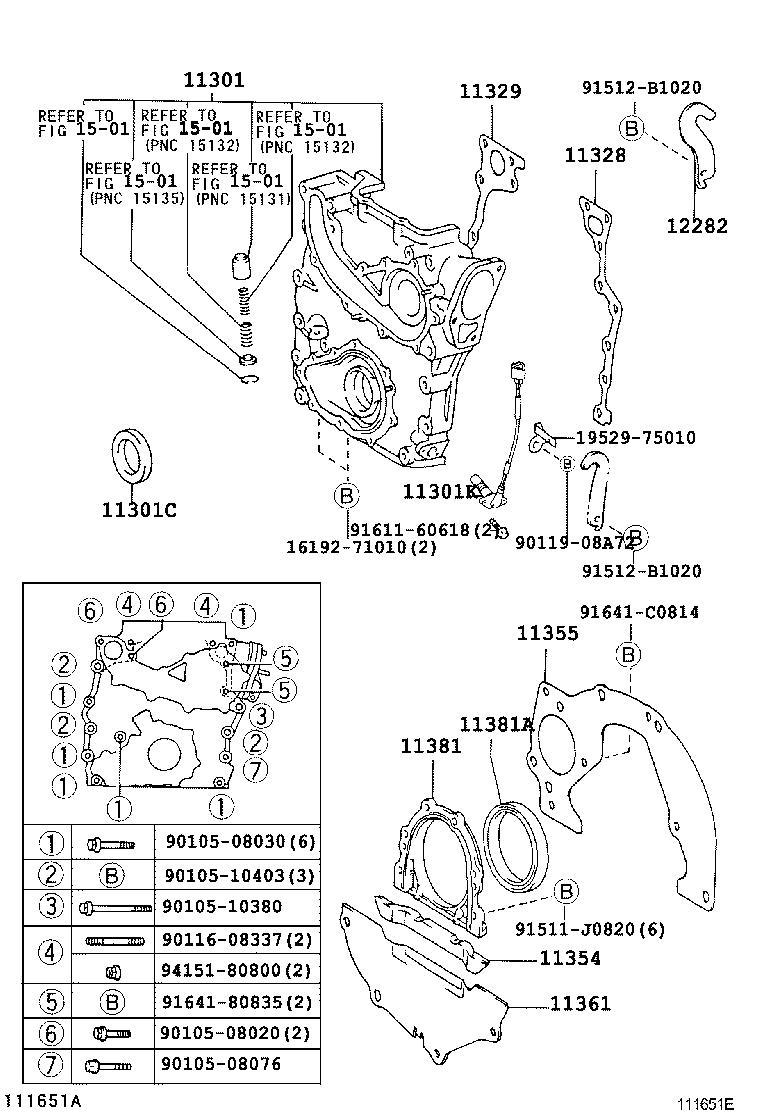

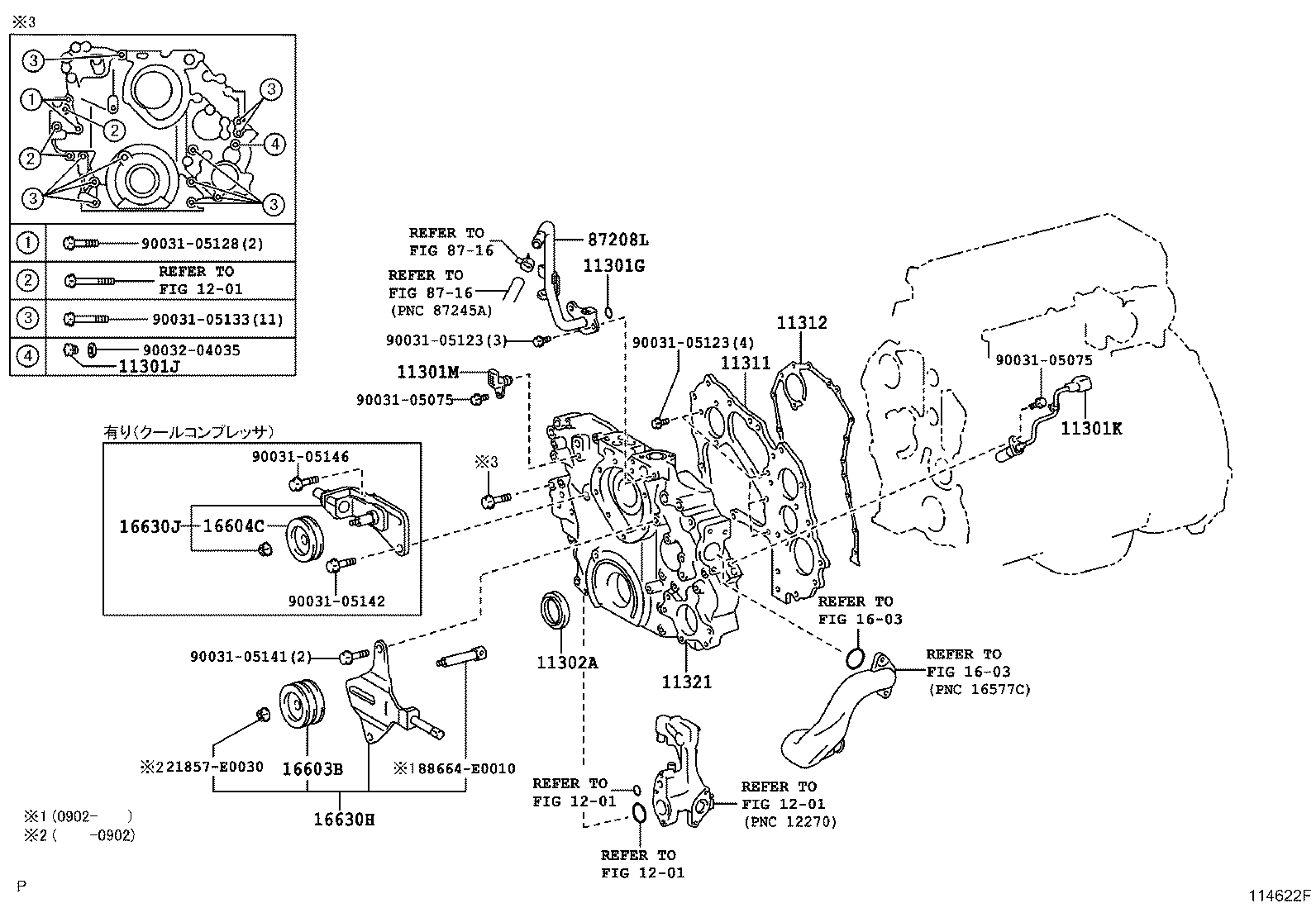

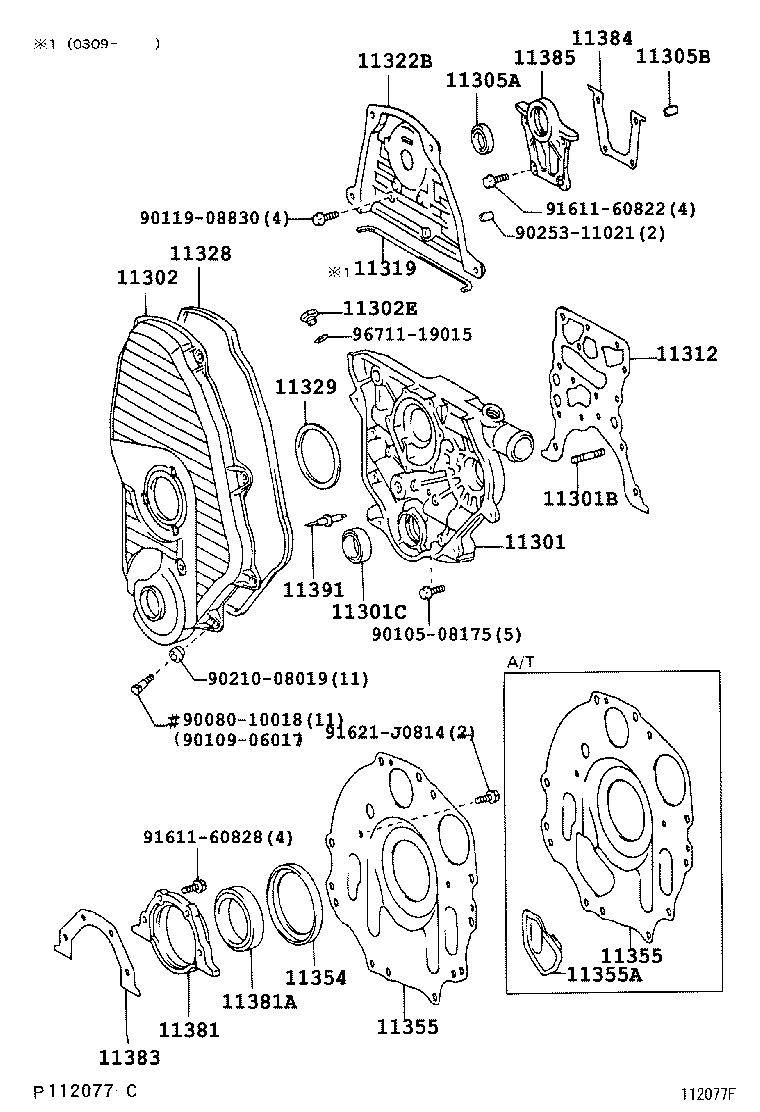

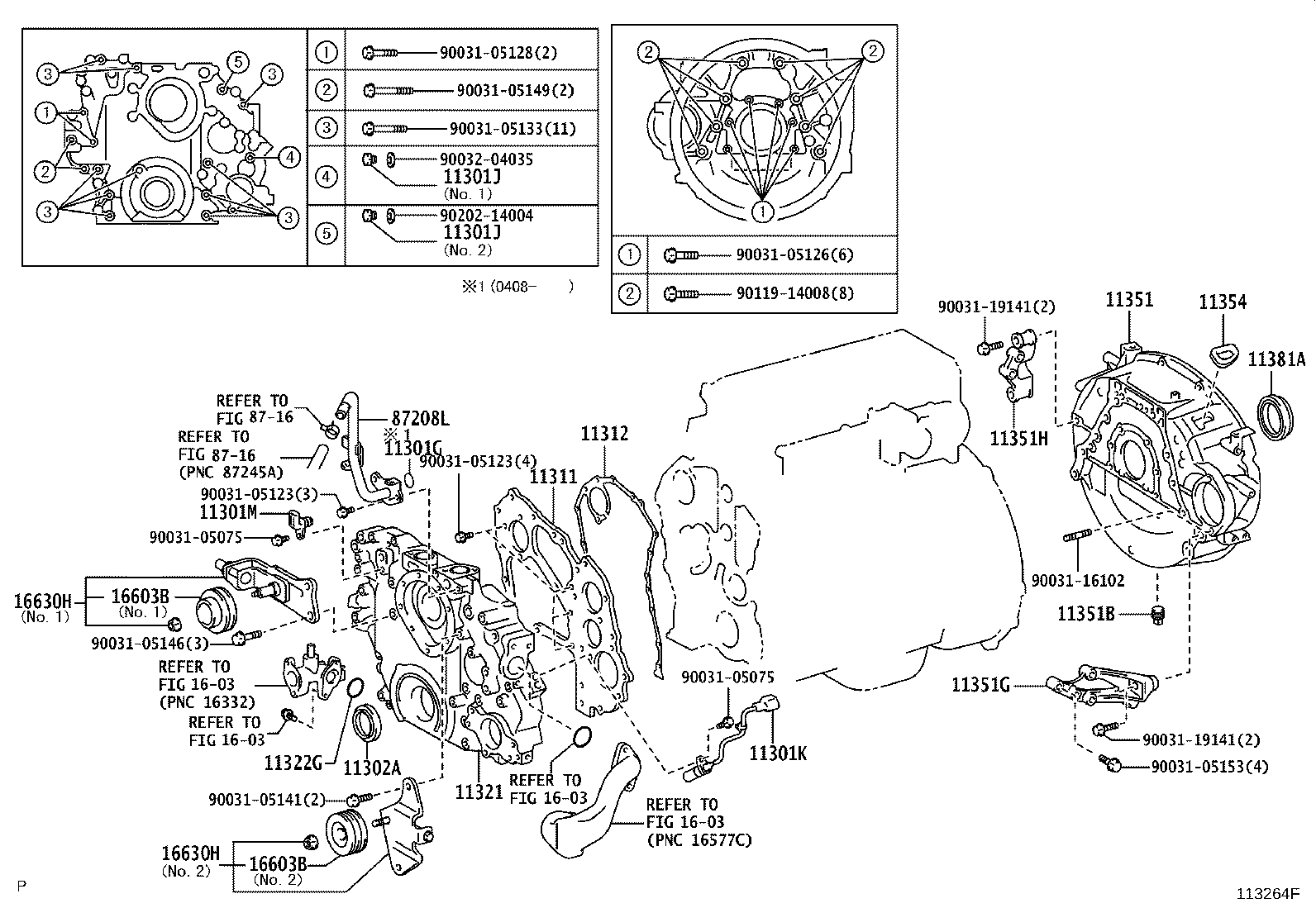

Figure 111368B 111368B 1999-08 → 2004-06 Figure 111497A 111497A 1999-08 → 2004-06 Figure 111651C 111651C 2000-01 → 2003-06 Figure 112077F 112077F 2001-08 → 2004-07 Figure 111651F 111651F 2003-06 → — Figure 113264F 113264F 2004-06 → 2006-10 Figure 111651E 111651E 2004-06 → 2006-10 Figure 114622F 114622F 2006-10 → — Figure 116146D 116146D 2006-10 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11311 Plate, Front End
11312 Gasket, Front End Plate
11319 Gasket, Timing Belt Cover, NO.3
11321 Case, Timing Gear
11322B Cover, Timing Belt, NO.2
11322G Ring, O(FOR TIMING GEAR COVER)
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11345 Bearing, Injection Pump Gear Thrust
11351 Housing, Flywheel
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
12282 Hanger, Engine, NO.2
16603B Pulley Sub-assy, Idler
16604C Pulley Sub-assy, Idler, NO.2
16630H Pulley Assy, Idler
16630J Pulley Assy, Idler, NO.2
87208L Pipe Sub-assy, Water
G1010 Wire Assy, Motor Stator
G1100D Motor Assy, Hybrid Vehicle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
