Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

44 part groups · 8 illustrations

Illustrations

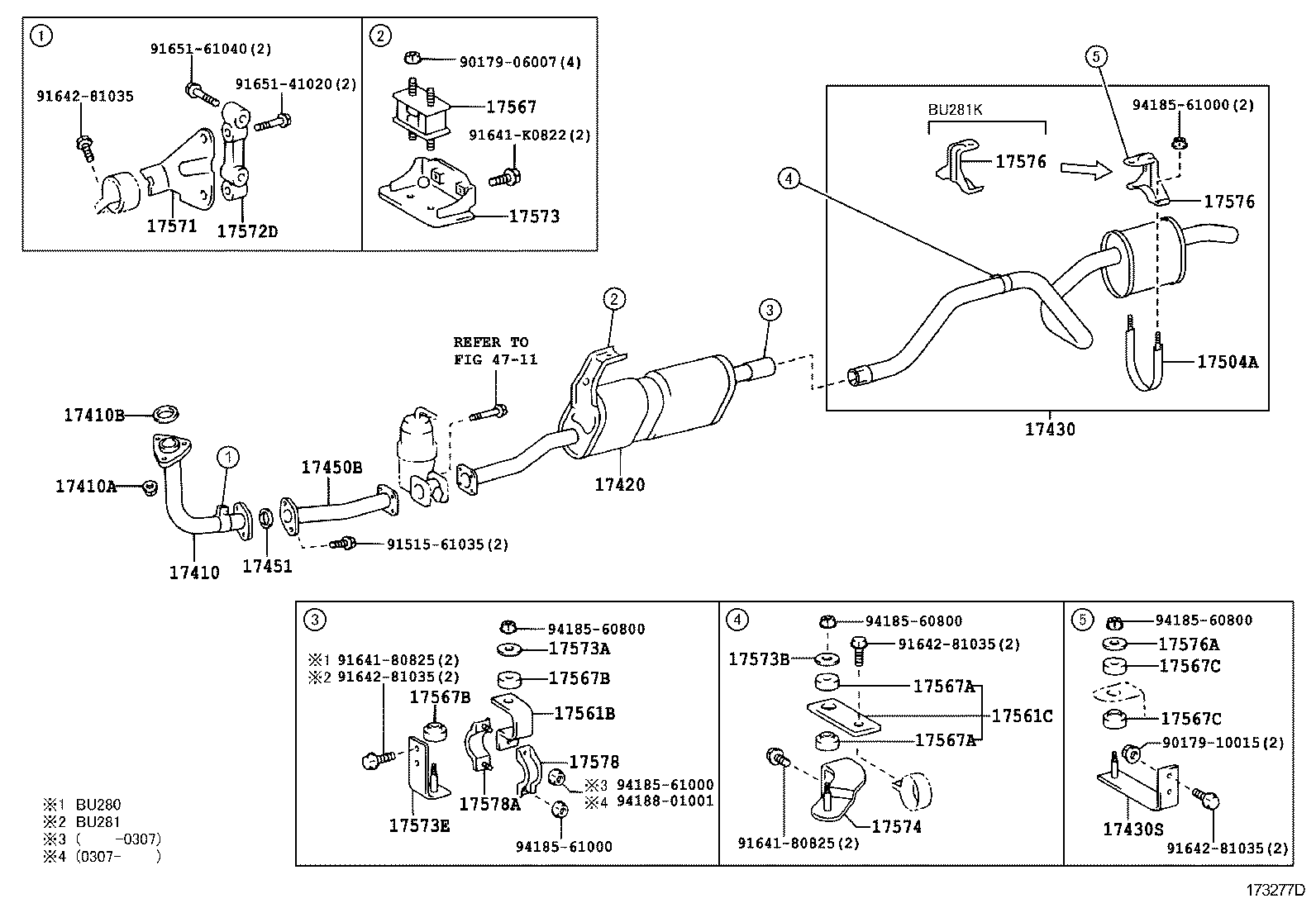

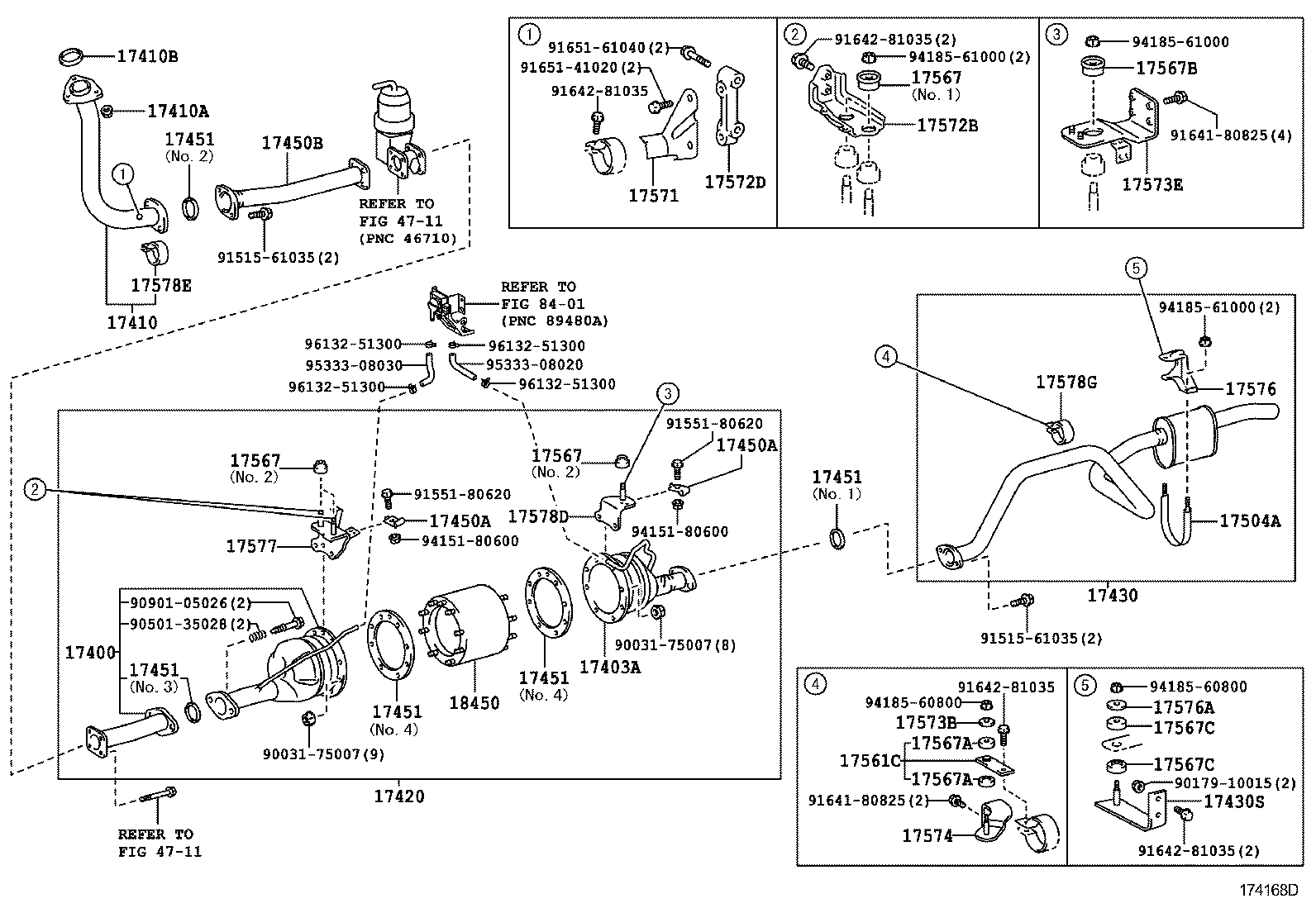

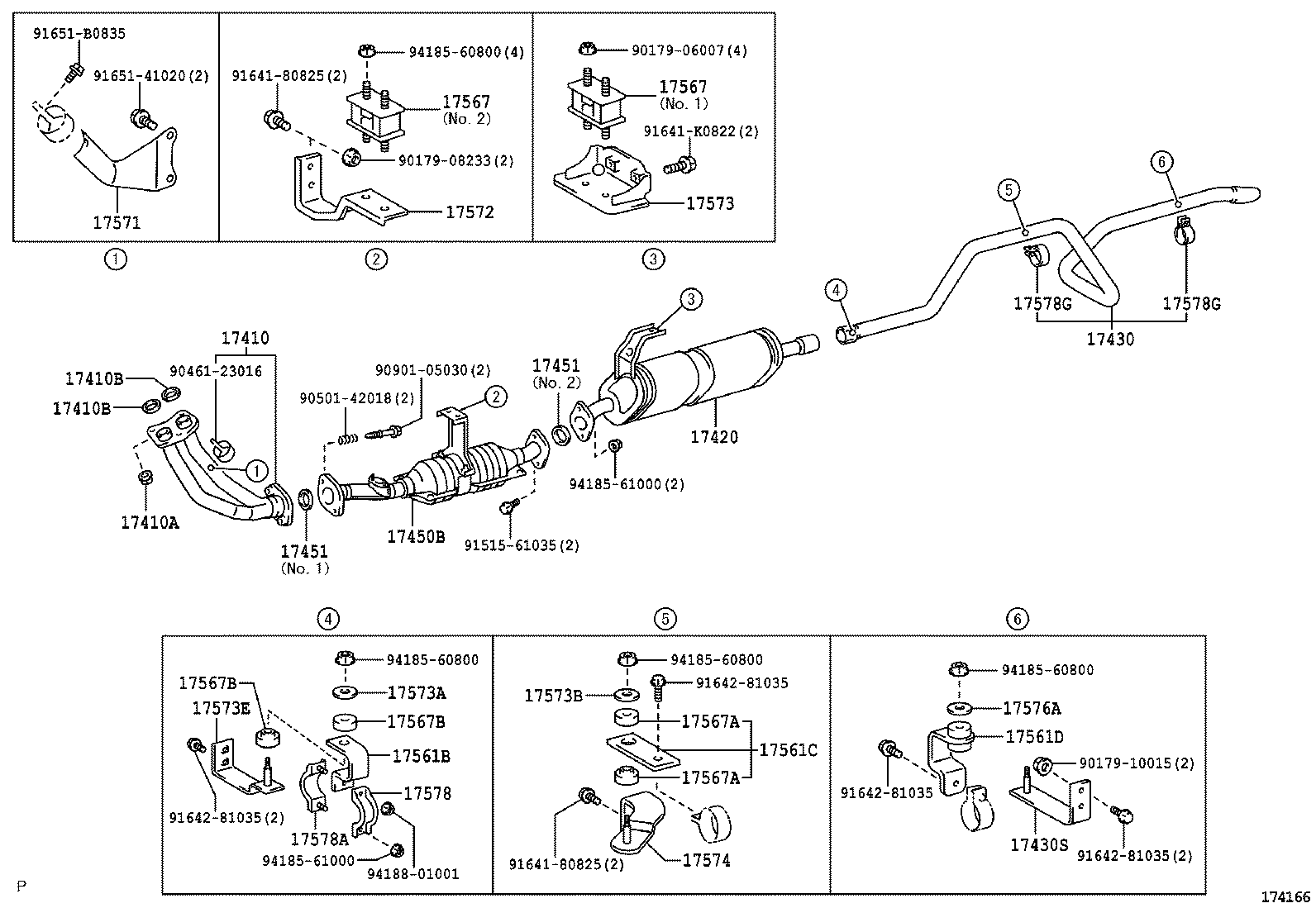

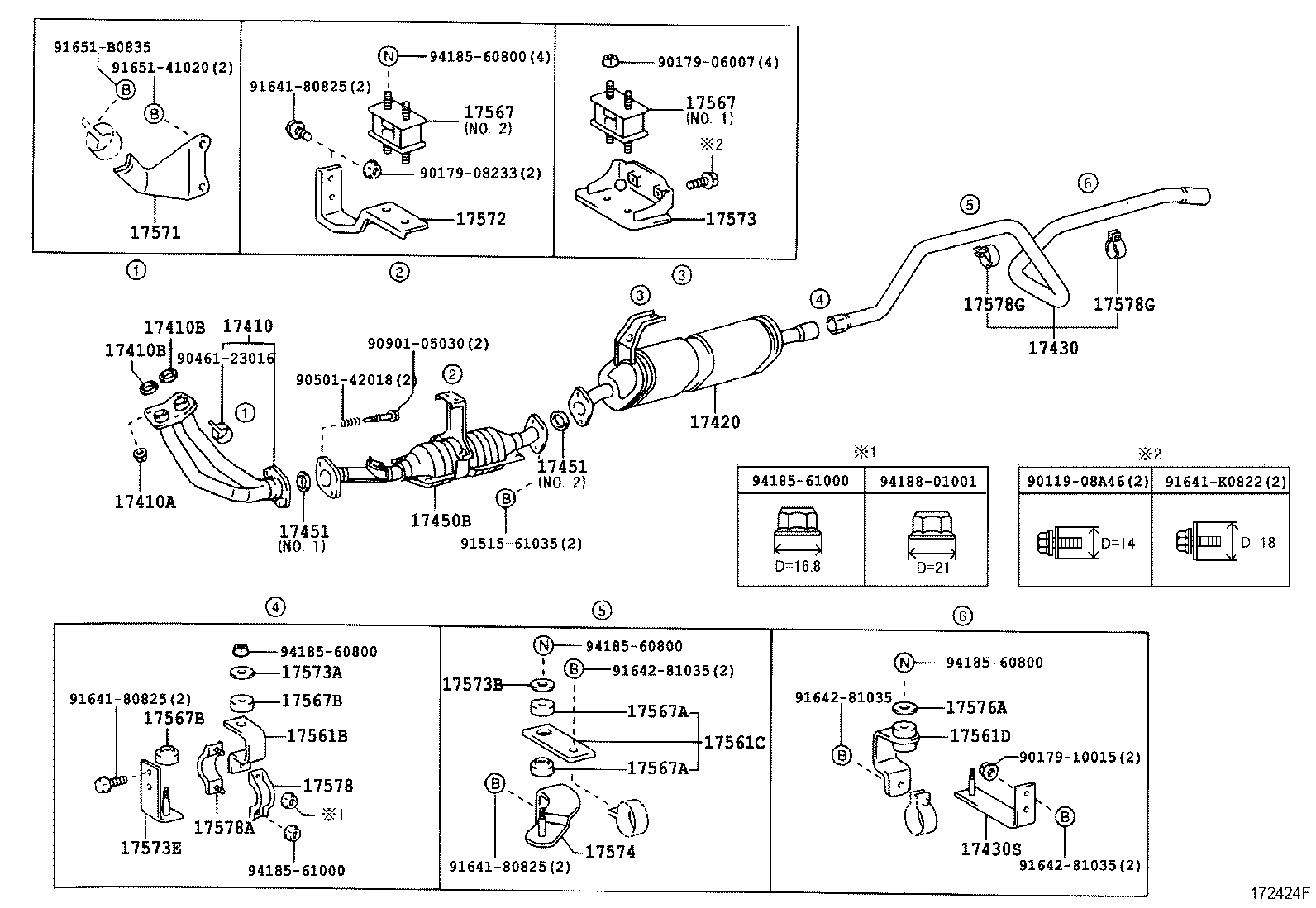

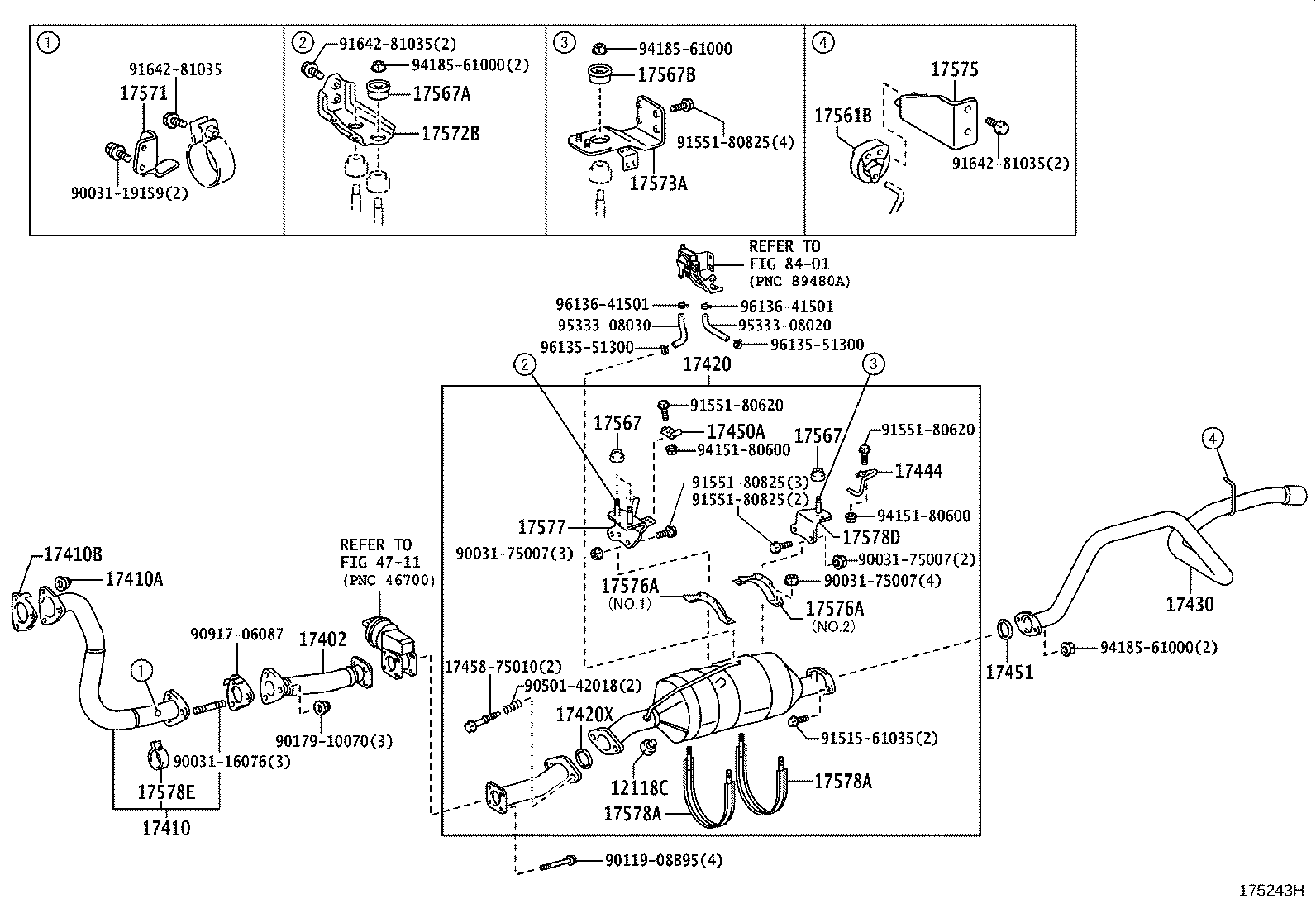

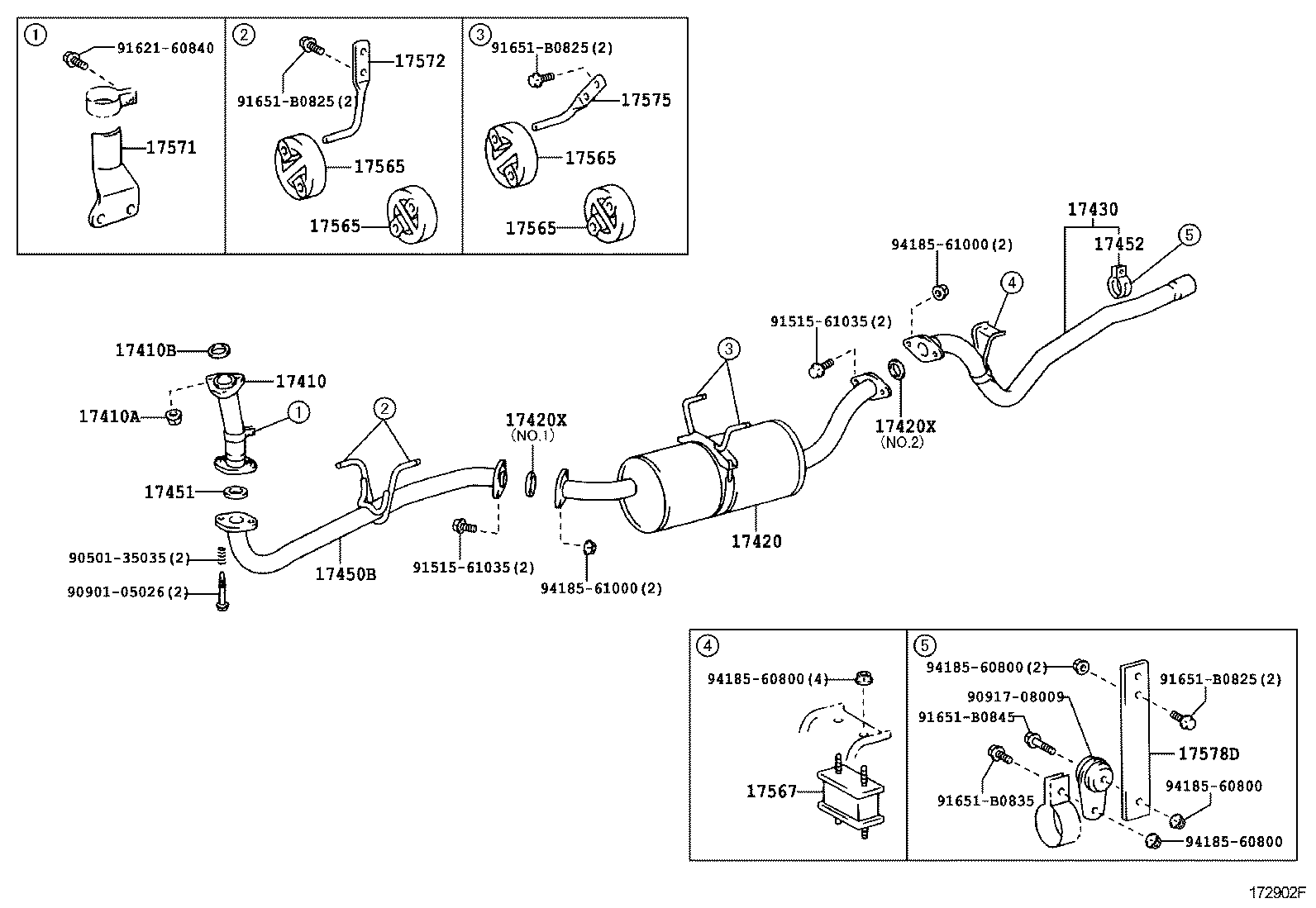

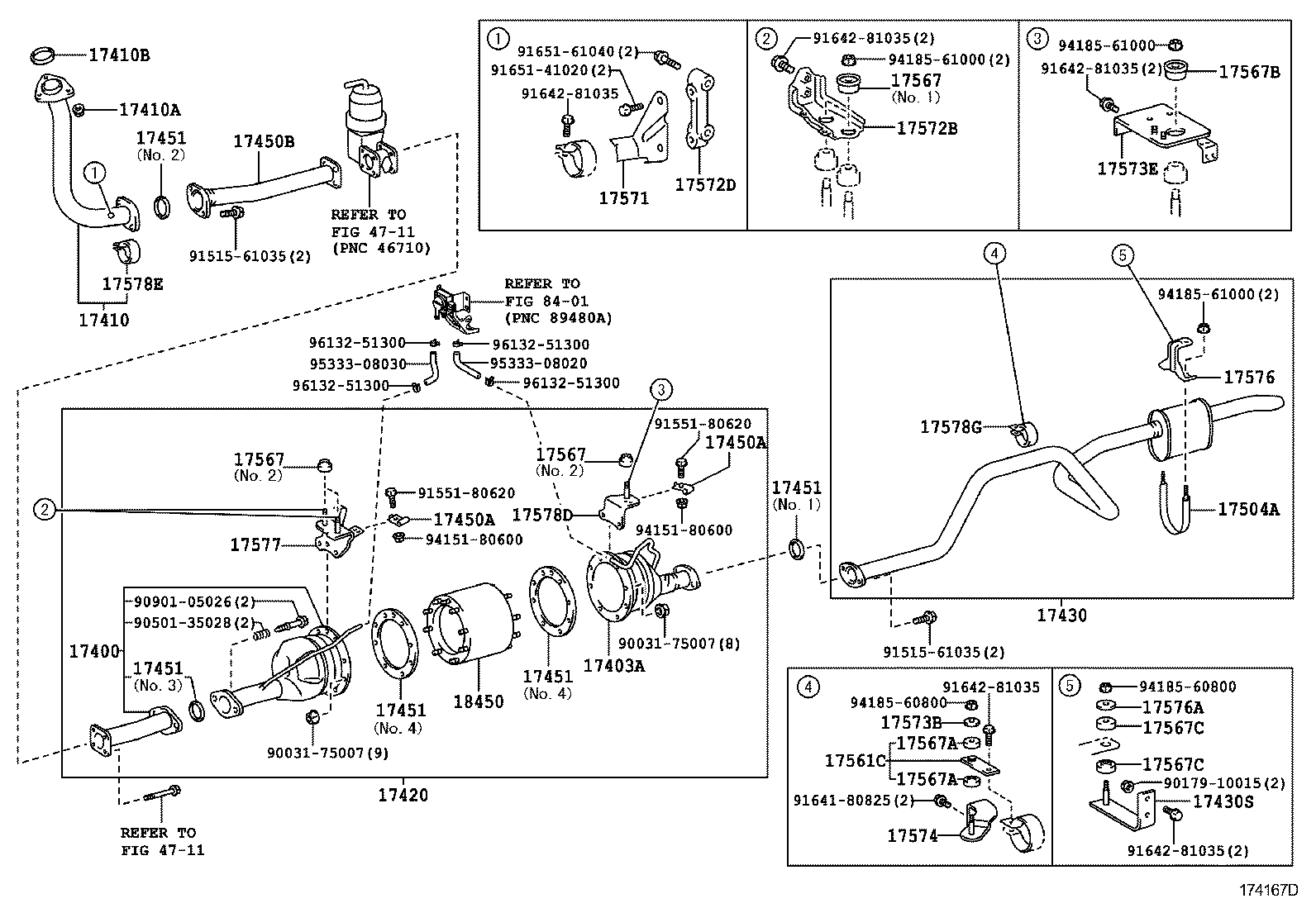

Figure 172242E 172242E 1999-08 → 2002-06 Figure 173277D 173277D 2002-06 → 2004-06 Figure 172424F 172424F 2000-01 → 2006-10 Figure 172902F 172902F 2001-08 → 2004-07 Figure 174166 174166 2004-06 → 2006-10 Figure 174168D 174168D 2004-06 → 2006-10 Figure 174167D 174167D 2004-06 → 2006-10 Figure 175243H 175243H 2006-10 → —

Part groups

PNCDescription
12118C Plug, Drain
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17444 Pipe, Exhaust, NO.4
17450A Clamp, Exhaust Pipe, NO.5
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17504A Clamp Sub-assy, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576 Bracket, Muffler Clamp
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578A Clamp, Muffler
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
18450 Converter Assy, Monolithic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
