Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

36 part groups · 7 illustrations

Illustrations

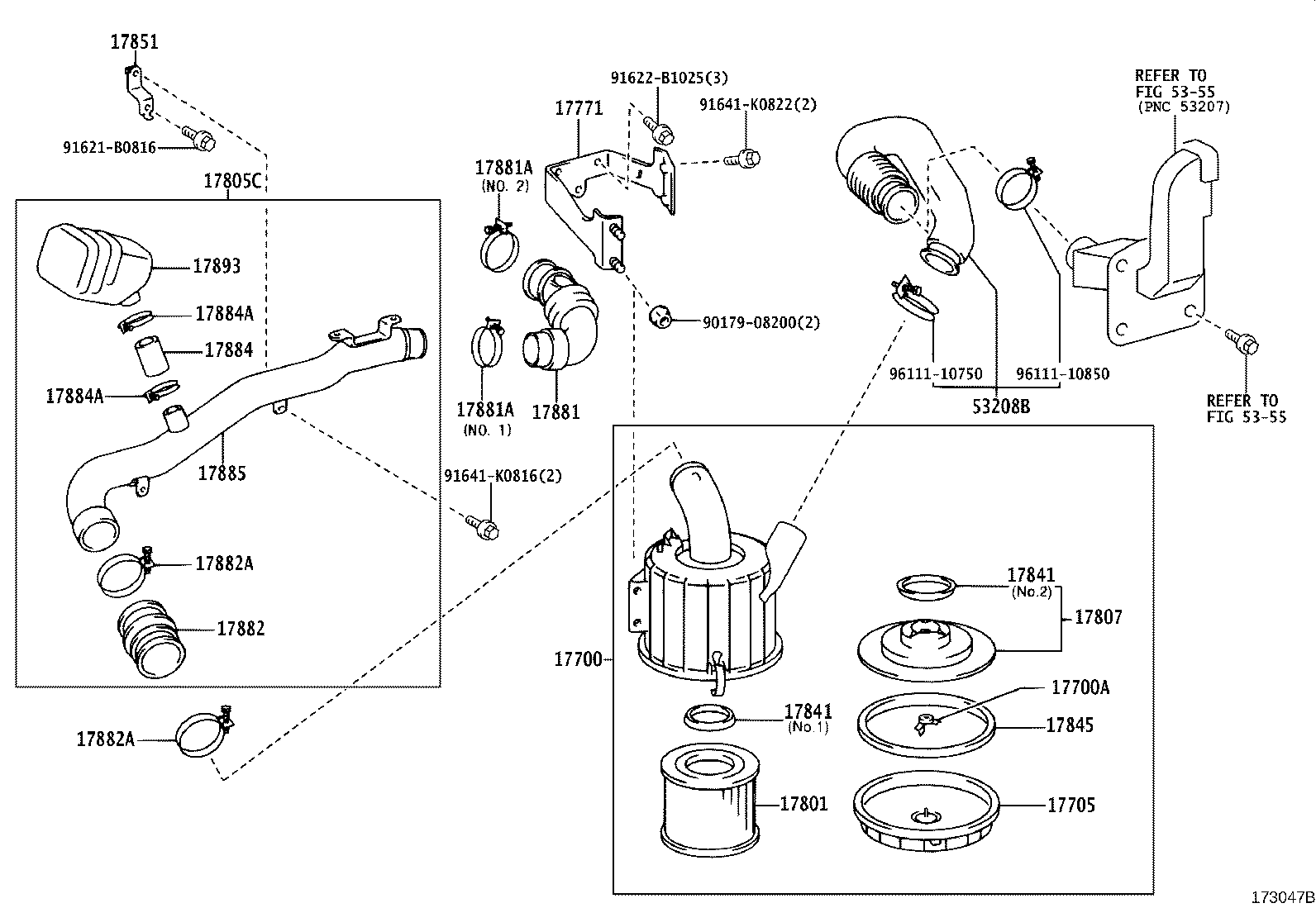

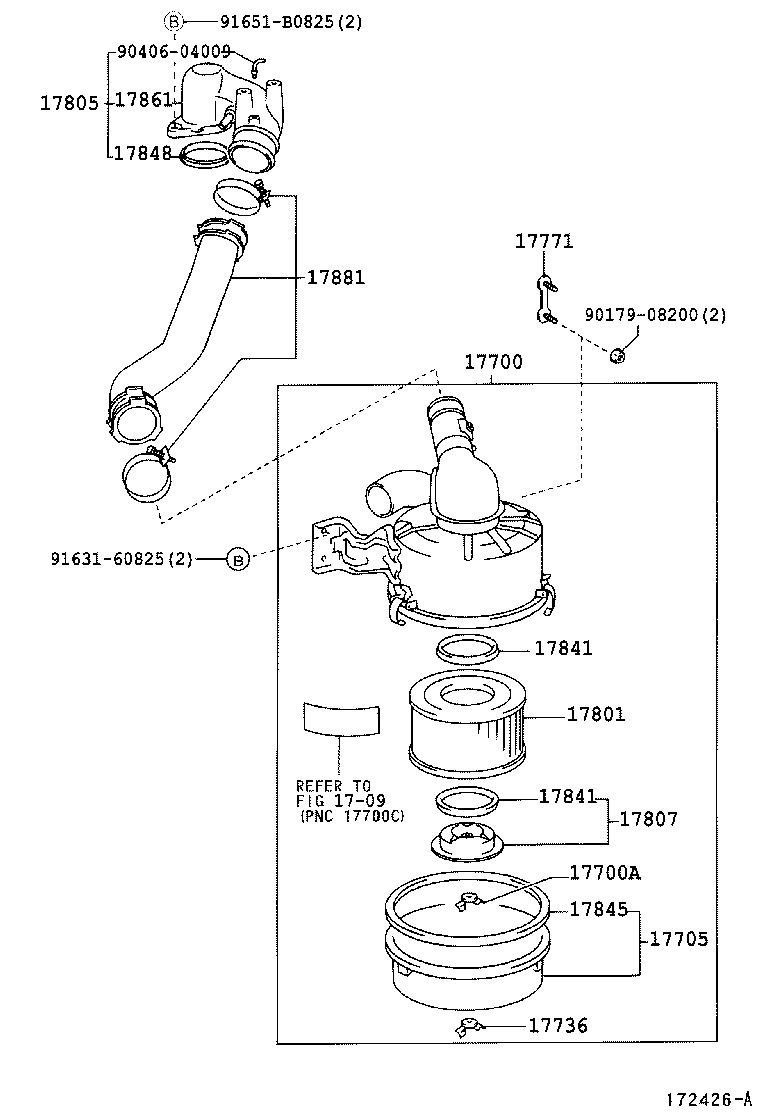

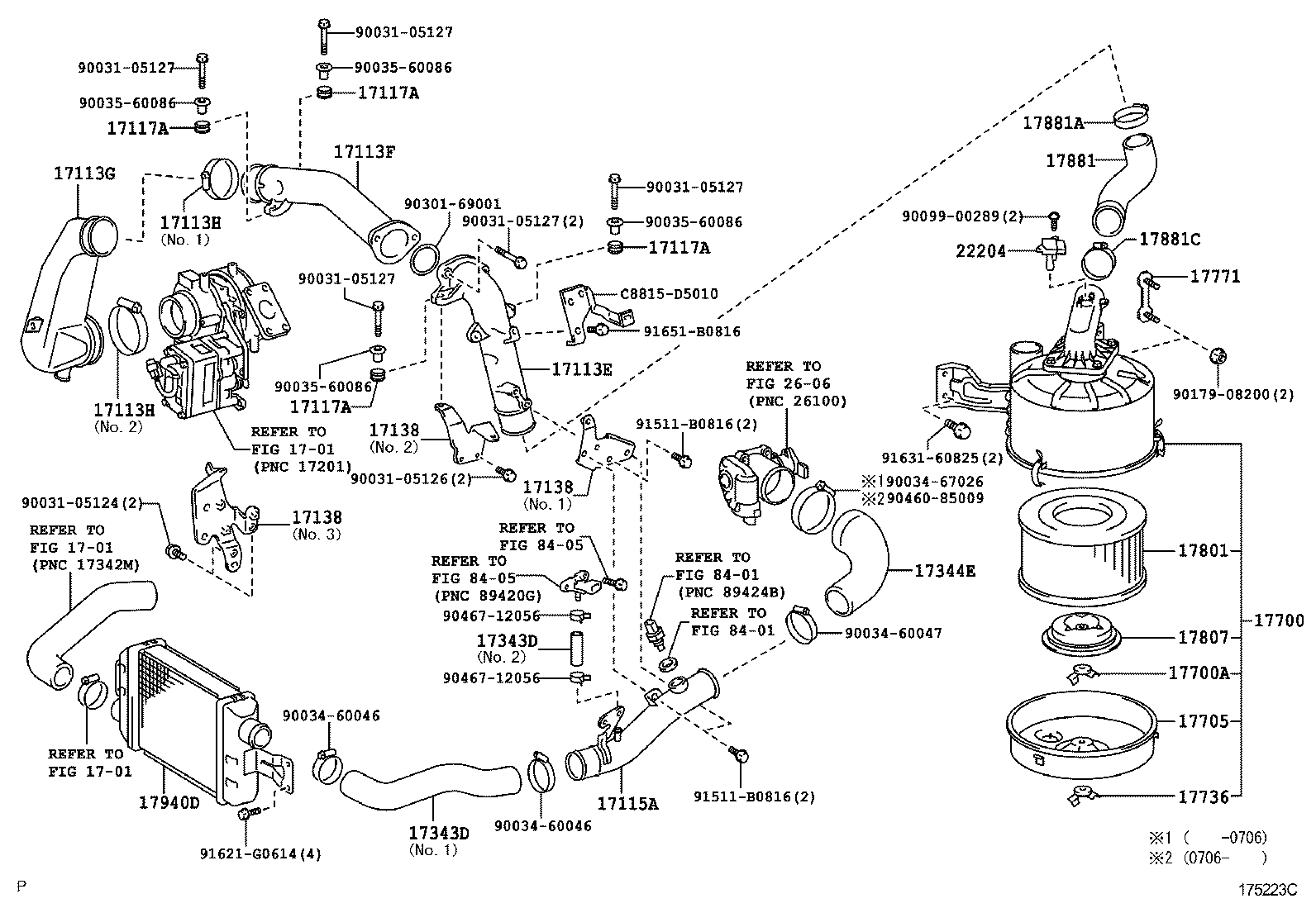

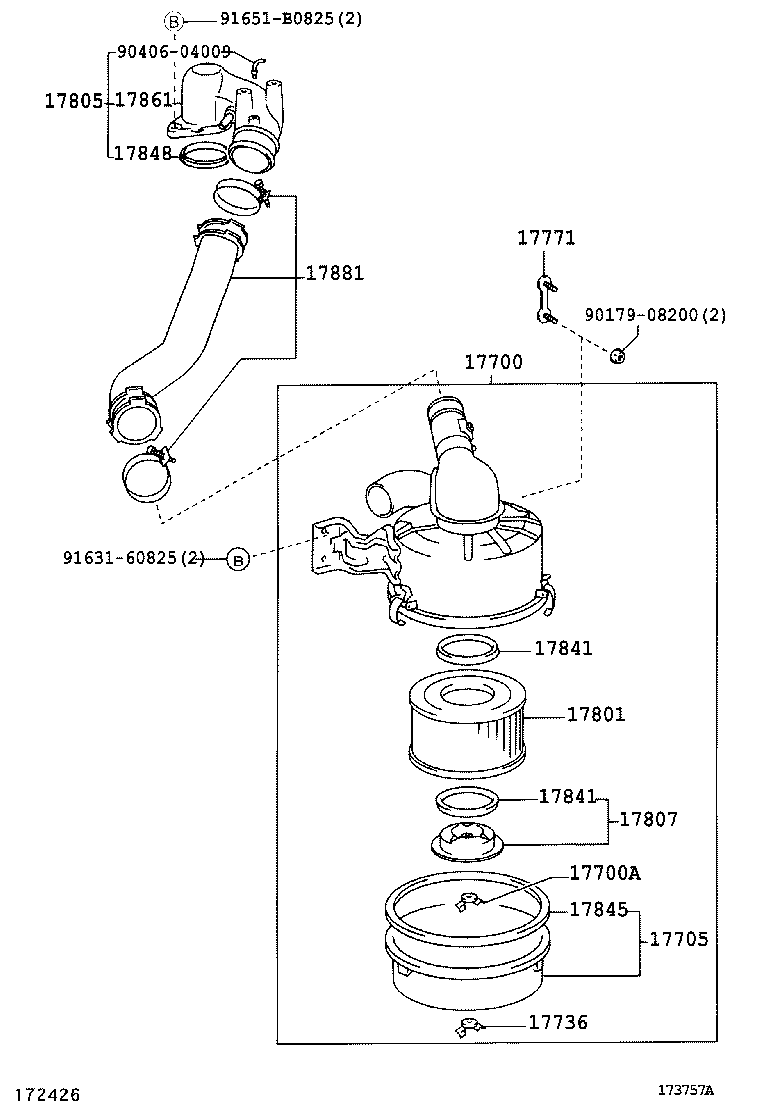

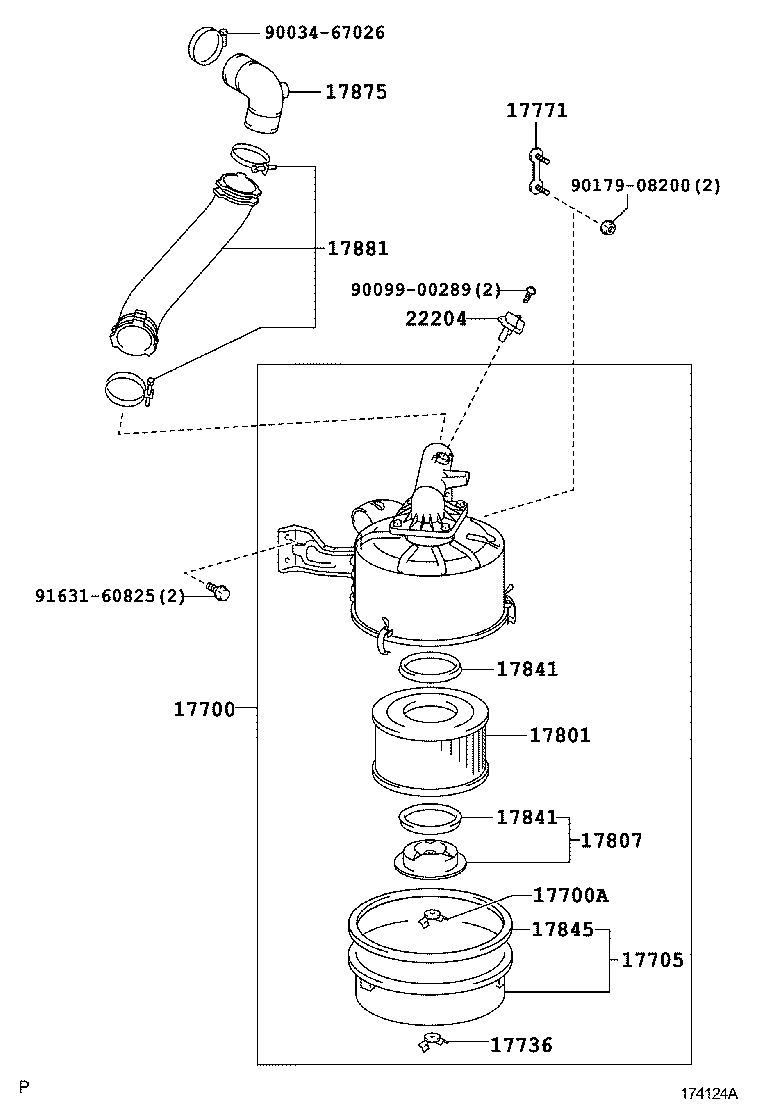

Figure 172247A 172247A 1999-08 → 2004-06 Figure 172426A 172426A 2000-01 → 2003-06 Figure 173047B 173047B 2001-08 → 2004-07 Figure 173757A 173757A 2003-06 → — Figure 174124A 174124A 2004-06 → 2006-10 Figure 173757A 173757A 2004-06 → 2006-10 Figure 175223C 175223C 2006-10 → —

Part groups

PNCDescription
17113E Pipe, Intake, NO.1
17113F Pipe, Intake, NO.2
17113G Pipe, Intake, NO.3
17113H Clamp, Intake Pipe
17115A Pipe, Intake, NO.2
17117A Insulator, Intake Pipe
17138 Stay, Intake Pipe OR Hose
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17736 Nut, Air Cleaner Case
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17861 Connector, Intake Air
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
53208B Duct Sub-assy, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
