Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 6 illustrations

Illustrations

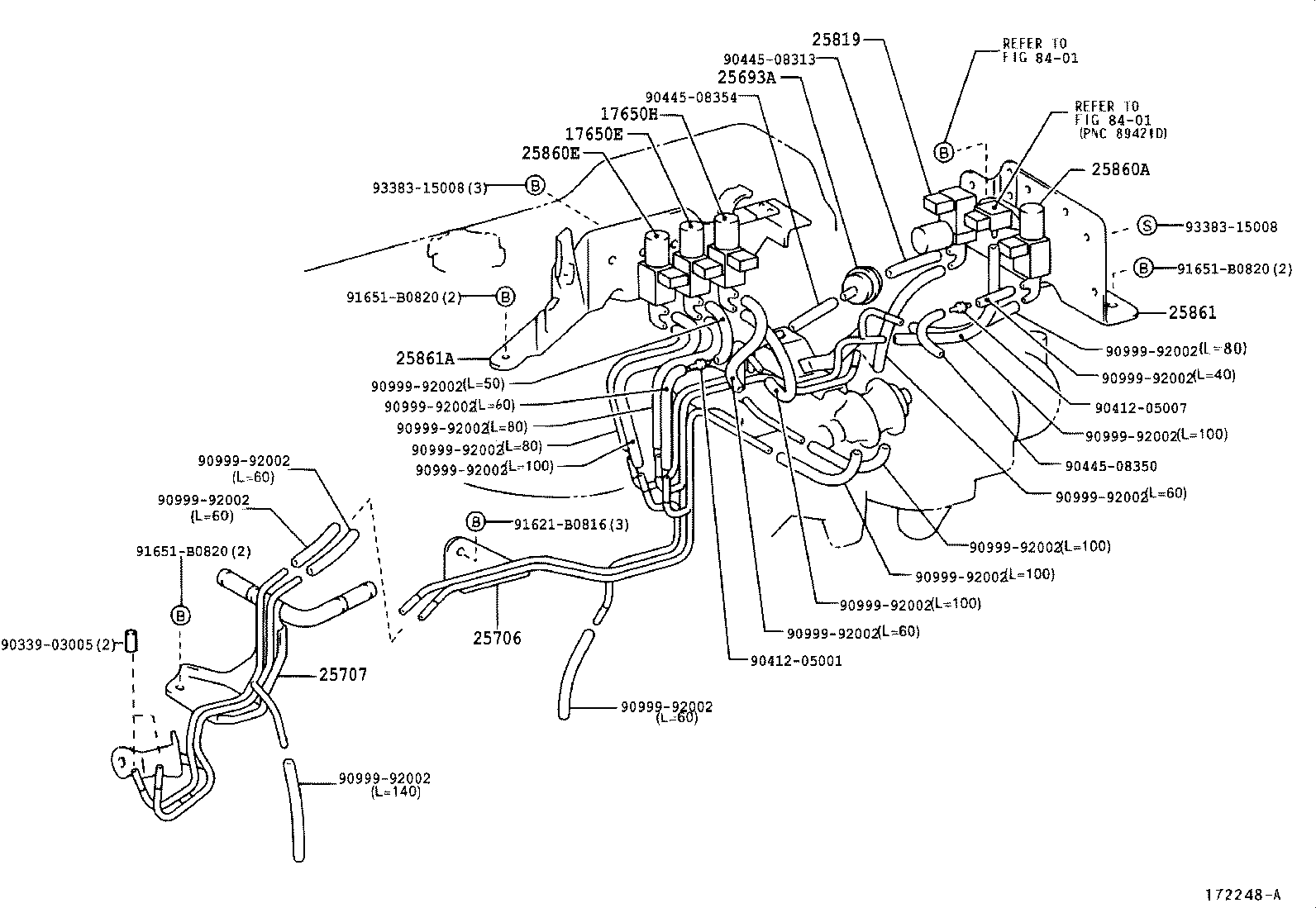

Figure 170020 170020 1999-08 → — Figure 172248A 172248A 1999-08 → — Figure 172427 172427 2000-01 → — Figure 173065B 173065B 2001-08 → — Figure 172427 172427 2003-06 → — Figure 172427 172427 2004-06 → —

Part groups

PNCDescription
17650E Valve, Vacuum Switching
17650H Valve, Vacuum Switching
22233 Hose, Lpg Auxiliary Air Valve, NO.1
22233A Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22234 Hose, Lpg Auxiliary Air Valve, NO.2
22234A Clip(FOR LPG AUXILIARY AIR VALVE NO.2)
22270K Valve Assy, Lpg Idle Speed Control
25693A Damper, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
