Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

9 part groups · 6 illustrations

Illustrations

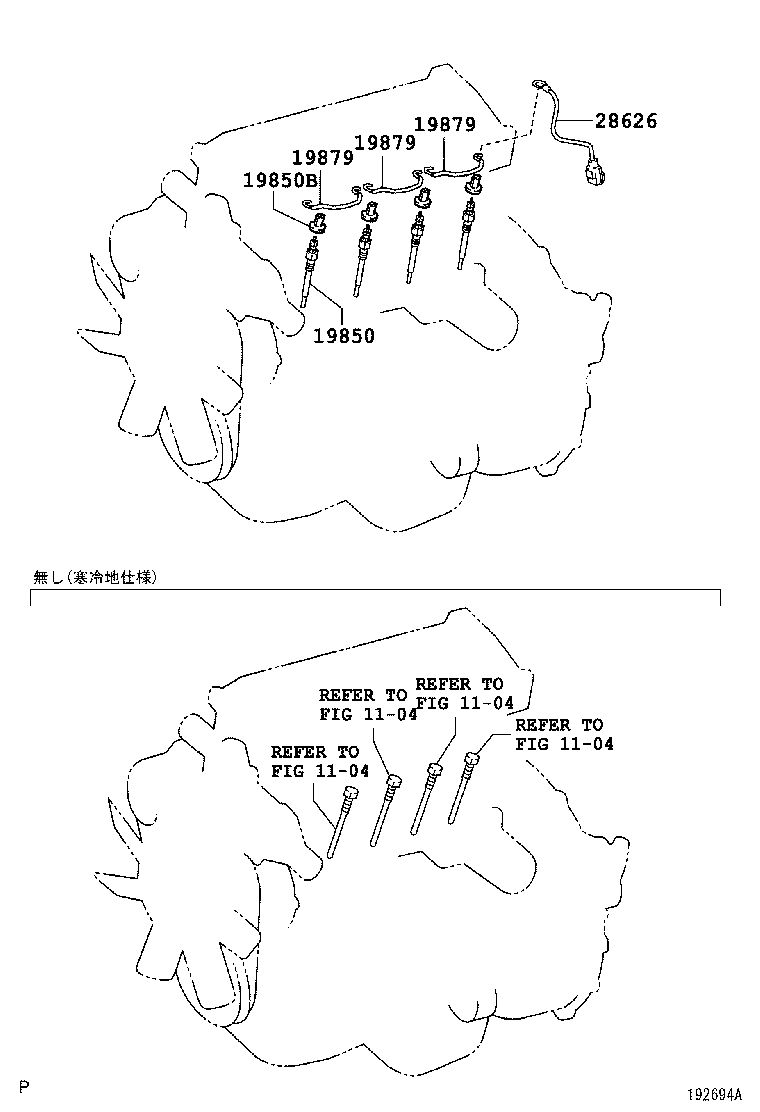

Figure MAG340 MAG340 1999-08 → 2004-06 Figure 191090 191090 2000-01 → 2003-06 Figure 191135 191135 2001-08 → — Figure 191090 191090 2003-06 → — Figure 192694A 192694A 2004-06 → — Figure 192772 192772 2004-06 → 2006-10

Part groups

PNCDescription
19100P Plug, Spark
19500D Coil, Ignition, NO.1
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19856A Grommet, Screw(FOR, GLOW PLUG CONNECTOR)
19871 Connector, Glow Plug NO.1
19879 Wire, Glow Plug Ground
28626 Wire, Glow Plug
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
