Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01
Alternator
27 part groups · 8 illustrations
Part groups

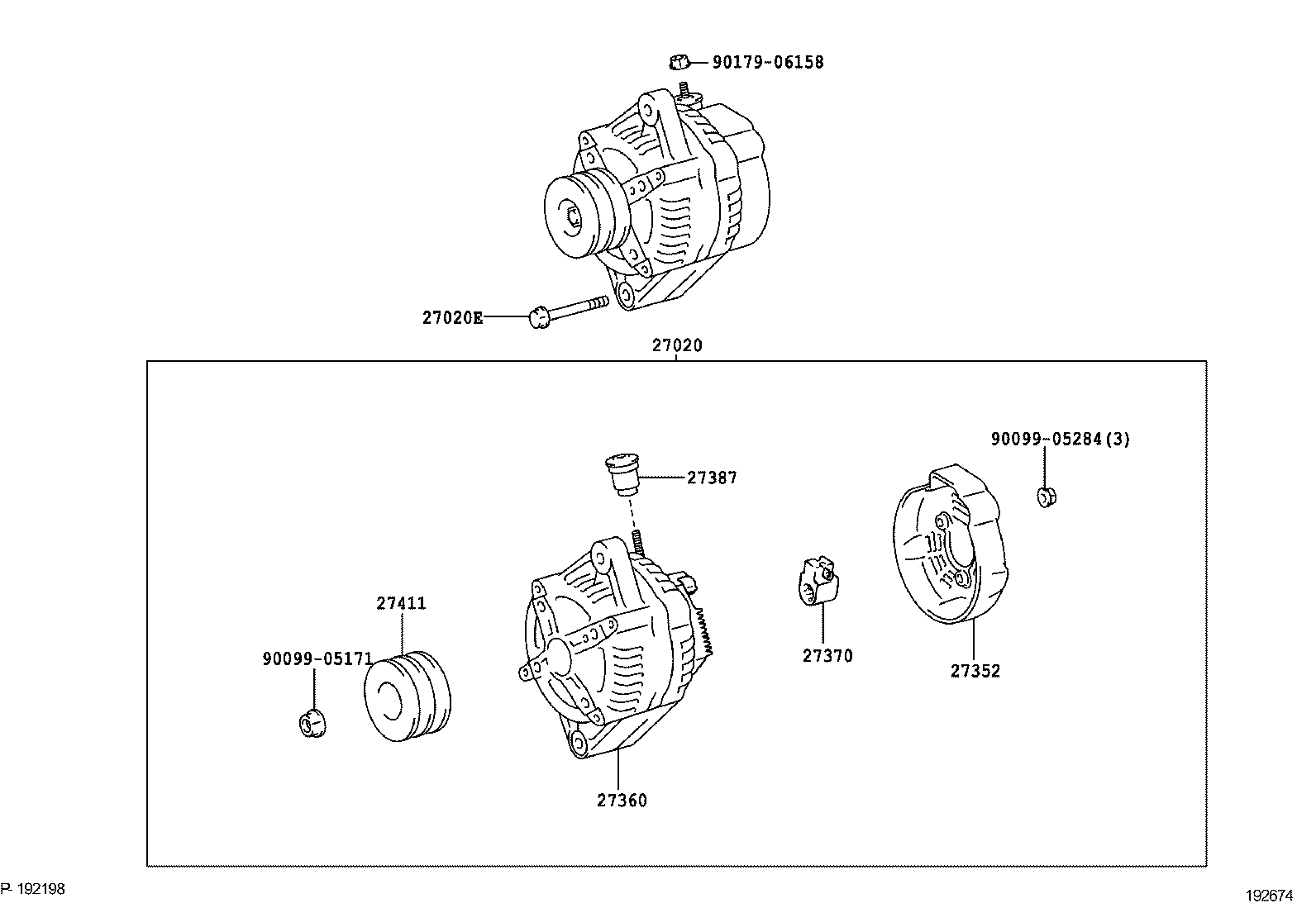

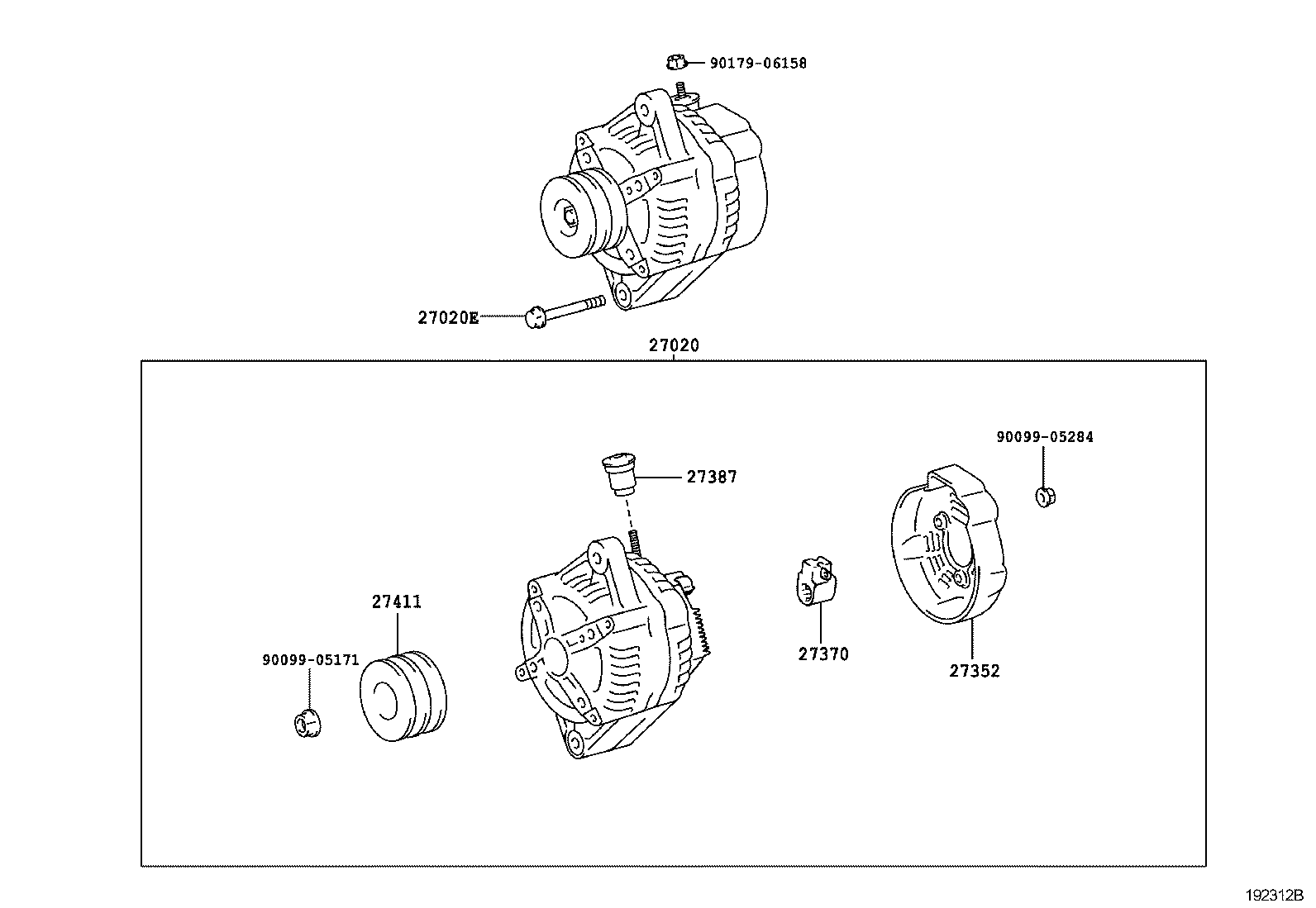

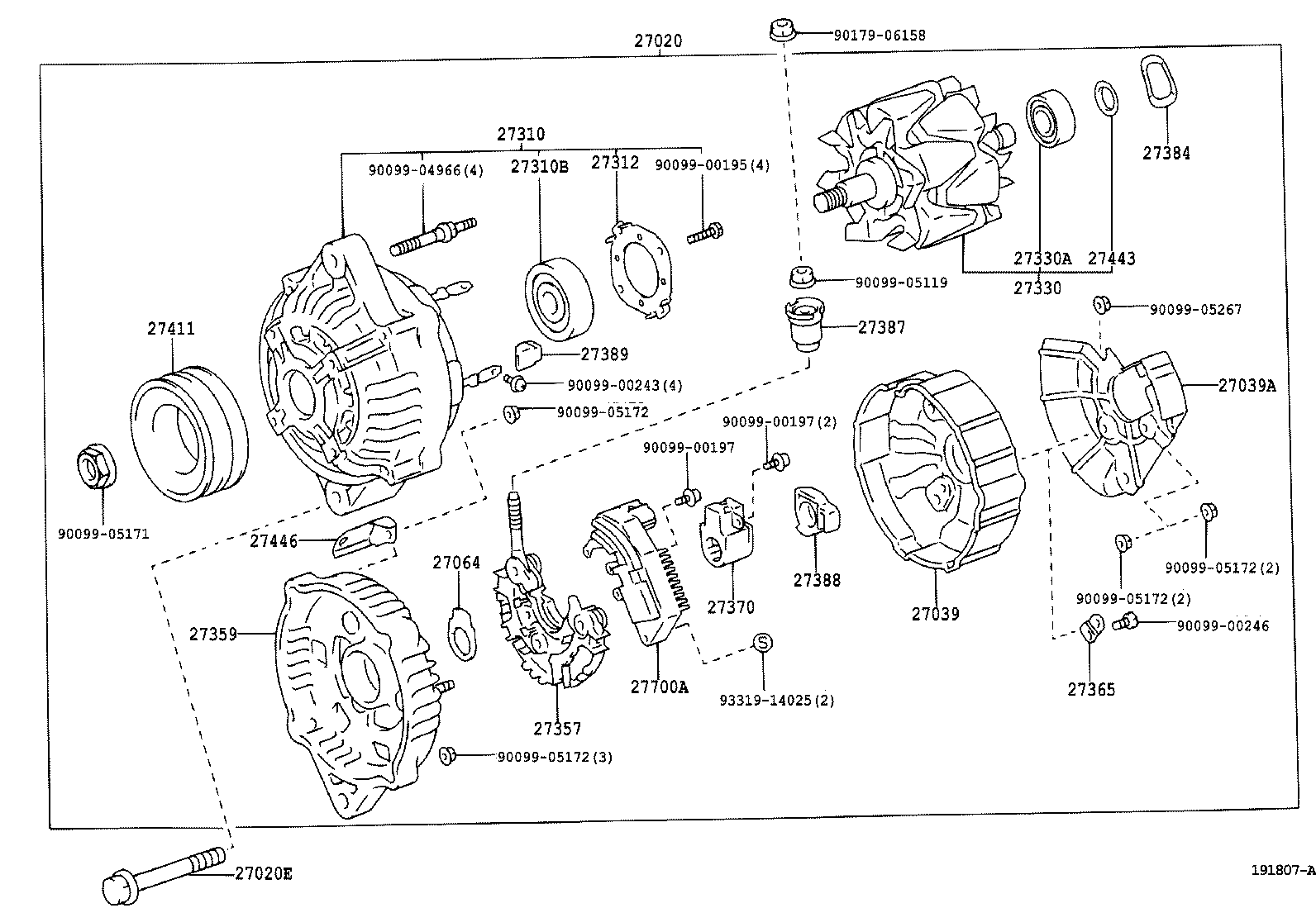

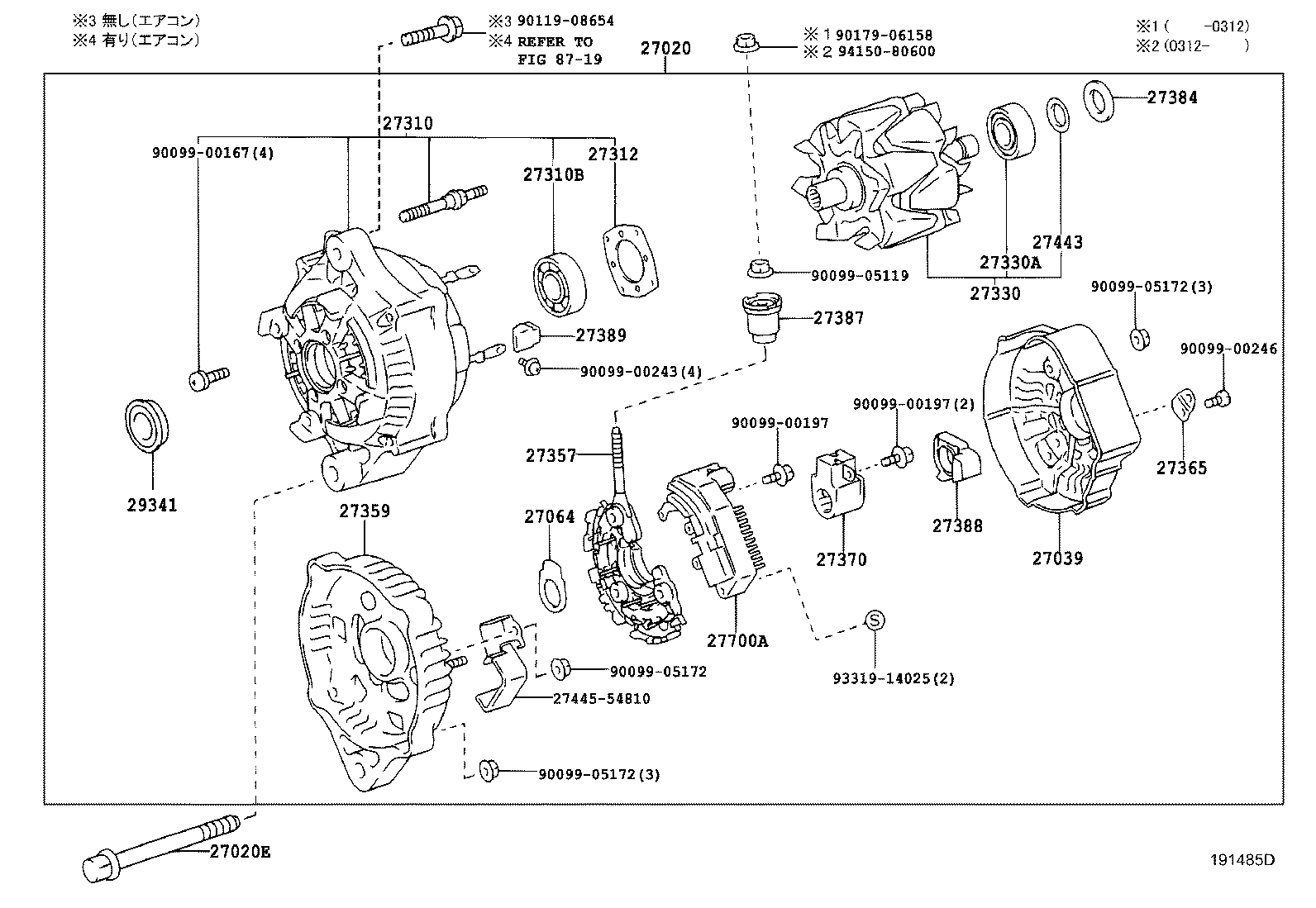

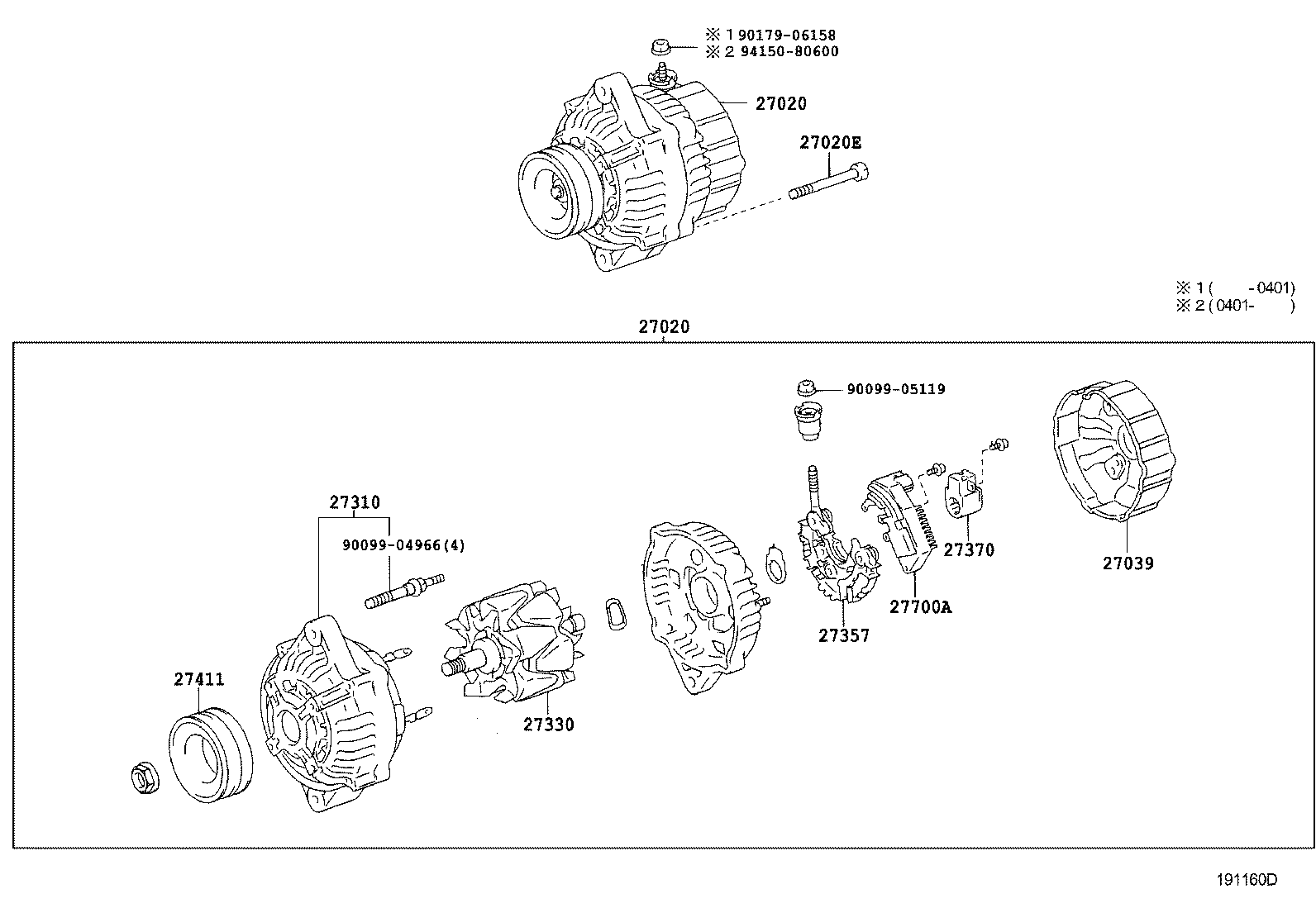

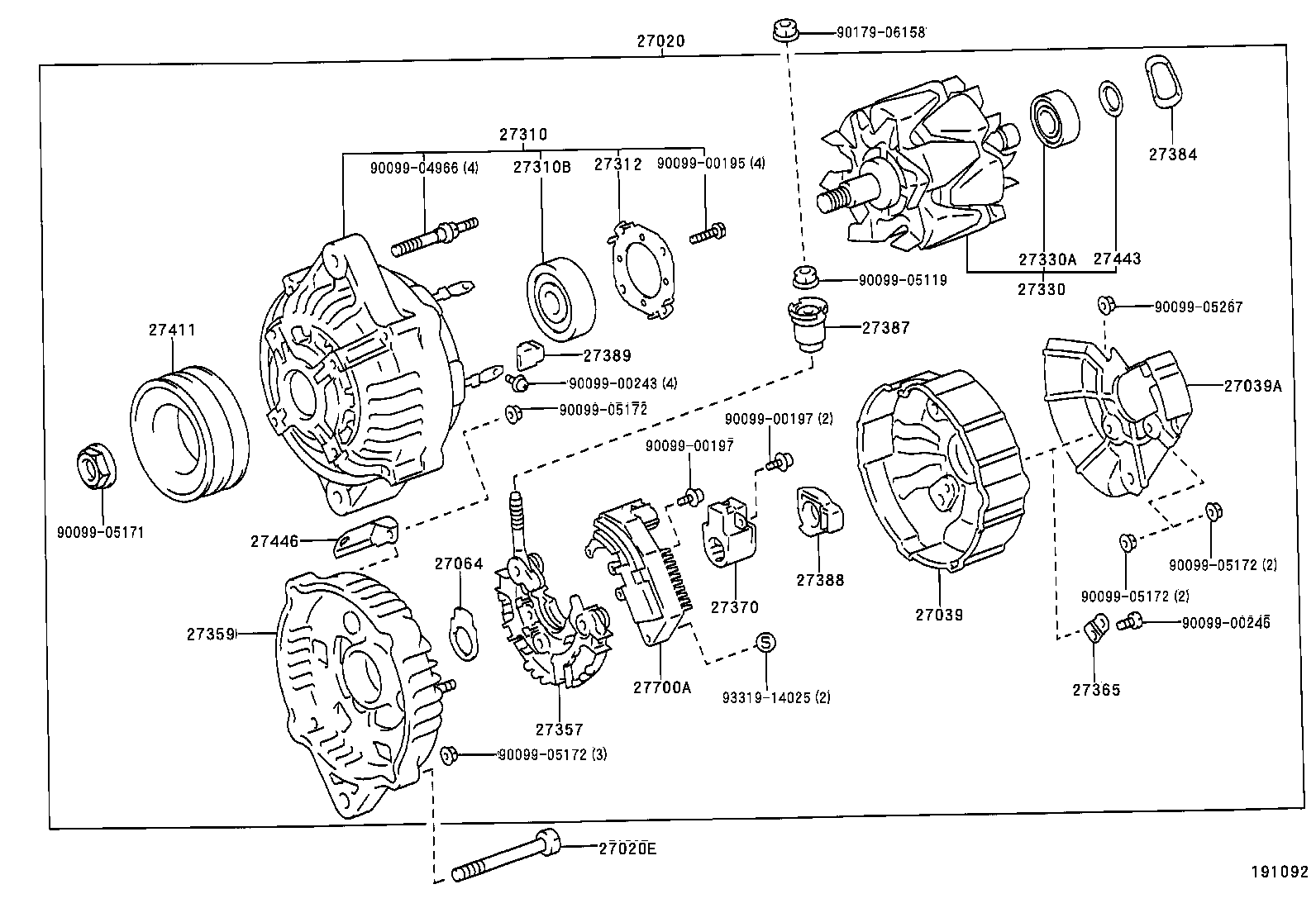

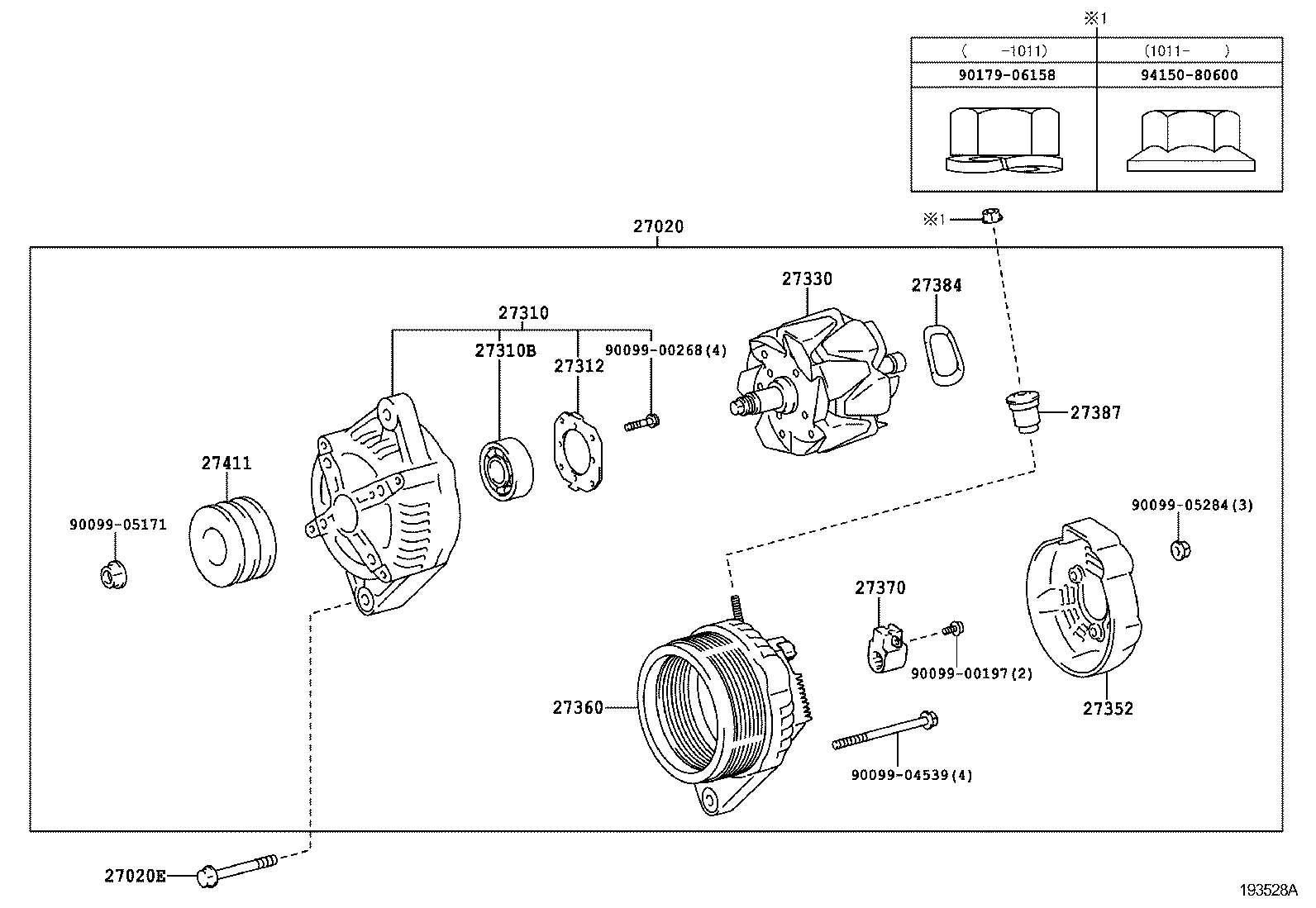

| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27039A | Cover, Alternator Rear End, NO.2 |
| 27064 | Seal, Alternator Plate |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27352 | Cover, Frame Brush |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27360 | Coil Assy, Alternator |
| 27365 | Plate, Terminal |
| 27370 | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27384 | Washer |
| 27387 | Insulator, Terminal |
| 27388 | Cover, Alternator Brush |
| 27389 | Insulator, Terminal |
| 27411 | Pulley, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27446 | Clip, Alternator Cord |
| 27700A | Regulator Assy, Generator |
| 29341 | Seal, Alternator Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
