Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

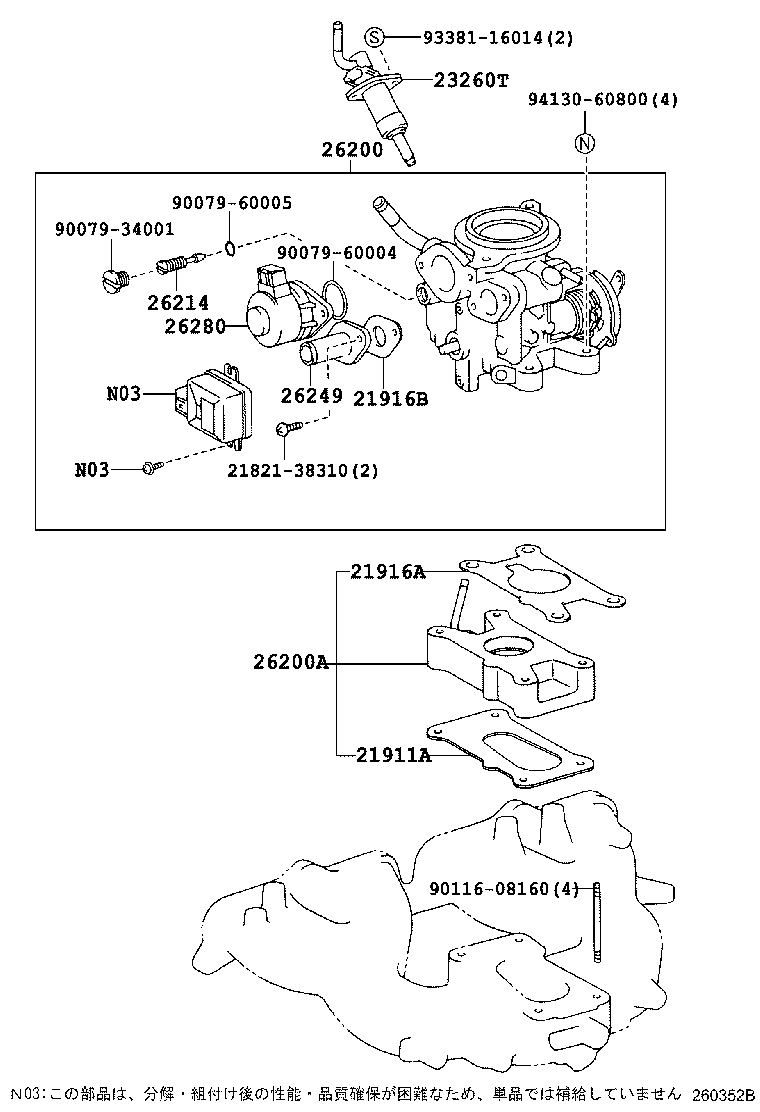

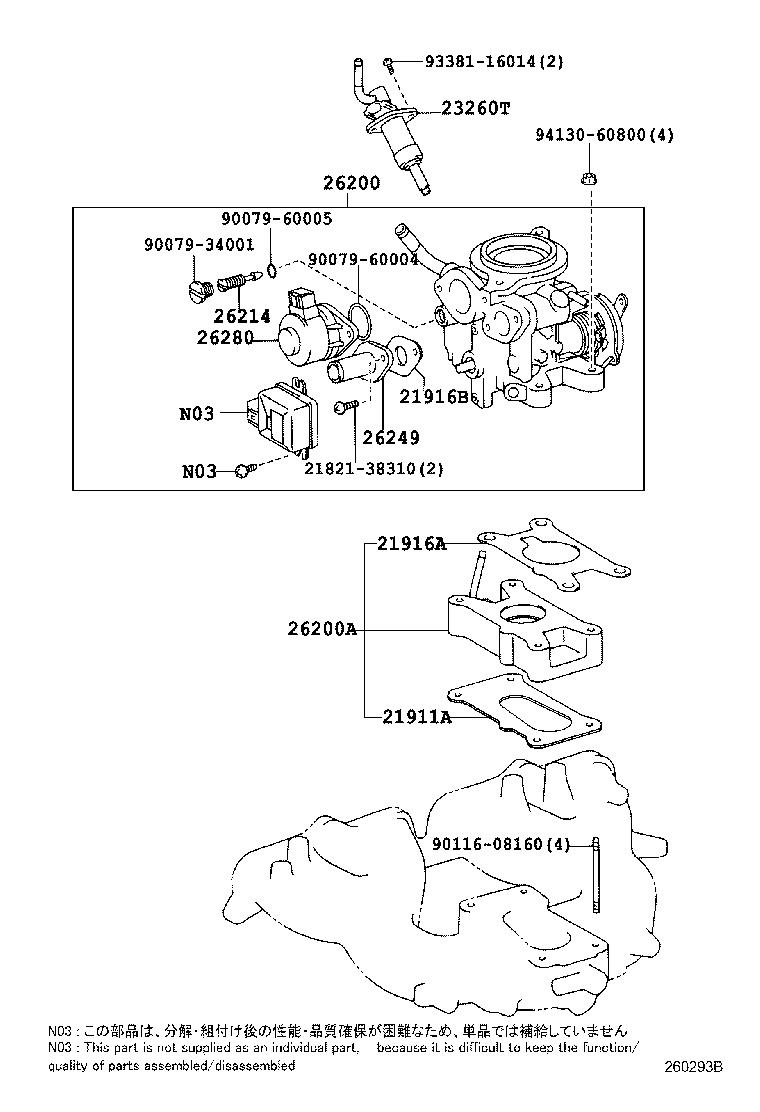

Lpg Carburetor
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 21911A | Gasket, Carburetor, NO.1 |
| 21916A | Gasket, Carburetor, NO.2 |
| 21916B | Gasket, Lpg Fuel Hose Union |
| 23260T | Injector Assy, Lpg |
| 26200 | Carburetor Assy, Lpg |
| 26200A | Insulator, Lpg Carburetor Heat |
| 26214 | Screw, Power Adjust |
| 26249 | Union, Fuel Hose(FOR LPG) |
| 26280 | Motor Assy, Air Fuel Ratio Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
