Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01
Clutch Pedal & Flexible Hose
24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

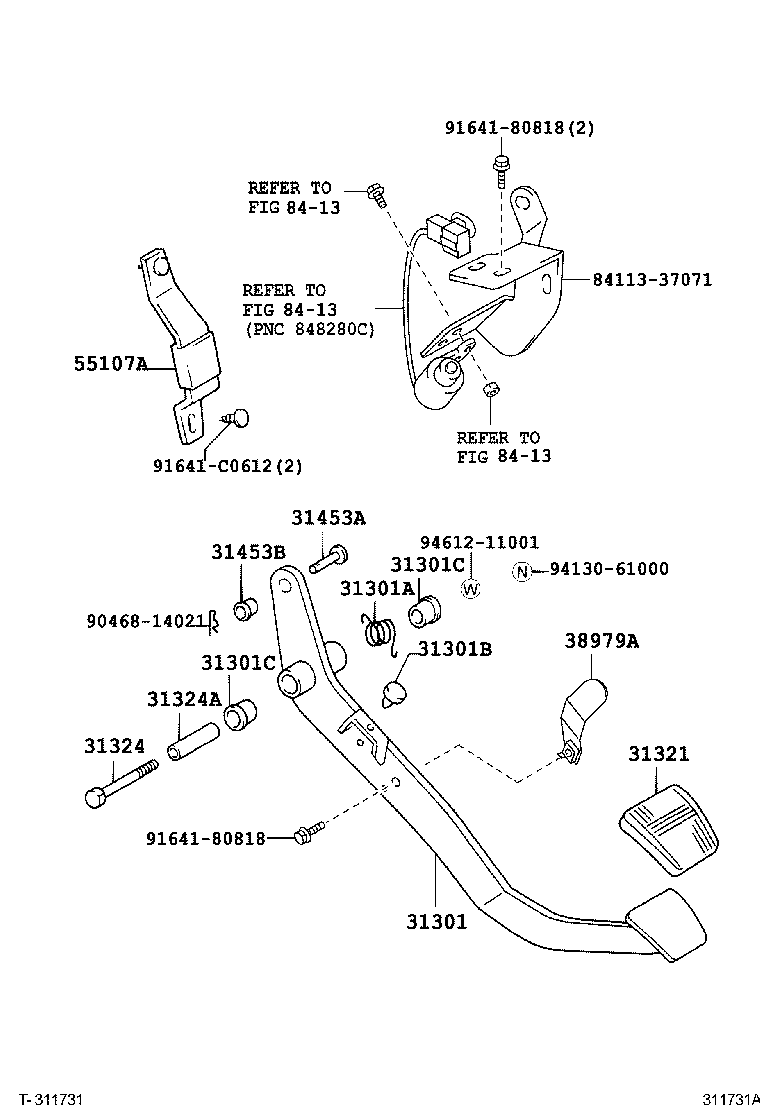

| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31323 | Bracket, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |

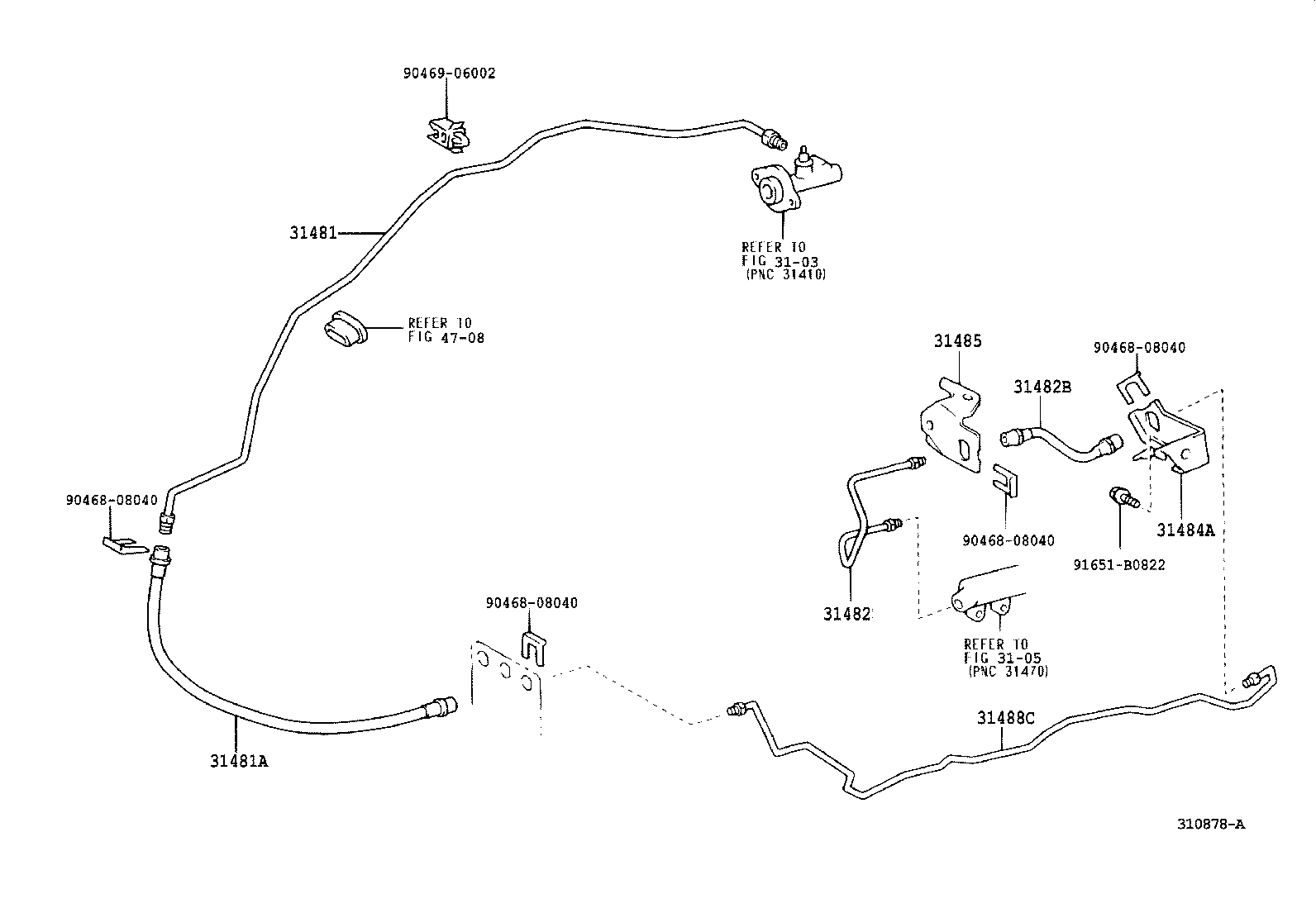

| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482B | Hose, Clutch, NO.2 |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31487 | Plate, Release Tube Set |
| 31488C | Tube, Flexible Hose TO Flexible Hose |
| 31489 | Tube, Tube Connector TO Flexible Hose |
| 31490 | Accumulator Assy, Clutch |
| 38979A | Bracket, Power Take-off Clutch Switch |
| 55107A | Support Sub-assy, Clutch Pedal |
