Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

3 part groups · 5 illustrations

Illustrations

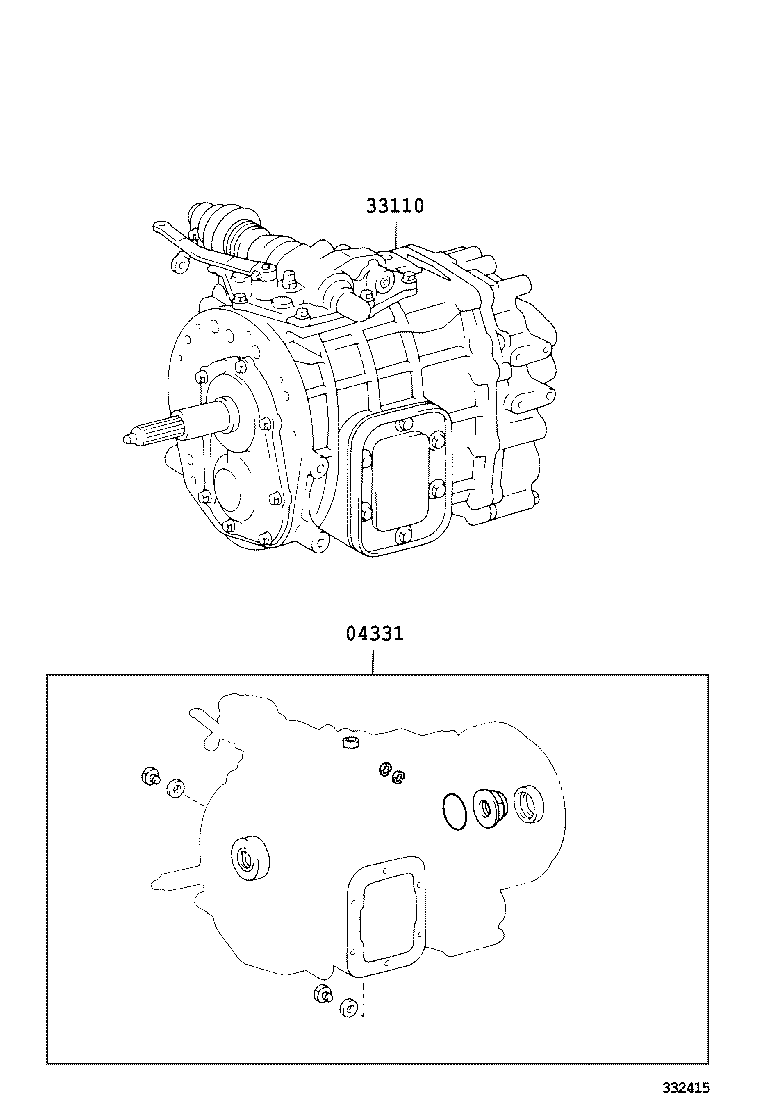

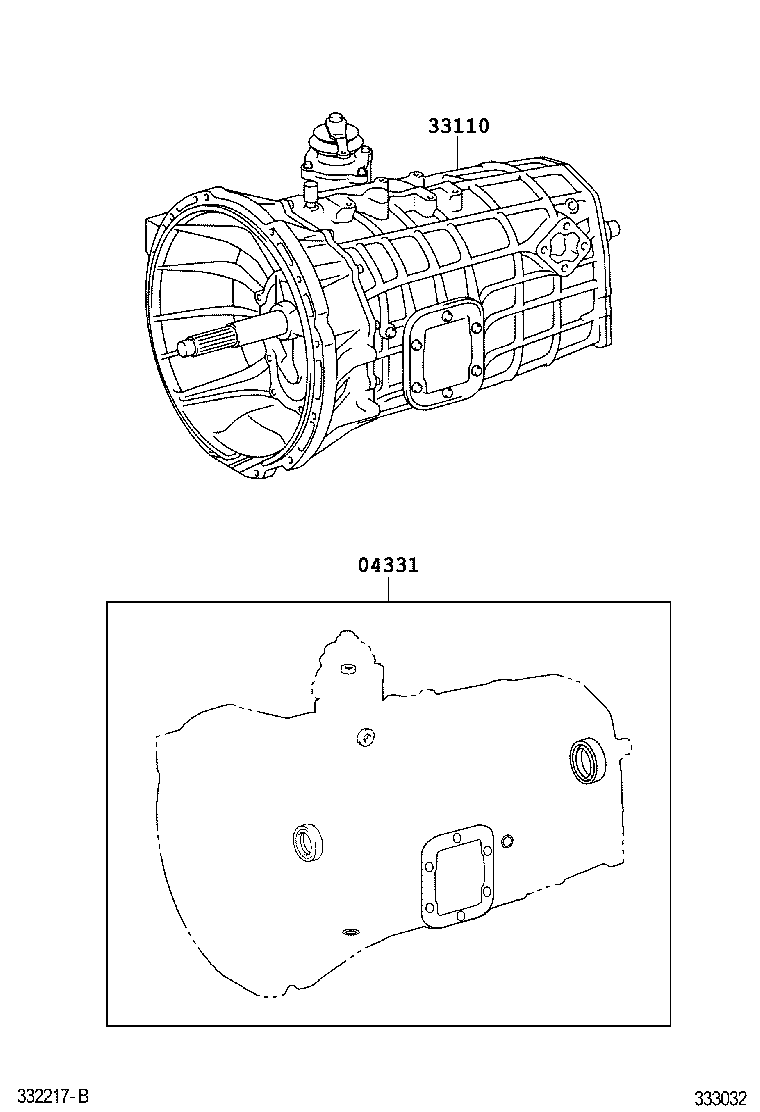

Figure 331149A 331149A 1999-08 → 2004-06 Figure 330830 330830 2001-08 → 2004-07 Figure 332414 332414 2003-06 → 2006-10 Figure 332415 332415 2004-06 → 2006-10 Figure 333032 333032 2006-10 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
