Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

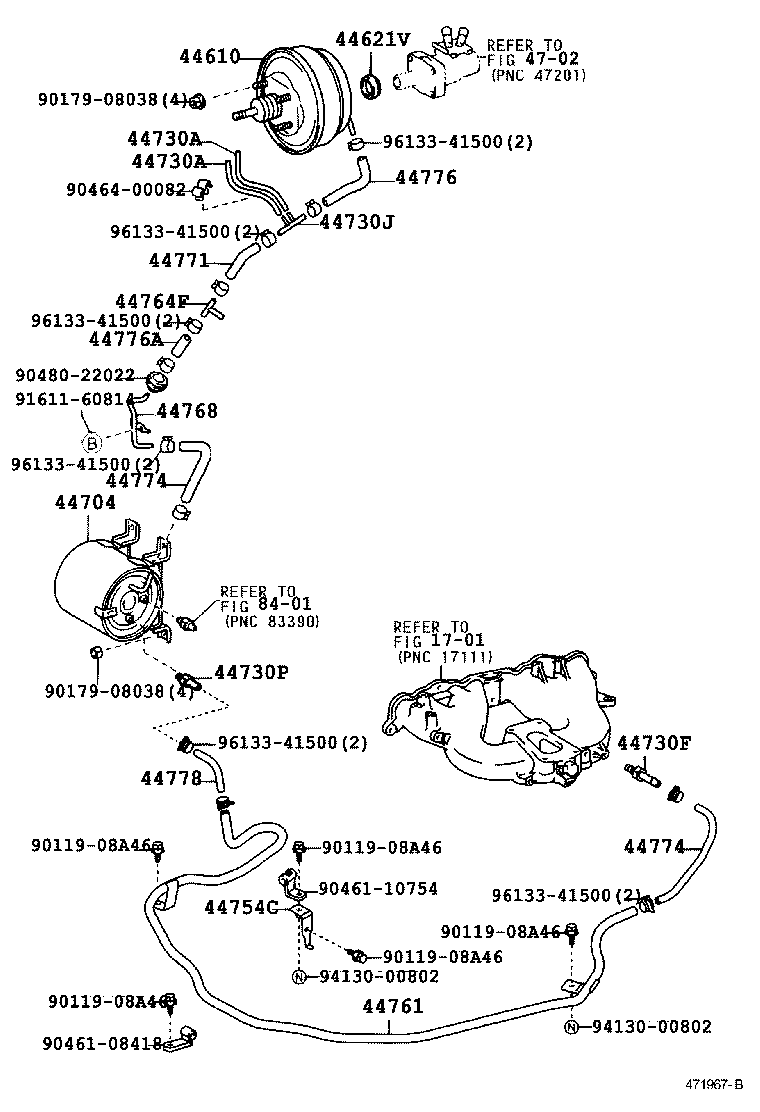

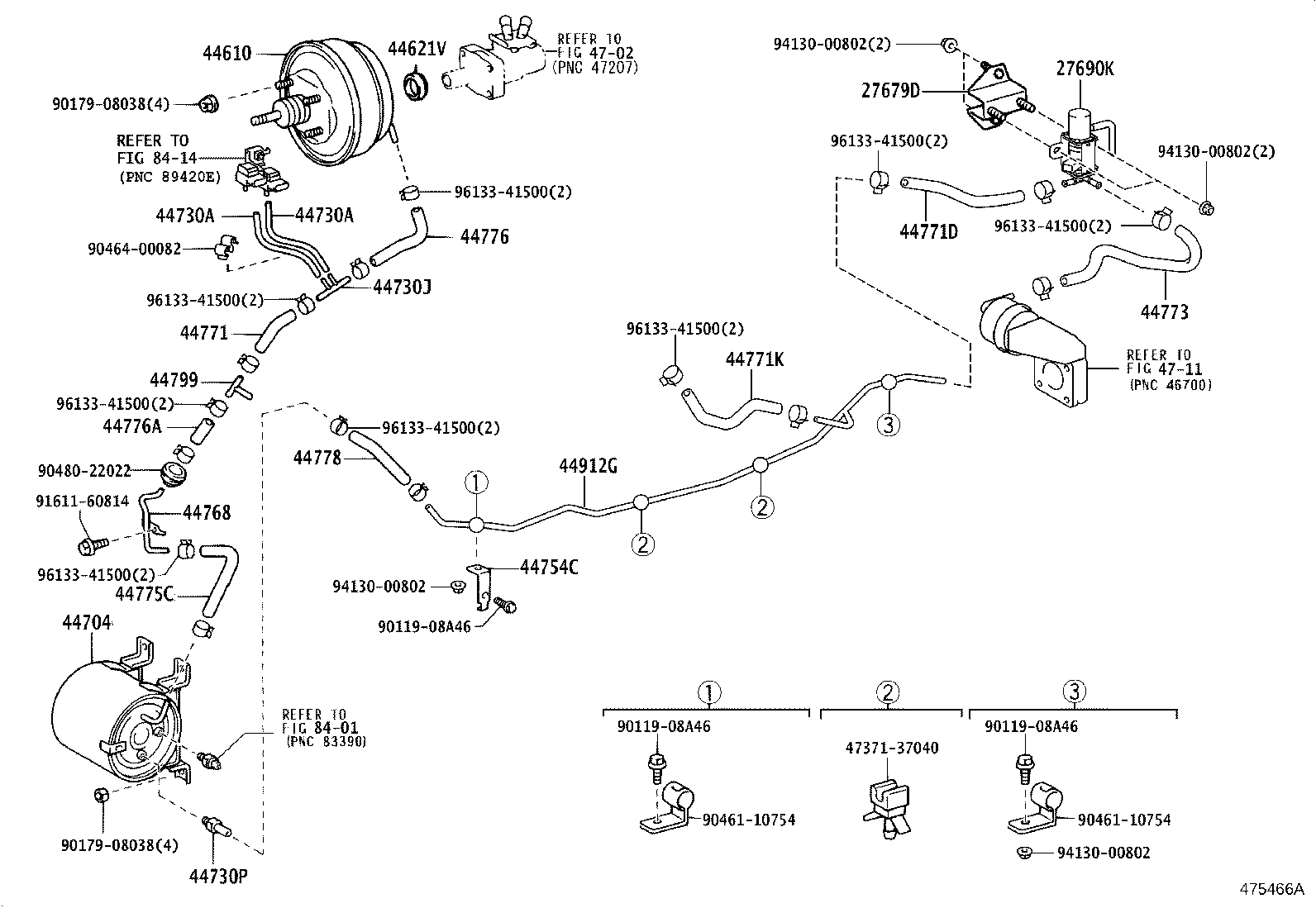

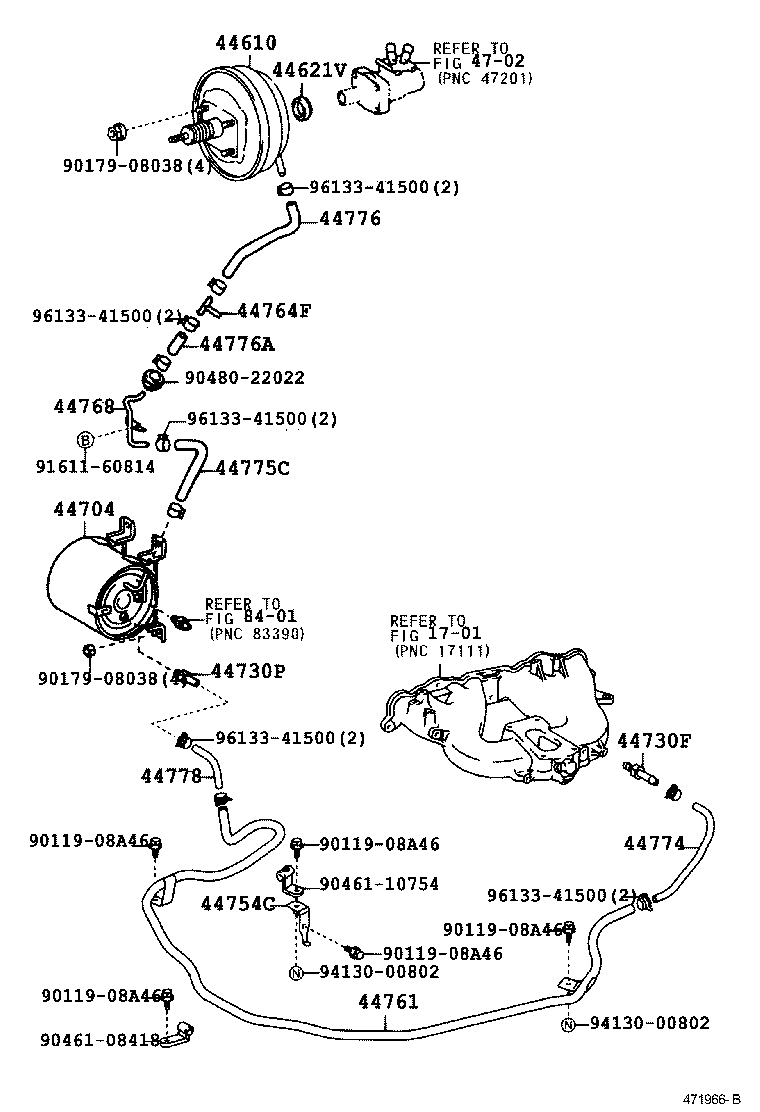

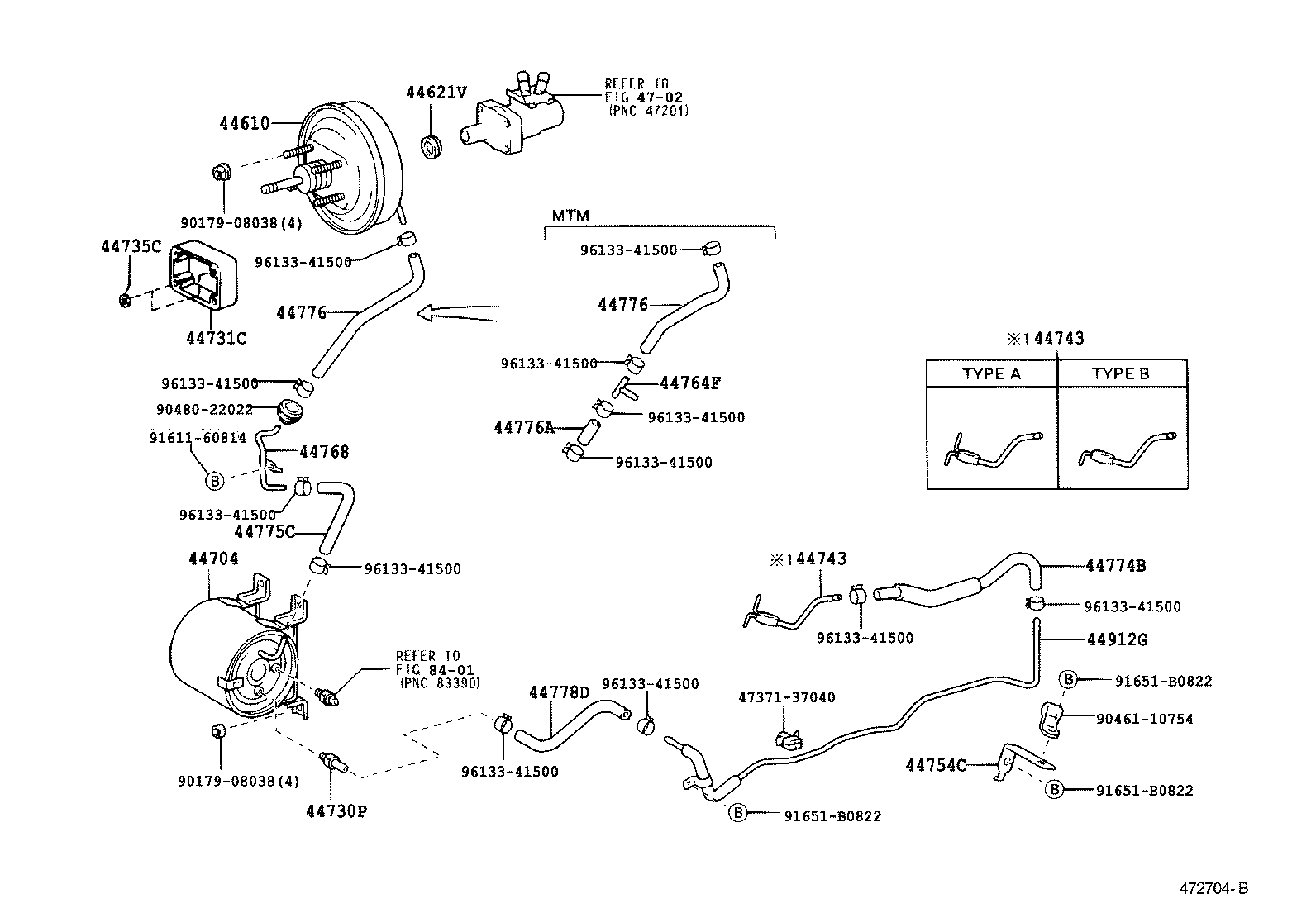

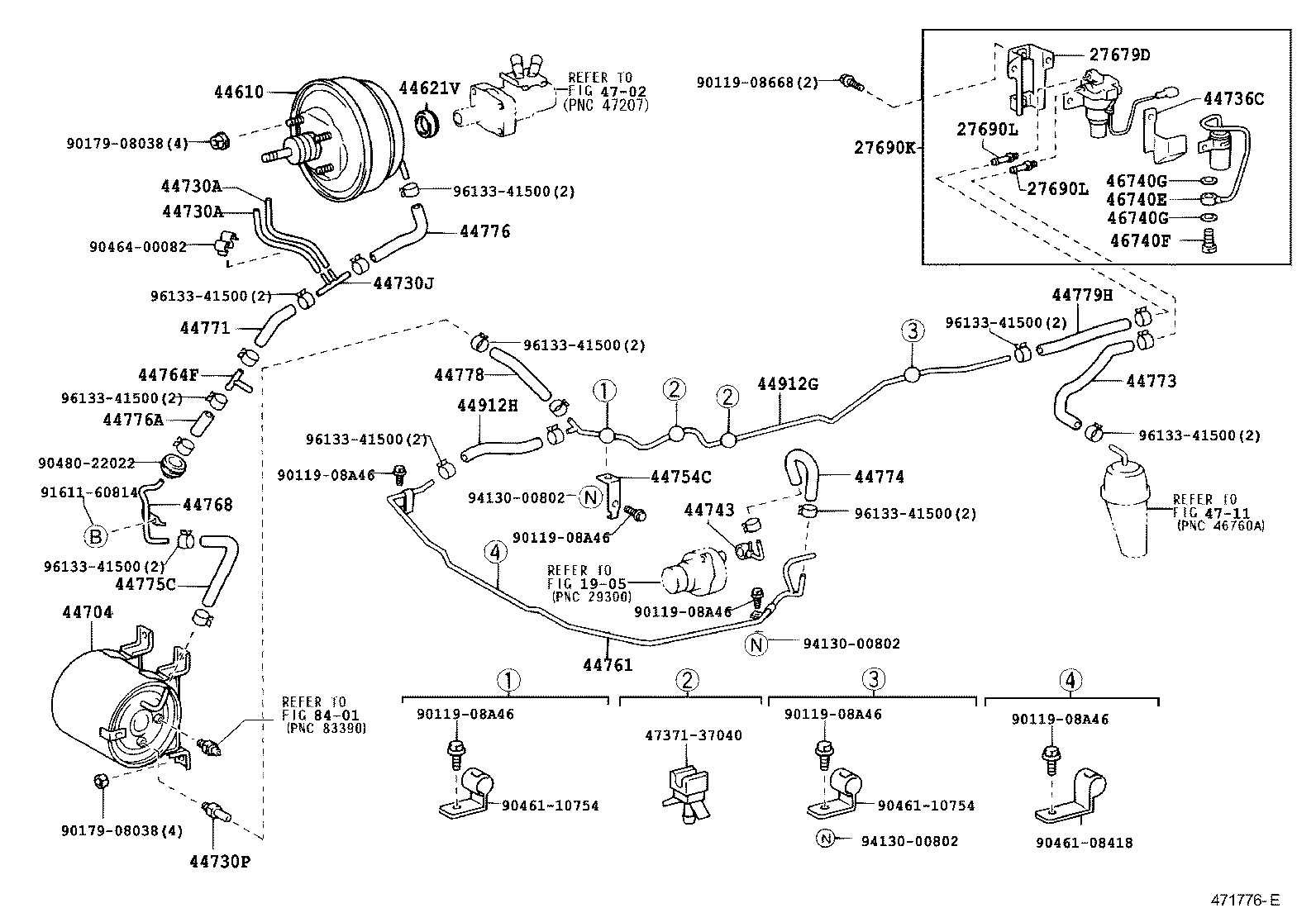

Brake Booster & Vacuum Tube
36 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 27679D | Bracket, Exhaust Brake Solenoid |
| 27690K | Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE) |
| 27690L | Union(FOR EXHAUST RETARDER SOLENOID) |
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730A | Hose, Vacuum, NO.1 |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44731C | Bracket, Brake Booster |
| 44735C | Ring, Booster Bracket Stopper |
| 44736C | Bracket, Air Cleaner |
| 44743 | Union(FOR VACUUM PUMP) |
| 44754C | Bracket, Vacuum Tube, NO.1 |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44764F | Way(FOR BOOSTER VACUUM TUBE) |
| 44768 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771D | Hose, Vacuum Tube Connector |
| 44771K | Hose, Vacuum Tube TO Vacuum Pump |
| 44773 | Hose, Vacuum, NO.2 |
| 44774 | Hose, Union TO Connector Tube |
| 44774B | Hose, Union TO Connector Tube |
| 44775C | Hose, Connector TO Way |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44778 | Hose, Connector TO Check Valve |
| 44778D | Hose, Vacuum Tube TO Connector Tube |
| 44779H | Hose, Connector Tube TO Solenoid, NO.2 |
| 44799 | Way, Brake Vacuum Hose |
| 44912G | Tube, 3 Way TO Magnetic Valve |
| 44912H | Hose(FOR 3 WAY TO MAGUNETIC VALVE TUBE) |
| 46740E | Cleaner Assy, Exhaust Retarder |
| 46740F | Bolt, Union(FOR EXHAUST BRAKE CLEANER ASSY) |
| 46740G | Gasket(FOR EXHAUST BRAKE CLEANER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
