Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

64 part groups · 9 illustrations

Illustrations

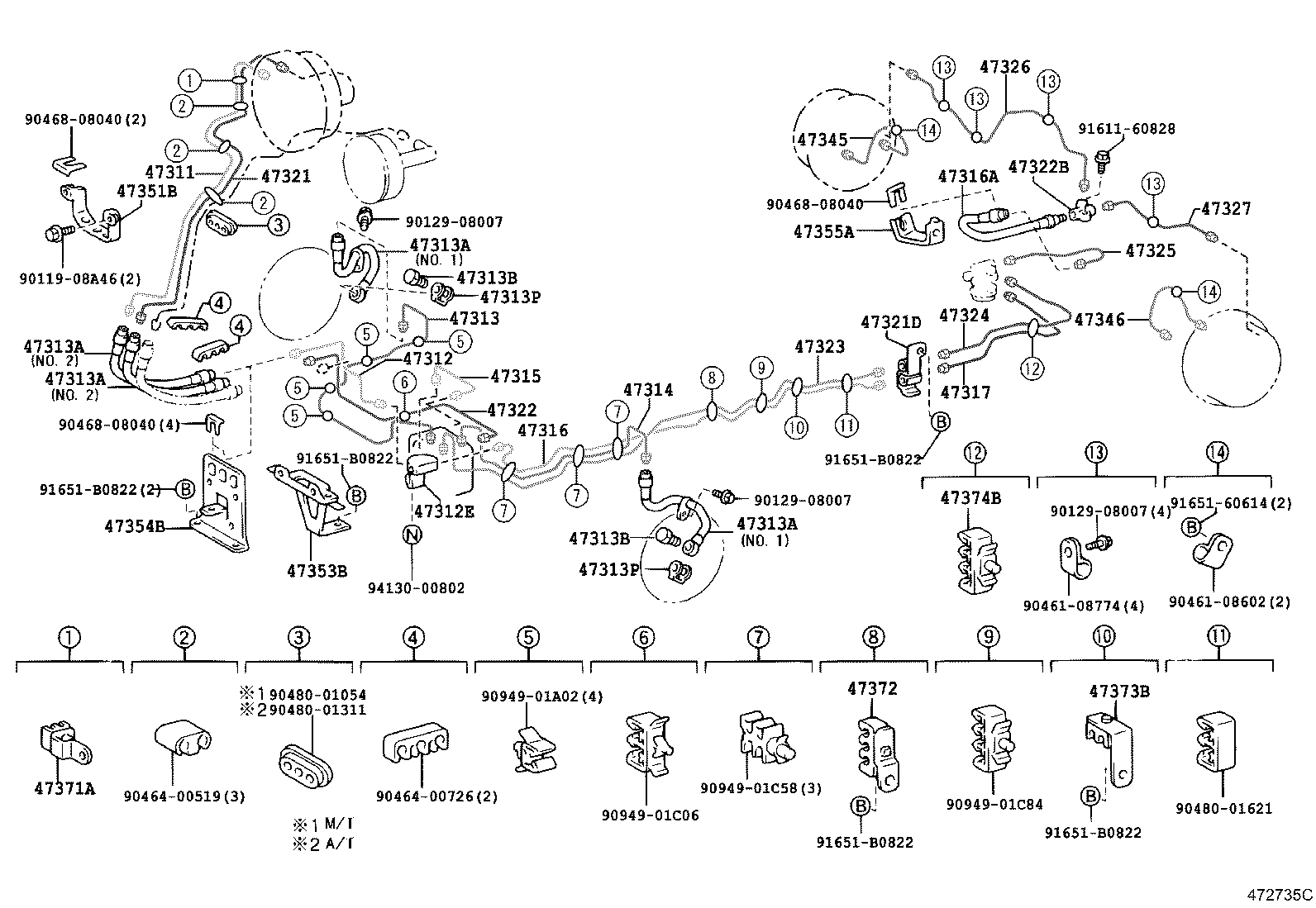

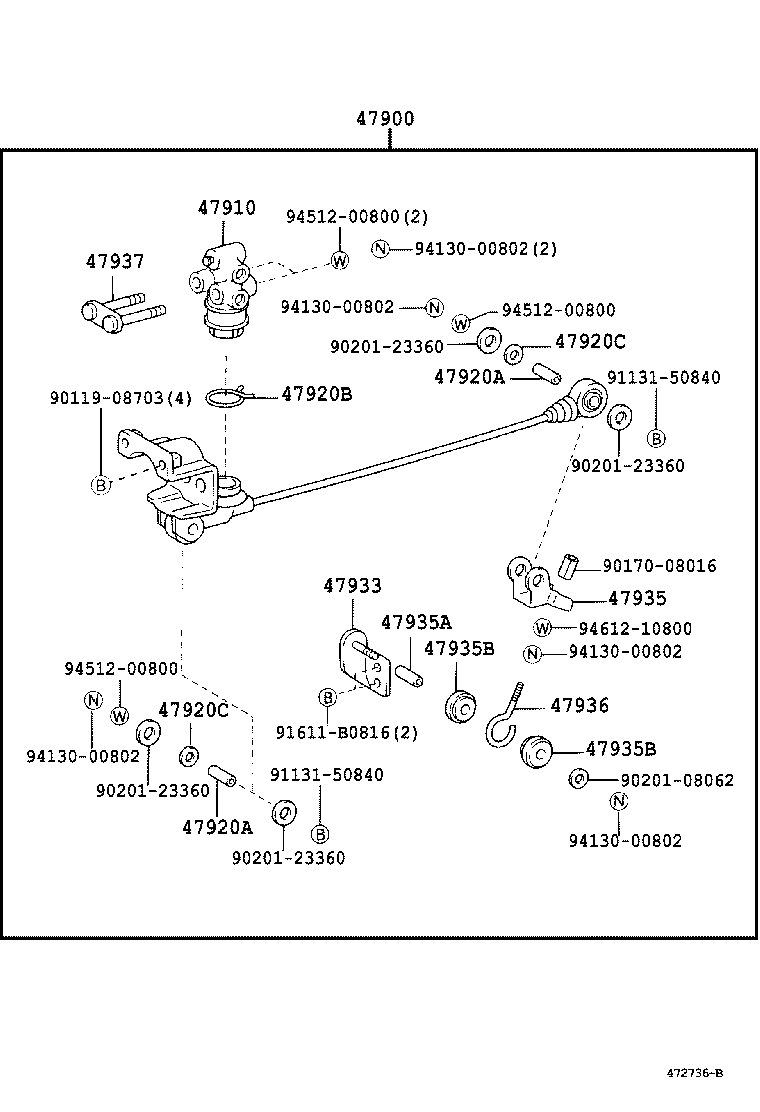

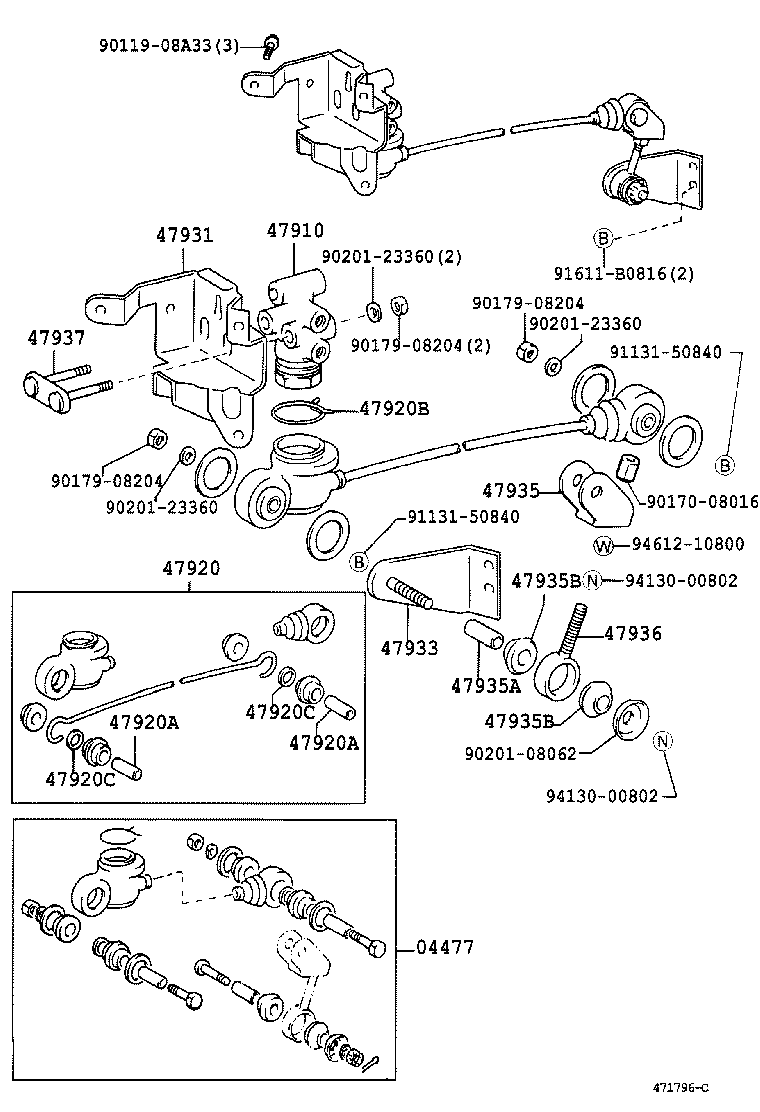

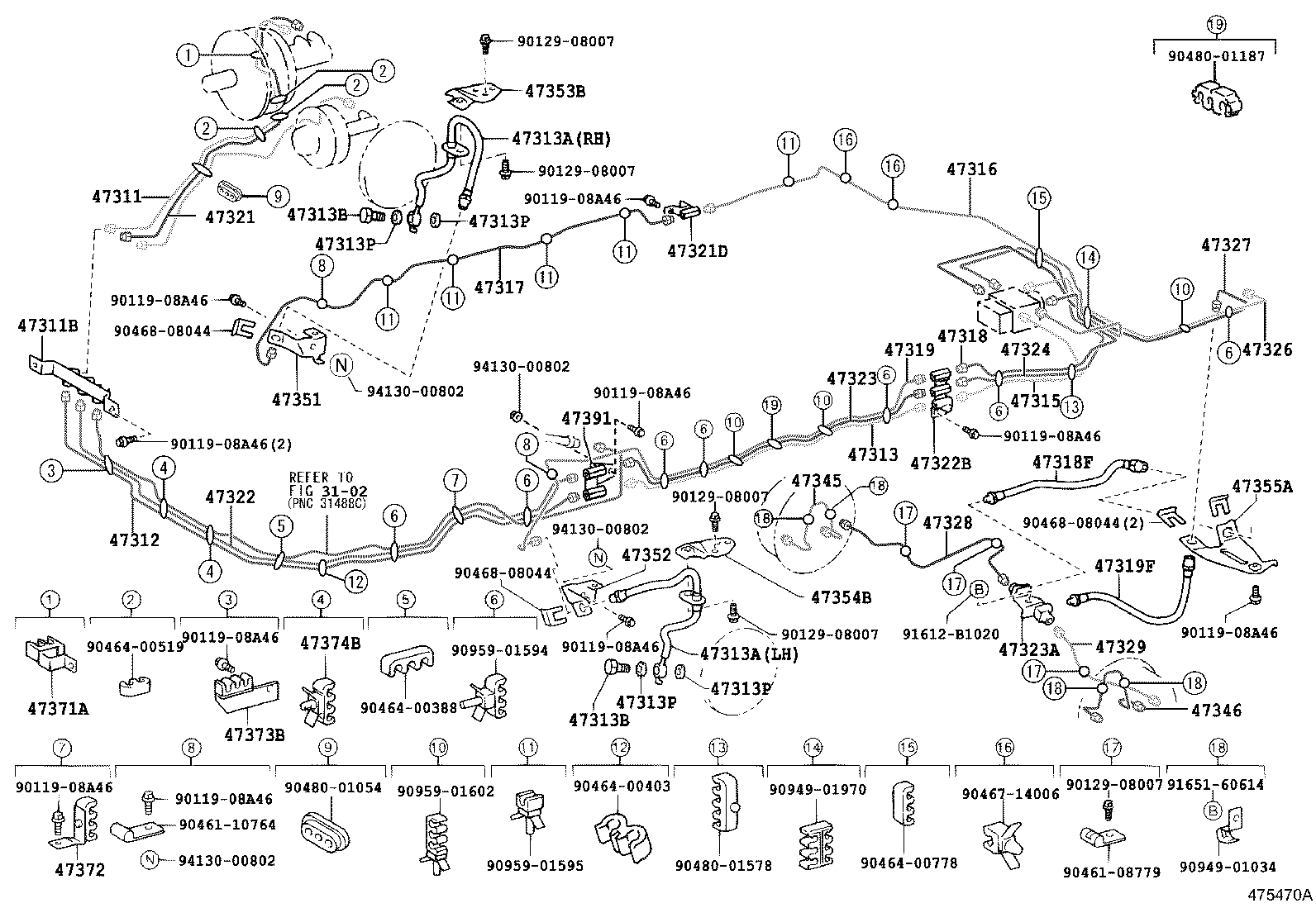

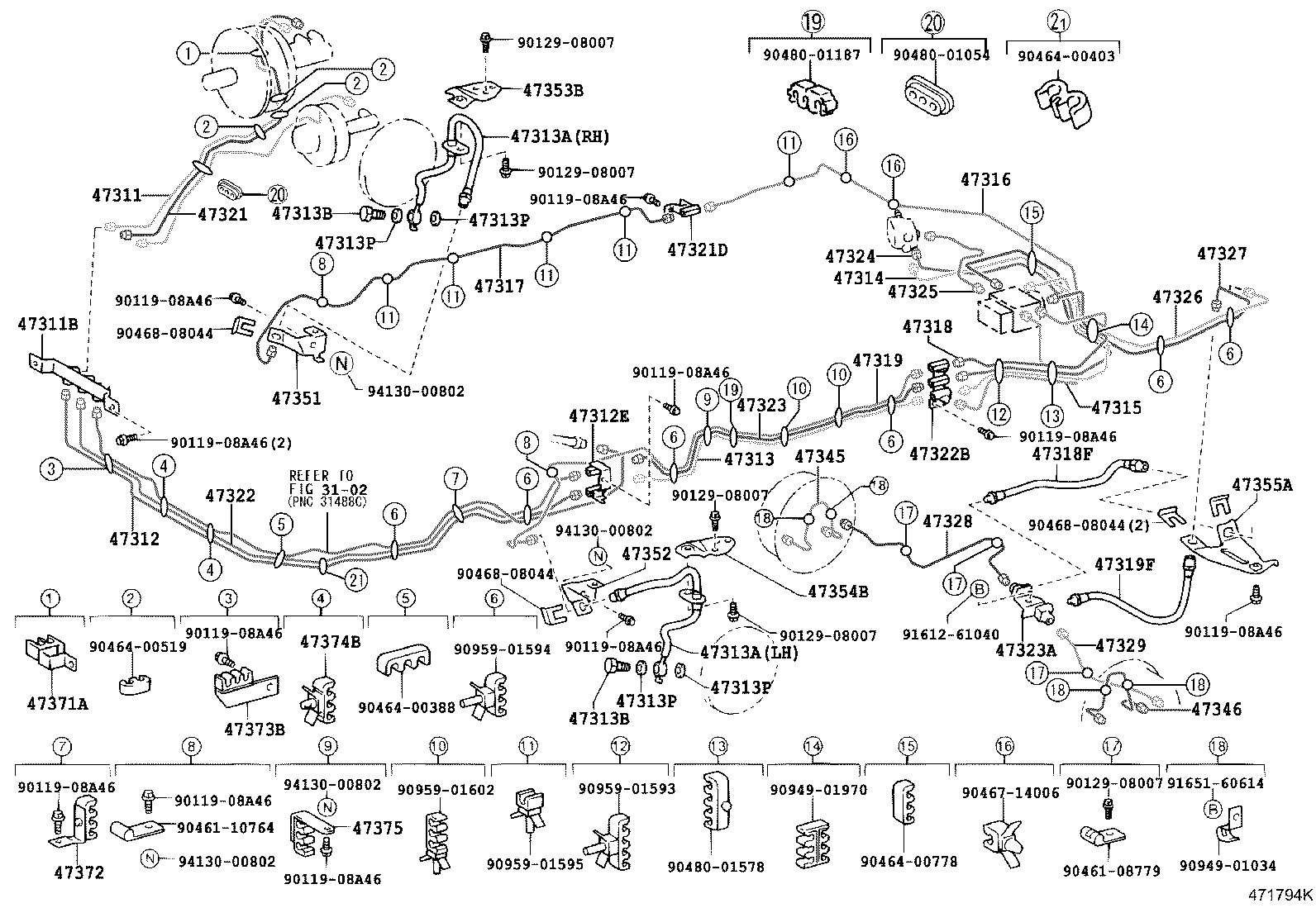

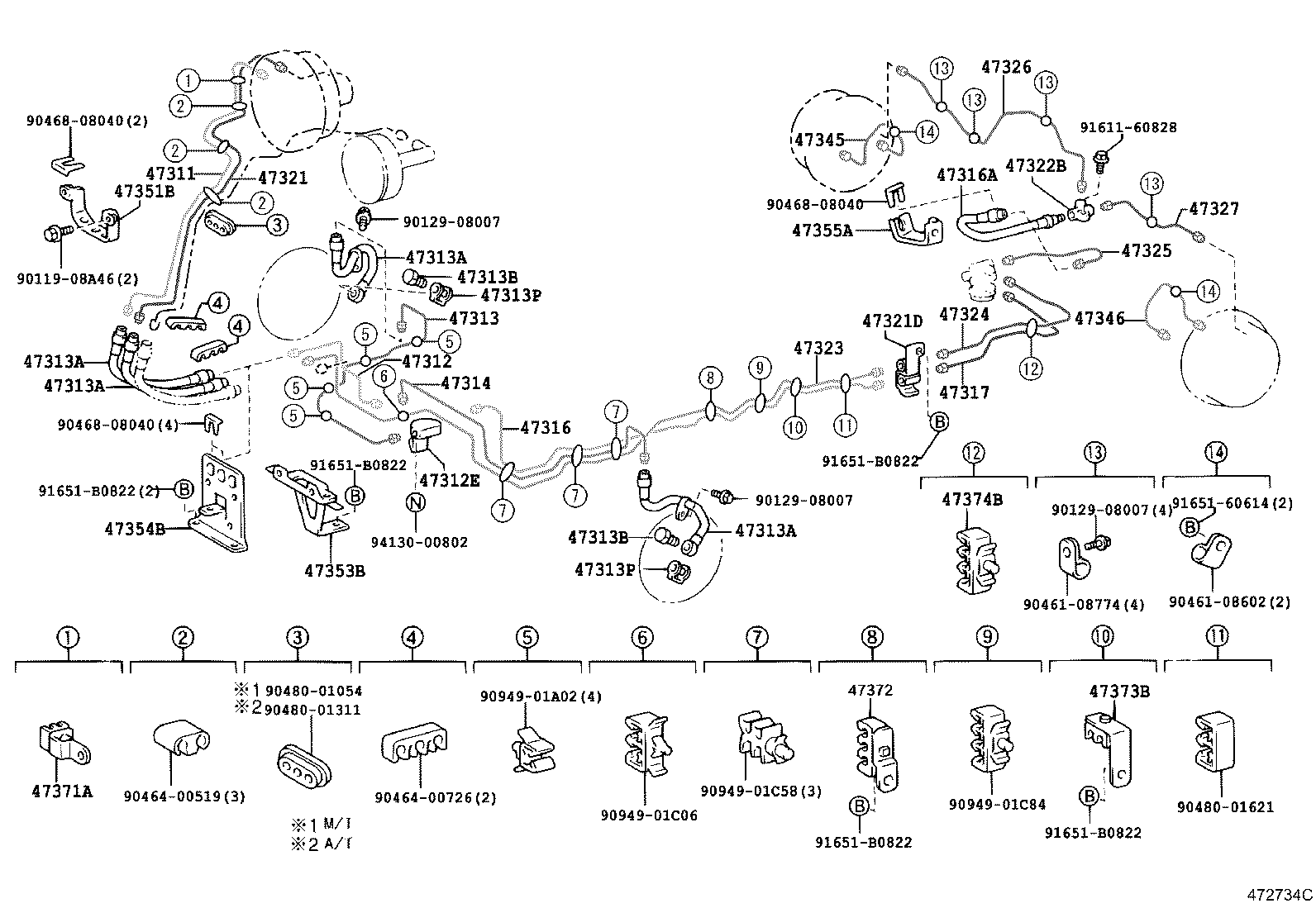

Figure 471898I 471898I 1999-08 → 2006-10 Figure 471794K 471794K 1999-08 → 2006-10 Figure 472734C 472734C 2001-08 → 2004-07 Figure 472735C 472735C 2001-08 → 2004-07 Figure 475470A 475470A 2006-10 → — Figure 471795 471795 1999-08 → — Figure 472517 472517 2001-08 → 2004-07 Figure 471796C 471796C 1999-08 → 2006-10 Figure 472736B 472736B 2001-08 → 2004-07

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
44510 Actuator Assy, Brake
44540 Actuator Assy, Abs & Traction
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351B Bracket, Flexible Hose, NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47390 Valve Assy, Hill Holder Brake Lock
47391 Way, Brake Tube
47900 Valve Assy, Load Sensing W/Spring
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
