Front Axle Arm & Steering Knuckle

32 part groups · 4 illustrations

Illustrations

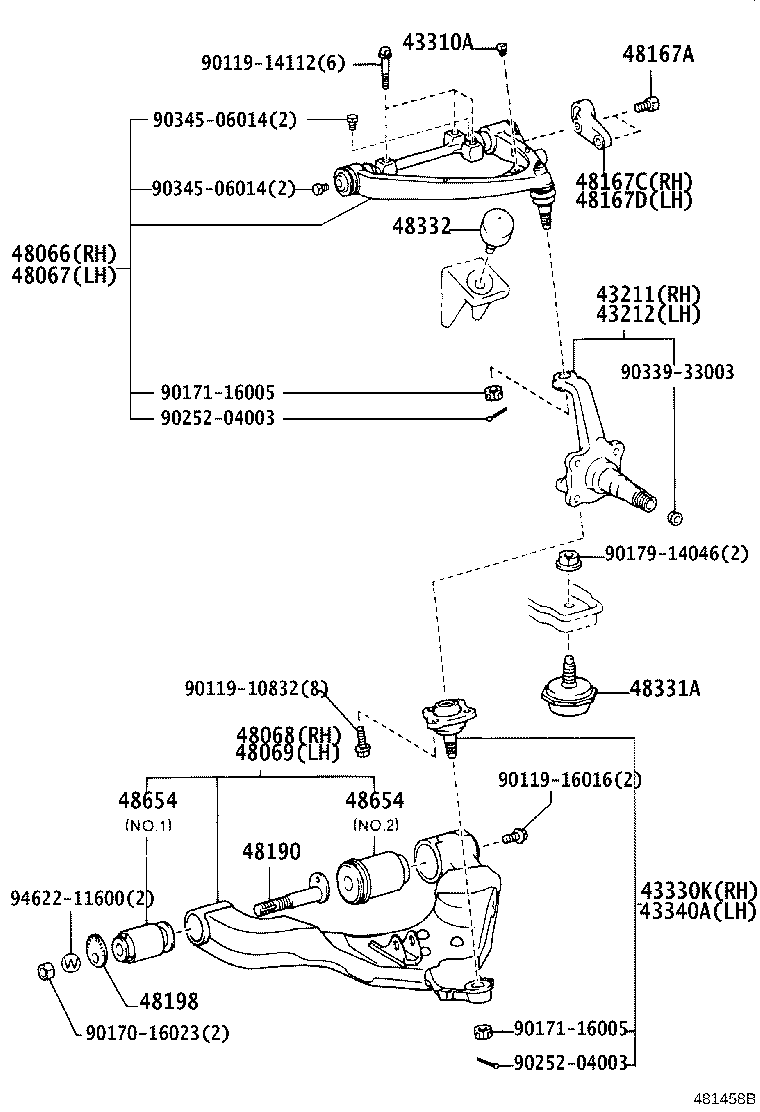

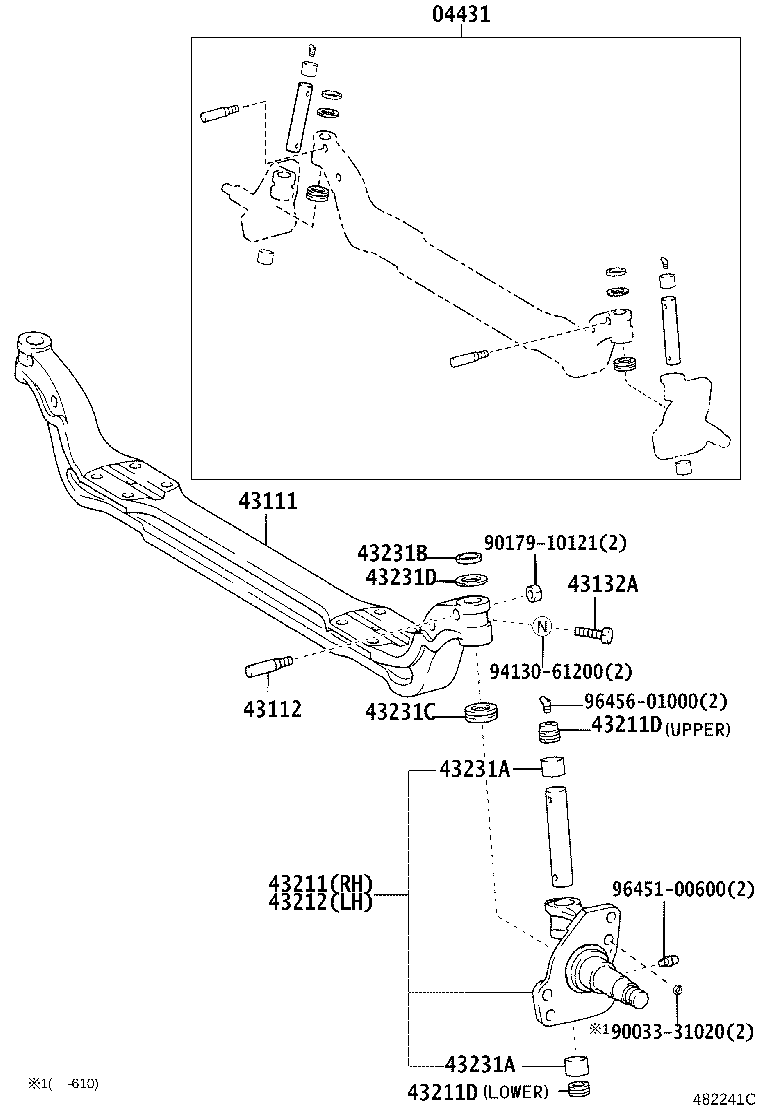

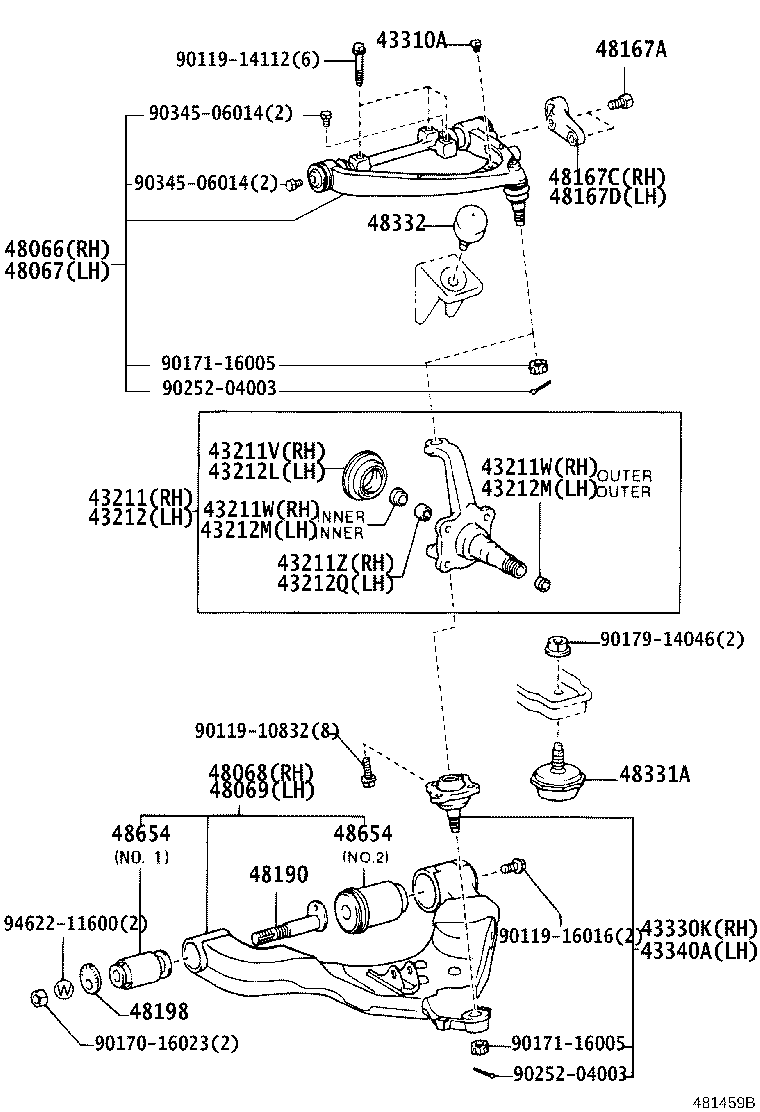

Figure 482240A 482240A 1999-08 → 2005-10 Figure 482241C 482241C 2005-10 → — Figure 481458B 481458B 2001-08 → 2004-07 Figure 481459B 481459B 2001-08 → 2004-07

Part groups

PNCDescription
04431 Pin Kit, Steering Knuckle King
43111 I Beam, Front Axle
43112 Pin, King Pin Lock
43132A Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT)
43211 Knuckle, Steering, RH
43211D Plug (FOR STEERING KNUCKLE)
43211V Seal, Oil (FOR STEERING KNUCKLE RH)
43211W Bush (FOR STEERING KNUCKLE RH)
43211Z Bearing, Needle Roller(FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212L Seal, Oil (FOR STEERING KNUCKLE LH)
43212M Bush (FOR STEERING KNUCKLE LH)
43212Q Bearing, Needle Roller(FOR STEERING KNUCKLE LH)
43231A Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH)
43231B Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN)
43231C Bearing (FOR STEERING KNUCKLE KING PIN)
43231D Shim (FOR KING PIN)
43310A Plug (FOR BALL JOINT)
43330K Joint Assy, Lower Ball, Front RH
43340A Joint Assy, Lower Ball, Front LH
48066 Arm Sub-assy, Front Suspension, Upper RH
48067 Arm Sub-assy, Front Suspension, Upper LH
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48167A Bolt(FOR TORQUE ARM SETTING)
48167C Arm, Front Suspension Torque, RH
48167D Arm, Front Suspension Torque, LH
48190 Cam Assy, Camber Adjust
48198 Cam, Camber Adjust, NO.2
48331A Bumper, Front Spring, NO.1
48332 Bumper, Front Spring, NO.2
48654 Bush, Lower Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
