Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

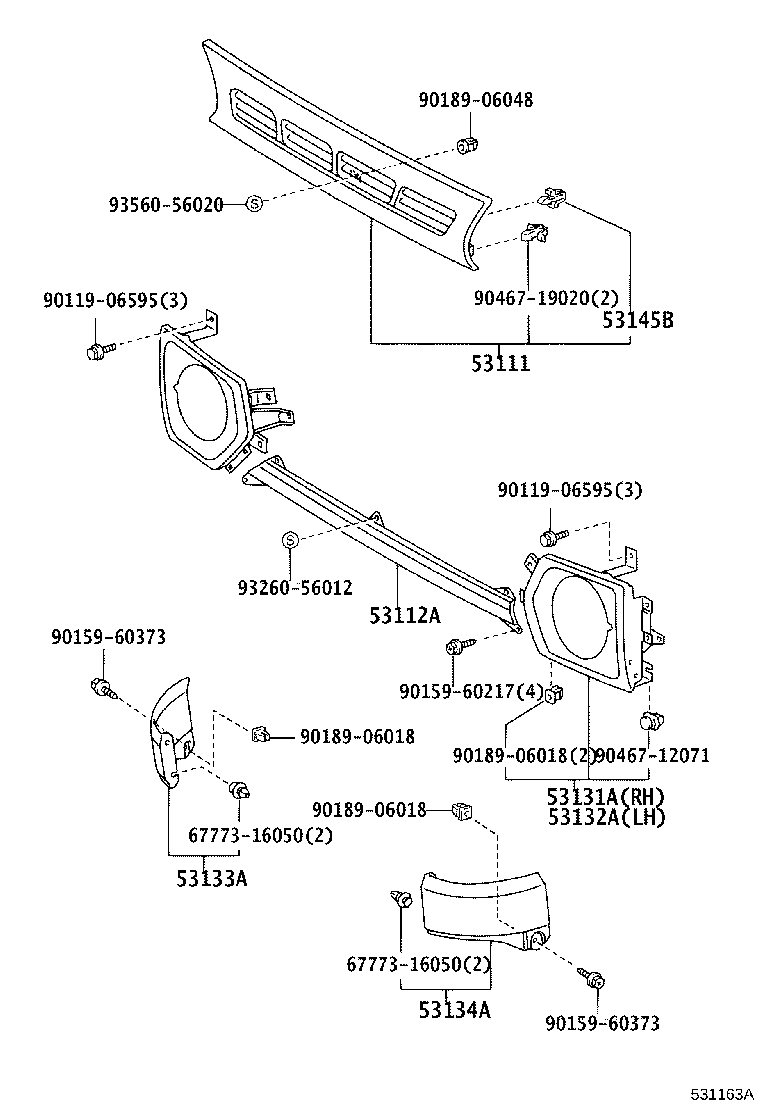

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53112A | Grille, Radiator, Lower |
| 53131A | Door, Headlamp, RH |
| 53132A | Door, Headlamp, LH |
| 53133A | Door, Headlamp, Lower RH |
| 53134A | Door, Headlamp, Lower LH |
| 53145B | Clip, Radiator Grille Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
