Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

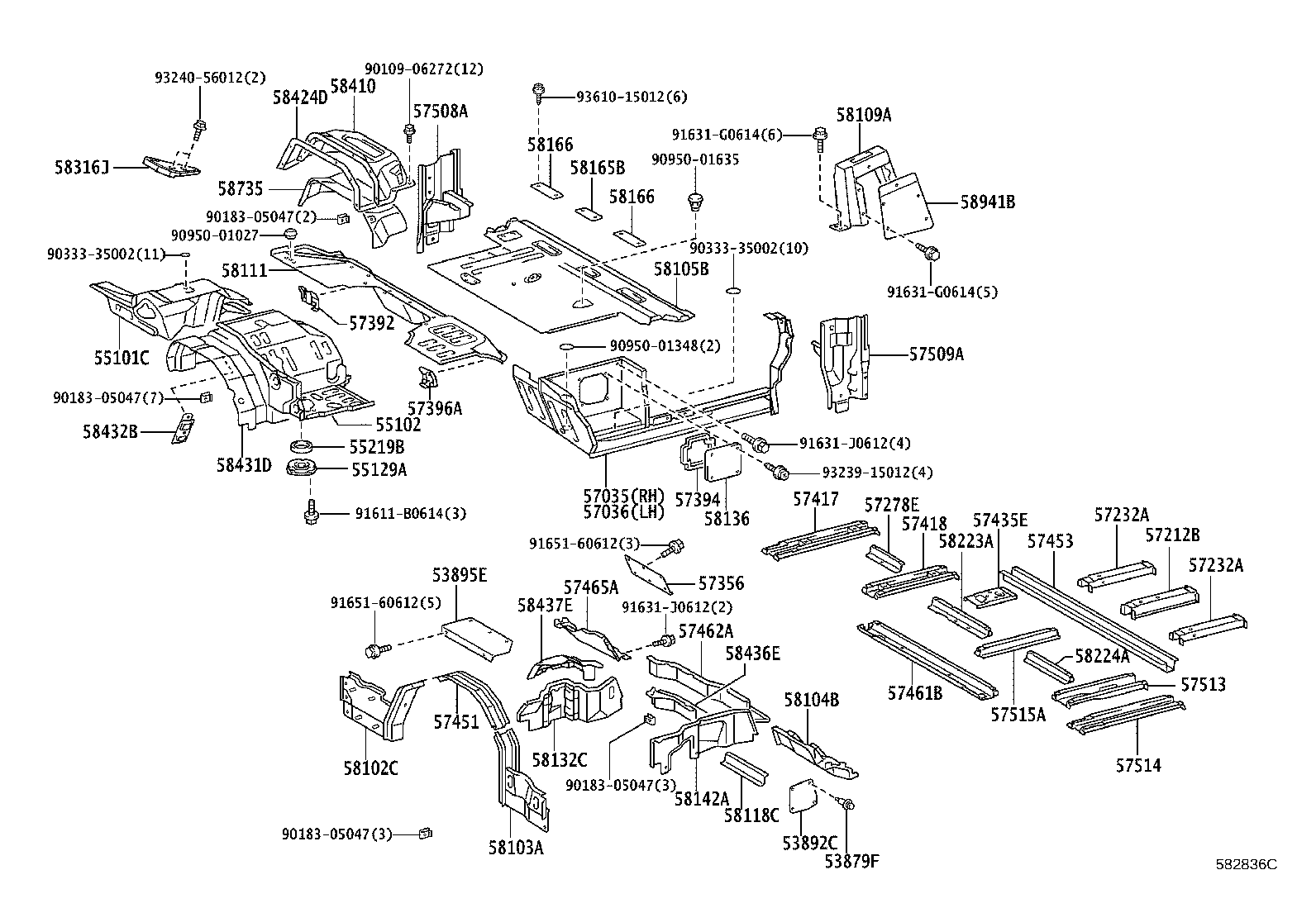

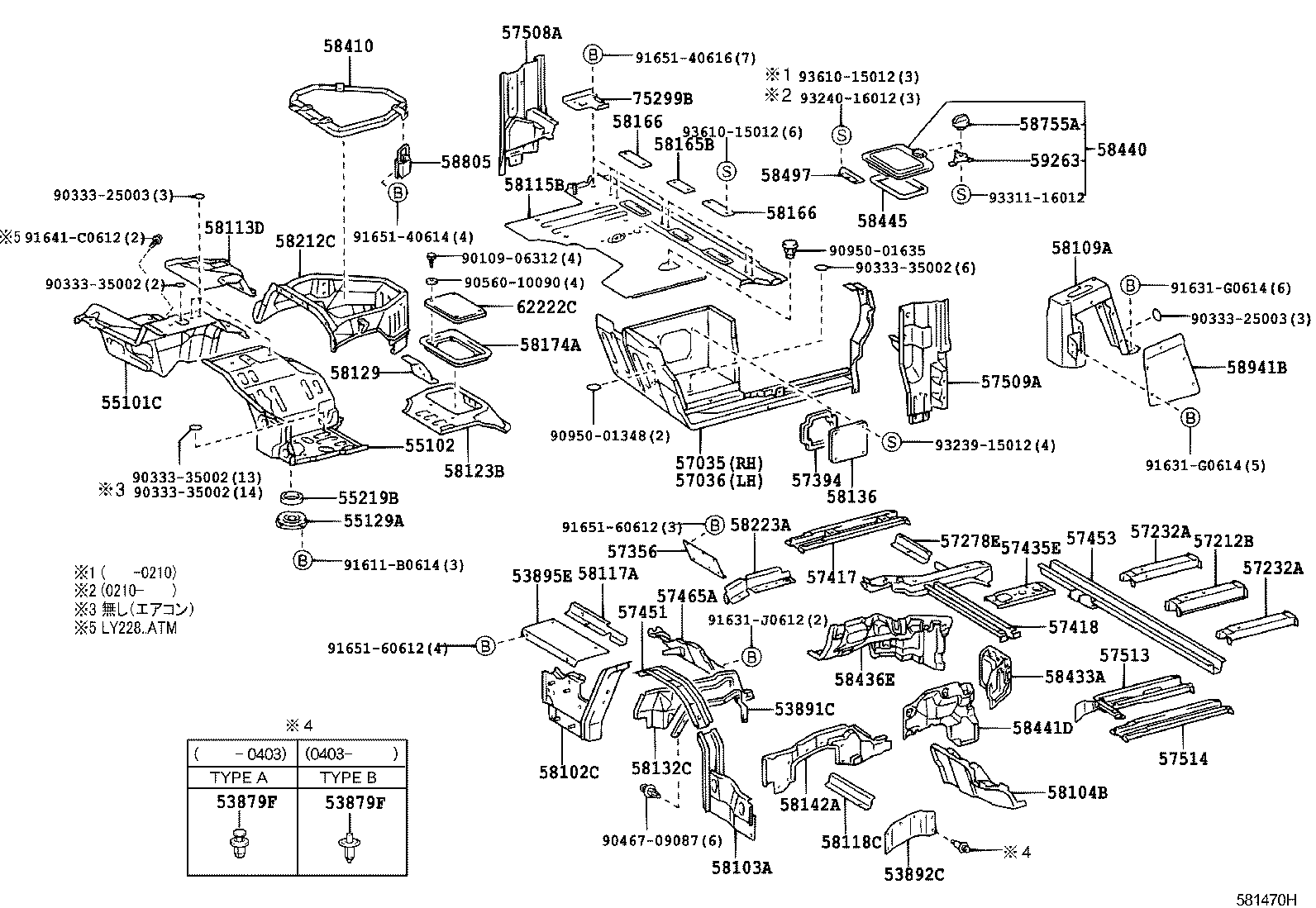

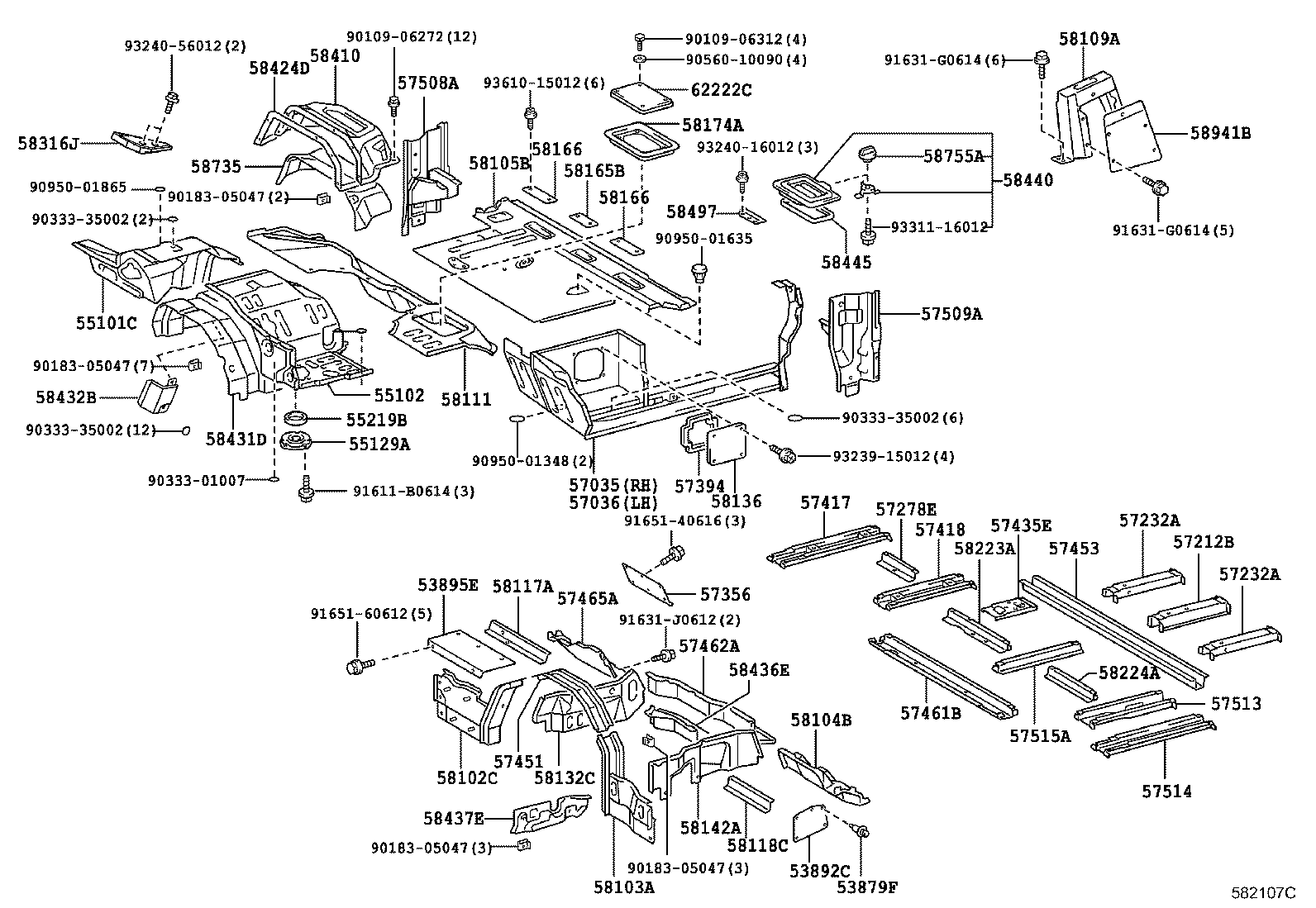

Front Floor Panel & Front Floor Member
70 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53879F | Retainer, Front Fender Liner |
| 53891C | Seal, Front Fender Splash Sheild, Front |
| 53892C | Seal, Front Fender Splash Shield, Front LH |
| 53895E | Shield, Front Fender Splash, Front RH |
| 55101C | Panel Sub-assy, Toe Board |
| 55102 | Panel Sub-assy, Dash, Lower |
| 55129A | Cover, Front Floor Hole |
| 55219B | Packing, Dash Panel Hole Cover |
| 57035 | Panel Sub-assy, Front Step, RH |
| 57036 | Panel Sub-assy, Front Step, LH |
| 57212B | Strength, Anchor, NO.2 |
| 57232A | Strength, Anchor Side, NO.2 |
| 57278E | Gusset, NO.6 Crossmember, Upper |
| 57356 | Gusset, Front Step, Rear RH |
| 57392 | Plate, Front Step, NO.2 RH |
| 57394 | Packing, Front Step Service Hole |
| 57396A | Plate, Front Step, NO.2 LH |
| 57417 | Reinforcement, Front Floor Under, RH |
| 57418 | Reinforcement, Front Floor Under, LH |
| 57435E | Member, Center Floor Side, RH |
| 57451 | Member, Front Floor Cross |
| 57453 | Member, Front Floor Cross, NO.3 |
| 57461B | Member Sub-assy, Center Floor Cross, NO.1 |
| 57462A | Member, Center Floor Cross, NO.2 |
| 57465A | Gusset, Center Floor Crossmember, RH |
| 57508A | Reinforcement Sub-assy, Front Floor, RH |
| 57509A | Reinforcement Sub-assy, Front Floor, LH |
| 57513 | Reinforcement, Front Floor, LH |
| 57514 | Reinforcement, Front Floor Side, LH |
| 57515A | Reinforcement, Front Floor, Center |
| 58102C | Reinforcement Sub-assy, Front Floor Side, RH |
| 58103A | Reinforcement Sub-assy, Front Floor Side, LH |
| 58104B | Bracket Sub-assy, Front Seat Mounting, Inside, LH |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58109A | Retainer Sub-assy, Parking Brake |
| 58111 | Pan, Front Floor |
| 58113D | Panel, Front Floor Side, NO.1 RH |
| 58115B | Panel, Front Floor, Rear |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58123B | Panel, Front Floor, Center LH |
| 58129 | Plate, Front Floor, NO.2 |
| 58132C | Apron, Front Floor Side, NO.1 RH |
| 58136 | Cover, Front Floor Hole |
| 58142A | Apron, Front Floor Side, NO.1 LH |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58174A | Angle Sub-assy, Front Floor Side, LH |
| 58212C | Pan, Center Floor, Front |
| 58223A | Reinforcement, Floor Side Panel, RH |
| 58224A | Reinforcement, Floor Side Panel, LH |
| 58316J | Plate, Footrest, Rear |
| 58410 | Cover, Engine Service Hole |
| 58424D | Packing, Engine Cover |
| 58431D | Silencer, Engine Room Side, Front RH |
| 58432B | Silencer, Engine Room Side, Rear RH |
| 58433A | Silencer, Engine Room Side End |
| 58436E | Silencer, Front Floor Side, A |
| 58437E | Silencer, Front Floor Side, B |
| 58440 | Cover Assy, Battery Service Hole |
| 58441D | Silencer, Enging Room Side, Front LH |
| 58445 | Packing, Battery Service Hole Cover |
| 58497 | Plate, Battery Service Hole Cover Lock |
| 58735 | Silencer, Engine |
| 58755A | Handle, Engine Service Cover Catch |
| 58805 | Catch Sub-assy, Engine Service Hole Cover |
| 58941B | Cover, Parking Brake Hole |
| 59263 | Hook, Engine Cover Lock |
| 62222C | Glass, Side Window, Front Lower LH |
| 75299B | Base, Jack Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
