Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 3 illustrations

Illustrations

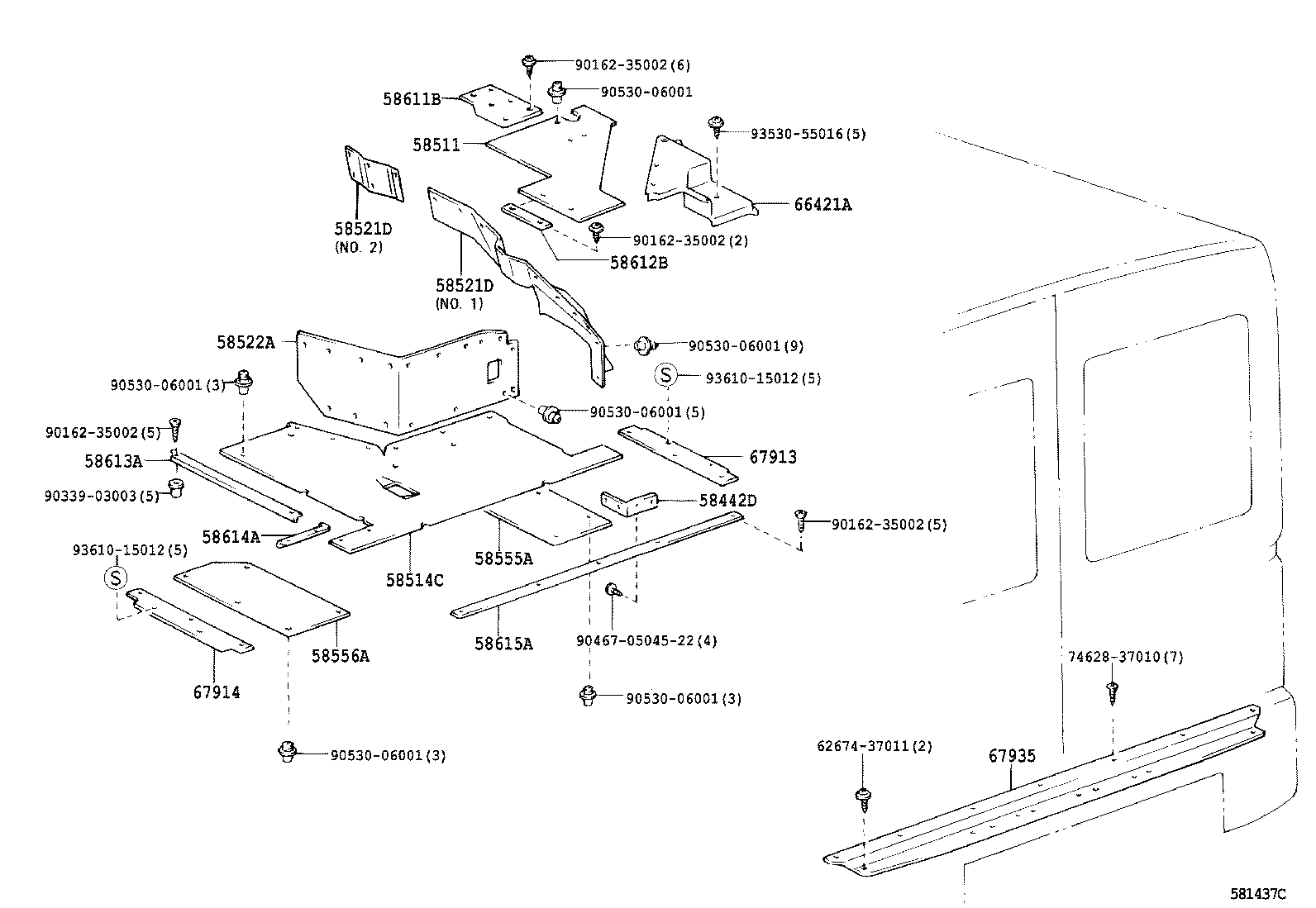

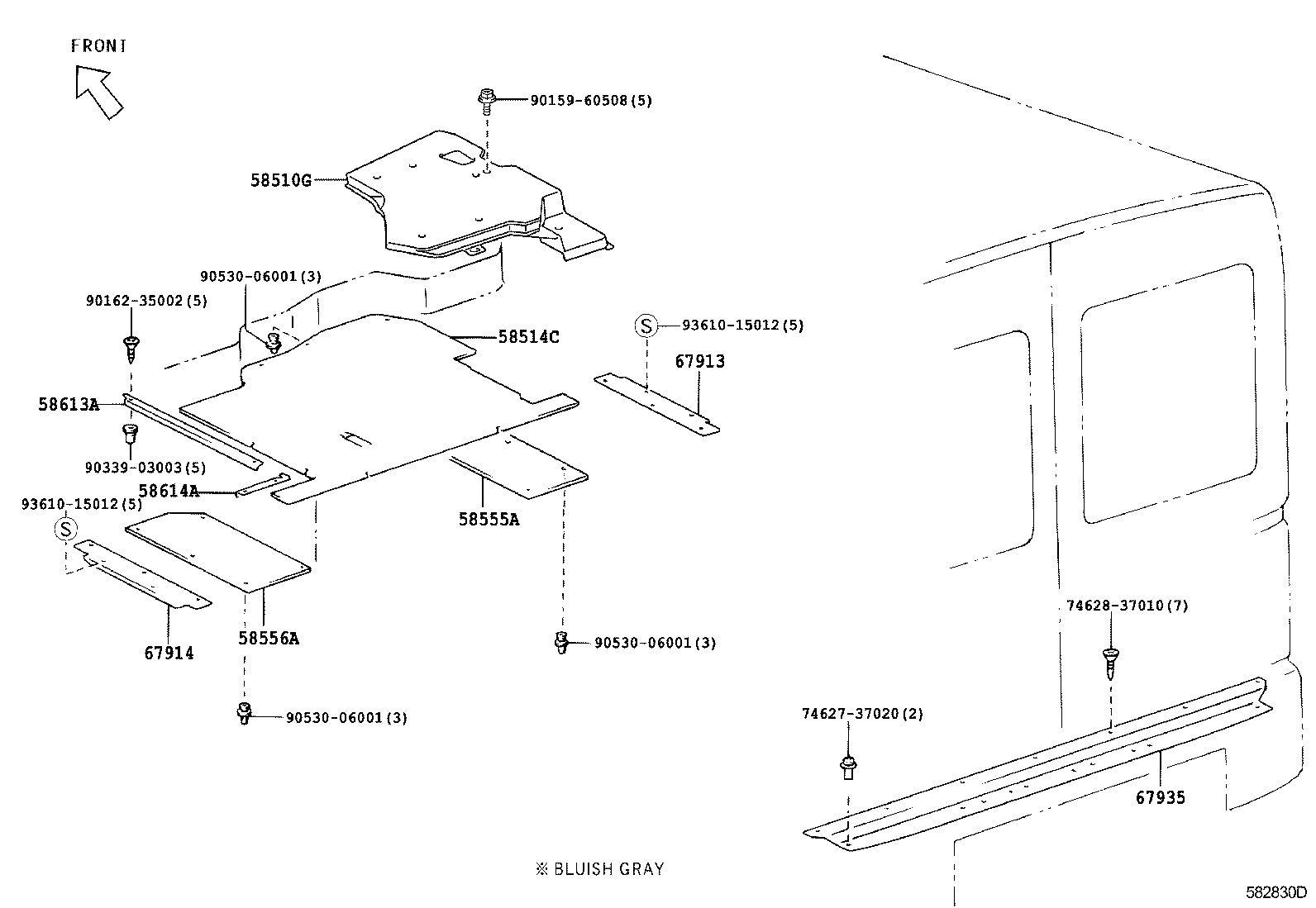

Figure 581070D 581070D 1999-08 → 2006-10 Figure 581437C 581437C 2001-08 → 2004-07 Figure 582830D 582830D 2006-10 → —

Part groups

PNCDescription
58442D Cover, Jack
58510G Carpet Assy, Floor, Front RH
58511 Mat, Floor, Front
58514C Mat, Froor, Rear
58521D Mat, Engine Service Hole Cover
58522A Mat, Engine Service Hole Cover, LH
58555A Mat, Front, RH
58556A Mat, Front, LH
58611B Plate, Mat Set, NO.1
58612B Plate, Mat Set, NO.2
58613A Plate, Mat Set, NO.3
58614A Plate, Mat Set, NO.4
58615A Plate, Mat Set, NO.5
66421A Step, Side
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
