Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

113 part groups · 6 illustrations

Illustrations

611031L 1999-08 → 2006-10

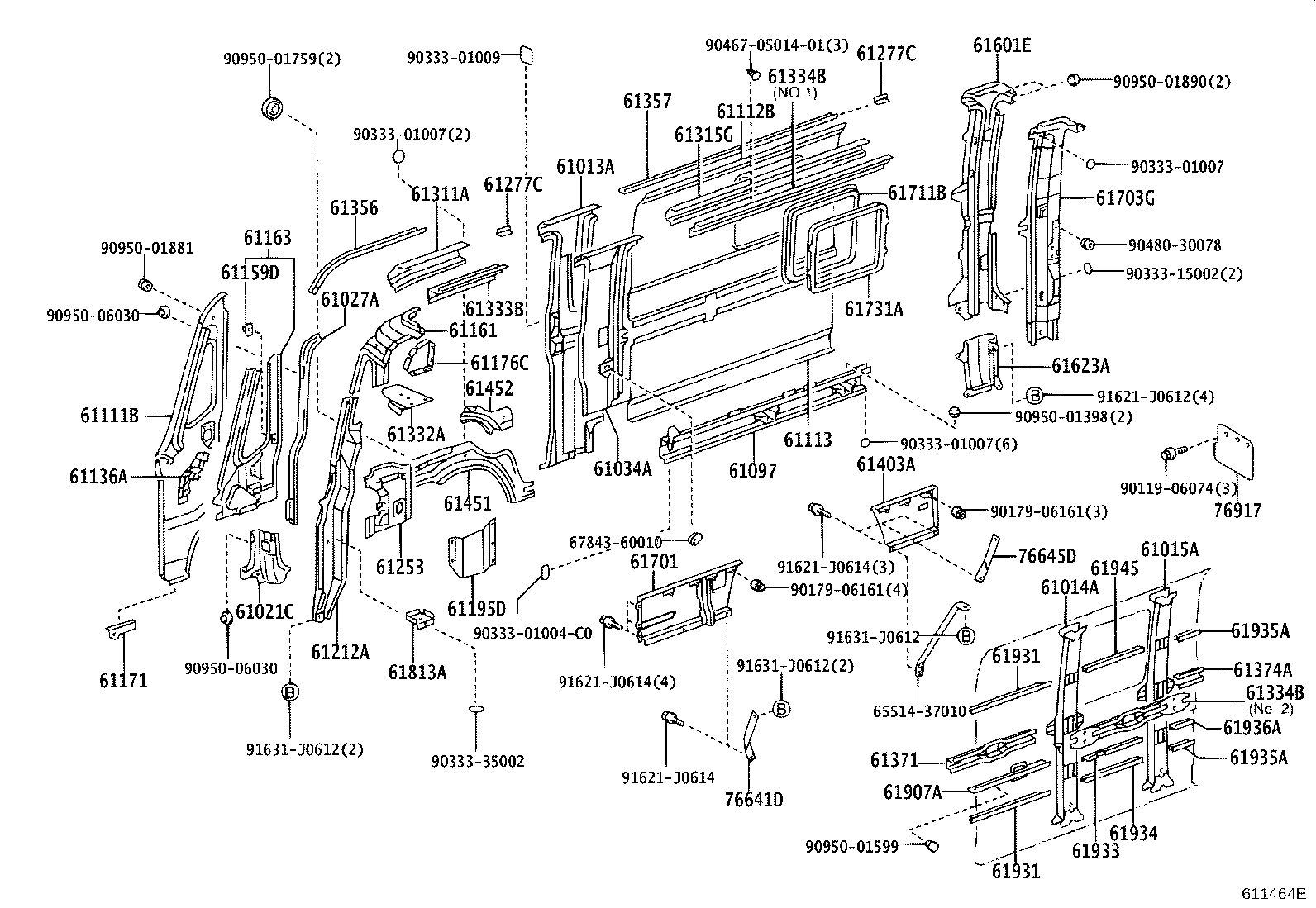

611464E 2001-08 → 2004-07

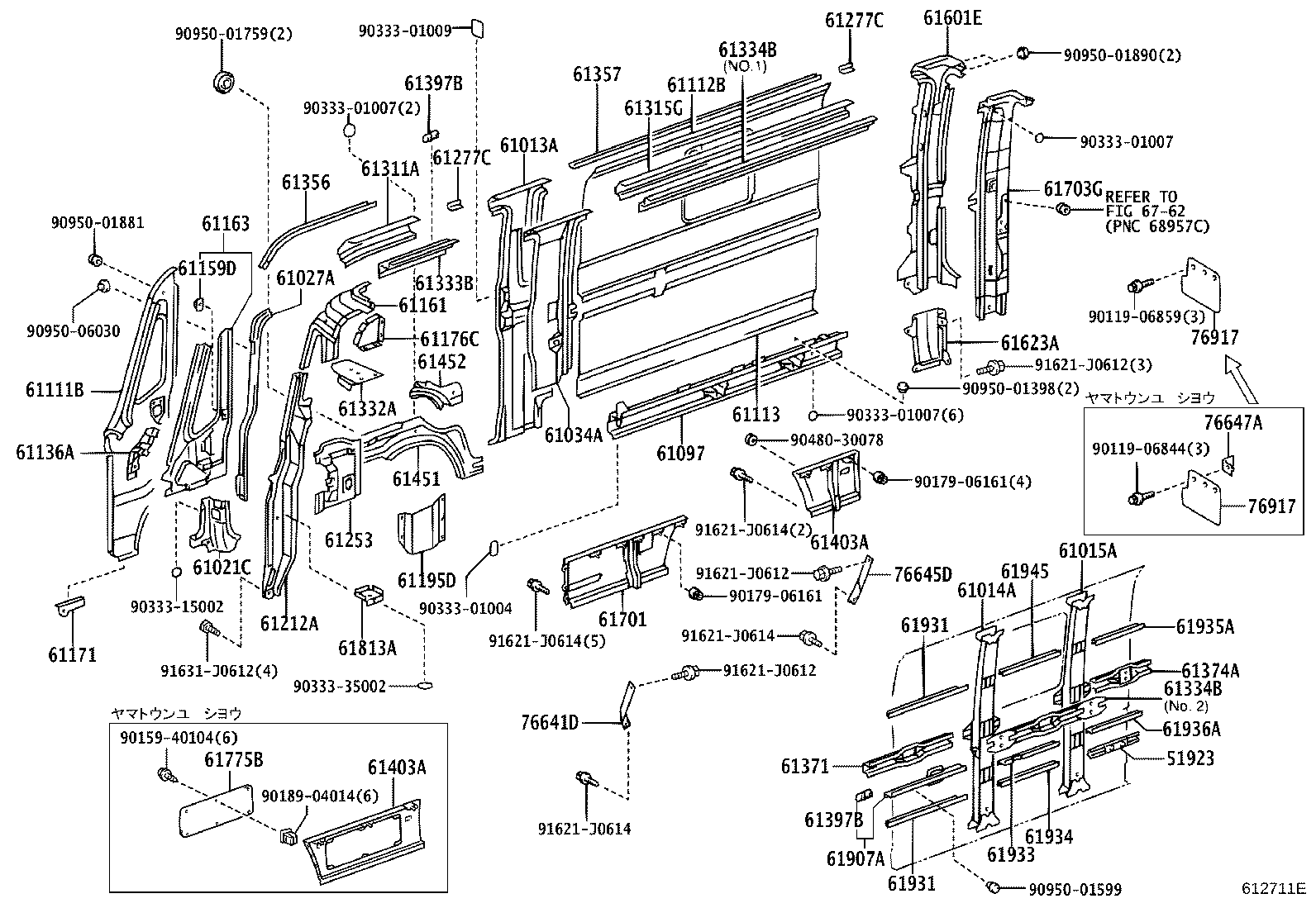

612711E 2006-10 → —

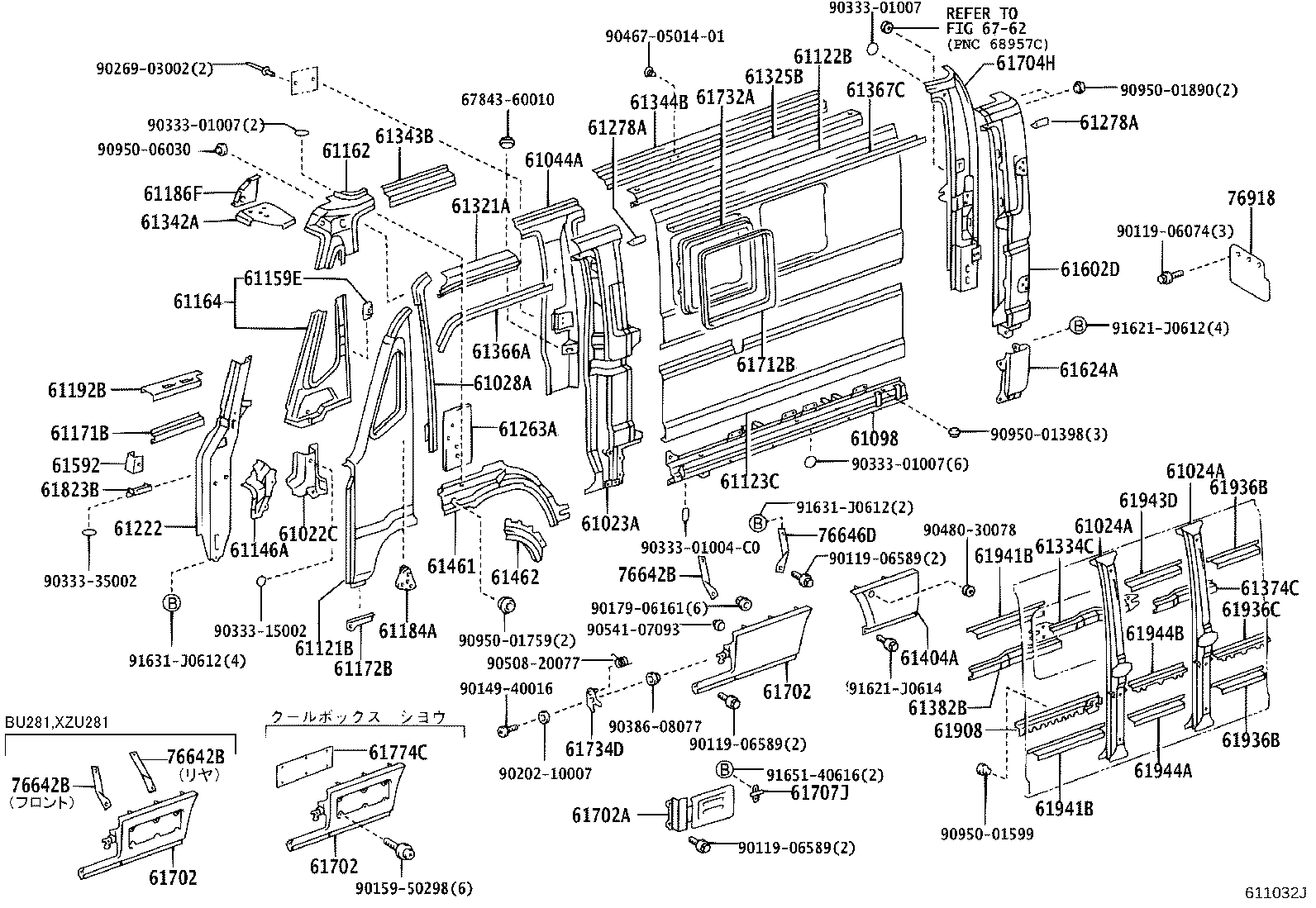

611032J 1999-08 → 2006-10

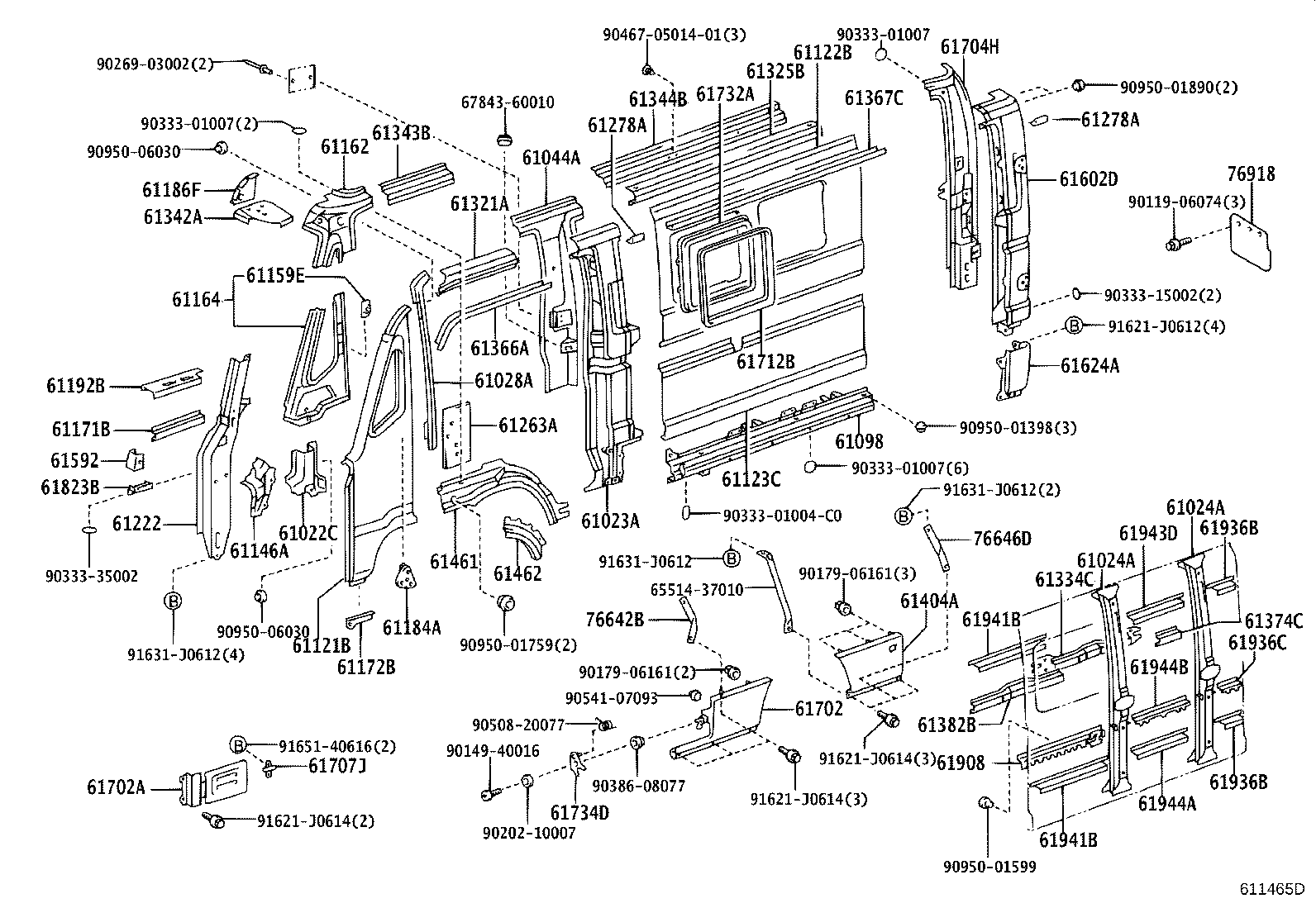

611465D 2001-08 → 2004-07

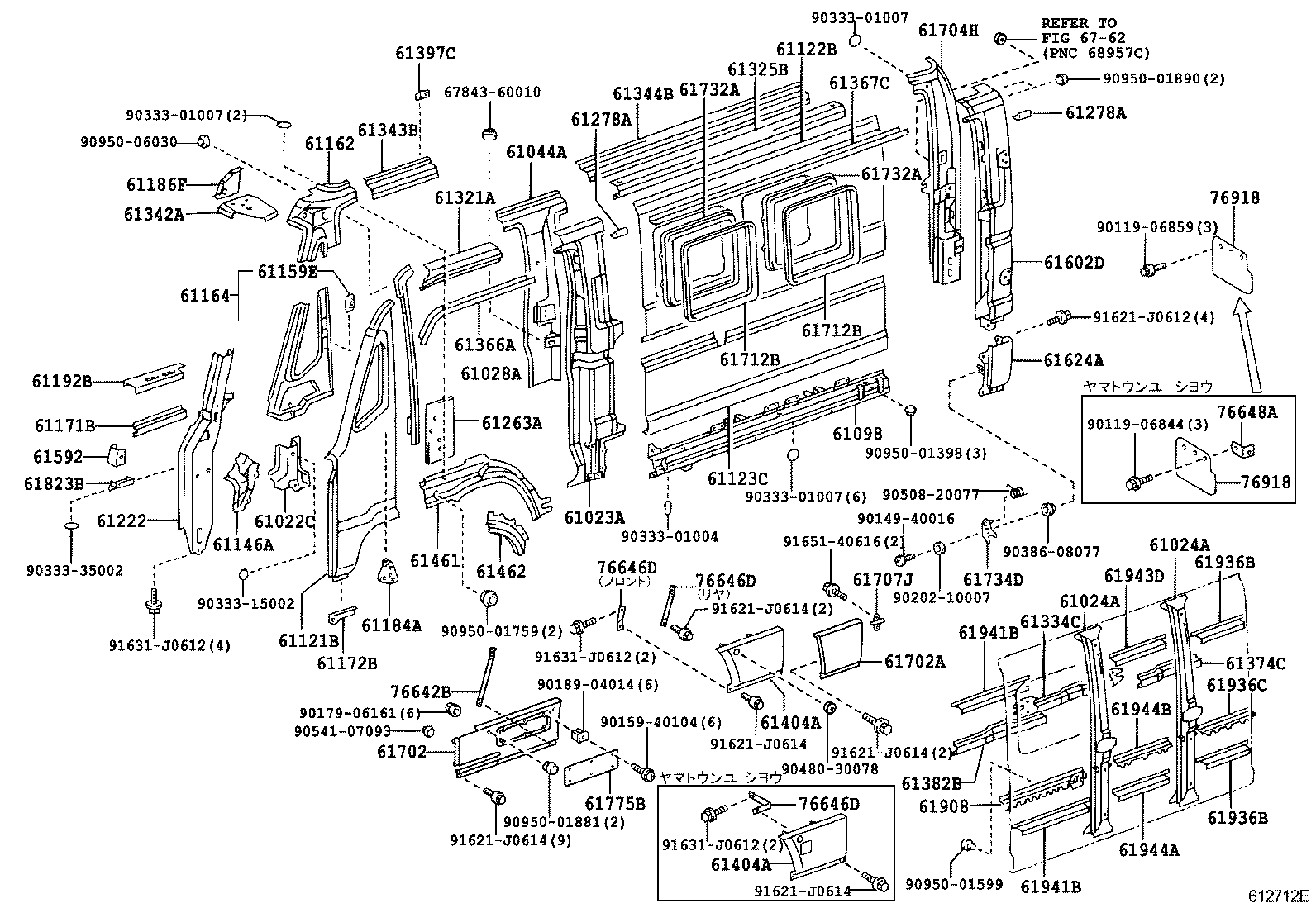

612712E 2006-10 → —

Part groups

PNC	Description
51923	Reinforcement,Spare Wheel
61013A	Pillar Sub-assy, NO.3 RH
61014A	Pillar Sub-assy, NO.4 RH
61015A	Pillar Sub-assy, NO.5 RH
61021C	Pillar Sub-assy, Front Body, RH
61022C	Pillar Sub-assy, Front Body, LH
61023A	Pillar Sub-assy, NO.3 LH
61024A	Pillar Sub-assy, NO.4 LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61034A	Pillar Sub-assy, NO.3 Inner, RH
61044A	Pillar Sub-assy, NO.3 Inner, LH
61097	Rail Sub-assy, NO.5 Lower Outer, RH
61098	Rail Sub-assy, NO.5 Lower Outer, LH
61111B	Panel, NO.1 Side, RH
61112B	Panel, NO.2 Side, RH
61113	Panel, NO.2 Side, Rear, RH
61121B	Panel, NO.1 Side, LH
61122B	Panel, NO.2 Side, LH
61123C	Panel, NO.2 Side, Rear, LH
61136A	Panel, Front Side End, RH
61146A	Panel, Front Side End, LH
61159D	Retainer, Side Panel, NO.2 RH
61159E	Retainer, Side Panel, NO.2 LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61163	Pillar, Front Body, Inner RH
61164	Pillar, Front Body, Inner LH
61171	Retainer, Front Pillar, Lower Inner RH
61171B	Stiffener, Side Panel, Lower NO.2
61172B	Retainer, Front Pillar, Lower Inner LH
61176C	Reinforcement, NO.1 Pillar, Upper RH
61184A	Bracket, Instrument Panel Side, NO.2 LH
61186F	Reinforcement, NO.1 Pillar, Upper LH
61192B	Plate, Instrument Panel Side, LH
61195D	Bracket, Cowl Side Trim, LH
61212A	Pillar, NO.1 Outer, Lower RH
61222	Pillar, NO.1 Outer, Lower LH
61253	Pillar, NO.2 Inner, RH
61263A	Pillar, NO.2 Inner, LH
61277C	Joint, Roof Drip Channel, RH
61278A	Joint, Roof Drip Channel, LH
61311A	Rail, NO.1 Upper Outer, RH
61315G	Rail, NO.3 Upper Outer, RH
61321A	Rail, NO.1 Upper Outer, LH
61325B	Rail, NO.3 Upper Outer, LH
61332A	Rail, NO.1 Upper Inner, Rear RH
61333B	Rail, NO.2 Upper Inner, RH
61334B	Rail, NO.3 Upper Inner, RH
61334C	Rail, NO.1 Center Inner, RH
61342A	Rail, NO.1 Upper Inner, Rear LH
61343B	Rail, NO.2 Upper Inner, LH
61344B	Rail, NO.3 Upper Inner, LH
61356	Channel, Roof Drip Side, Front RH
61357	Channel, Roof Drip Side, Center NO.1
61366A	Channel, Roof Drip Side, Front LH
61367C	Channel, Roof Drip Side, Center NO.1
61371	Rail, NO.1 Center Inner, RH
61374A	Rail, NO.4 Center Inner
61374C	Rail, NO.4 Center Inner, LH
61382B	Reinforce, Center Pillar Upper Hinge, NO.2 LH
61397B	Retainer, Center Body Pillar
61397C	Retainer, Center Body Pillar
61403A	Panel Sub-assy, Fender, RH
61404A	Panel Sub-assy, Fender, LH
61451	Panel, Rocker, Outer RH
61452	Panel, Rocker Inner, Front RH
61461	Panel, Rocker, Outer LH
61462	Panel, Rocker, Inner Front LH
61592	Bracket, Stiffener, NO.2
61601E	Panel Sub-assy, Quarter, Outer RH
61602D	Panel Sub-assy, Quarter, Outer LH
61623A	Extension, Quarter Panel, Outer RH
61624A	Extension, Quarter Panel, Outer LH
61701	Skirt Sub-assy, Quarter Panel, Front RH
61702	Skirt Sub-assy, Quarter Panel, Front LH
61702A	Cover Sub-assy, Battery Service Hole, LH
61703G	Panel Sub-assy, Quarter, Inner RH
61704H	Panel Sub-assy, Quarter, Inner LH
61707J	Bracket Sub-assy, Battery Cover Lock
61711B	Panel, Side Window, Outer RH
61712B	Panel, Side Window, Outer LH
61731A	Panel, Side Window, Inner RH
61732A	Panel, Side Window, Inner LH
61734D	Lever, Battery Cover Lock
61774C	Cover, Cooler Condenser Air Intake
61775B	Cover, Cooler Condenser Air Intake, NO.2
61813A	Plate, Dustproof, NO.1 RH
61823B	Plate, Dust Proof, NO.1 LH
61907A	Strength Sub-assy, Upper Rail, NO.3 RH
61908	Pillar Sub-assy, NO.1 Outer, Upper LH
61931	Strength, Upper Rail, NO.1 RH
61933	Strength, Upper Rail, NO.3 RH
61934	Strength, Upper Rail, NO.4 RH
61935A	Strength, Upr Rail, NO.5 RH
61936A	Pillar, NO.2 Inner, Lower
61936B	Strength, Upper Rail, NO.5 RH
61936C	Strength, Upper Rail, NO.6 LH
61941B	Strength, Upper Rail, NO.1 LH
61943D	Strength, Upper Rail, NO.4 LH
61944A	Strength, Upper Rail, NO.4 LH
61944B	Strength, Upper Rail, NO.3 LH
61945	Strength, Upper Rail, NO.5 RH
74824B	Plate, Separator Bar Stay
76641D	Bracket, Front Mudguard, RH
76642B	Bracket, Front Mudguard, LH
76645D	Bracket, Rear Body Mudguard, RH
76646D	Bracket, Rear Body Mudguard, LH
76647A	Support, Rear Body Mudguard, RH
76648A	Support, Rear Body Mudguard, LH
76917	Mudguard, Side, Rear RH
76918	Mudguard, Side, Rear LH
77628A	Glass, Fuel Tank Cover Window

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
