Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

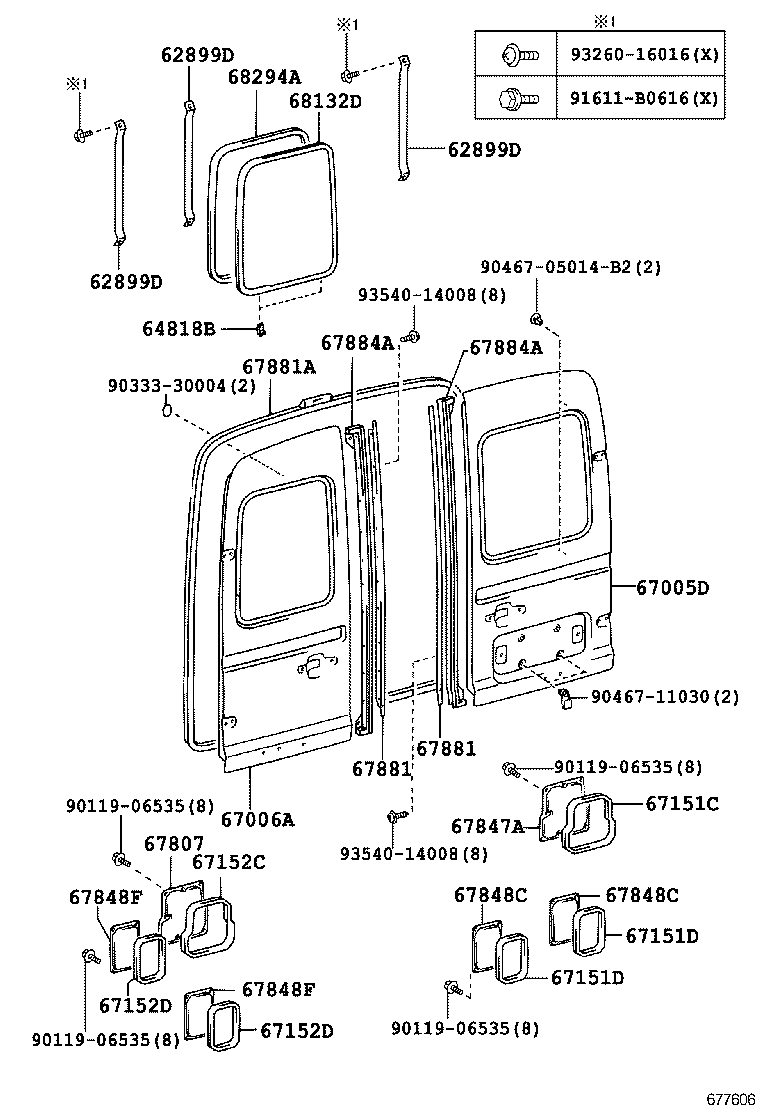

Back Door Panel & Glass
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62899D | Bar, Back Door Window Guard |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 67005D | Panel Sub-assy, Back Door, RH |
| 67006A | Panel Sub-assy, Back Door, LH |
| 67151C | Packing, Back Door Service Hole Cover, NO.1 |
| 67151D | Packing, Back Door Service Hole Cover, NO.2 |
| 67152C | Packing, Back Door Service Hole, NO.1 |
| 67152D | Packing, Back Door Service Hole, NO.2 |
| 67807 | Cover Sub-assy, Back Door Service Hole |
| 67847A | Cover, Back Door Service Hole |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67848F | Cover, Back Door Service Hole, NO.2 |
| 67881 | Plate, Back Door Weatherstrip Set |
| 67881A | Weatherstrip, Back Door |
| 67884A | Weatherstrip, Back Door, Center |
| 68131C | Glass, Back Door, RH |
| 68132D | Glass, Back Door, LH |
| 68294A | Dam, Back Door Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
