Toyota Quick Deli/Urban Sup
1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan
Discontinued model
Data version 2013-01

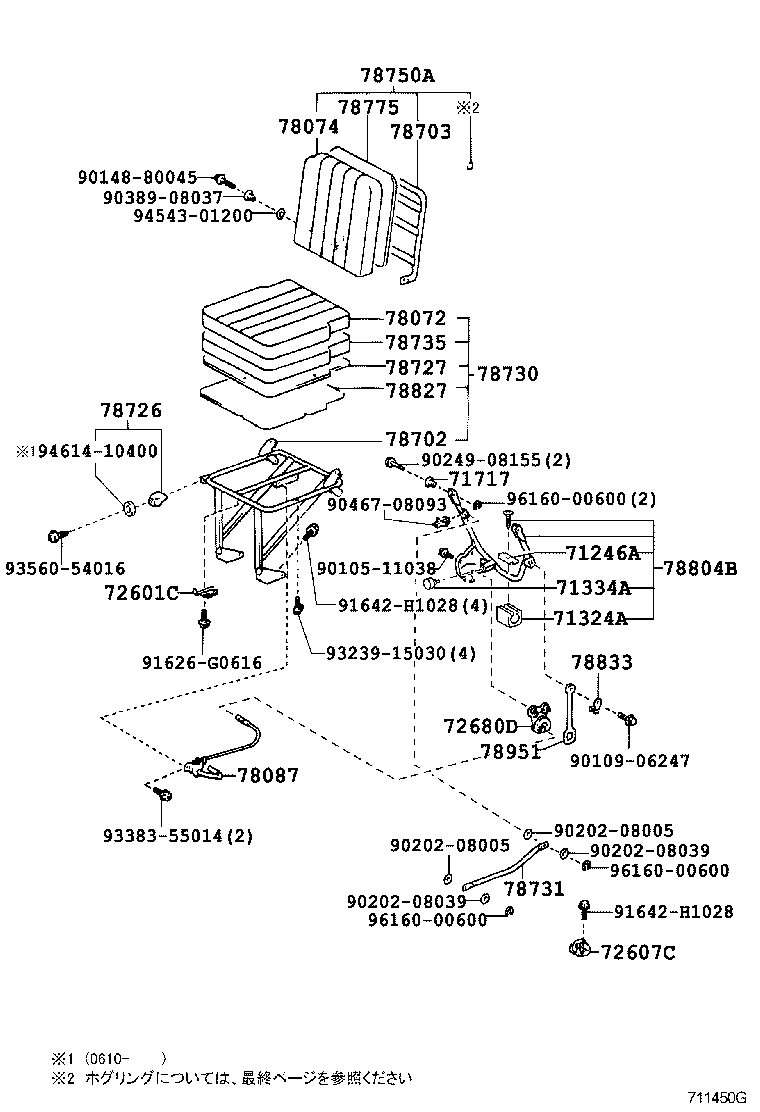

Seat & Seat Track
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71130 | Leg Assy, Front Seat, RH |
| 71246A | Plate, Rear Seat Cushion Set |
| 71324A | Cushion, Rear Seat |
| 71334A | Stopper, Rear Seat Leg |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71717 | Plate, Front Side Seat Leg |
| 71811C | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72019 | Retainer Sub-assy, Seat Track, Rear RH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72211 | Handle, Seat Track Adjusting |
| 72329 | Cover, Seat Adjuster Bolt |
| 72380 | Cable Assy, Seat Adjuster Control, NO.2 |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72601C | Striker Sub-assy, Rear Seatback Lock, NO.2 RH |
| 72607C | Striker Sub-assy, Front Seat Cushion Lock |
| 72680D | Lock Assy, Front Seat Cushion, LH |
| 72728A | Protector, Front Seat Reclining, Inner RH |
| 72729A | Protector, Front Seat Reclining, Inner LH |
| 78072 | Cover Sub-assy, Sub Seat Cushion, LH |
| 78074 | Cover Sub-assy, Sub Seatback, LH |
| 78087 | Lever Sub-assy, Sub Seat Lock |
| 78702 | Frame Sub-assy, Sub Seat Cushion, LH |
| 78703 | Frame Sub-assy, Sub Seatback |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78727 | Board, Sub Seat Cushion |
| 78730 | Cushion Assy, Sub Seat, LH |
| 78731 | Arm, Sub Seat Link, NO.1 |
| 78735 | Pad, Sub Seat Cushion |
| 78750A | Back Assy, Sub Seat, LH |
| 78775 | Pad, Sub Seatback |
| 78804B | Leg Sub-assy, Sub Seat, LH |
| 78827 | Board, Sub Seat Cover |
| 78833 | Plate, Assistant Seat Leg |
| 78951 | Band, Fold Seat Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
