Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

7 part groups · 2 illustrations

Illustrations

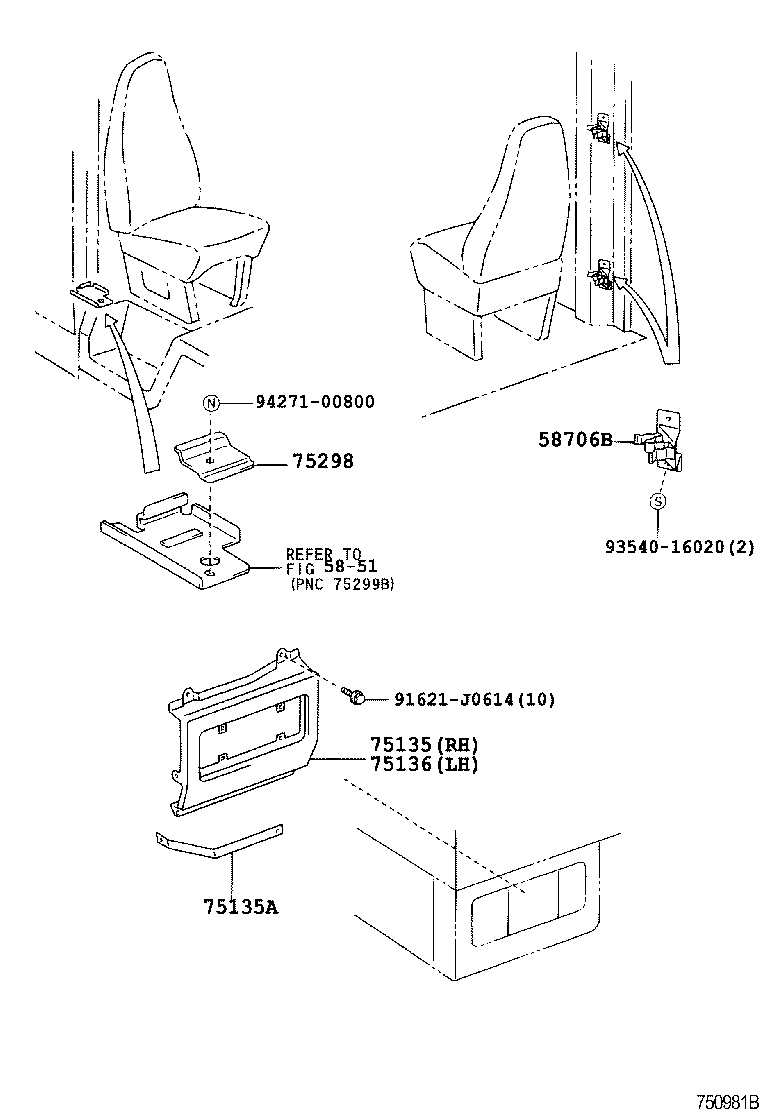

Figure 750654F 750654F 1999-08 → — Figure 750981B 750981B 2001-08 → 2004-07

Part groups

PNCDescription
58706B Clamp Sub-assy, Jack Handle
58780 Band Assy, Tool Box
75135 Bracket, Combination Rear Lamp, RH
75135A Stay, Combination Rear Lamp Bracket
75136 Bracket, Combination Rear Lamp, LH
75298 Plate, Jack Holder
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
