Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

51 part groups · 7 illustrations

Illustrations

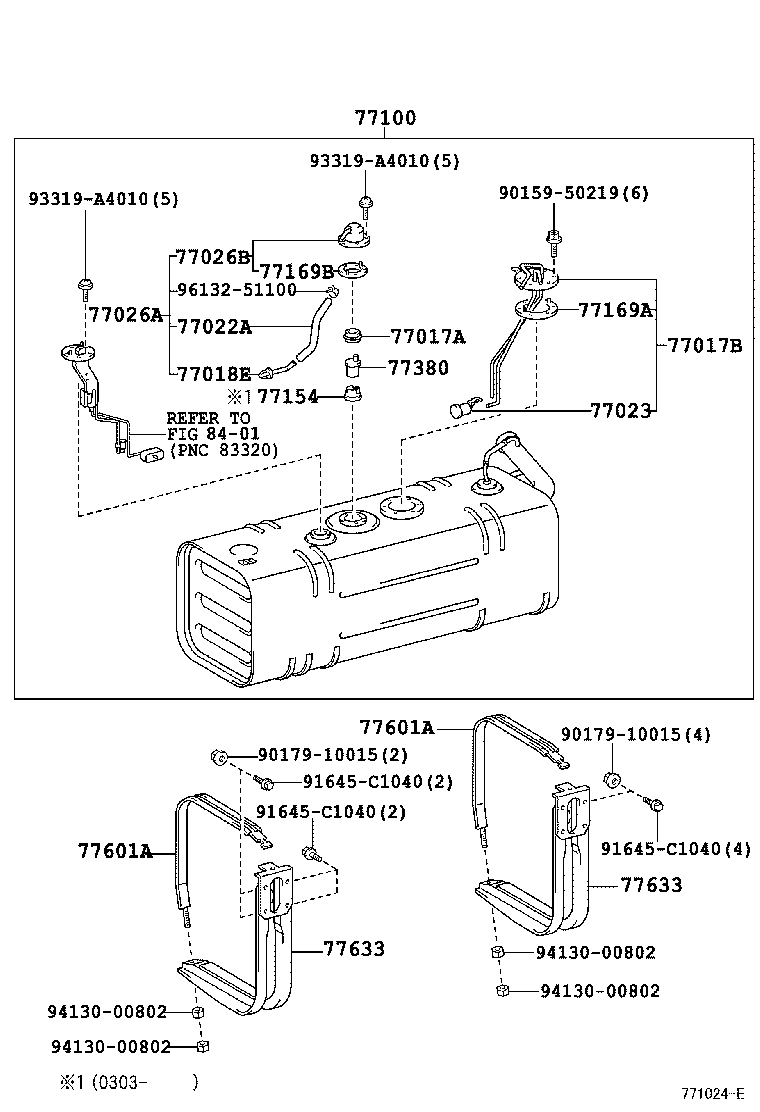

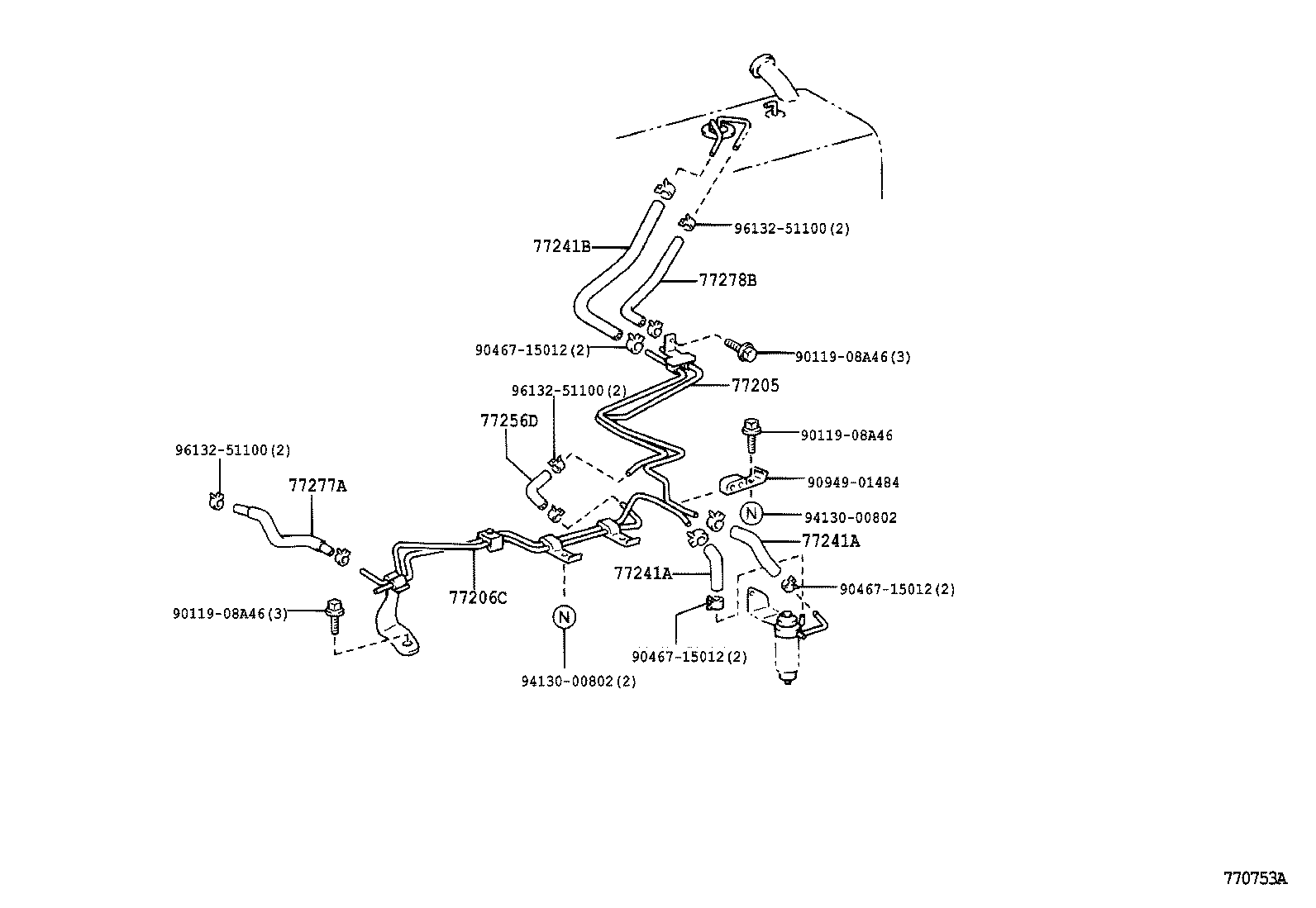

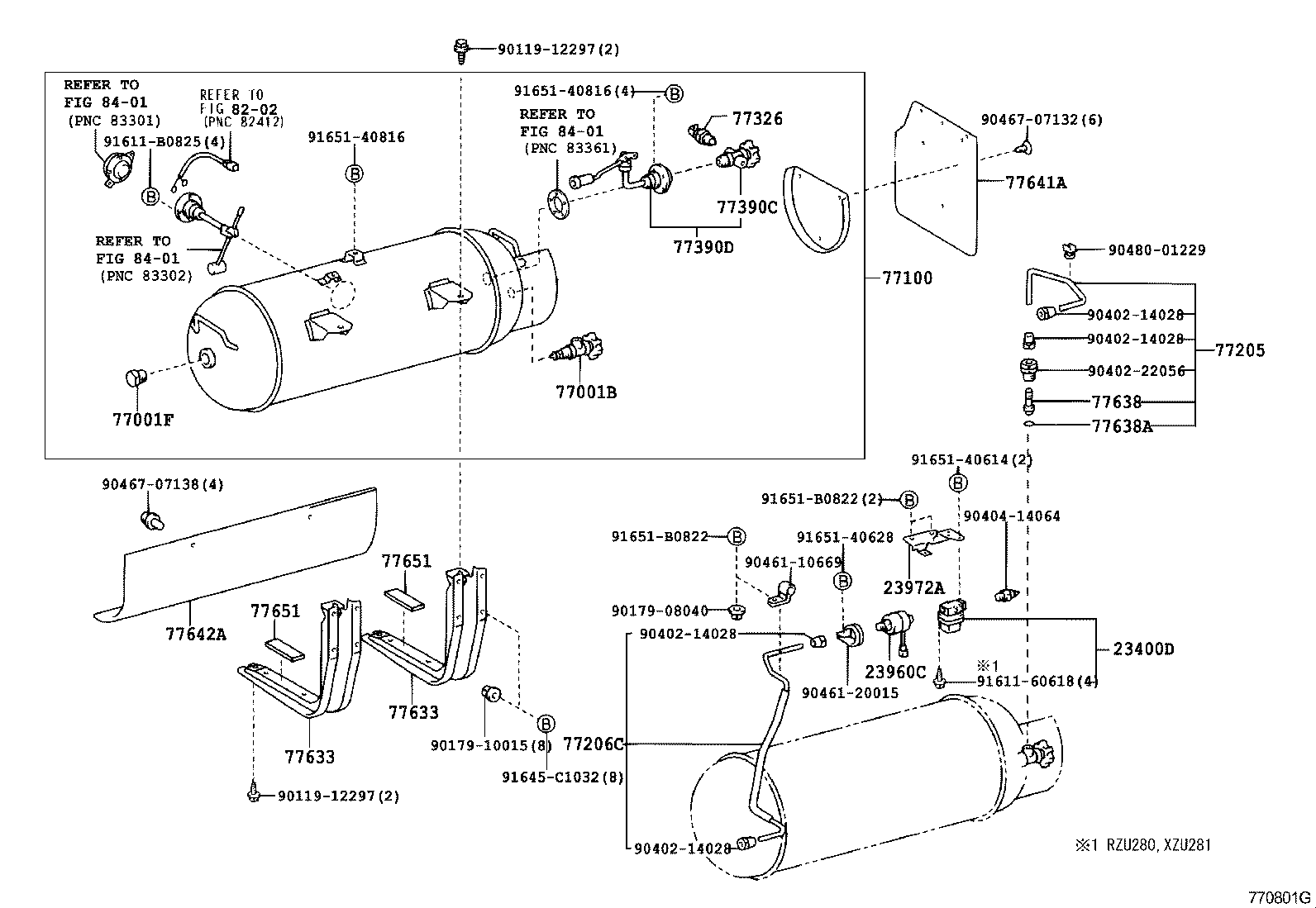

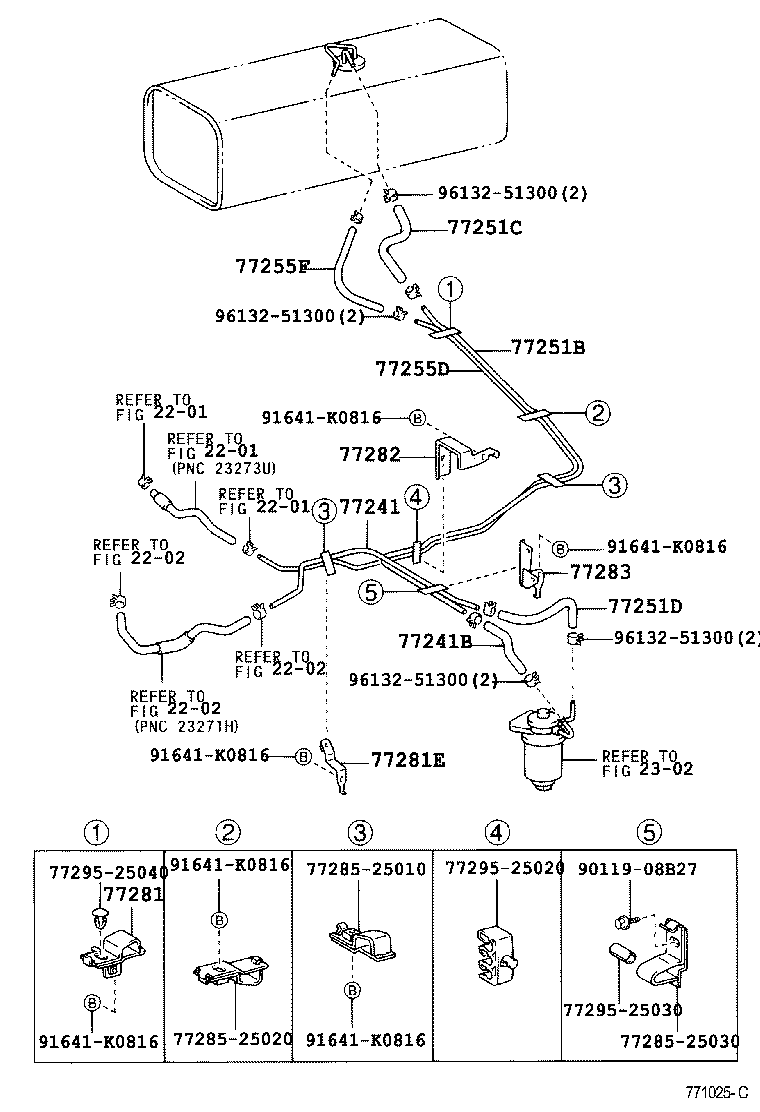

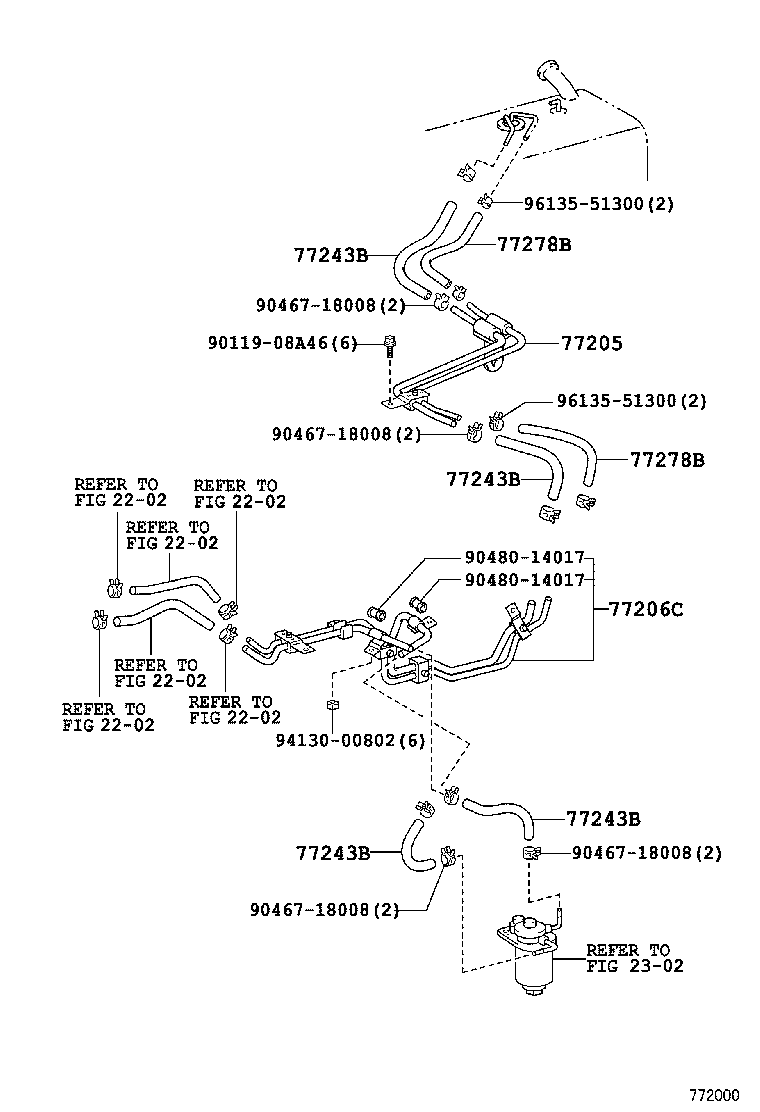

Figure 770752E 770752E 1999-08 → — Figure 771024E 771024E 2001-08 → 2004-07 Figure 770753A 770753A 1999-08 → 2004-06 Figure 771025C 771025C 2001-08 → 2004-07 Figure 771542A 771542A 2004-06 → 2006-10 Figure 772000 772000 2006-10 → — Figure 770801G 770801G 2000-01 → 2006-10

Part groups

PNCDescription
23400D Filter Assy, Lpg
23960C Valve Assy, Solenoid Lpg
23972A Bracket, Filter & Solenoid Valve
77001B Valve (FOR LPG TANK)
77001F Plug, Lpg Tank
77017A Gasket, Fuel Tank Vent
77017B Tube Sub-assy, Fuel Tank Vent
77018C Hose, Fuel NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77154 Plate, Fuel Tank Evap/Vent Tube Support
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77197 Orifice, Fuel Vapor
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206C Tube Sub-assy, Fuel Main, NO.2
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256D Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77259C Hose, Fuel
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77281 Bracket, Fuel Main Tube, NO.1
77281E Bracket, Fuel Main Tube, NO.1
77282 Bracket, Fuel Main Tube, NO.2
77283 Bracket, Fuel Tube
77326 Connector, Auxiliary Fuel Tank Cap
77380 Valve Assy, Fuel Cut Off
77390C Valve, Fuel Tank Inlet
77390D Valve Assy, Fuel Tank Over Fill Check
77601A Band Sub-assy, Fuel Tank, NO.1
77633 Stay, Fuel Tank
77638 Sleeve, Tank Valve Joint
77638A Ring, O (FOR TANK VALVE JOINT SLEEVE)
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77651 Packing, Fuel Tank Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
