Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 4 illustrations

Illustrations

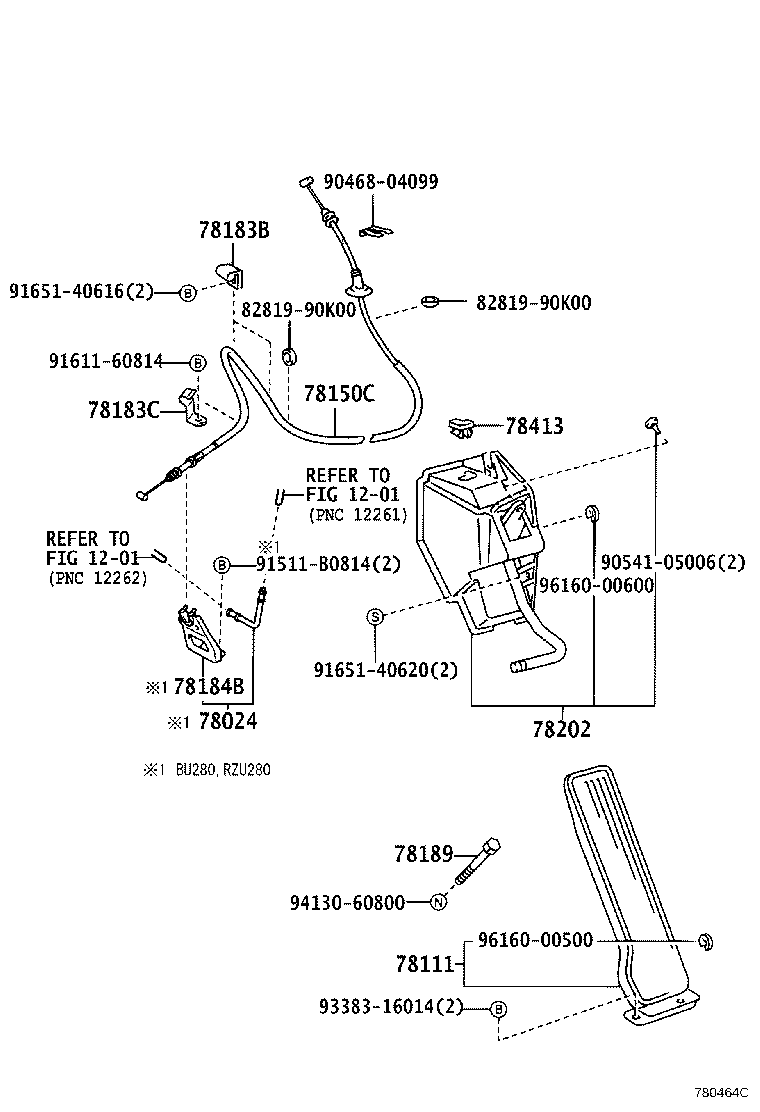

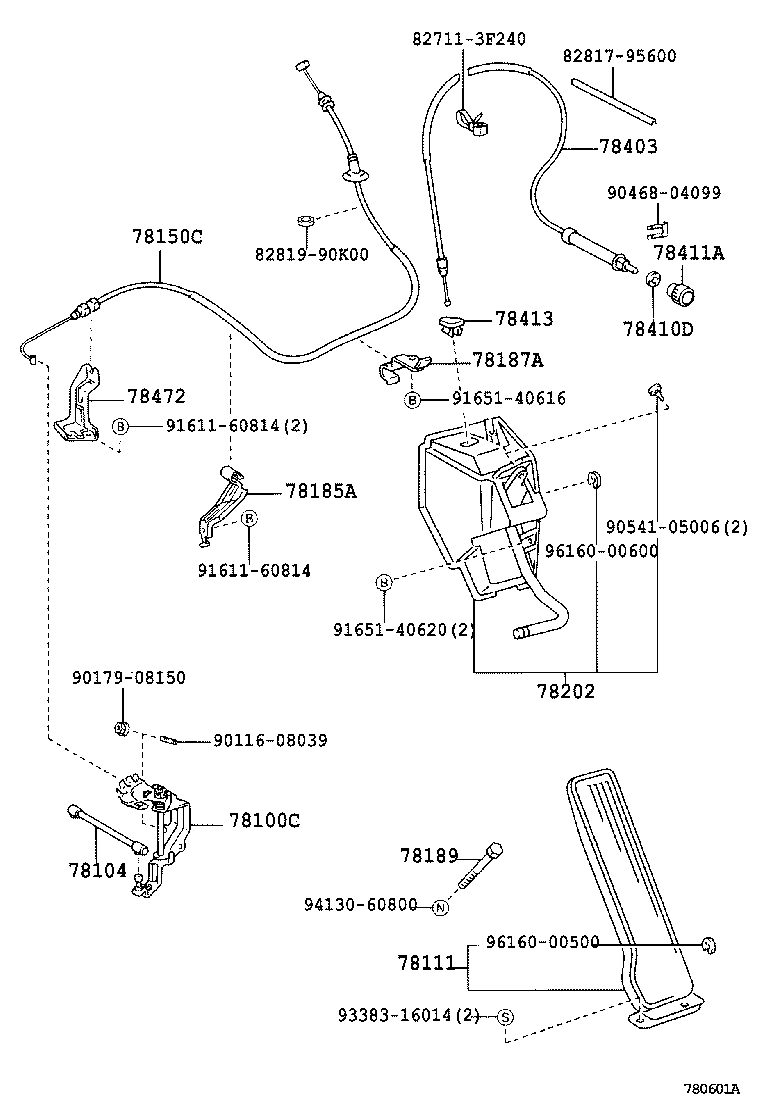

Figure 780431B 780431B 1999-08 → 2004-06 Figure 780464C 780464C 2000-01 → 2006-10 Figure 780601A 780601A 2001-08 → 2004-07 Figure 780947B 780947B 2004-06 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78100C Link Assy, Accelerator, NO.2
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78187A Clamp, Accelerator Control Cable, NO.4
78189 Bolt, Accelerator Pedal Stopper
78195 Bracket, Accelerator Link
78202 Link Sub-assy, Accelerator
78403 Cable Sub-assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78413 Cover, Throttle Control Cable
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
