Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

27 part groups · 6 illustrations

Illustrations

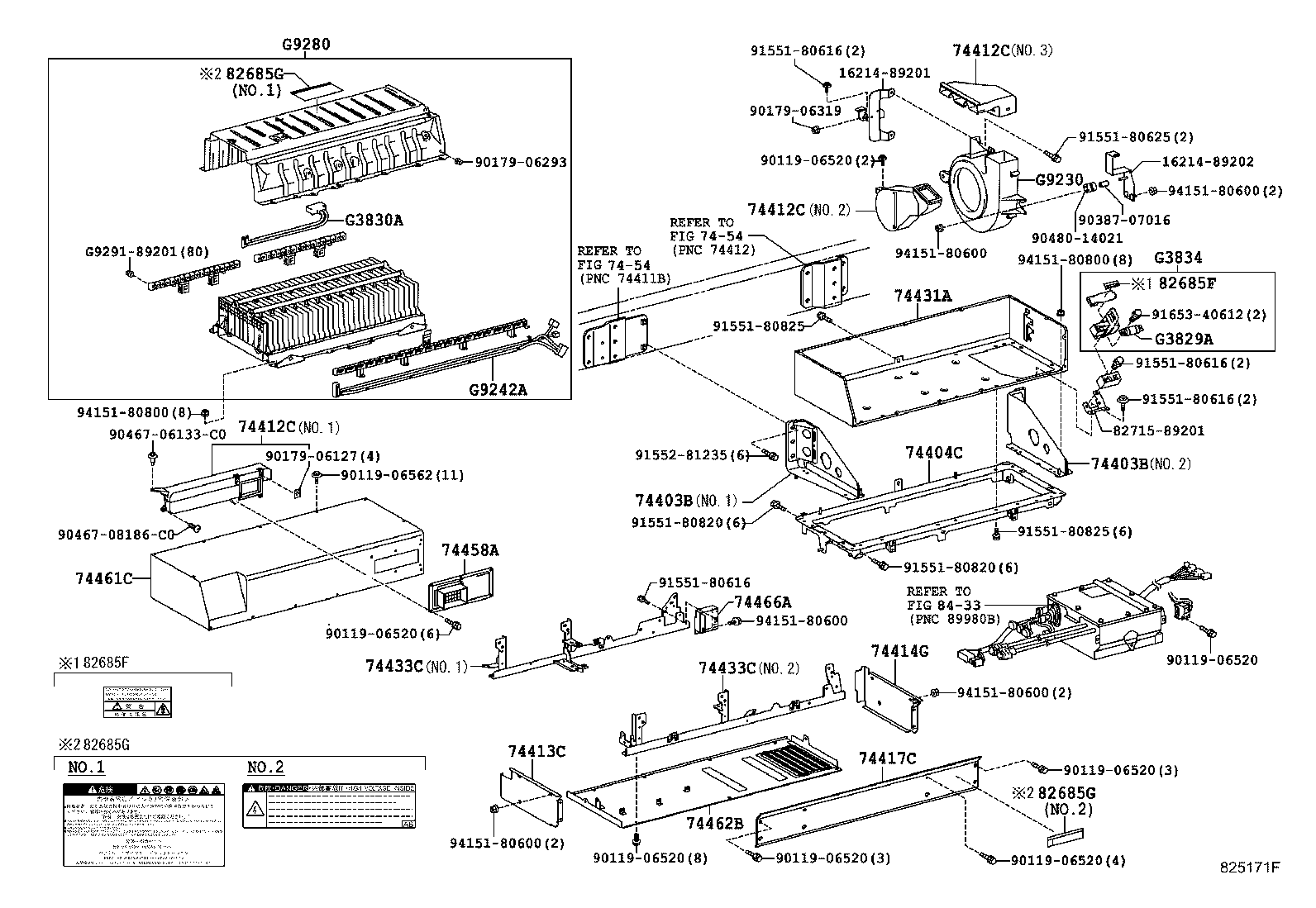

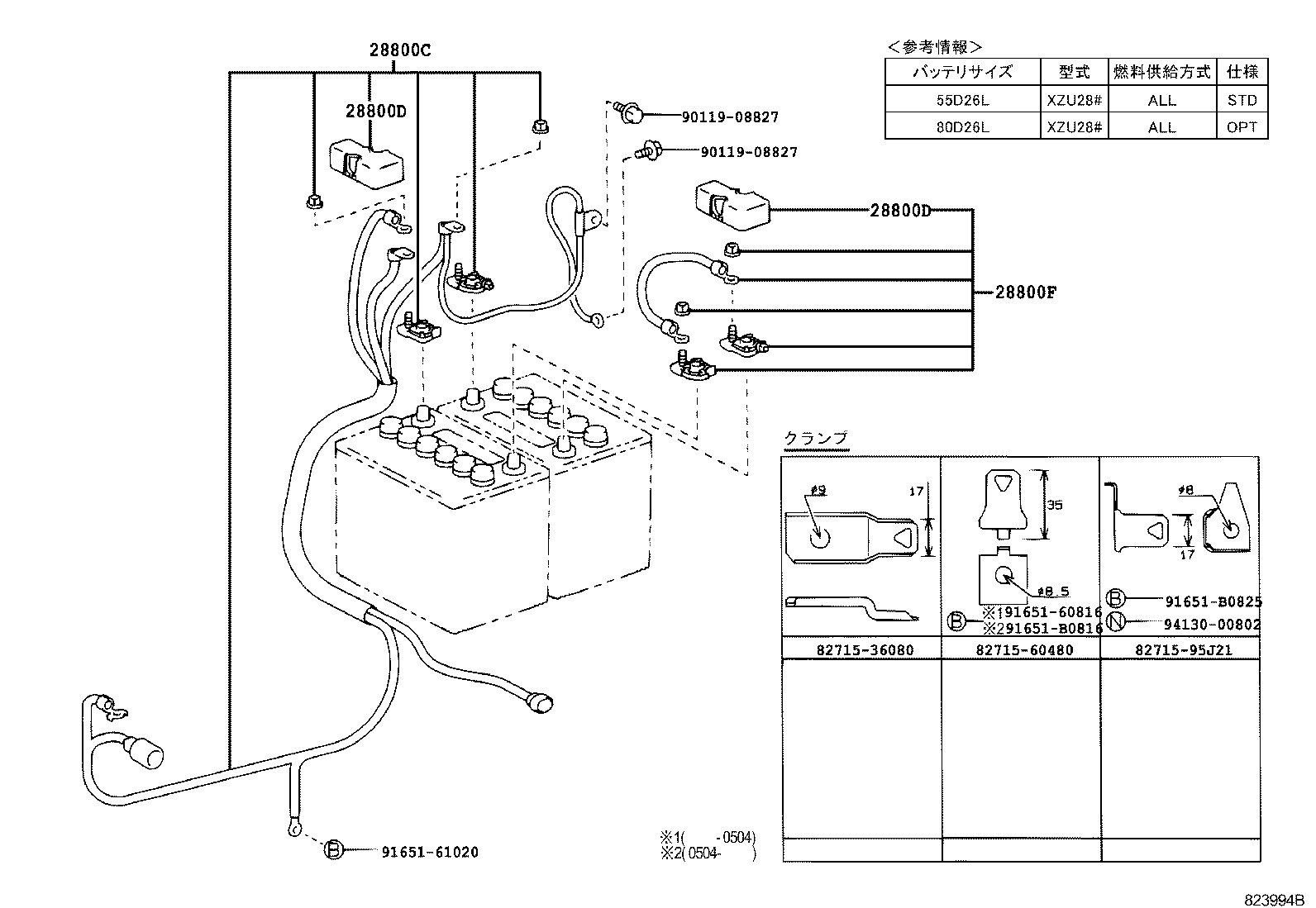

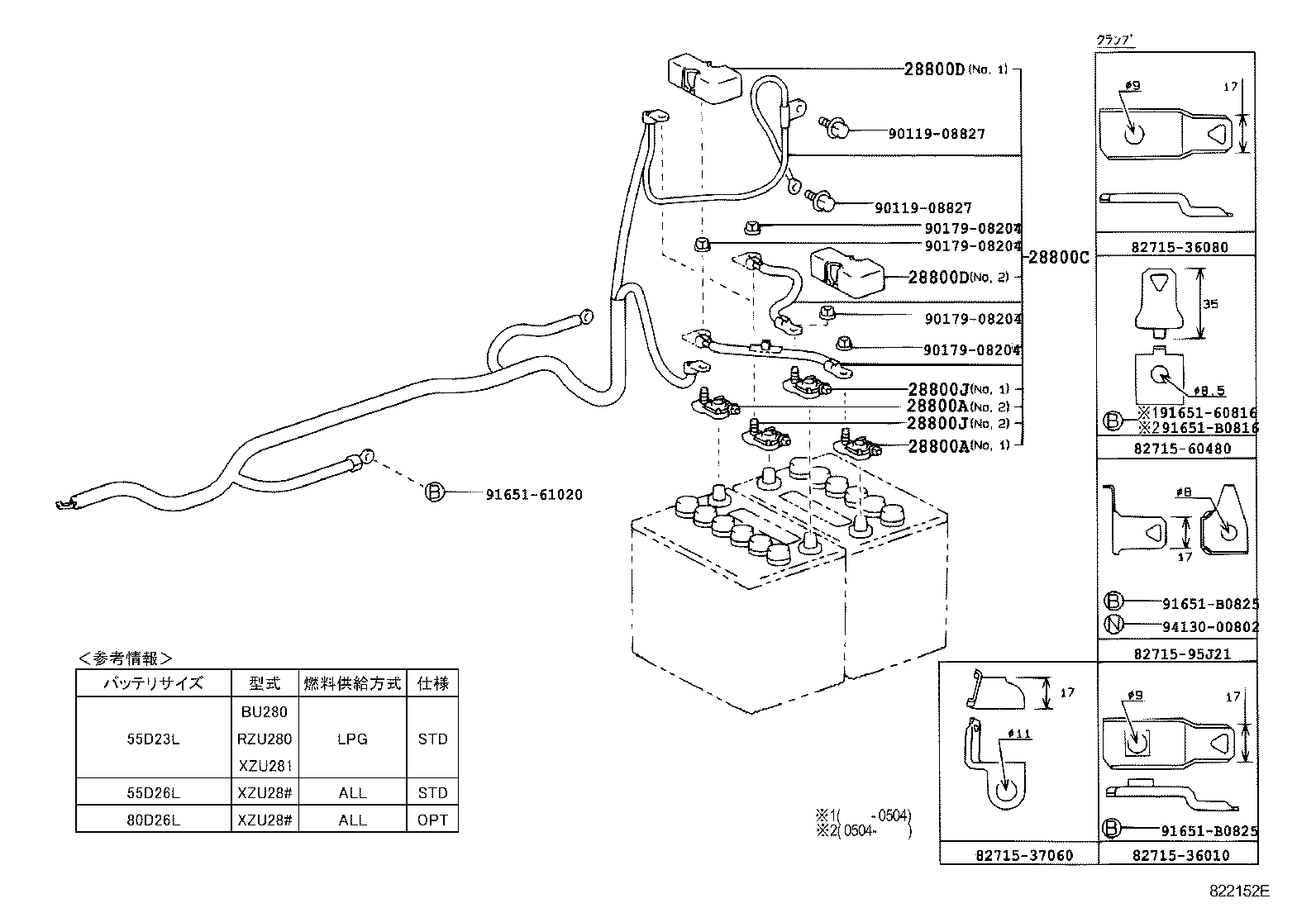

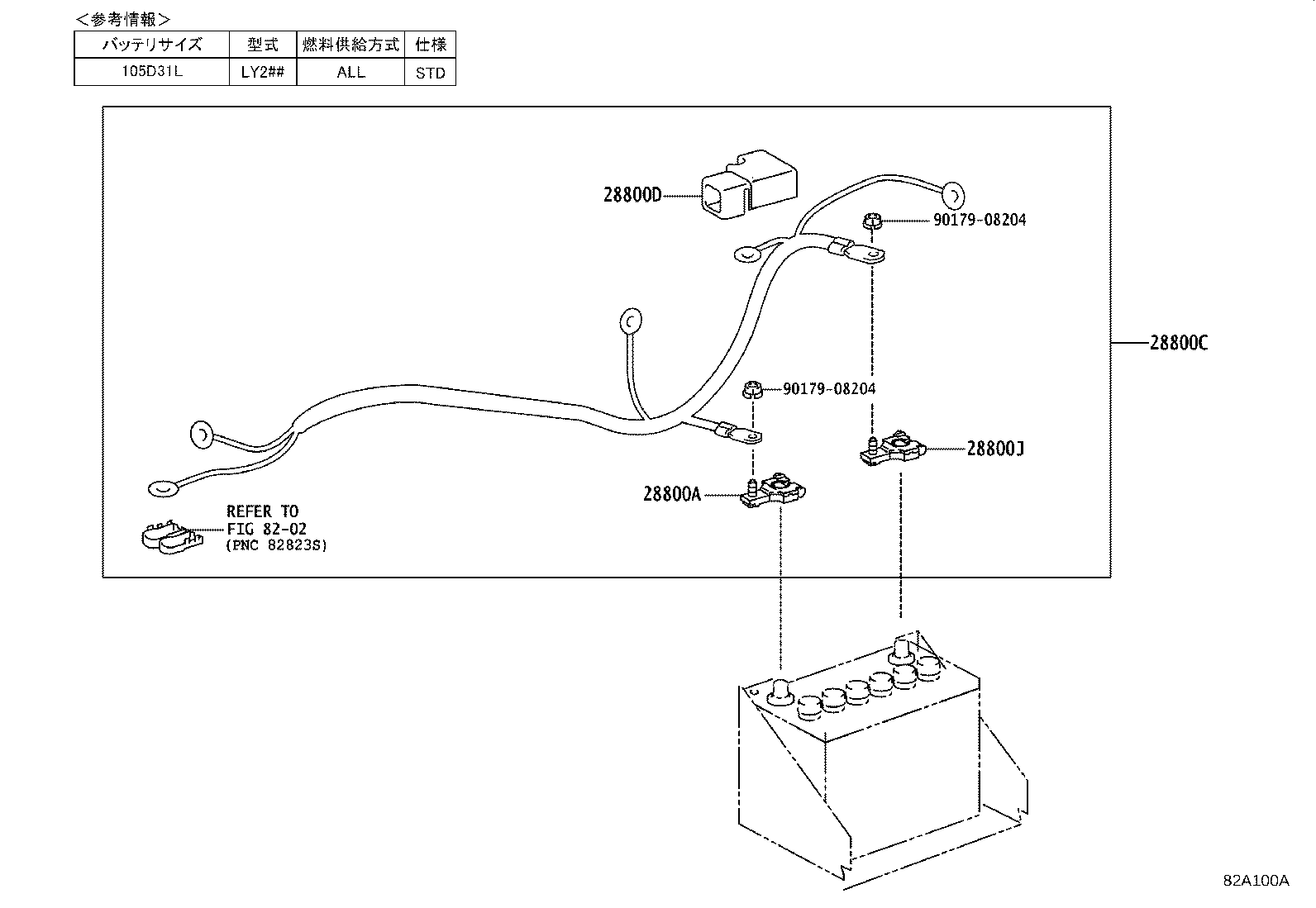

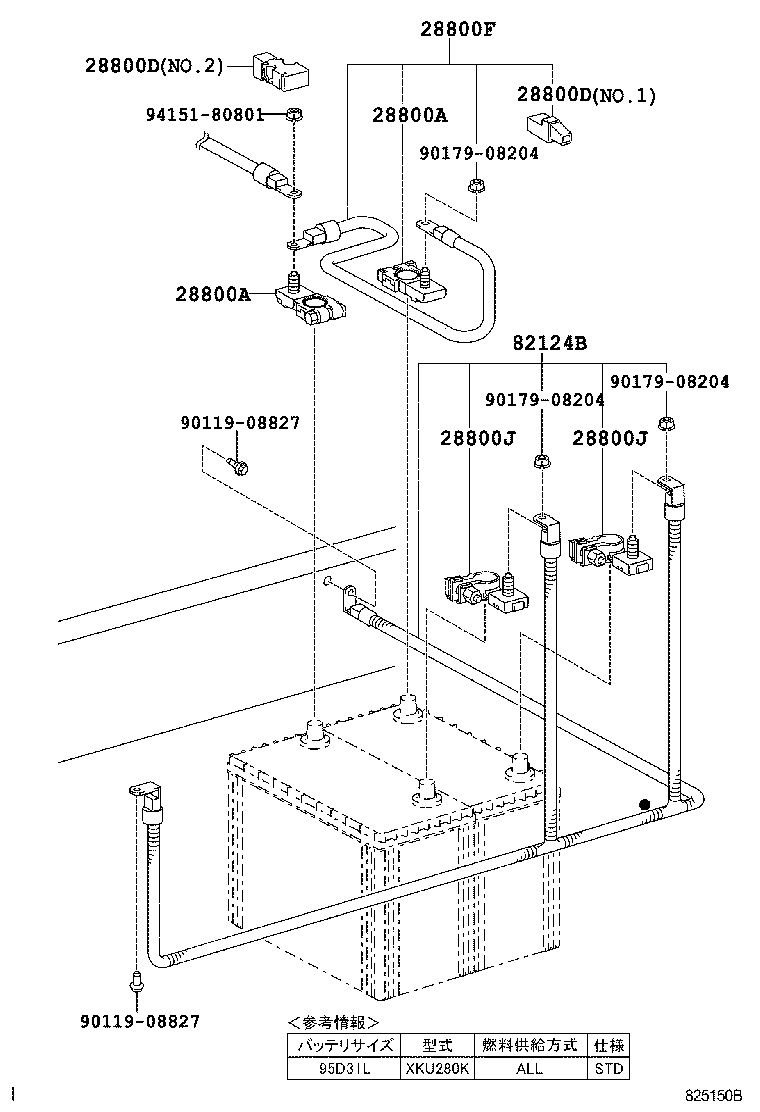

Figure 821888G 821888G 1999-08 → 2004-07 Figure 822152E 822152E 2000-01 → 2006-10 Figure 82A100A 82A100A 2001-08 → 2004-07 Figure 823994B 823994B 2004-06 → 2006-10 Figure 825150B 825150B 2006-10 → — Figure 825171F 825171F 2006-10 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28800J Terminal, Battery Negative
74403B Carrier Sub-assy, Battery
74404C Carrier Sub-assy, Battery, Upr
74412C Duct, Battery Carrier
74413C Panel, Battery Carrier, Front
74414G Panel, Battery Carrier, RR
74417C Panel, Battery Carrier LH
74431A Tray, Battery
74433C Support, Battery Tray
74458A Lid, Battery Cover, NO.1
74461C Cover, Battery
74462B Panel, Battery Carrier, NO.2
74466A Panel, Battery Carrier, NO.6
82124B Wire, Engine, NO.4
82685F Main Battery Caution Plate, NO.1
82685G Main Battery Caution Plate, NO.2
82823F Cap, Battery Terminal, NO.1
G3829A Fuse, Electric Vehicle
G3830A Plug Assy, Electric Vehicle Battery
G3834 Grip, Service Plug
G9230 Blower Assy, Battery Cooling
G9242A Cable, Main Battery, NO.2
G9280 Battery Assy, EV, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
