Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

39 part groups · 19 illustrations

Illustrations

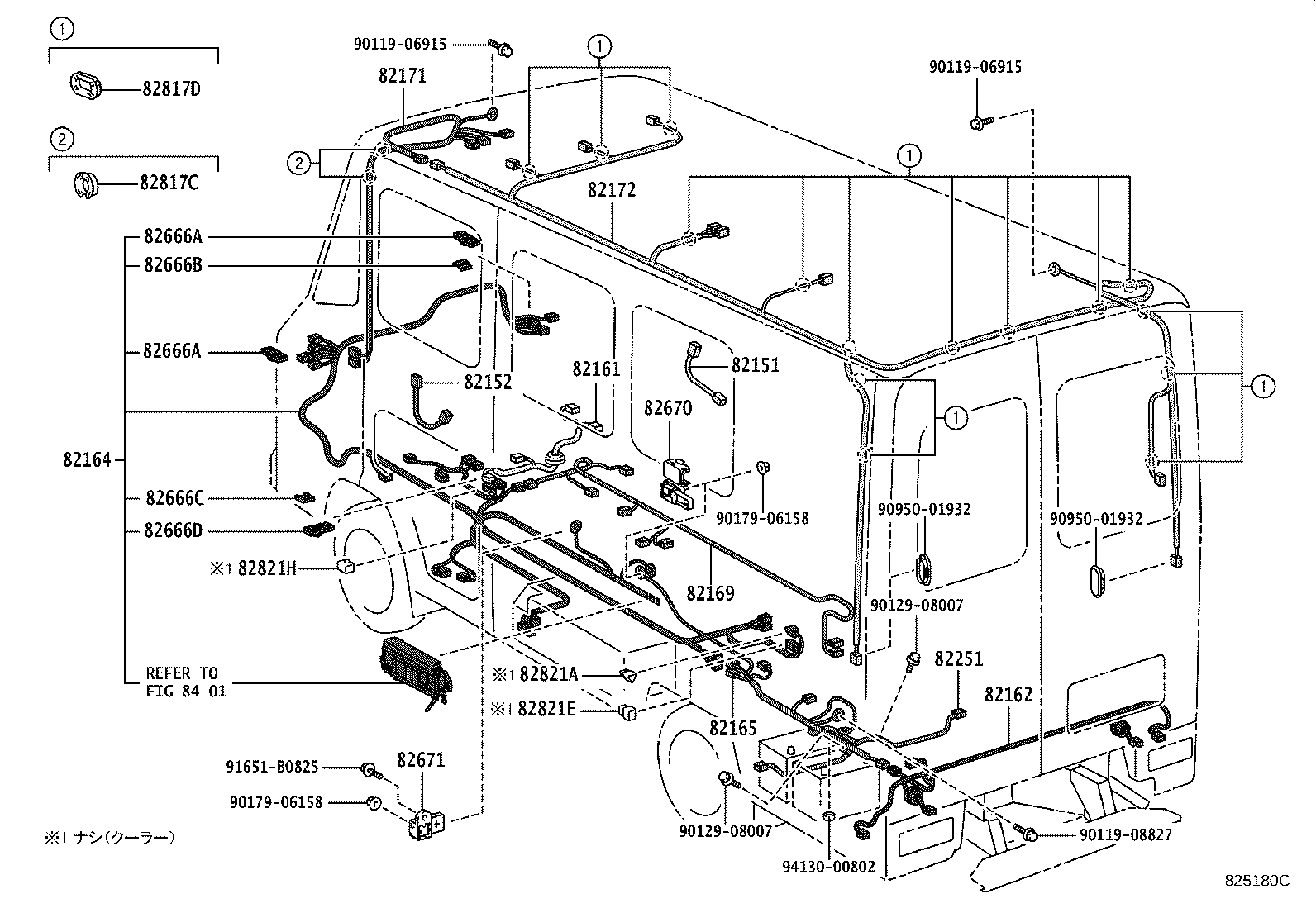

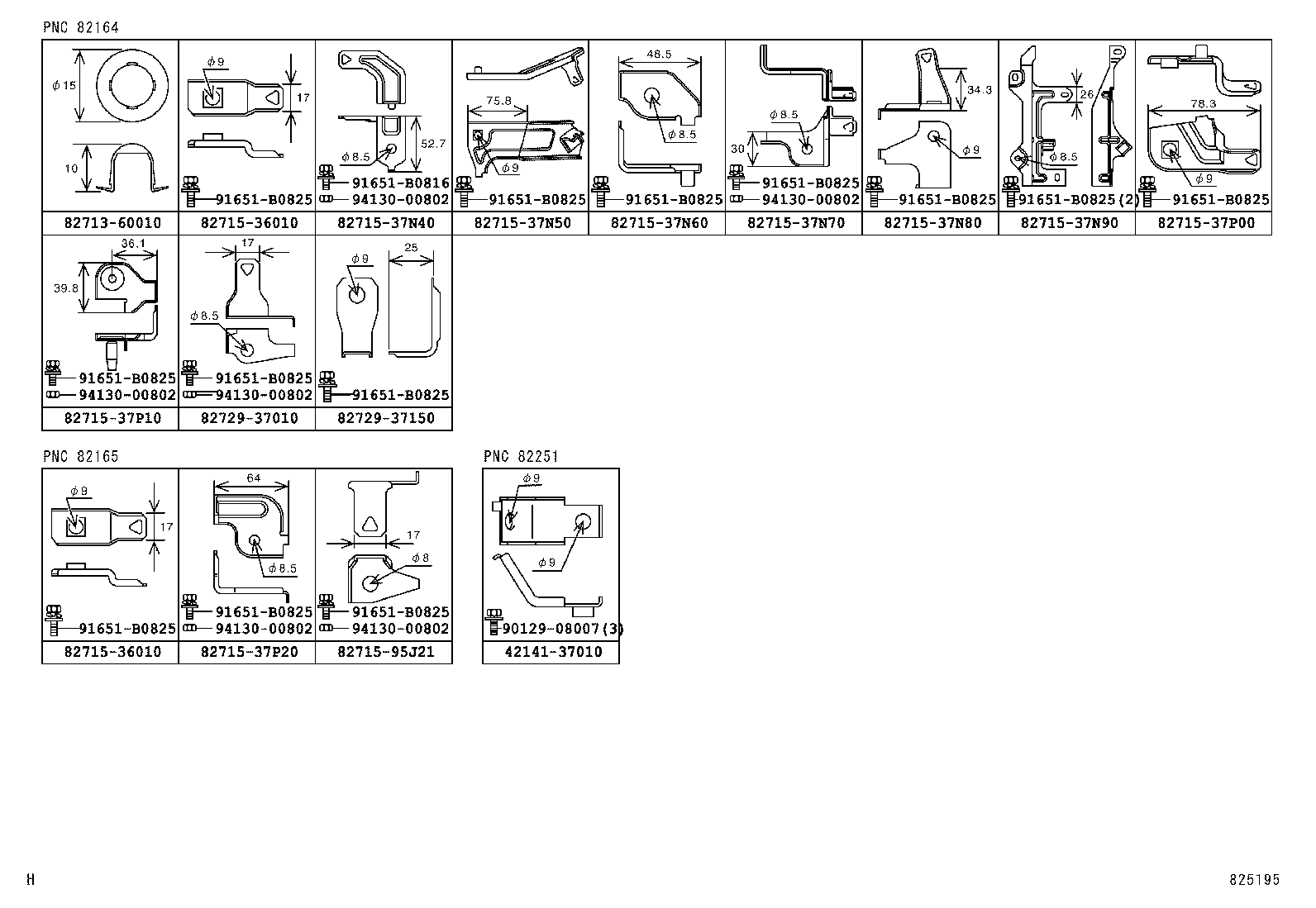

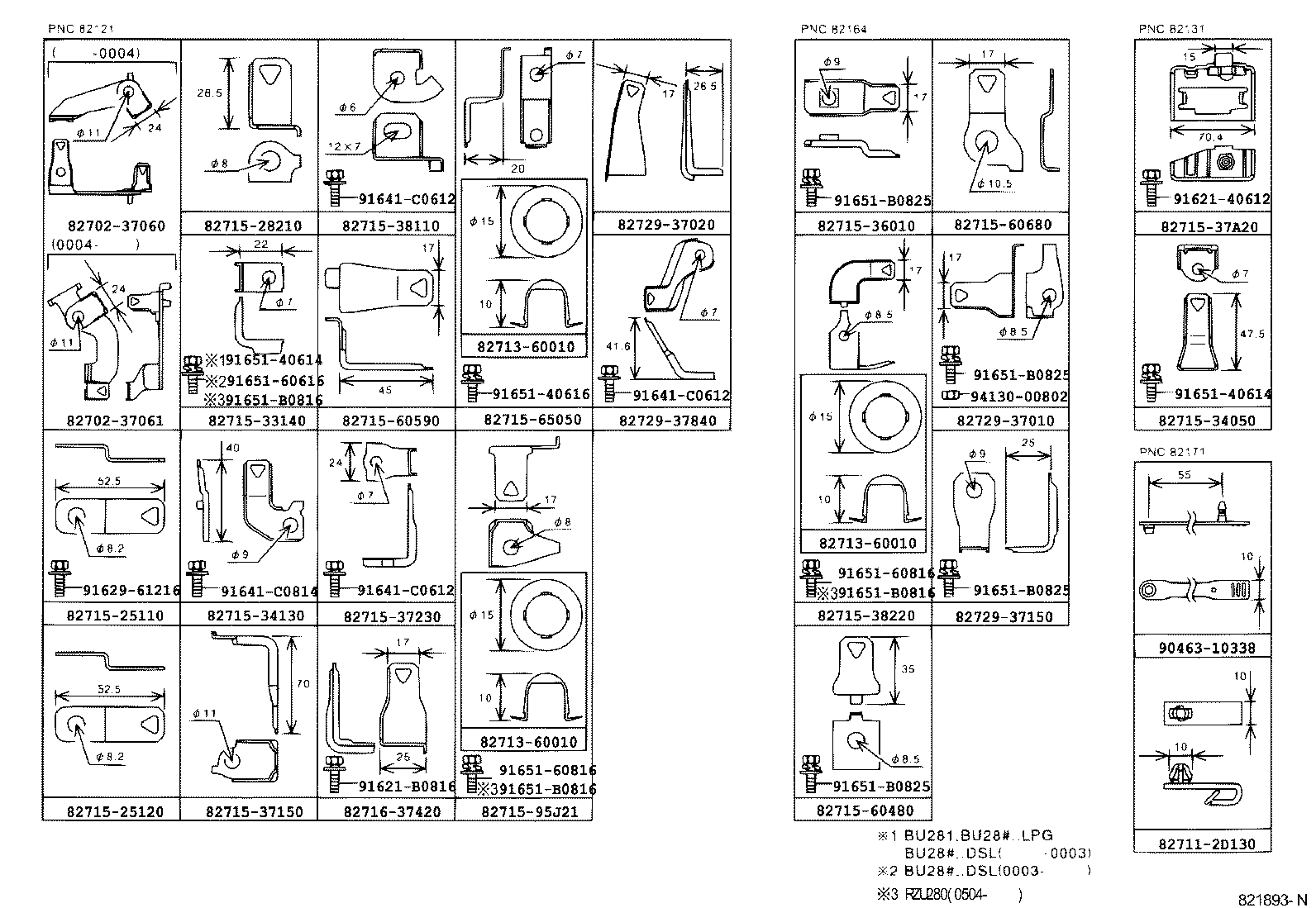

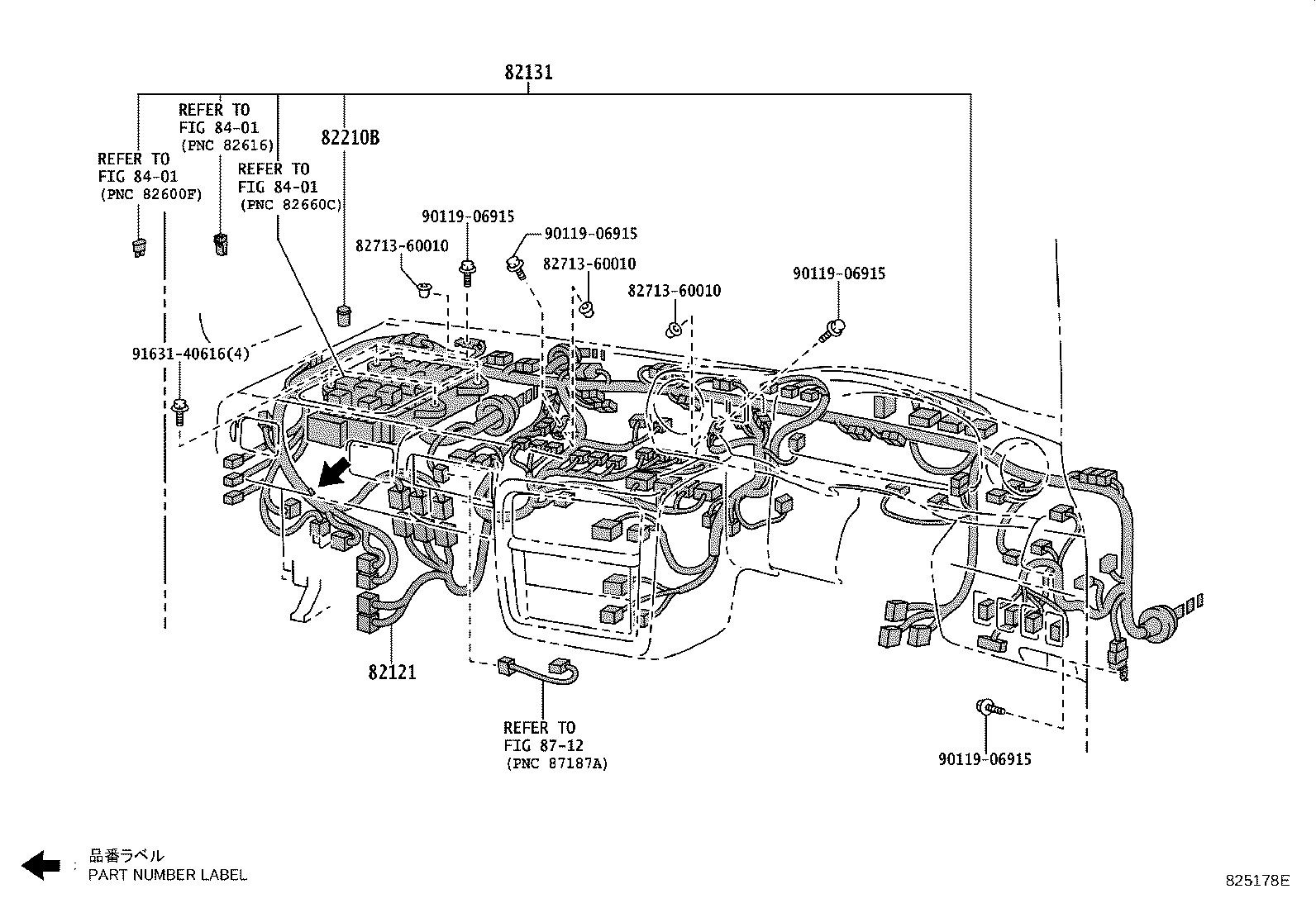

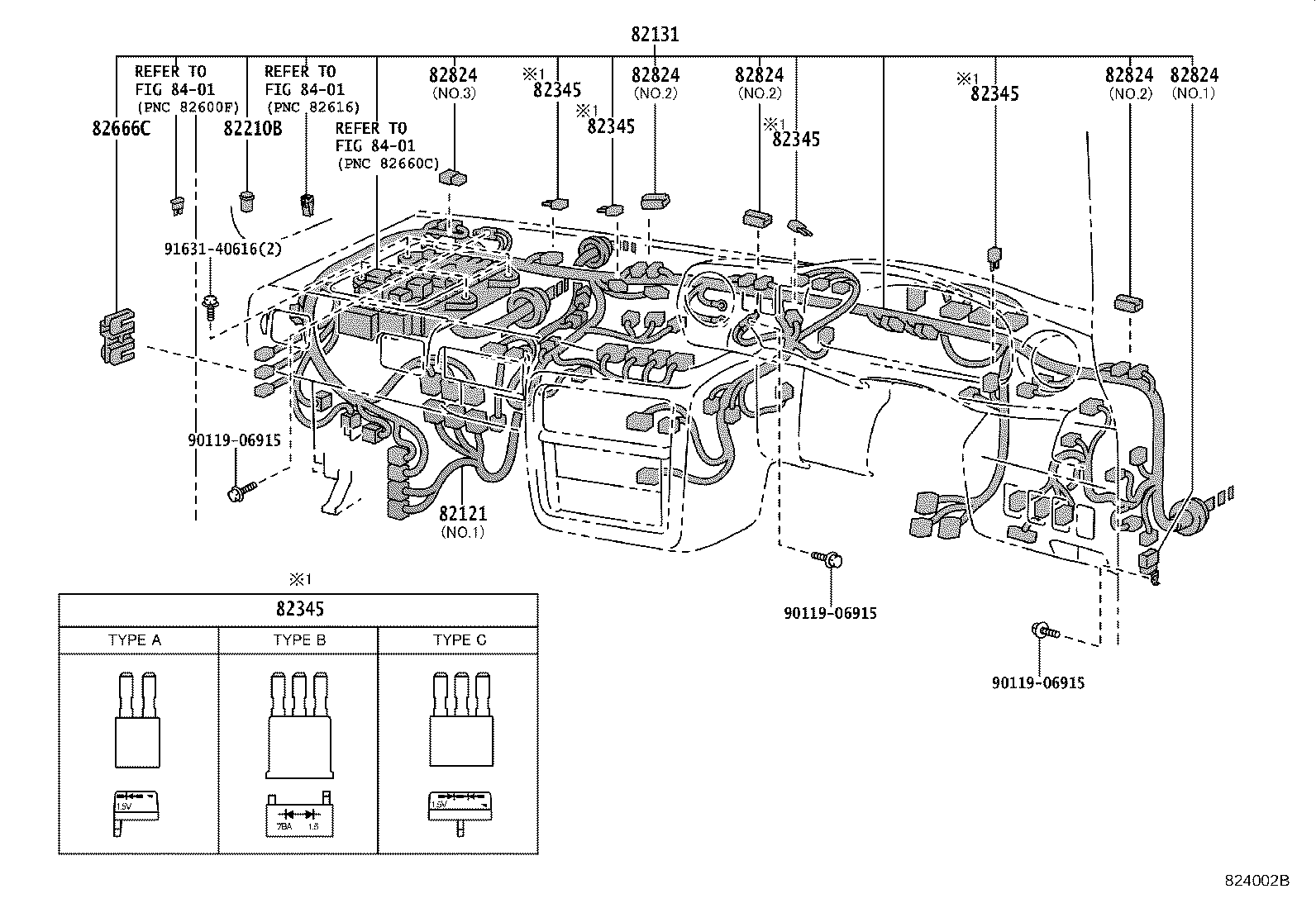

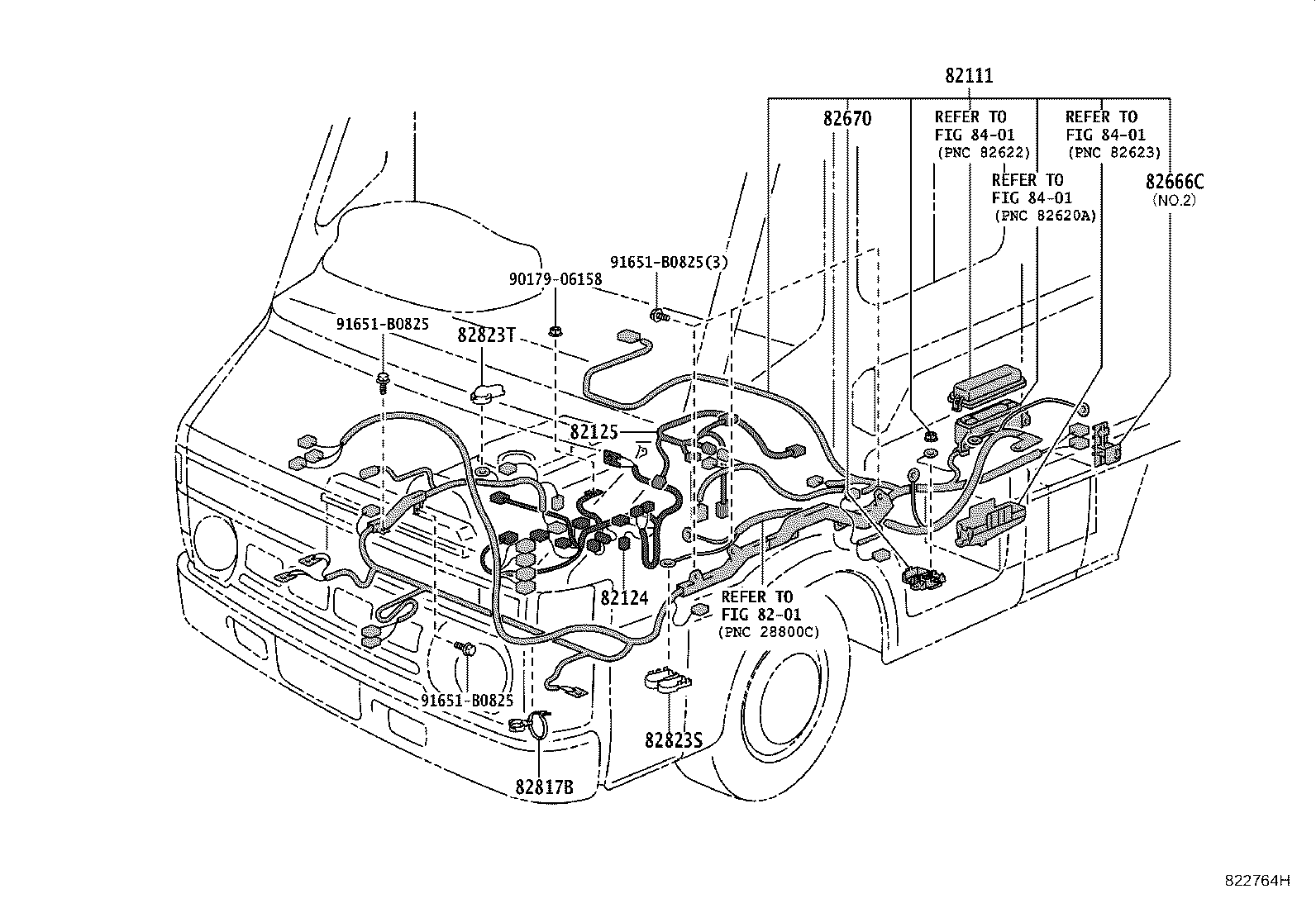

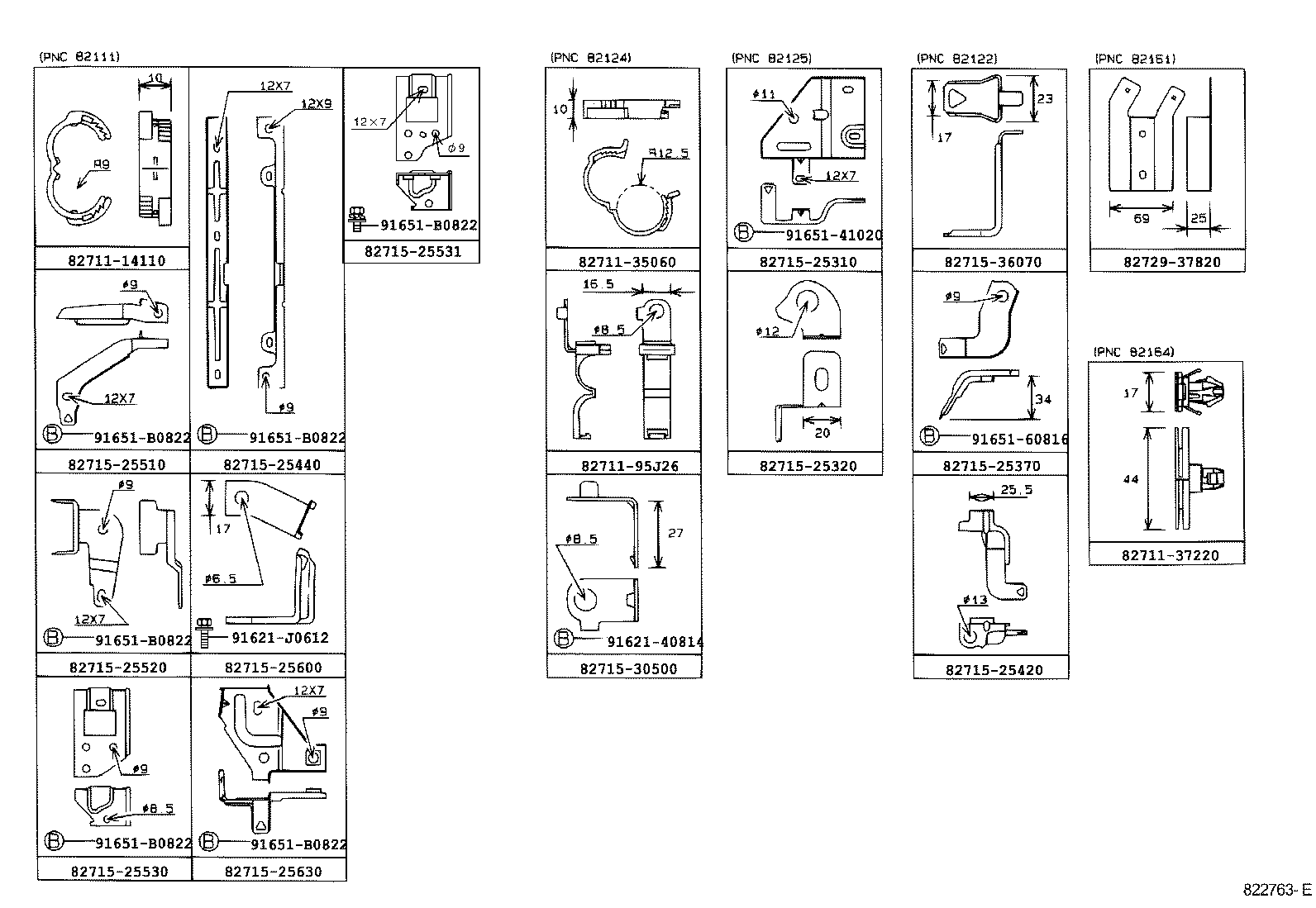

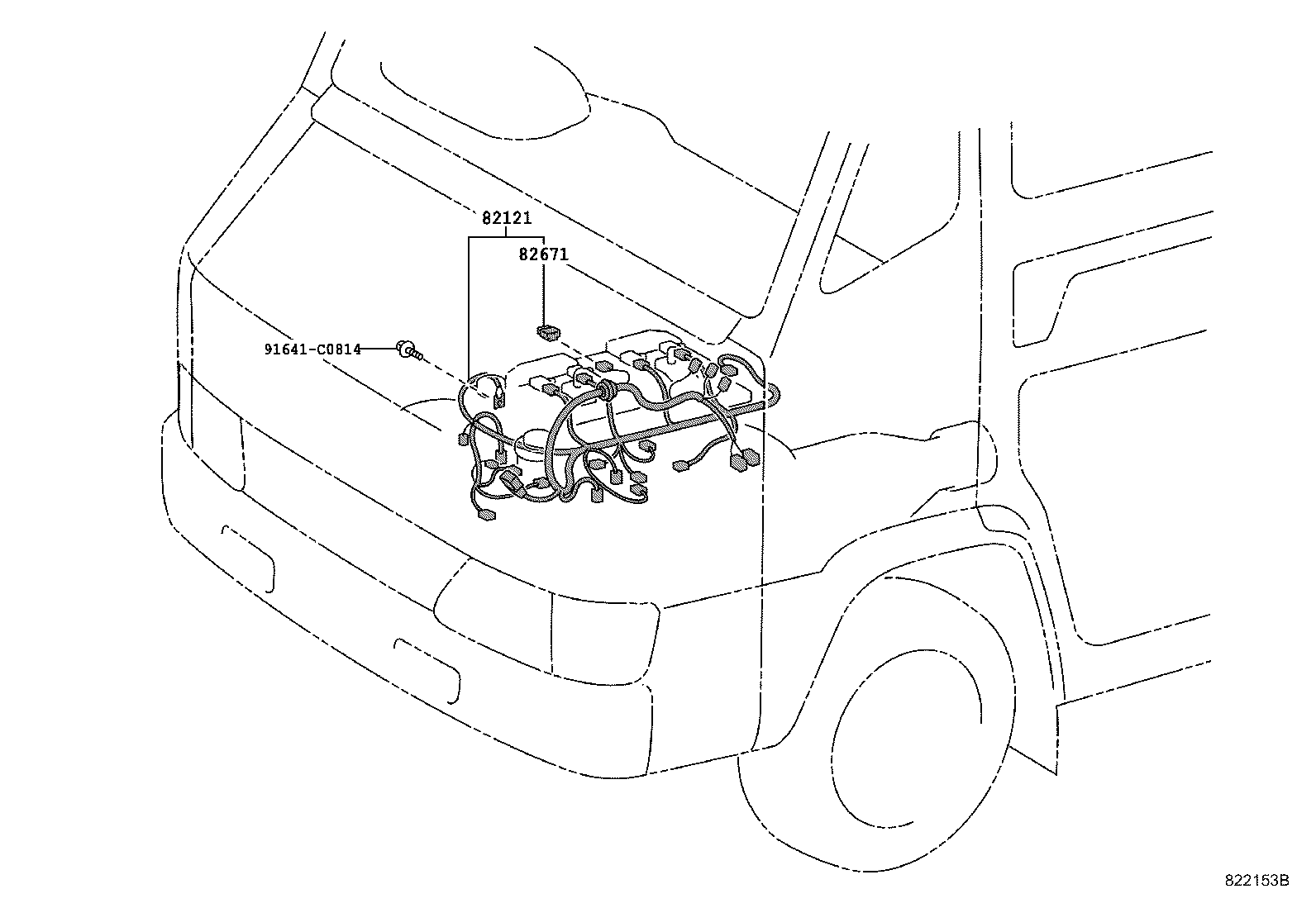

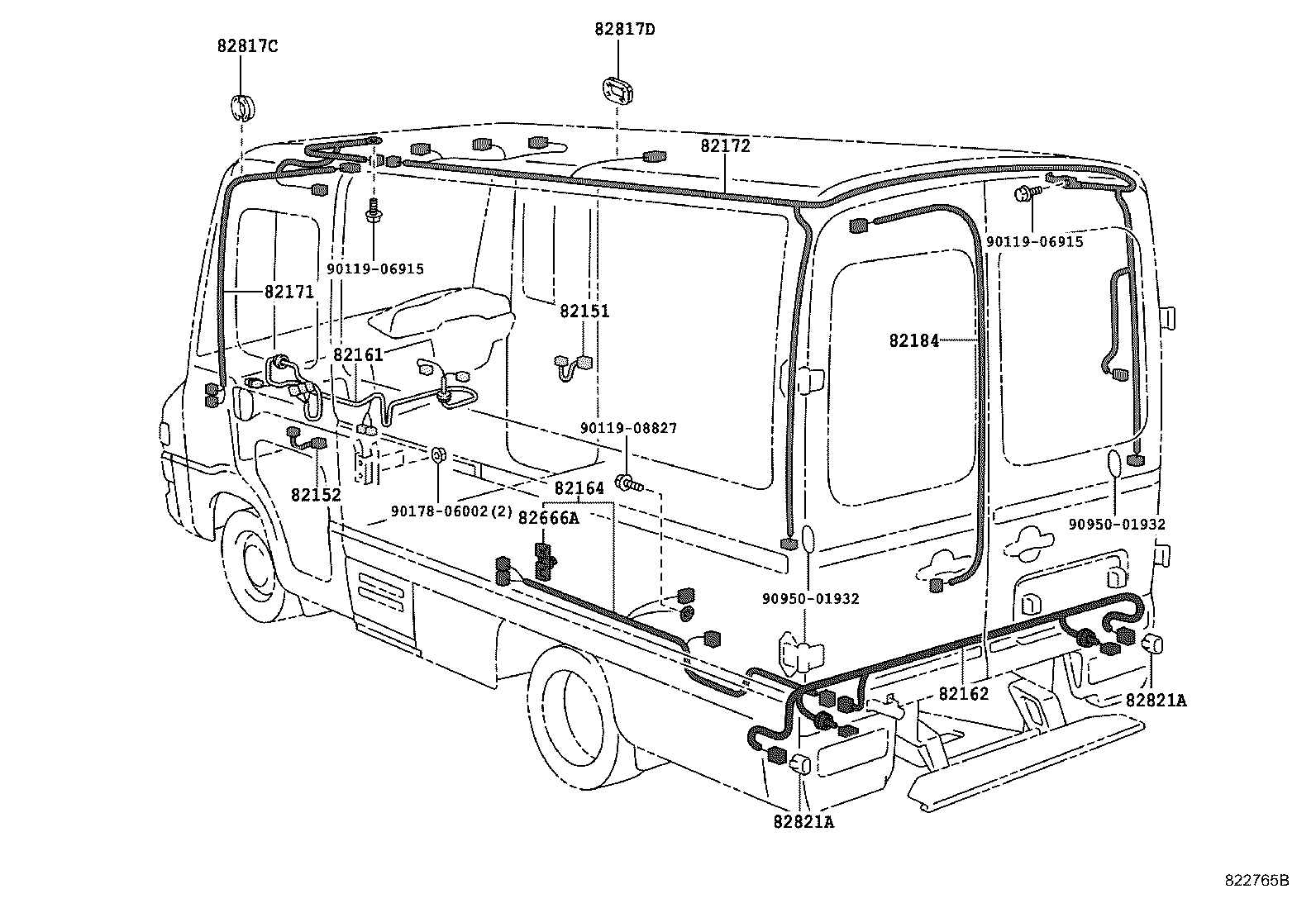

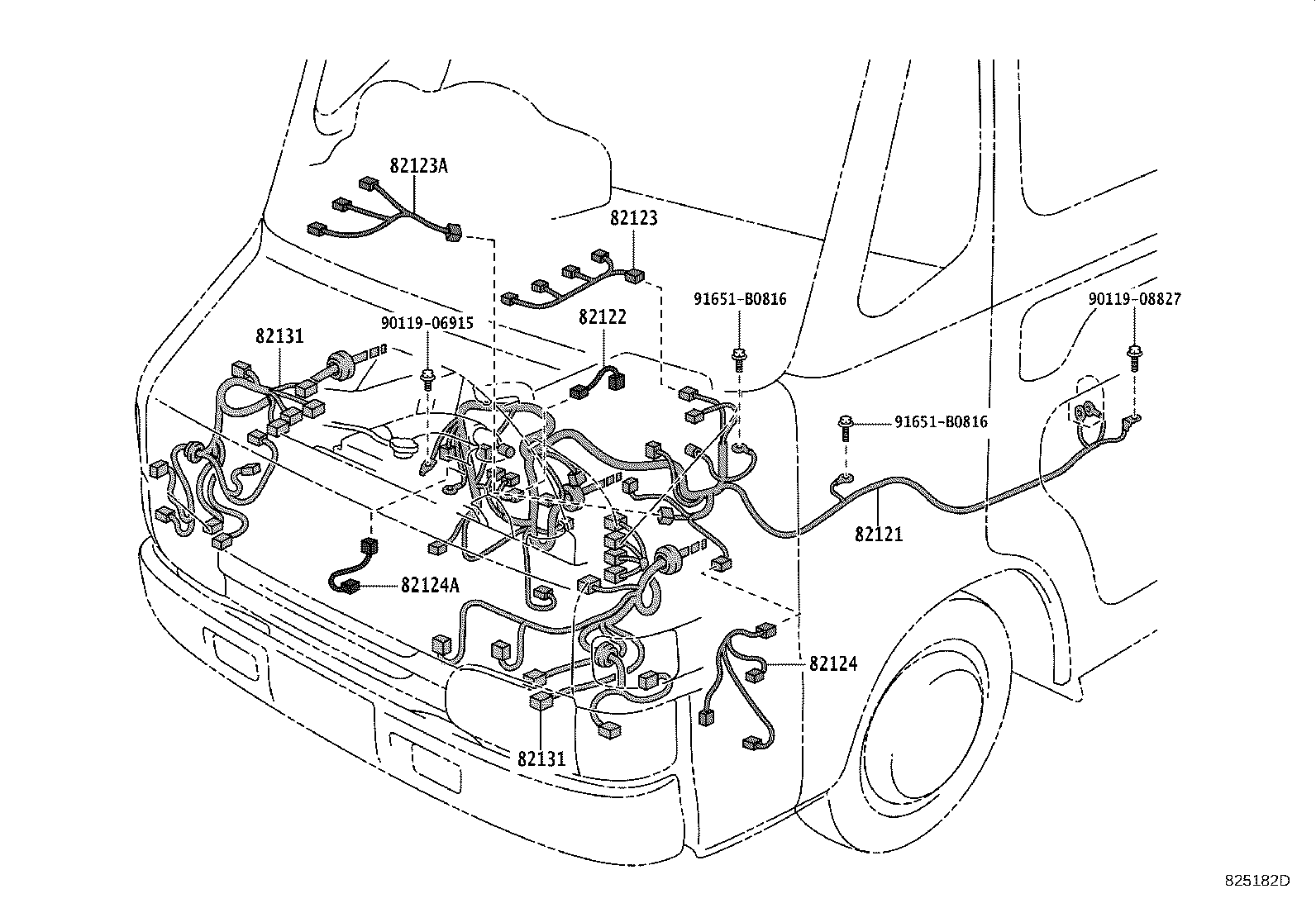

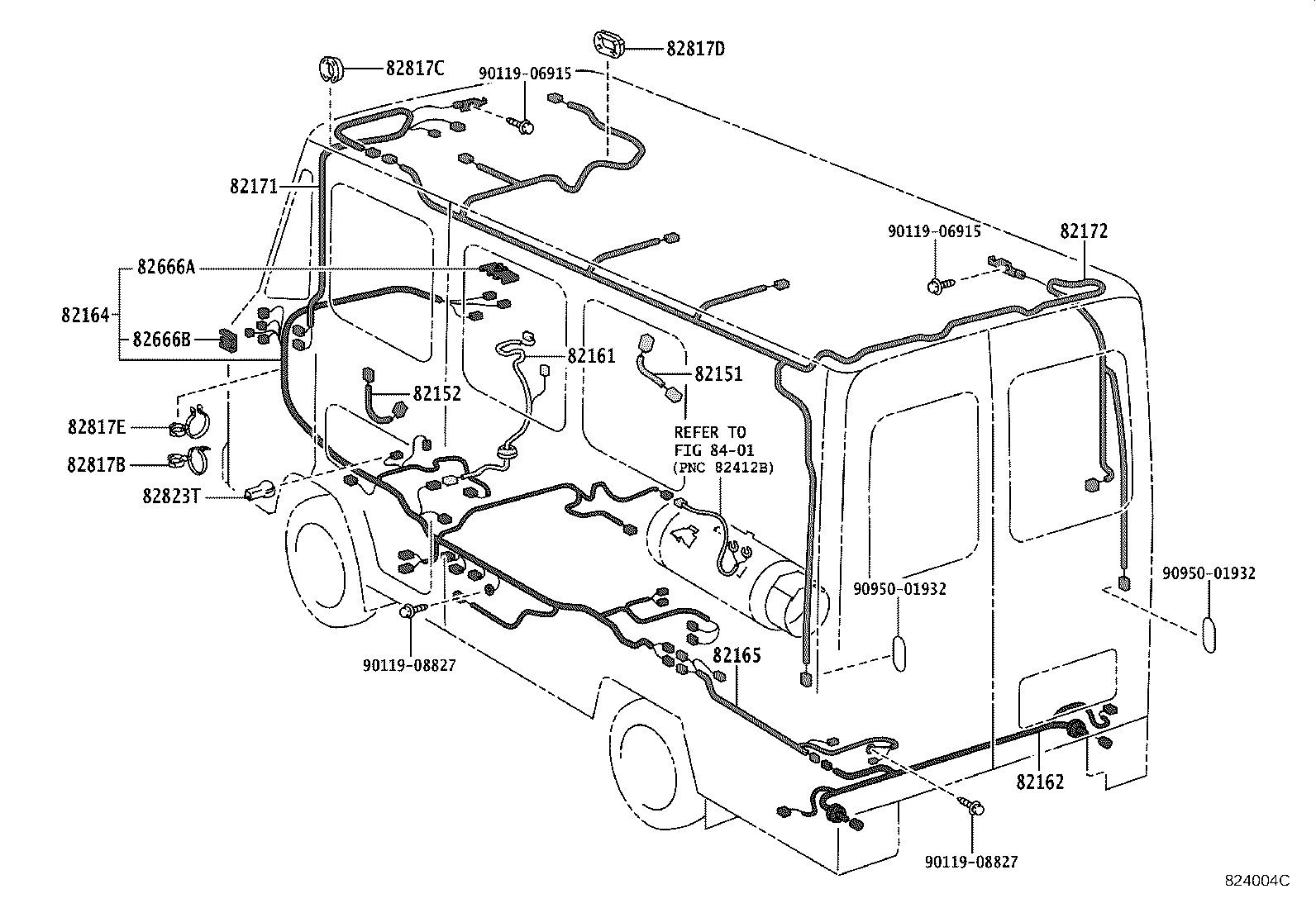

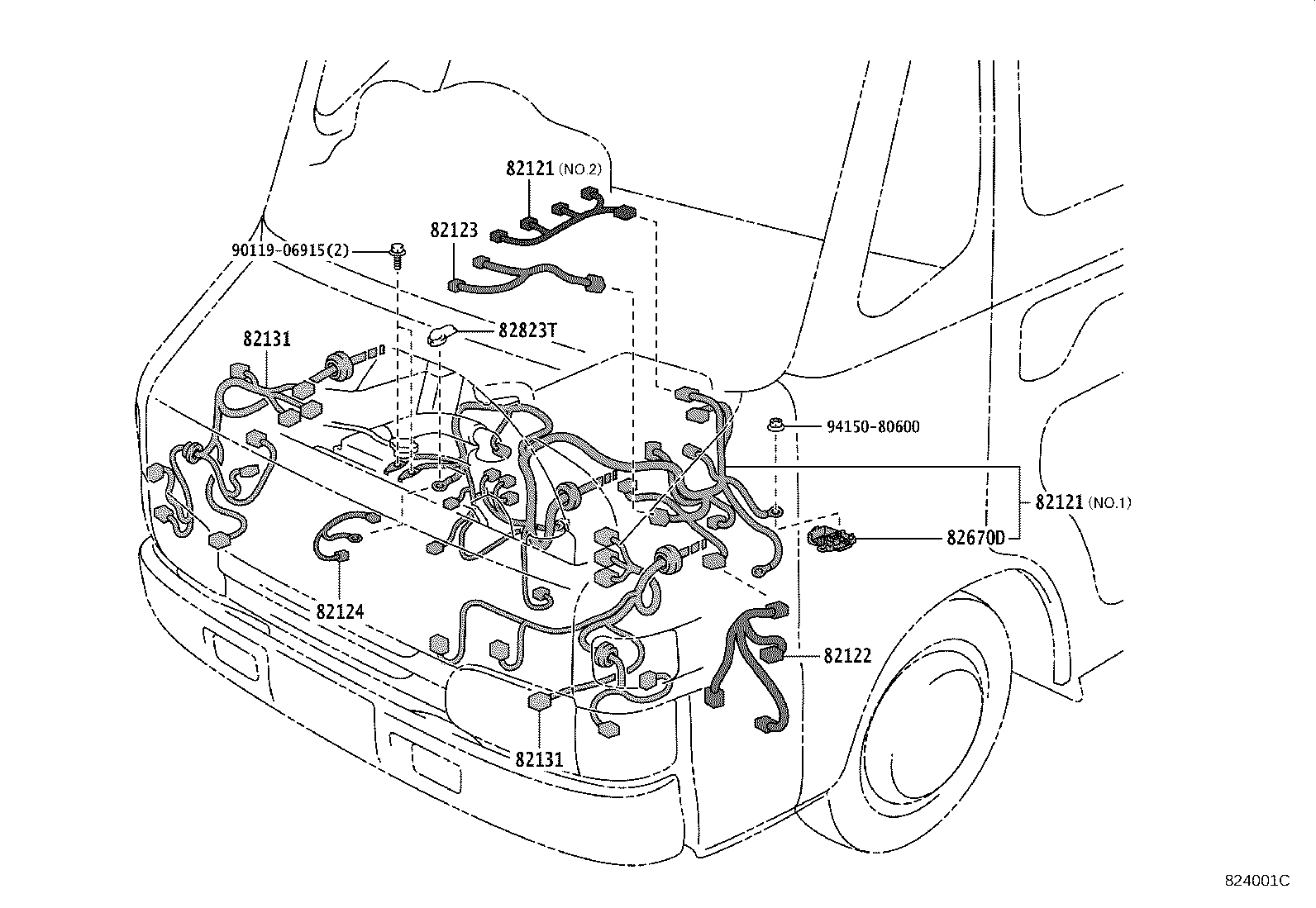

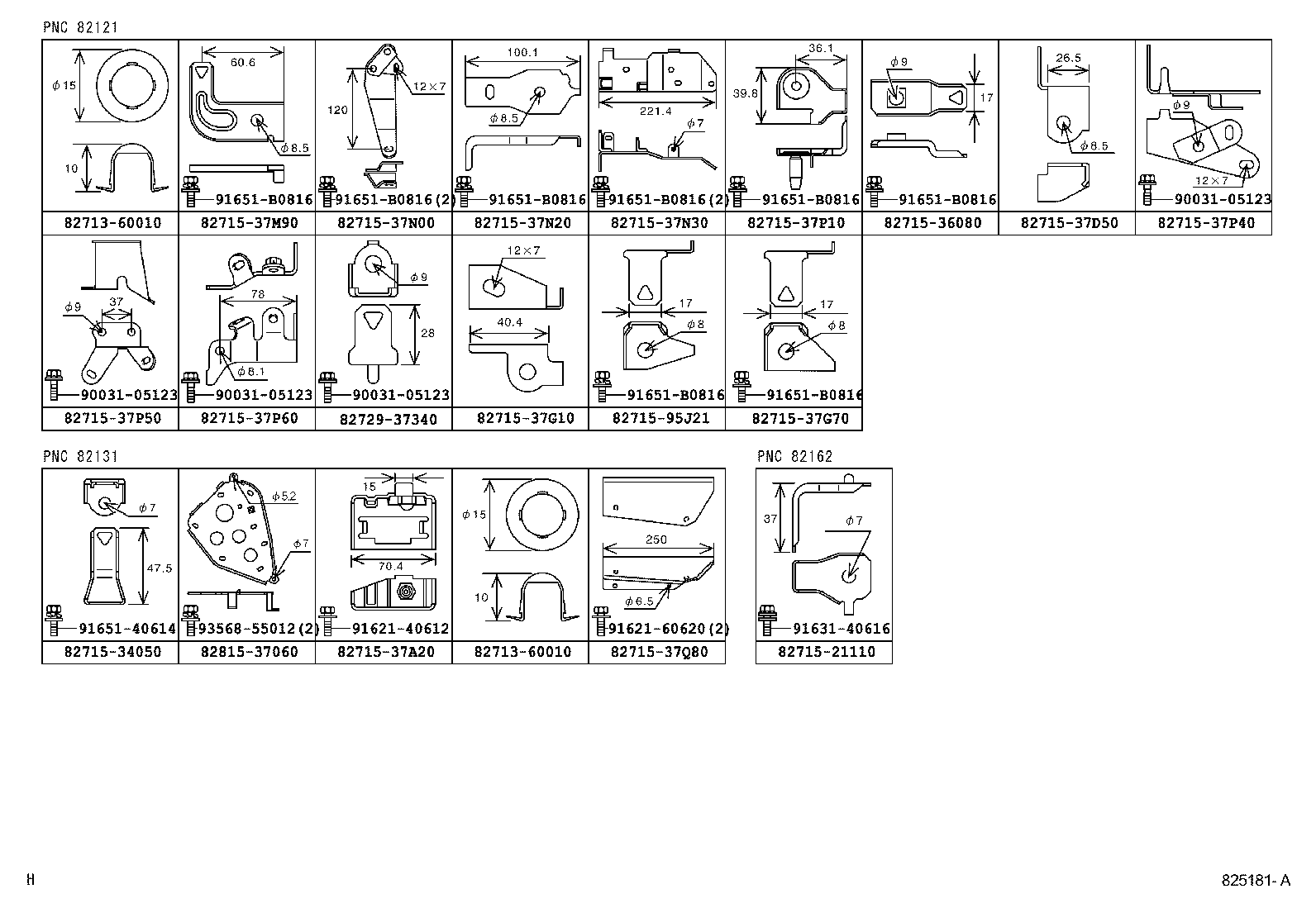

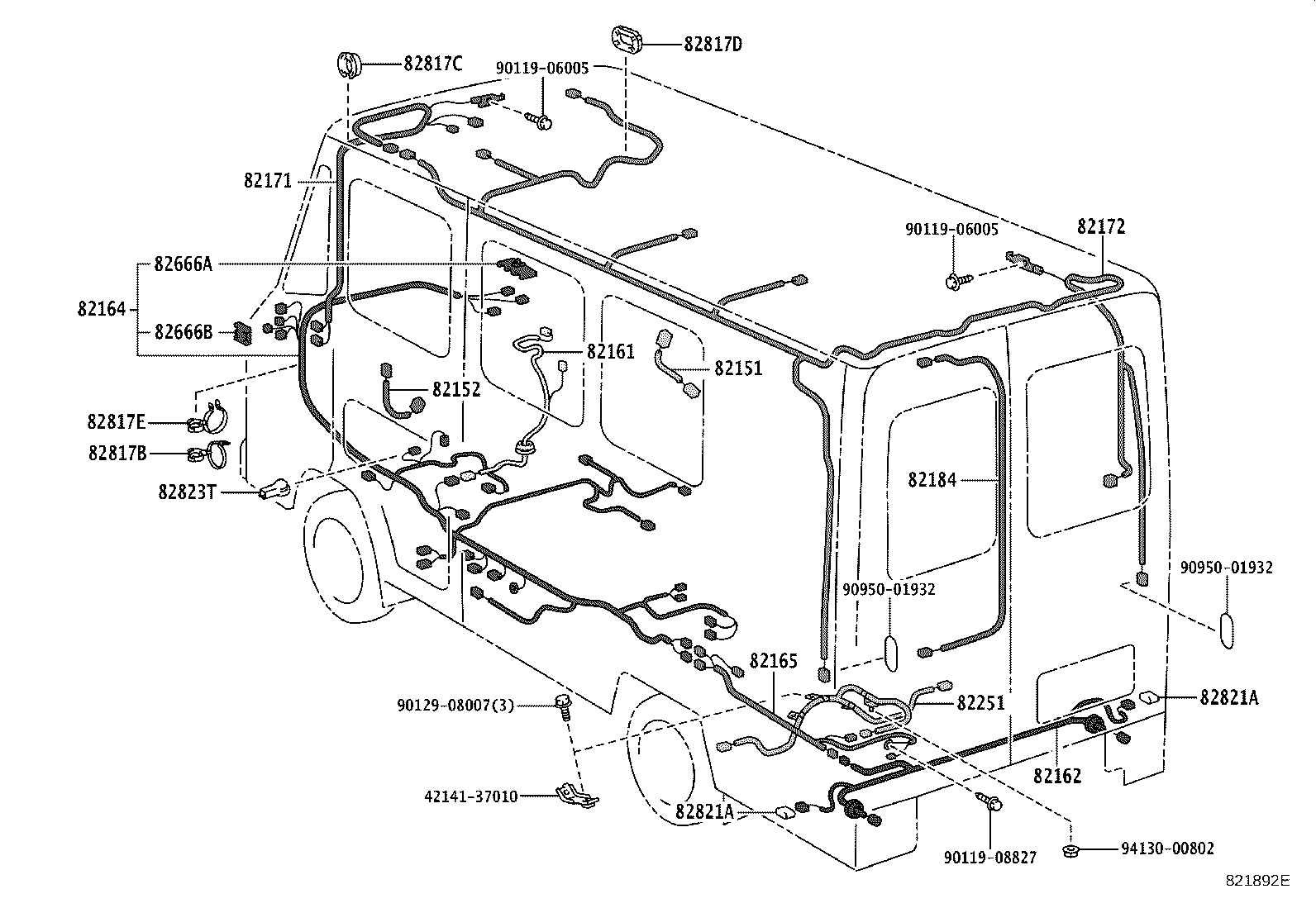

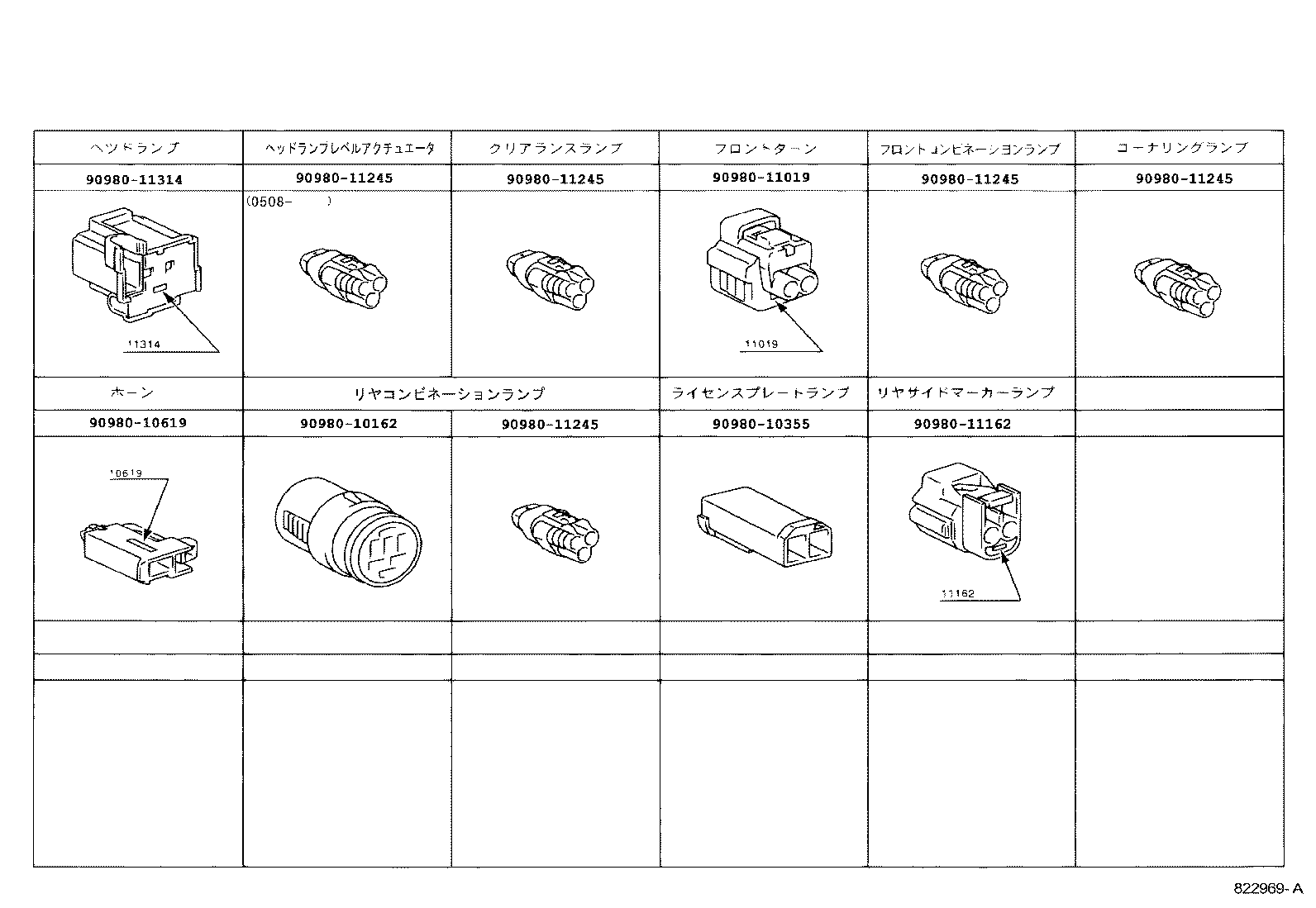

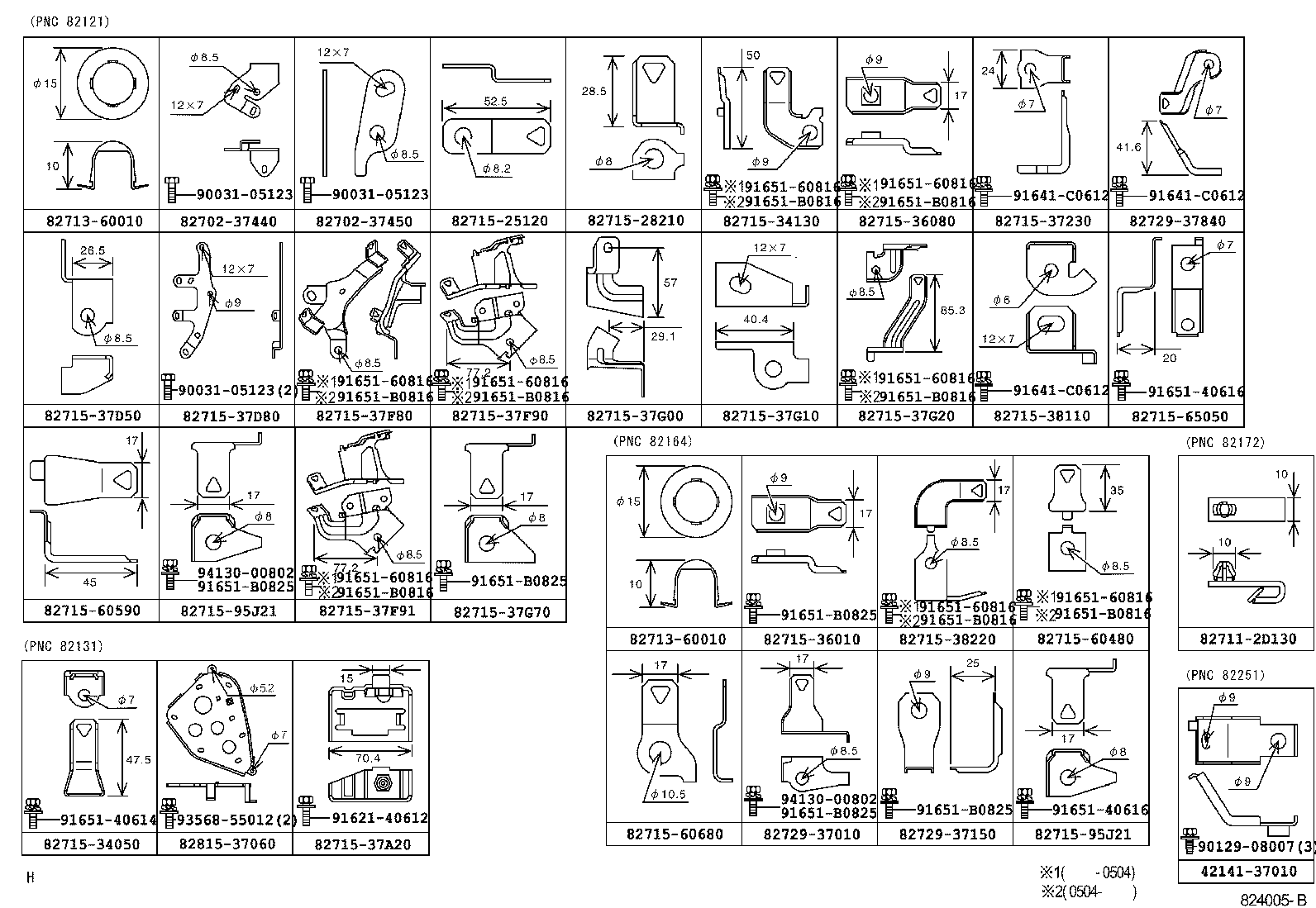

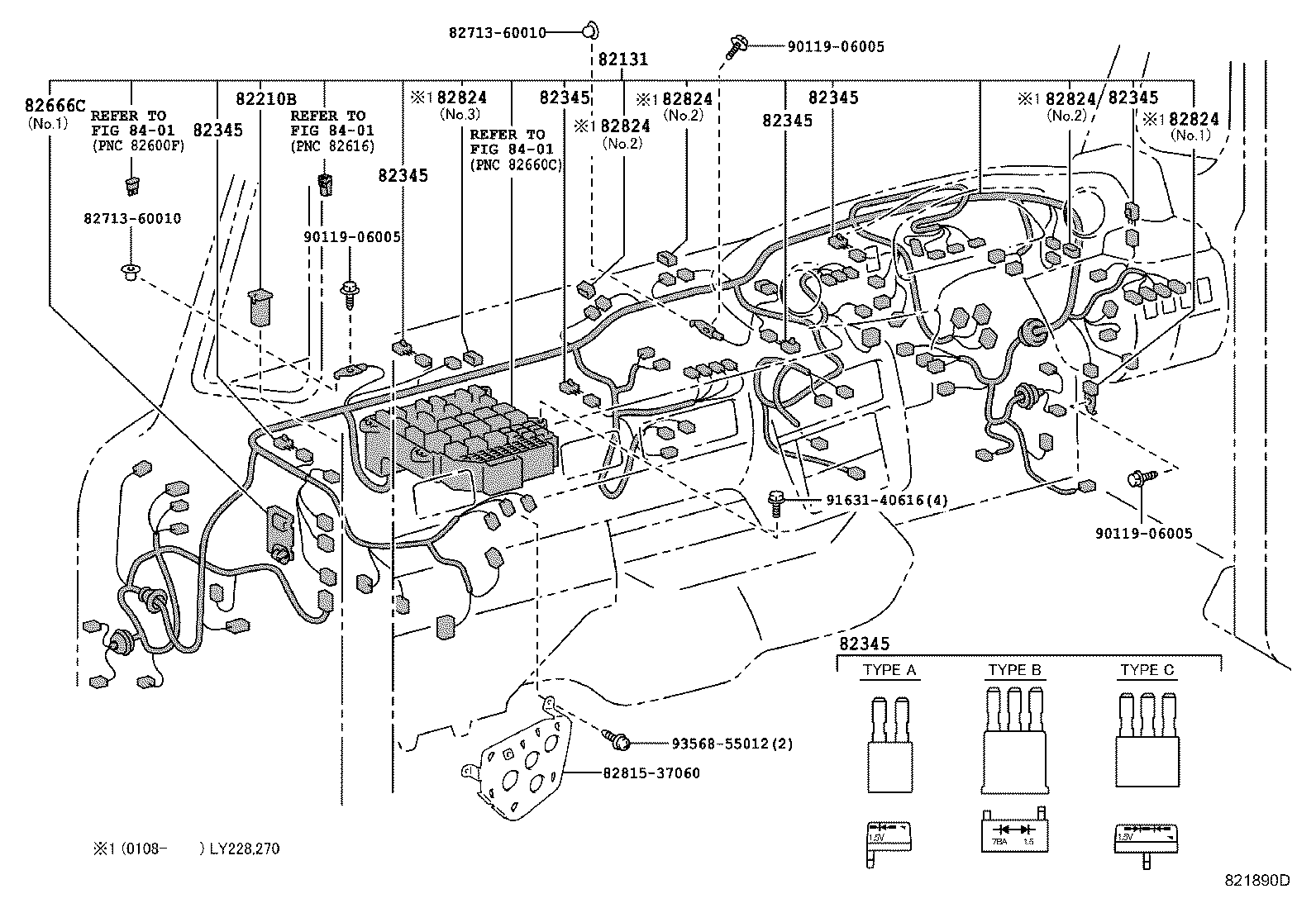

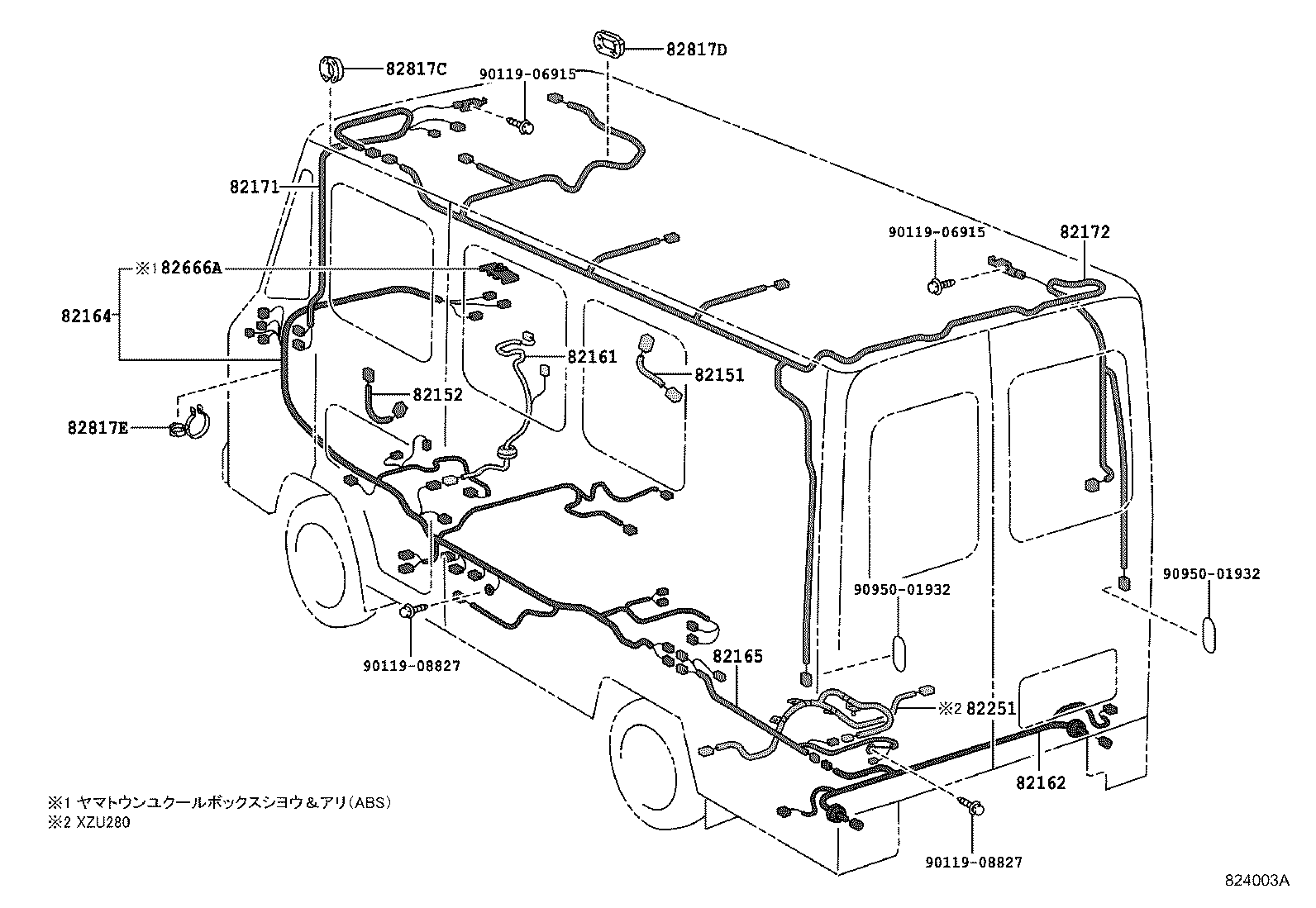

Figure 821891C 821891C 1999-08 → 2004-06 Figure 822153B 822153B 2000-01 → 2006-10 Figure 822764H 822764H 2001-08 → 2004-07 Figure 824001C 824001C 2004-06 → 2006-10 Figure 825182D 825182D 2006-10 → — Figure 821890D 821890D 1999-08 → 2006-10 Figure 824002B 824002B 2004-06 → 2006-10 Figure 825178E 825178E 2006-10 → — Figure 821892F 821892F 1999-08 → 2006-10 Figure 822765B 822765B 2001-04 → 2004-07 Figure 824003A 824003A 2004-06 → 2006-10 Figure 824004C 824004C 2004-06 → 2006-10 Figure 825180C 825180C 2006-10 → — Figure 821893N 821893N 1999-08 → 2006-10 Figure 824005B 824005B 2004-06 → 2006-10 Figure 822763E 822763E 2001-08 → 2004-07 Figure 825181A 825181A 2006-10 → — Figure 825195 825195 2006-10 → — Figure 822969A 822969A 1999-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82210B Fusible Link
82251 Wire, Speed Sensor
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82671 Block, Junction
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
