Toyota Quick Deli/Urban Sup

1999-08 → 2011-09 · chassis BU28#,LY228,270,RZU280,XZU28#,XKU280 · catalogue 721140 · Japan

Discontinued model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

116 part groups · 17 illustrations

Illustrations

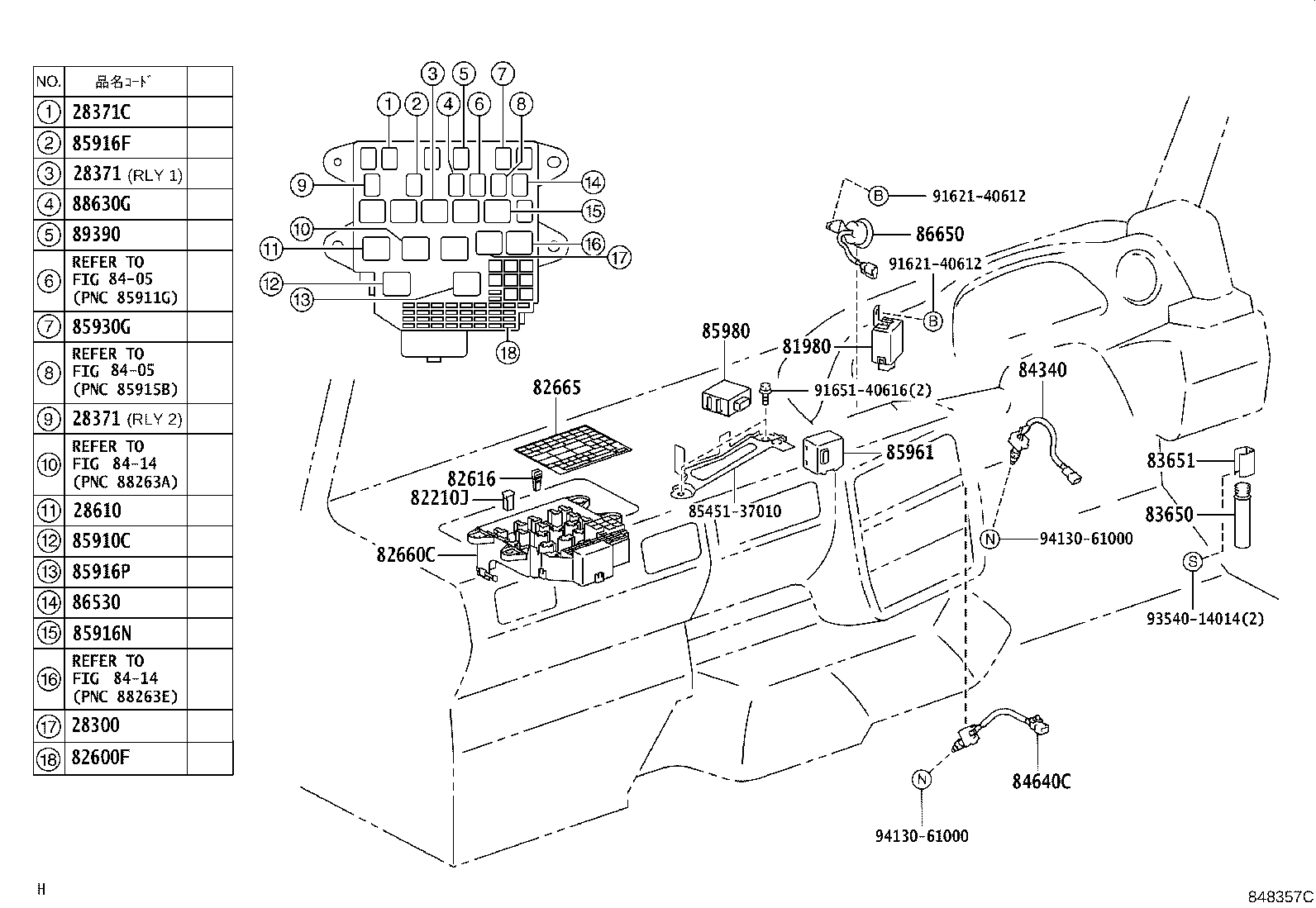

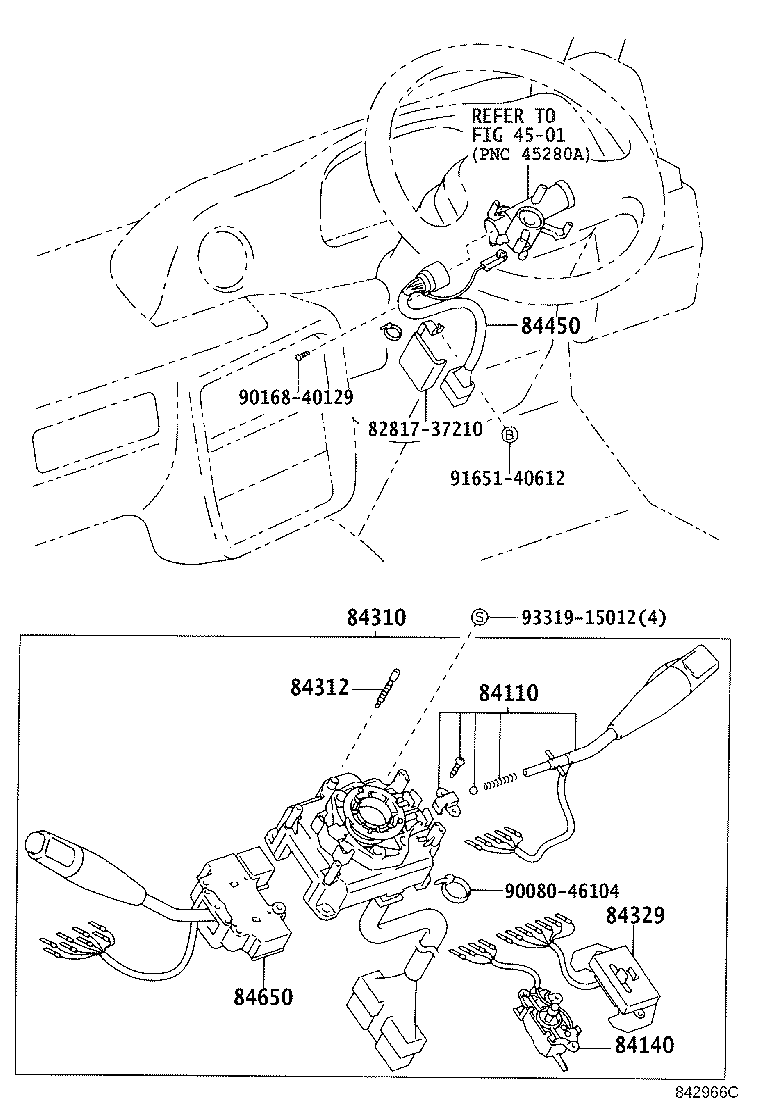

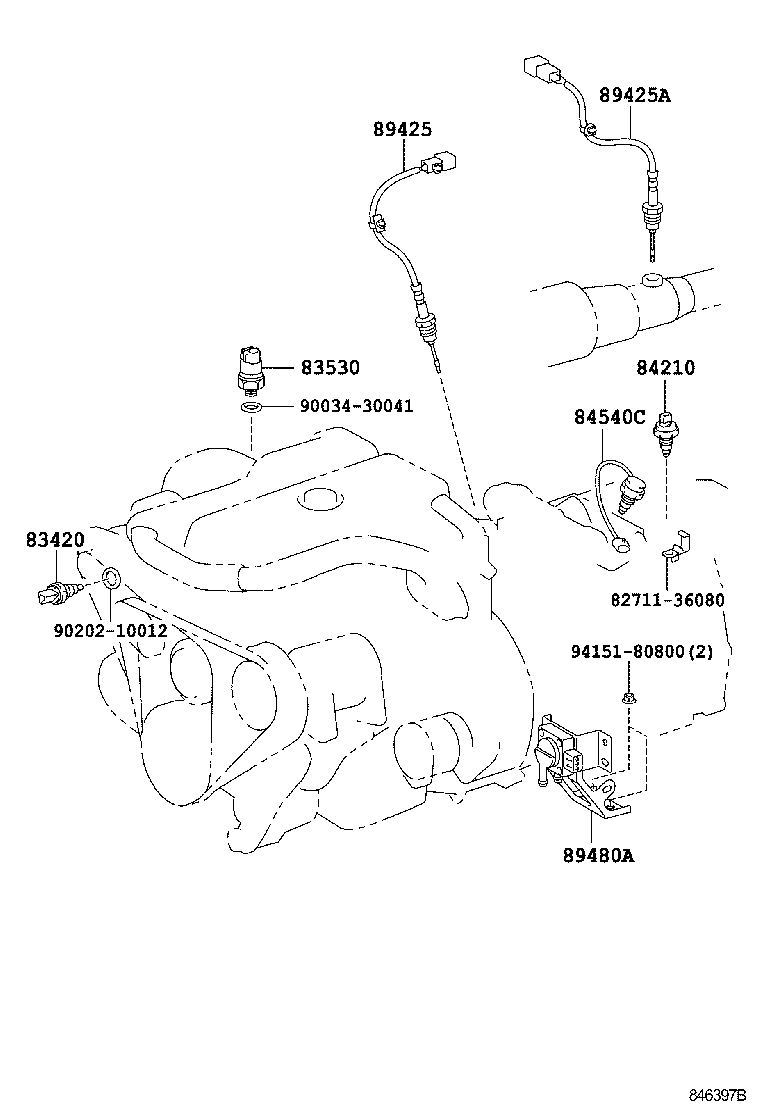

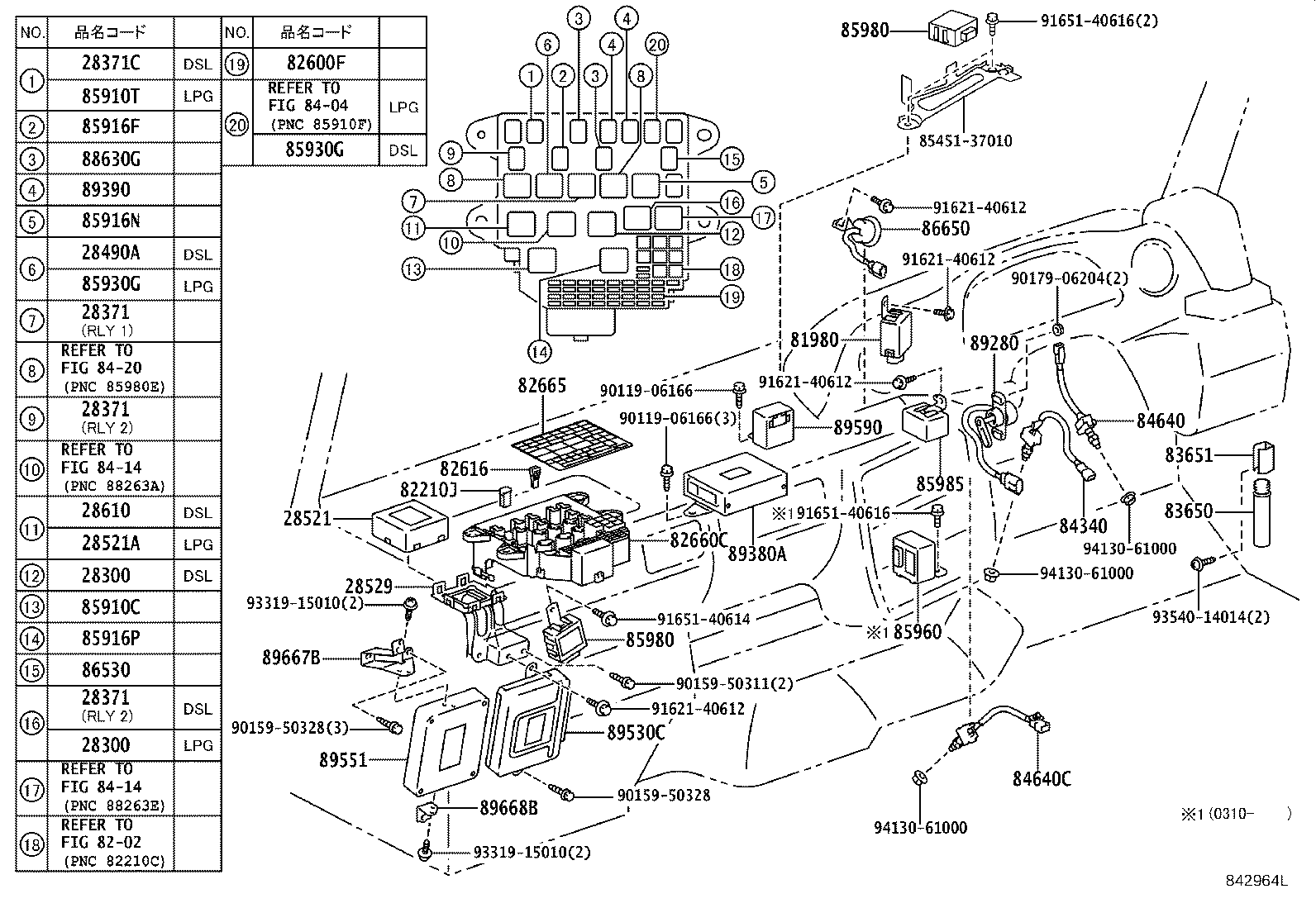

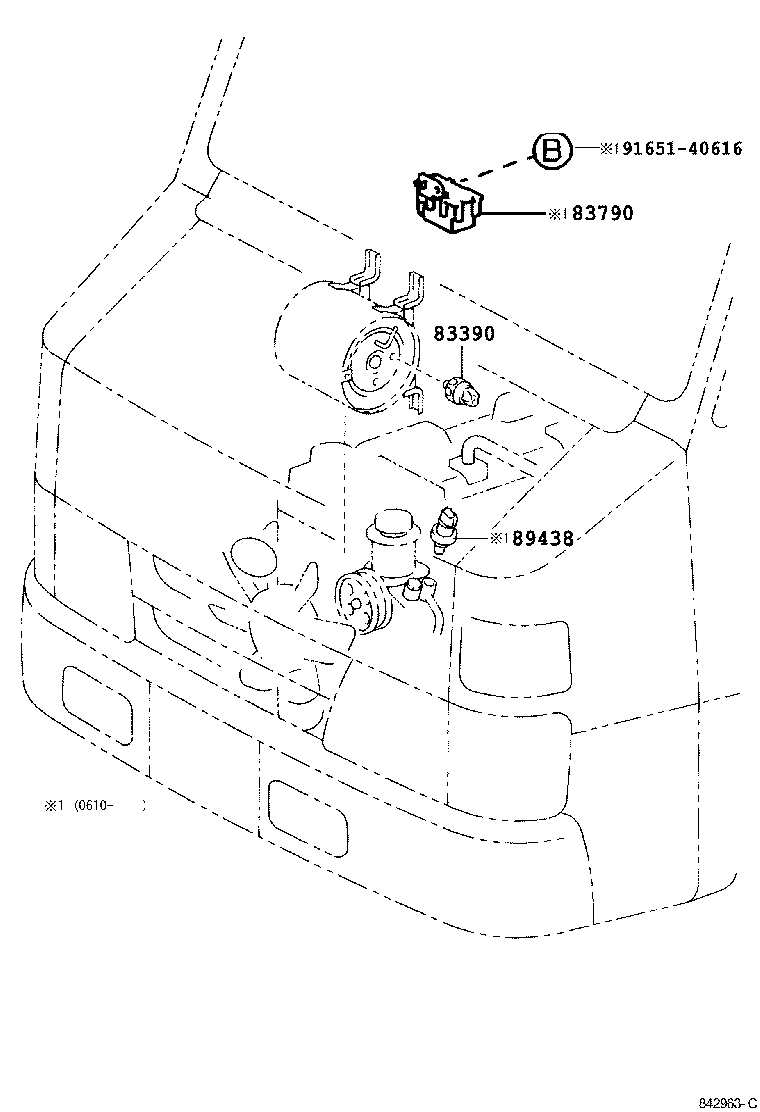

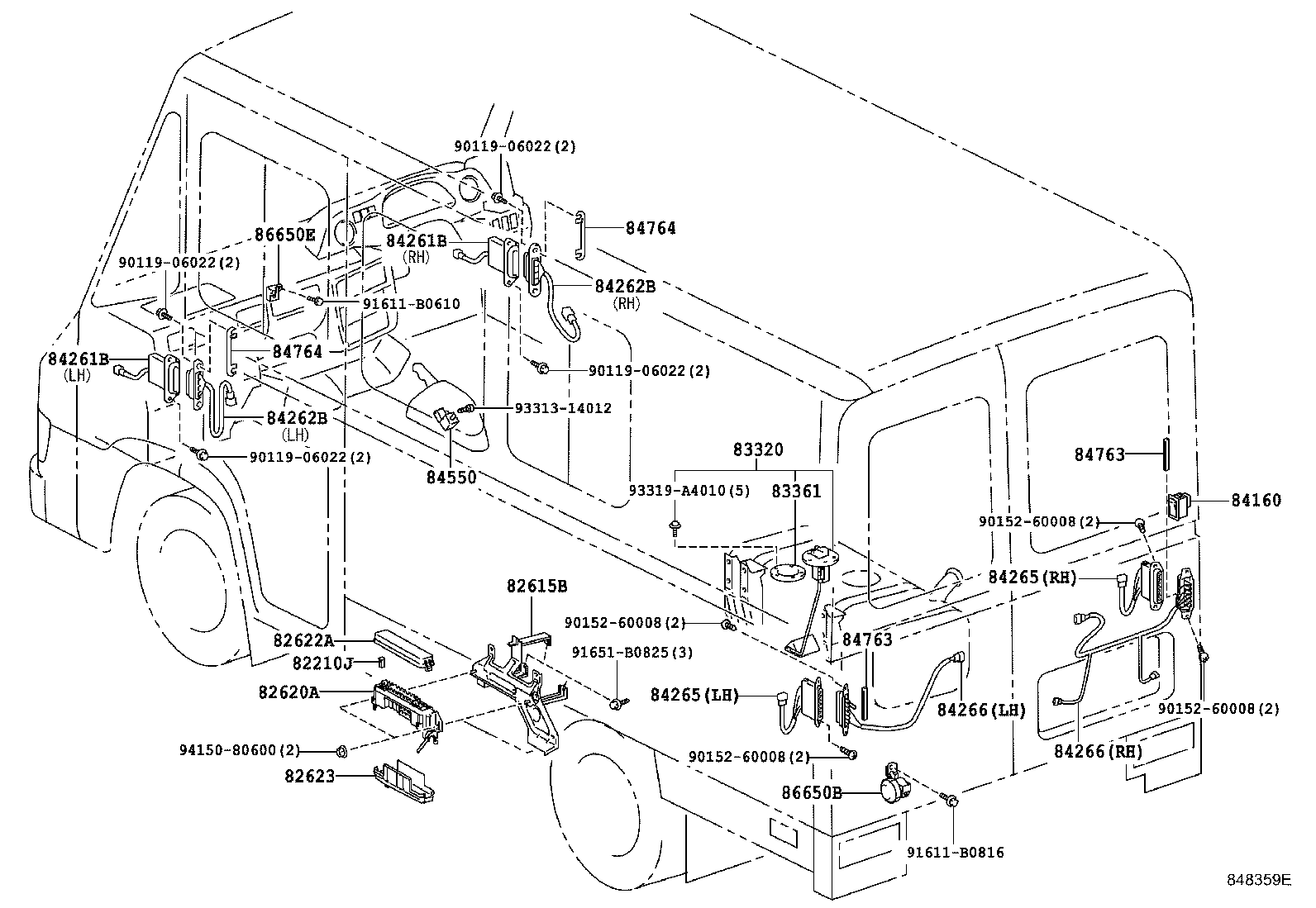

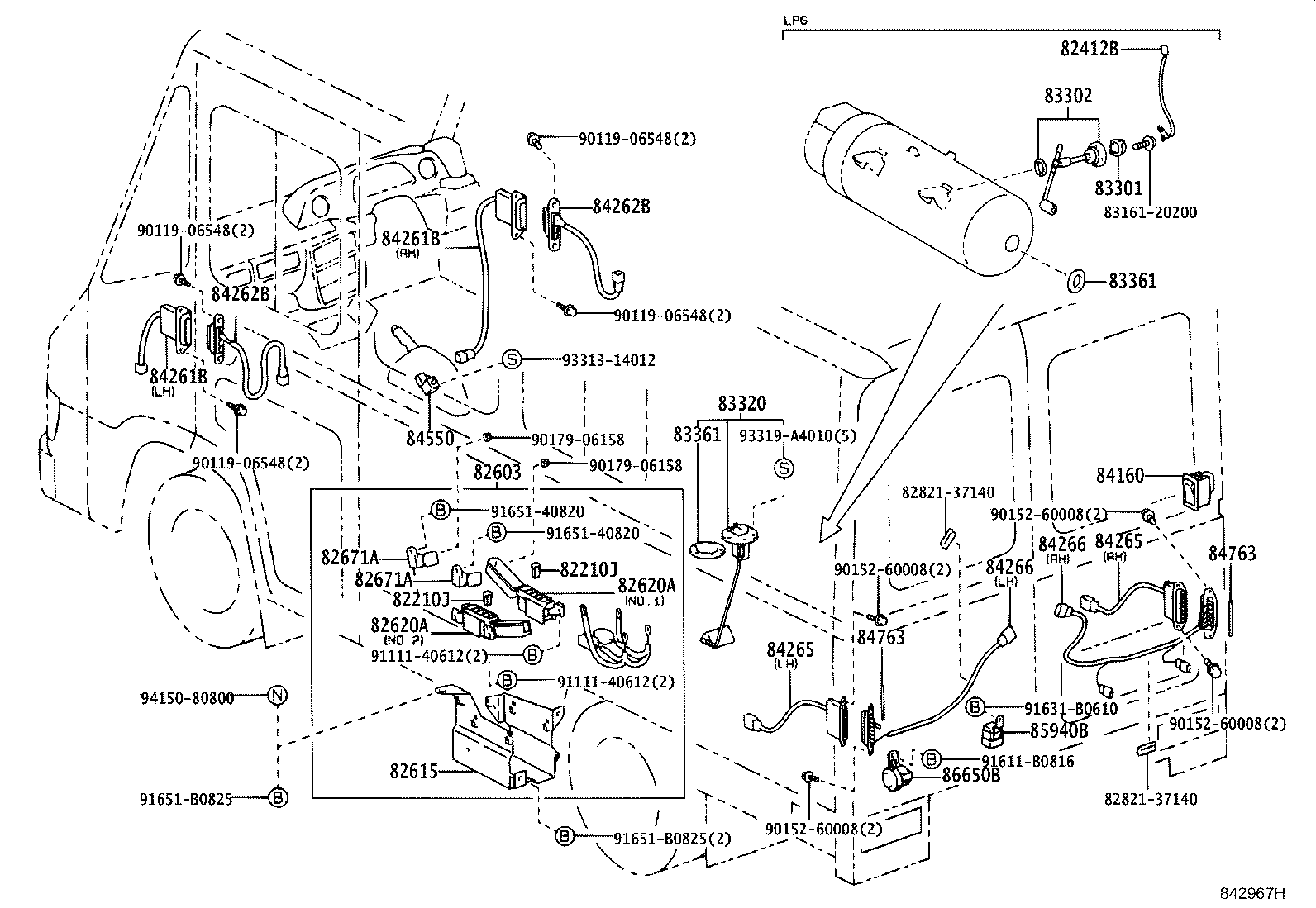

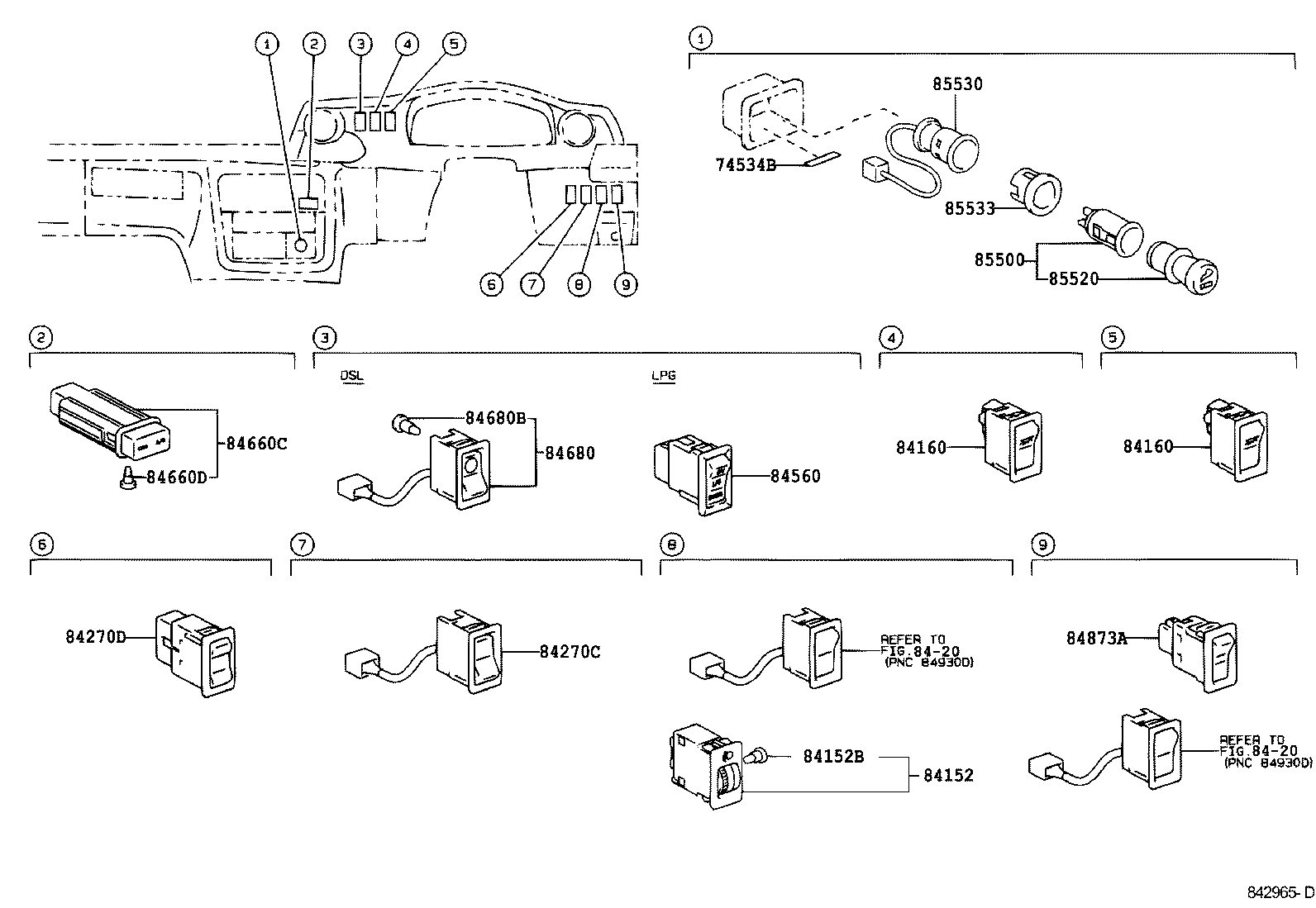

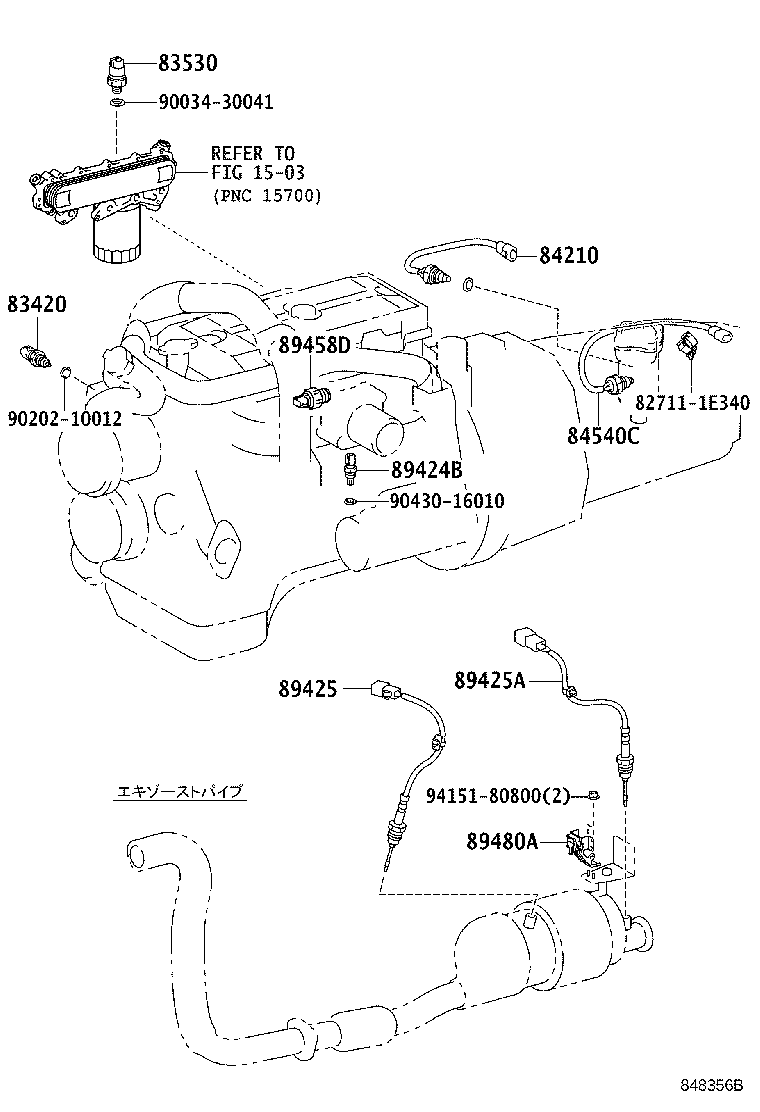

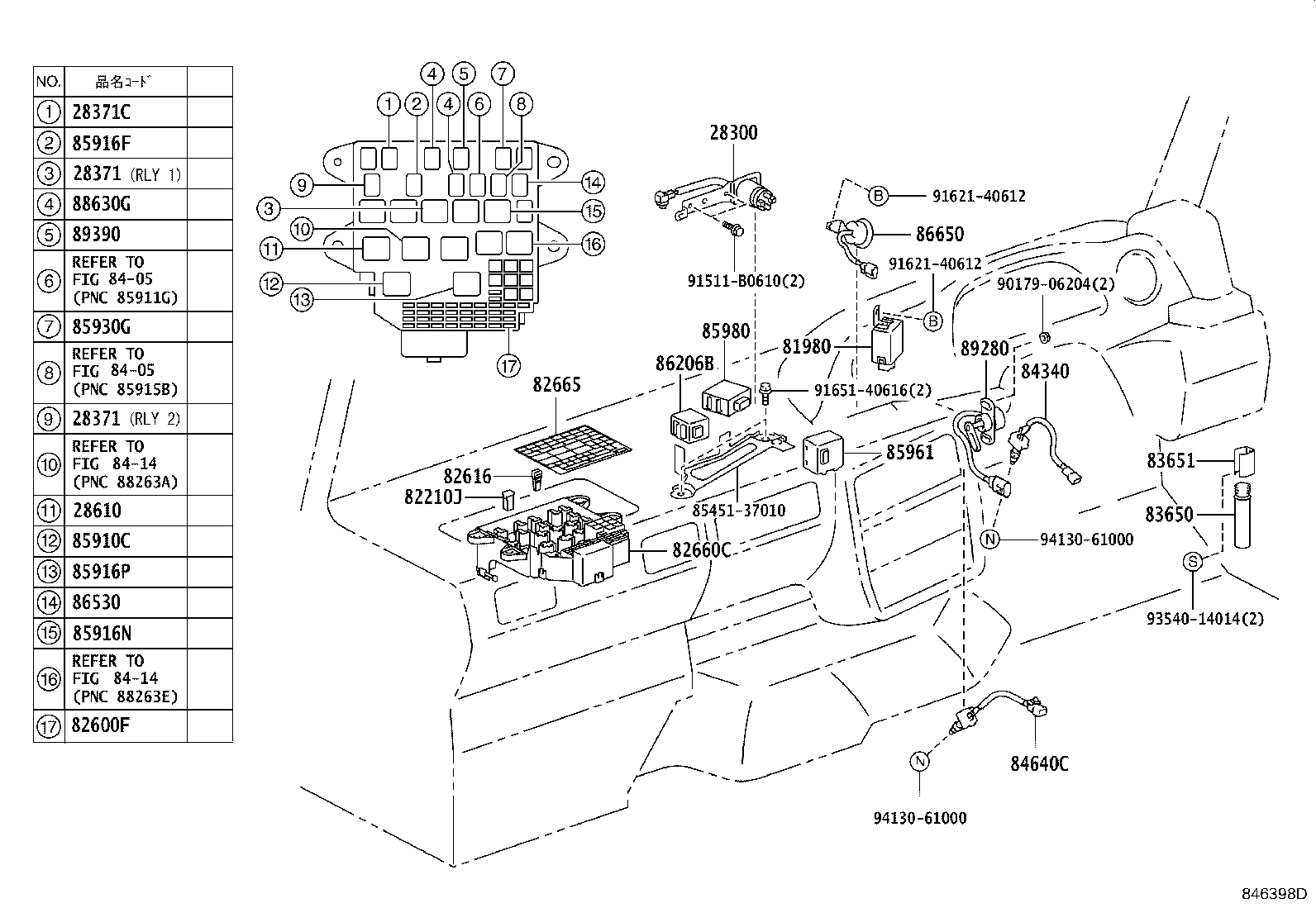

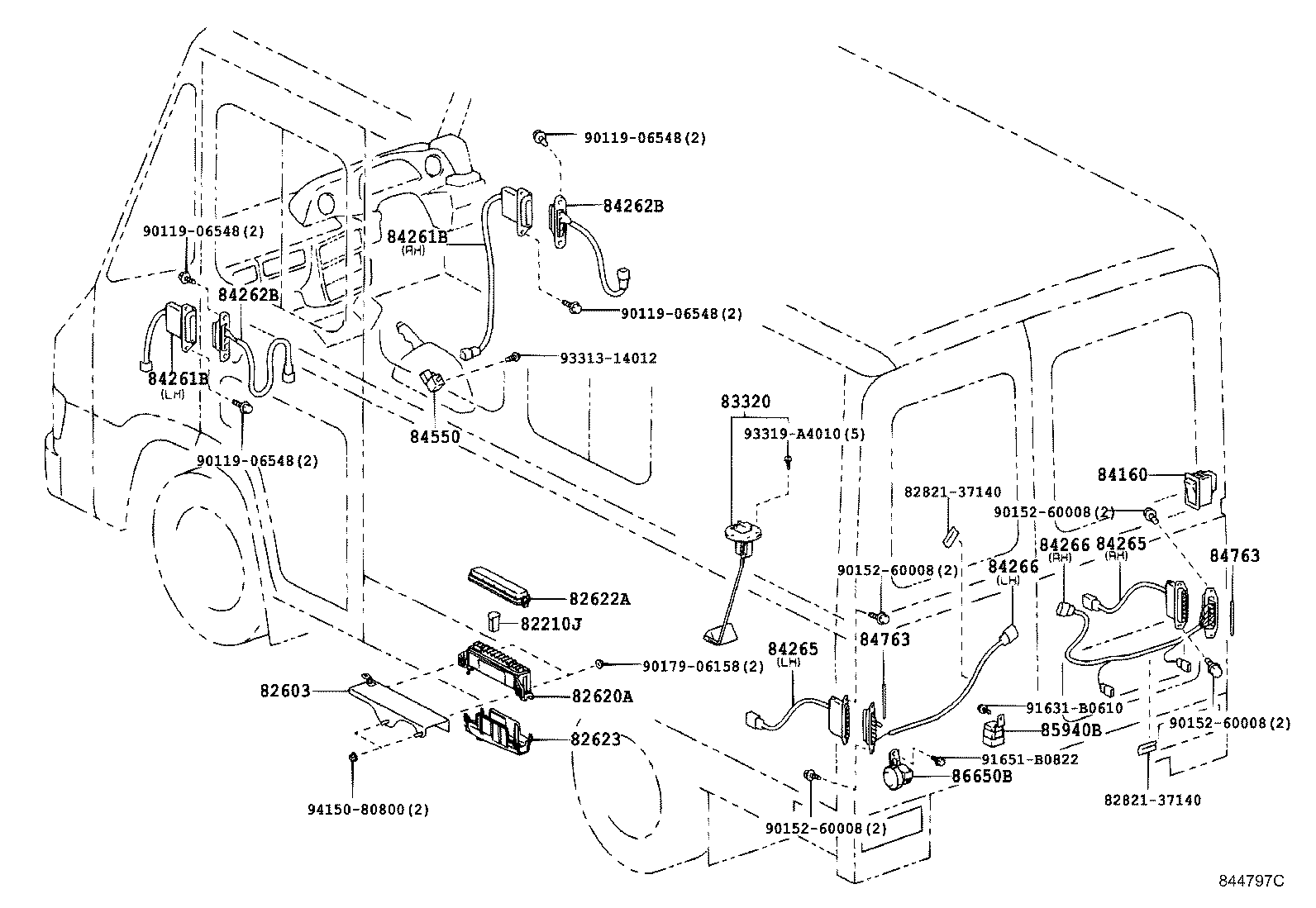

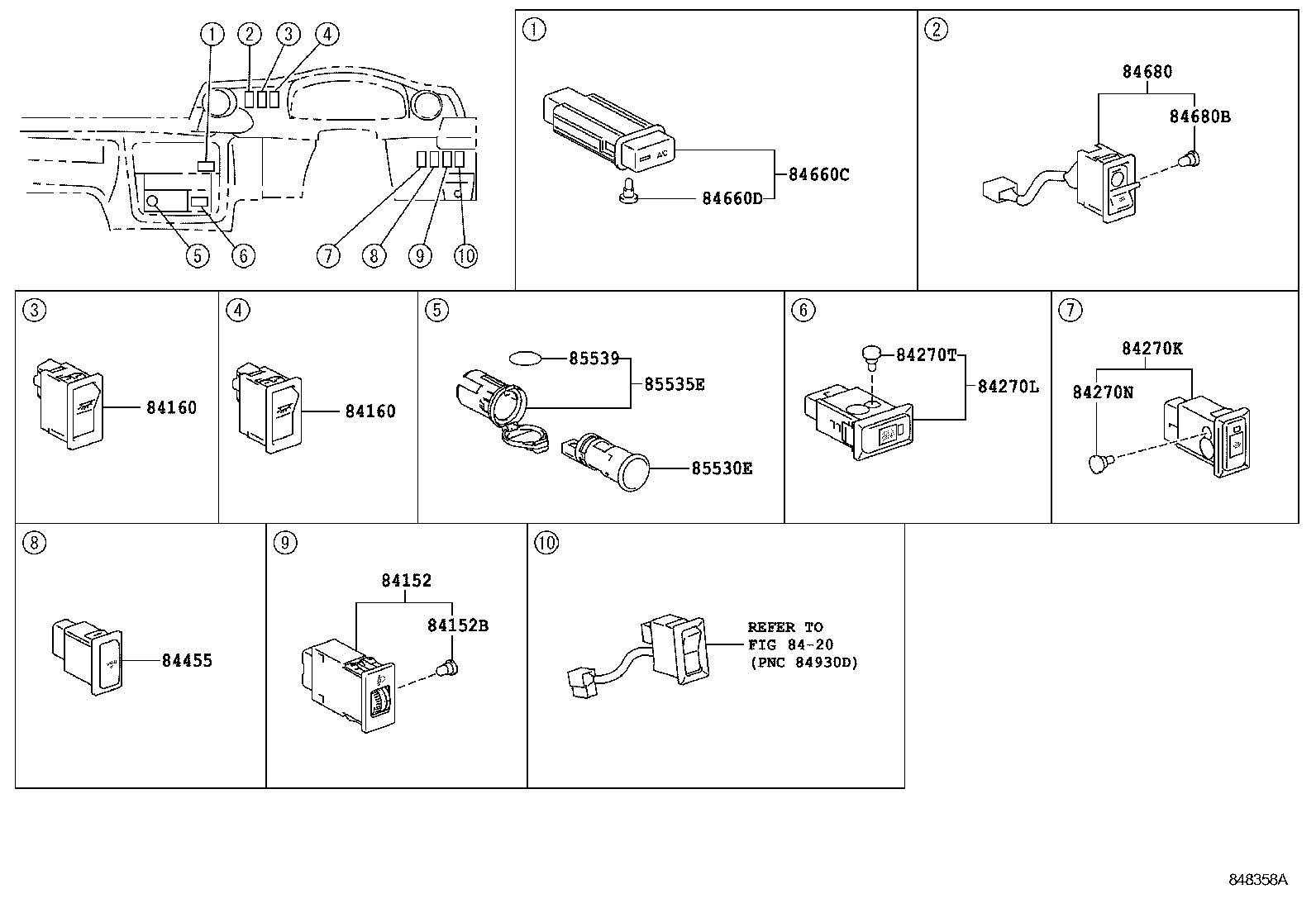

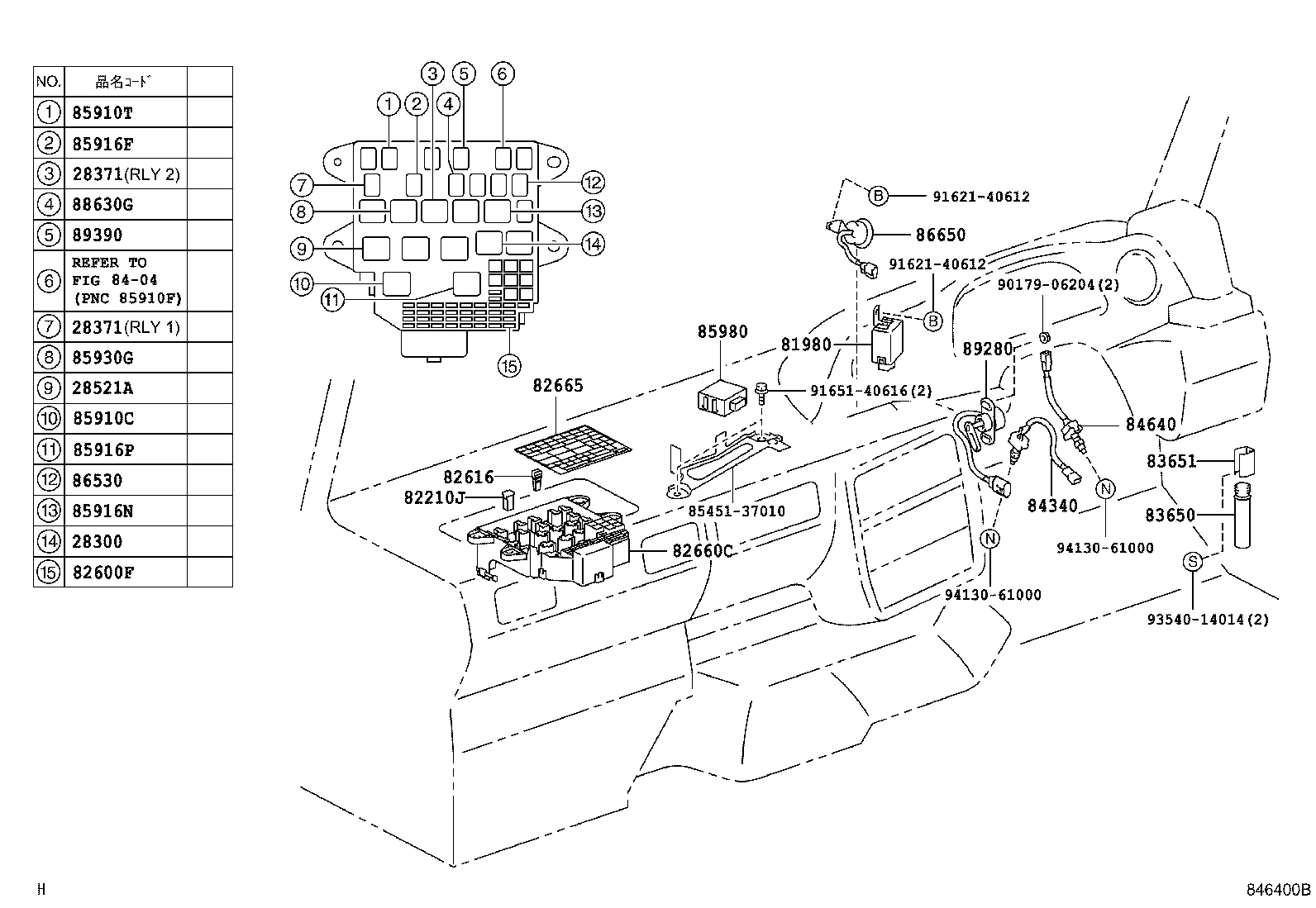

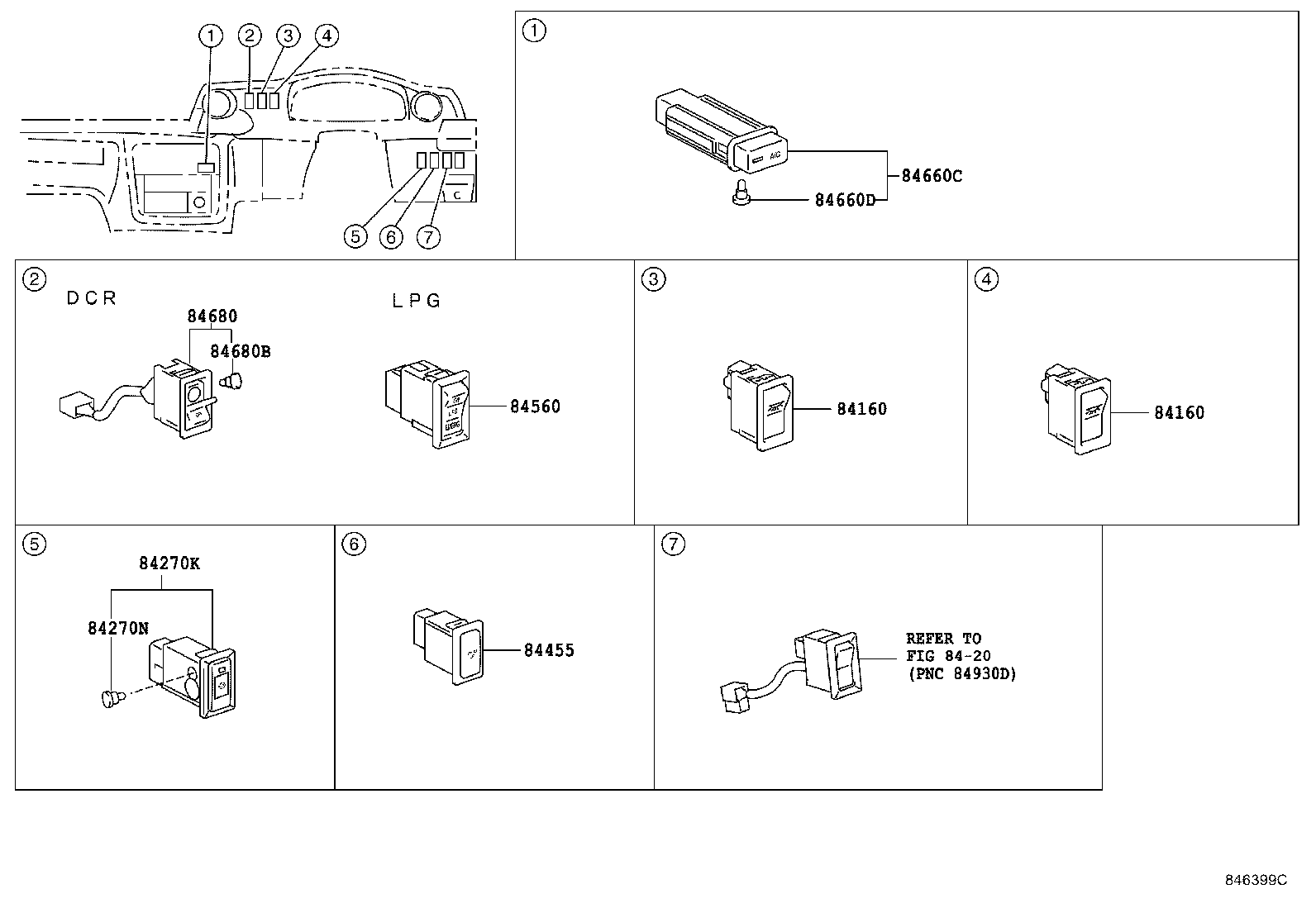

Figure 842962C 842962C 1999-08 → 2004-07 Figure 843293C 843293C 2000-01 → 2006-10 Figure 844796A 844796A 2001-08 → 2004-07 Figure 846397B 846397B 2004-06 → 2006-10 Figure 848356B 848356B 2006-10 → — Figure 842963C 842963C 1999-08 → — Figure 842964L 842964L 1999-08 → 2006-10 Figure 846398D 846398D 2004-06 → 2006-10 Figure 846400B 846400B 2004-06 → 2006-10 Figure 848357C 848357C 2006-10 → — Figure 842965D 842965D 1999-08 → 2006-10 Figure 846399C 846399C 2004-06 → 2006-10 Figure 848358A 848358A 2006-10 → — Figure 842966C 842966C 1999-08 → — Figure 842967H 842967H 1999-08 → 2006-10 Figure 844797C 844797C 2001-08 → 2004-07 Figure 848359E 848359E 2006-10 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28490A Relay Assy, Exhaust Retarder
28521 Timer, Preheating
28521A Relay, Lpg Preheater Cut
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
74534B Plate, Voltage Caution
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82412B Wire, Fuel Gage
82600F Fuse, Fuse Block
82603 Bracket Sub-assy, Fusible Link Block
82615 Bracket, Fuse
82615B Bracket, Fuse NO.2
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82622A Cover, Fusible Link, Upper, NO.2
82623 Cover, Fusible Link, Lower
82660C Block Assy, Relay
82665 Label, Relay Block
82671A Block, Junction
83301 Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302 Body Sub-assy, Fuel Sender Gage
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83651 Clamp, Fusee
83790 Buzzer Assy, Reverse Warning
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84160 Switch Assy, Room Lamp
84210 Switch Assy, Back-up Lamp
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84265 Junction, Back Door Male
84266 Junction, Back Door Female
84270C Switch Assy, ES Start Main
84270D Switch Assy, ES Start Timing
84270K Switch Assy, Dpr
84270L Switch Assy, Idle Stop
84270N Bulb, Dpr Swich Assy
84270T Bulb, Idle Stop Switch Assy
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84329 Switch, Turn Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84540D Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84560 Switch Assy, Fuel Valve Control
84640 Switch Assy, Exhaust Brake
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84680 Switch Assy, Exhaust Brake Main
84680B Bulb
84763 Plate, Switch
84764 Plate, Switch, NO.2
84873A Switch, Retractable Outer Mirror
85500 Lighter Assy, Cigarette
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530E Socket Assy, Power Outlet, NO.3
85533 Lens, Cigarette Lighter Indicator
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910T Relay, Lpg
85916F Relay, Cornering Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85930G Relay, Acc
85940B Relay Assy, Rear Wiper
85960 Relay Assy, Lamp Control
85961 Relay, Headlamp Retainer
85980 Relay Assy, Door Control
85985 Relay, Key Reminder
86206B Inverter Sub-assy, Voltage
86530 Relay Assy, Horn
86650 Buzzer Assy, Vacuum Indicator
86650B Buzzer Assy, Reverse Warning
86650E Buzzer Assy
88630G Relay Assy, Cooler
89280 Sensor Assy, Clutch Pedal Stroke
89380A Computer Assy, ES Start
89390 Relay, Brake Warning
89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89452A Sensor, Throttle Position
89458D Sensor, Fuel Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89480A Sensor Assy, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89551 Computer, Emission Control
89590 Computer Assy, Condition Indicator
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
