Heating & Air Conditioning - Compressor

25 part groups · 6 illustrations

Illustrations

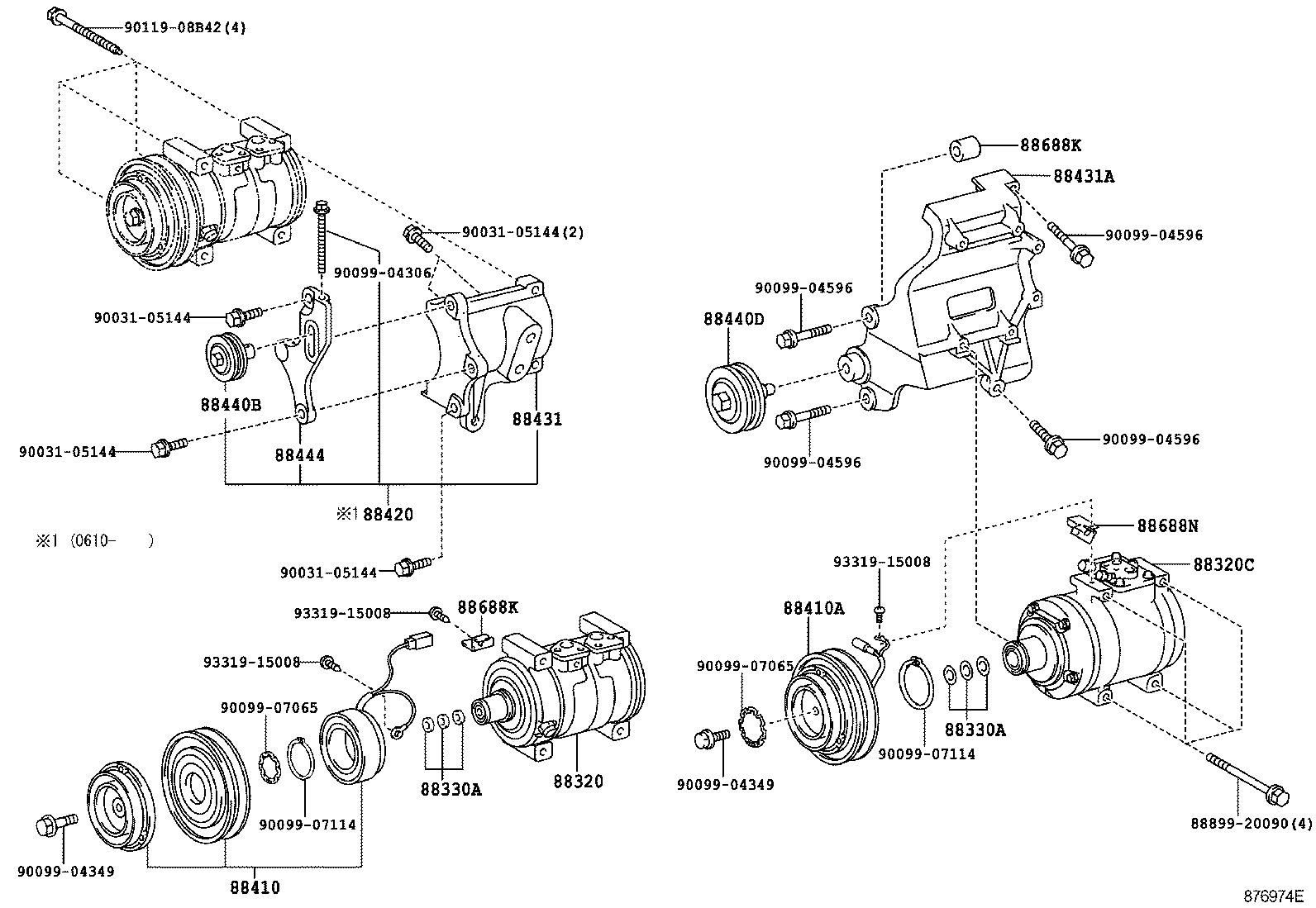

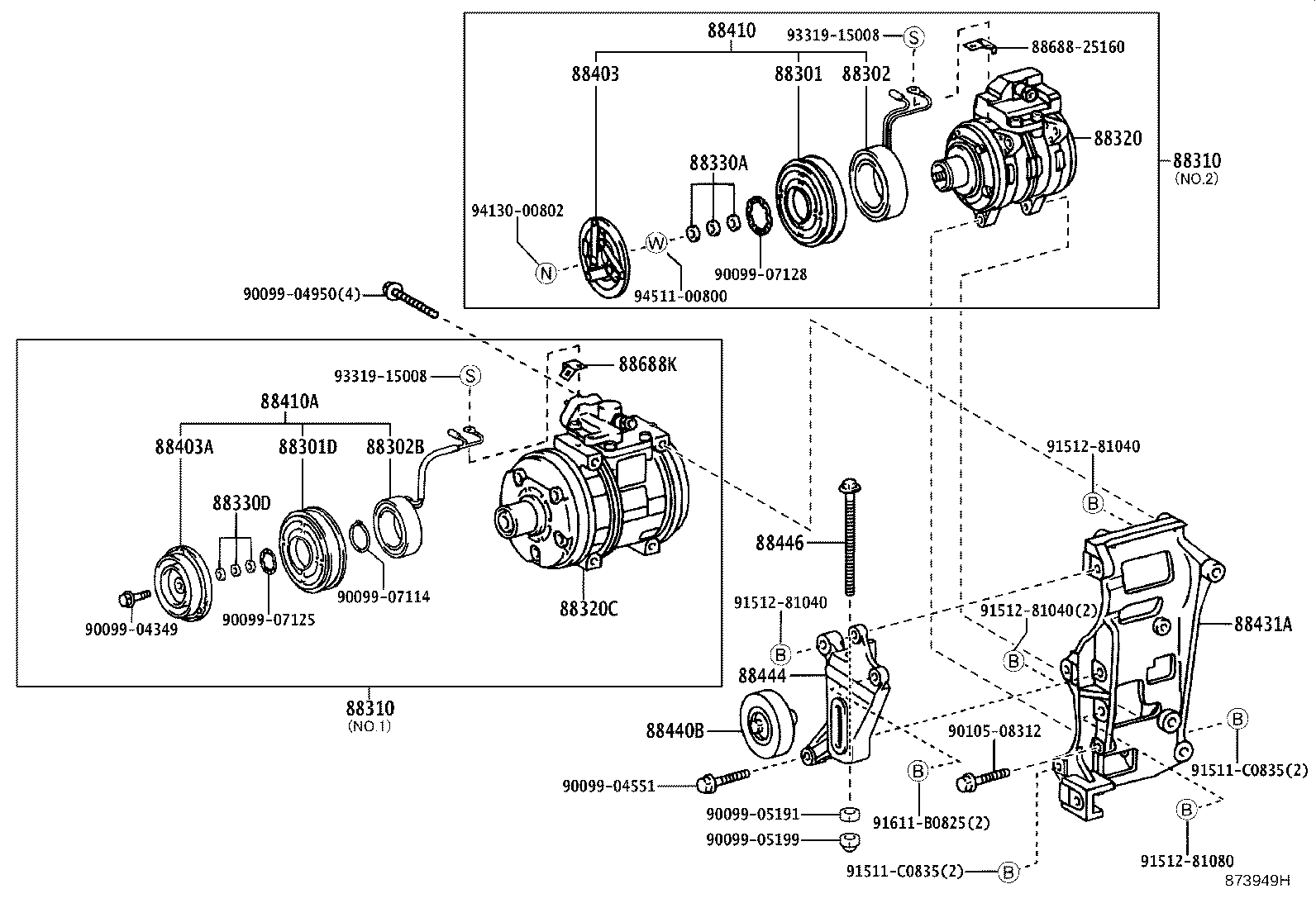

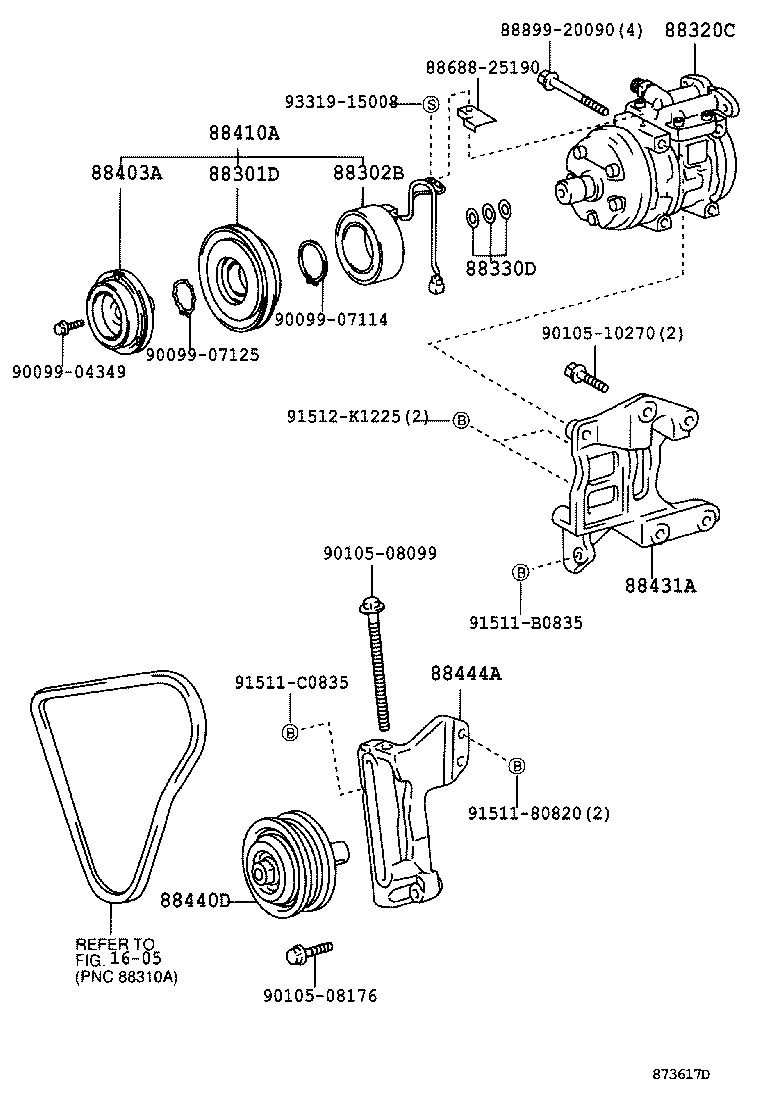

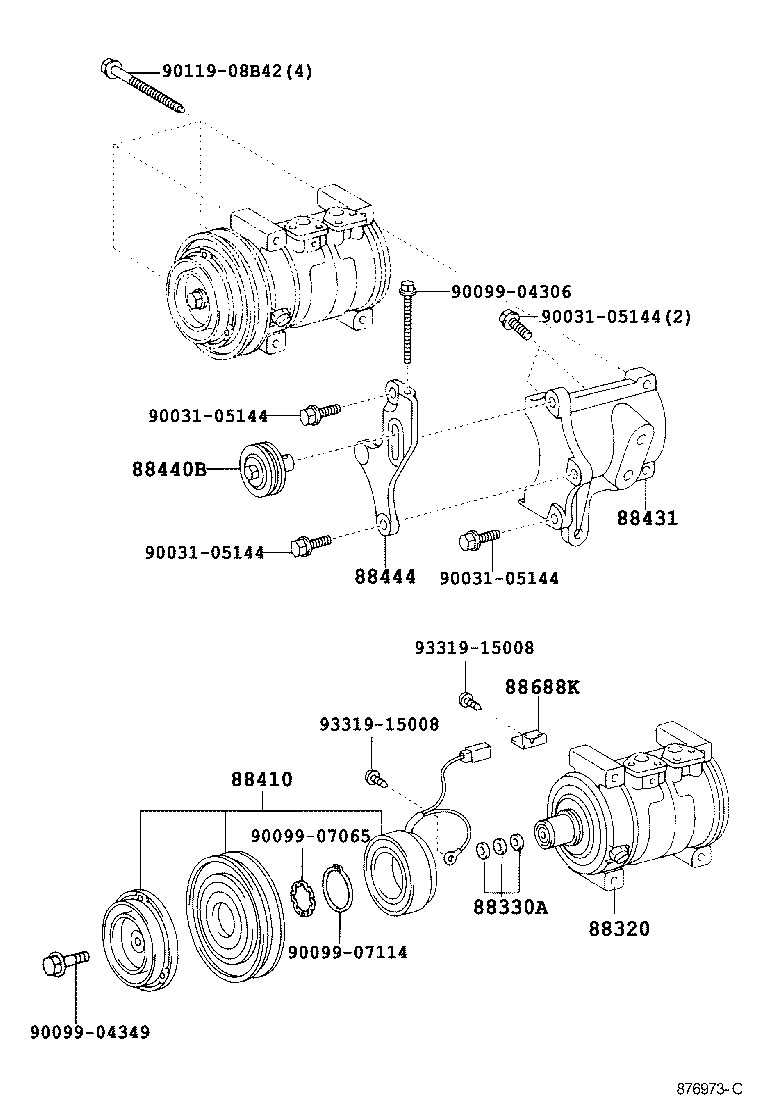

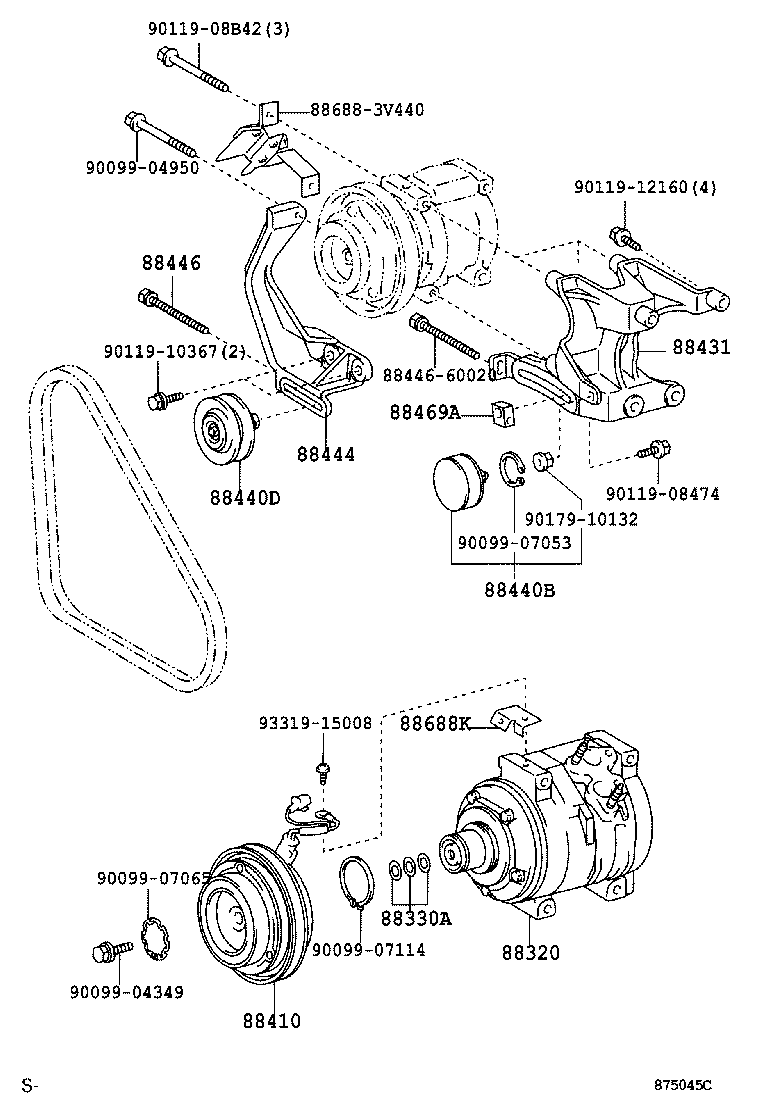

Figure 873616D 873616D 1999-08 → 2004-06 Figure 873617D 873617D 1999-08 → 2004-06 Figure 873949H 873949H 2000-01 → 2006-10 Figure 875045C 875045C 2001-08 → 2004-07 Figure 876973C 876973C 2004-06 → — Figure 876974E 876974E 2004-06 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88301D Rotor, Magnet Clutch, NO. 2
88302 Stator Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88320C Compressor Assy, NO. 2
88330A Washer (FOR MAGNET CLUTCH)
88330D Washer(FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88403A Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88410A Clutch Assy, Magnet, NO. 2
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88444 Bracket, Idle Pulley
88444A Bracket, Idle Pulley, NO.2
88446 Bolt, Idle Pulley
88469A Collar, Adjusting
88595D Pulley Assy, Idle
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
