Toyota Quick Delivery 200
2012-03 → 2012-12 · chassis XZU282 · catalogue 721150 · Japan
Supported model
Data version 2013-07

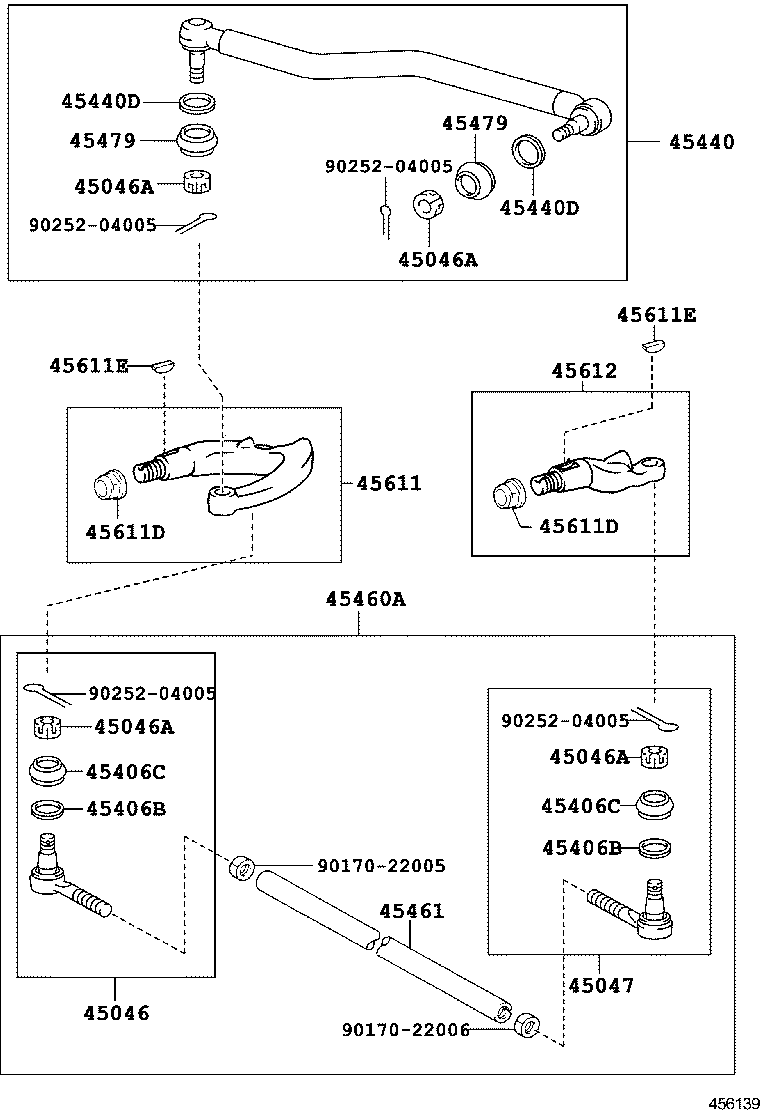

Front Steering Gear & Link
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44110 | Gear Assy, Power Steering |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45406B | Ring, Set(FOR TIE ROD DUST SEAL) |
| 45406C | Seal, Dust(FOR TIE ROD) |
| 45411 | Arm, Pitman |
| 45440 | Link Assy, Steering Drag |
| 45440D | Ring, Set(FOR STEERING DRAG LINK) |
| 45460A | Rod Assy, Tie |
| 45461 | Rod, Steering Tie |
| 45479 | Seal, Steering Link Joint Dust |
| 45611 | Arm, Steering Knuckle, RH |
| 45611D | Nut(FOR STEERING KNUCKLE ARM) |
| 45611E | Key, Woodruff(FOR STEERING IDLER ARM) |
| 45612 | Arm, Steering Knuckle, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
