Toyota Quick Delivery 200
2012-03 → 2012-12 · chassis XZU282 · catalogue 721150 · Japan
Supported model
Data version 2013-07

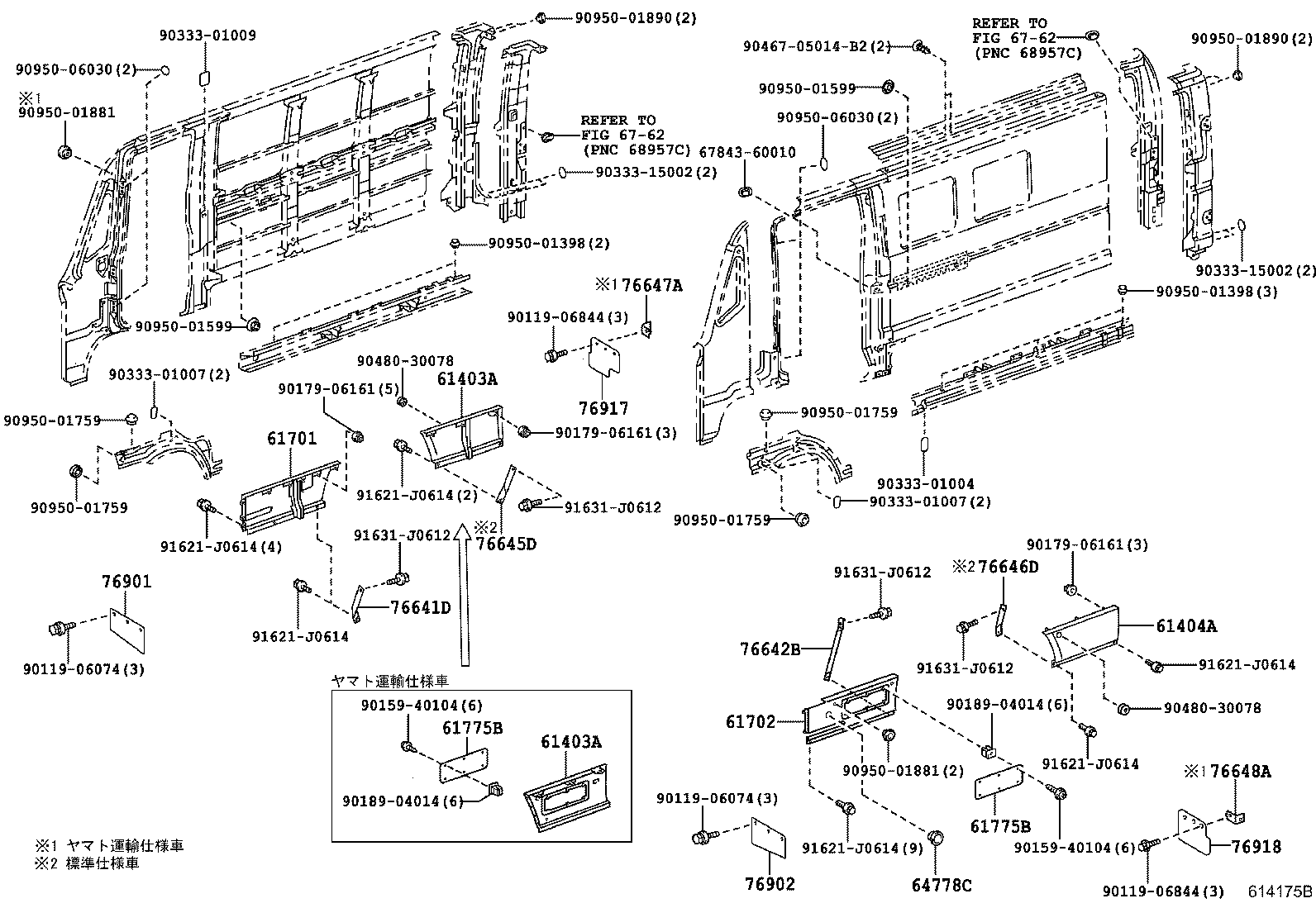

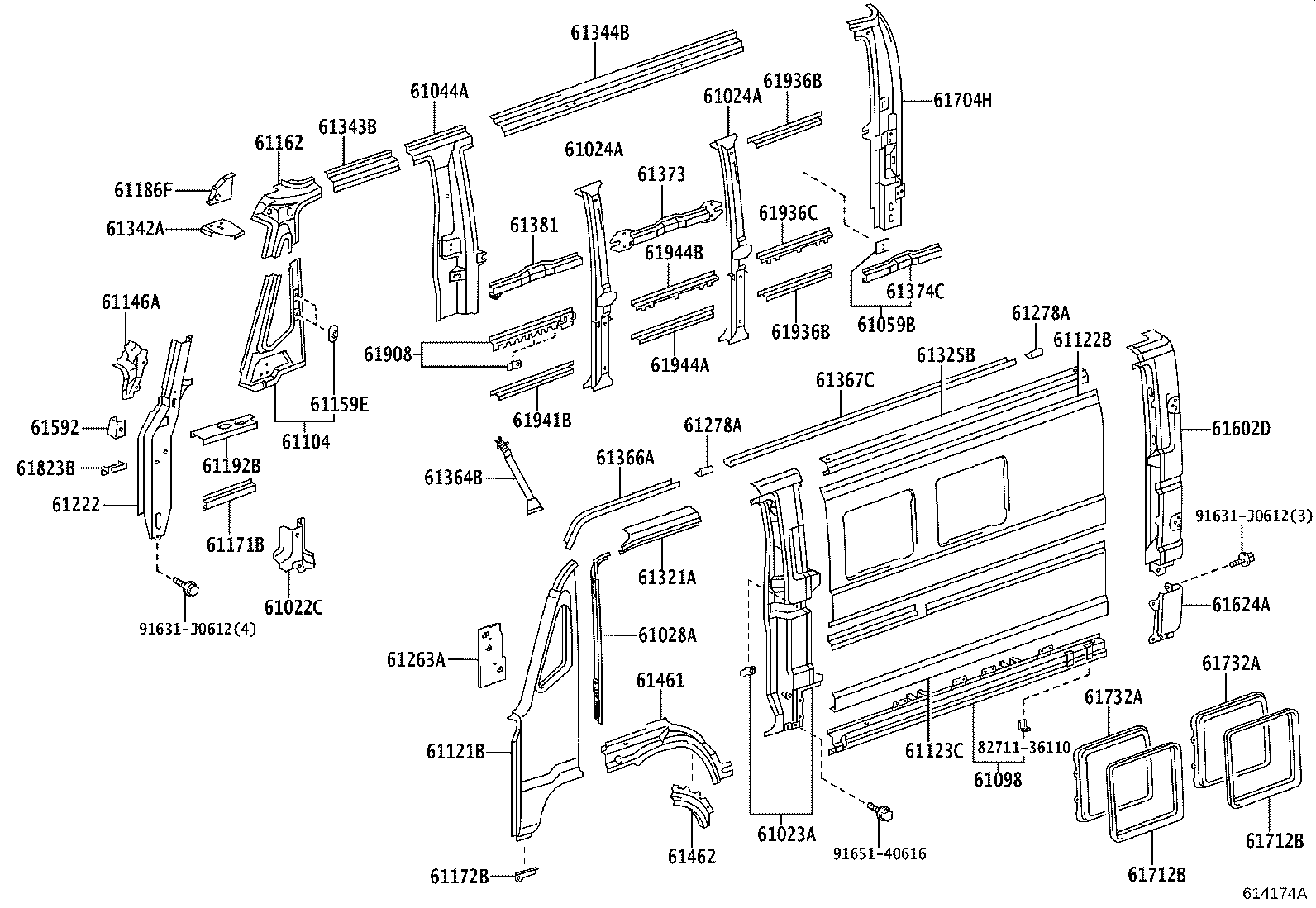

Side Member
106 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61013A | Pillar Sub-assy, NO.3 RH |
| 61014A | Pillar Sub-assy, NO.4 RH |
| 61021C | Pillar Sub-assy, Front Body, RH |
| 61022C | Pillar Sub-assy, Front Body, LH |
| 61023A | Pillar Sub-assy, NO.3 LH |
| 61024A | Pillar Sub-assy, NO.4 LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61034A | Pillar Sub-assy, NO.3 Inner, RH |
| 61044A | Pillar Sub-assy, NO.3 Inner, LH |
| 61059A | Rail Sub-assy, NO.4 Center, Inner, RH |
| 61059B | Rail Sub-assy, NO.4 Center, Inner, LH |
| 61097 | Rail Sub-assy, NO.5 Lower Outer, RH |
| 61098 | Rail Sub-assy, NO.5 Lower Outer, LH |
| 61103 | Pillar Sub-assy, Front Body, RH |
| 61104 | Pillar Sub-assy, Front Body, LH |
| 61111B | Panel, NO.1 Side, RH |
| 61112B | Panel, NO.2 Side, RH |
| 61113 | Panel, NO.2 Side, Rear, RH |
| 61121B | Panel, NO.1 Side, LH |
| 61122B | Panel, NO.2 Side, LH |
| 61123C | Panel, NO.2 Side, Rear, LH |
| 61136A | Panel, Front Side End, RH |
| 61146A | Panel, Front Side End, LH |
| 61159D | Retainer, Side Panel, NO.2 RH |
| 61159E | Retainer, Side Panel, NO.2 LH |
| 61161 | Pillar, Front Body, Upper Inner RH |
| 61162 | Pillar, Front Body, Upper Inner LH |
| 61171 | Retainer, Front Pillar, Lower Inner RH |
| 61171B | Stiffener, Side Panel, Lower NO.2 |
| 61172B | Retainer, Front Pillar, Lower Inner LH |
| 61176C | Reinforcement, NO.1 Pillar, Upper RH |
| 61186F | Reinforcement, NO.1 Pillar, Upper LH |
| 61192B | Plate, Instrument Panel Side, LH |
| 61195D | Bracket, Cowl Side Trim, LH |
| 61212A | Pillar, NO.1 Outer, Lower RH |
| 61222 | Pillar, NO.1 Outer, Lower LH |
| 61253 | Pillar, NO.2 Inner, RH |
| 61263A | Pillar, NO.2 Inner, LH |
| 61277C | Joint, Roof Drip Channel, RH |
| 61278A | Joint, Roof Drip Channel, LH |
| 61311A | Rail, NO.1 Upper Outer, RH |
| 61315G | Rail, NO.3 Upper Outer, RH |
| 61321A | Rail, NO.1 Upper Outer, LH |
| 61325B | Rail, NO.3 Upper Outer, LH |
| 61332A | Rail, NO.1 Upper Inner, Rear RH |
| 61333B | Rail, NO.2 Upper Inner, RH |
| 61334B | Rail, NO.3 Upper Inner, RH |
| 61334C | Rail, NO.1 Center Inner, RH |
| 61342A | Rail, NO.1 Upper Inner, Rear LH |
| 61343B | Rail, NO.2 Upper Inner, LH |
| 61344B | Rail, NO.3 Upper Inner, LH |
| 61356 | Channel, Roof Drip Side, Front RH |
| 61357 | Channel, Roof Drip Side, Center NO.1 |
| 61364B | Reinforcement, Seat Belt Anchor Side, LH |
| 61366A | Channel, Roof Drip Side, Front LH |
| 61367C | Channel, Roof Drip Side, Center NO.1 |
| 61371 | Rail, NO.1 Center Inner, RH |
| 61373 | Rail, NO.3 Center, Inner |
| 61374A | Rail, NO.4 Center Inner |
| 61374C | Rail, NO.4 Center Inner, LH |
| 61381 | Rail, NO.1 Center Inner, LH |
| 61403A | Panel Sub-assy, Fender, RH |
| 61404A | Panel Sub-assy, Fender, LH |
| 61451 | Panel, Rocker, Outer RH |
| 61452 | Panel, Rocker Inner, Front RH |
| 61461 | Panel, Rocker, Outer LH |
| 61462 | Panel, Rocker, Inner Front LH |
| 61592 | Bracket, Stiffener, NO.2 |
| 61601E | Panel Sub-assy, Quarter, Outer RH |
| 61602D | Panel Sub-assy, Quarter, Outer LH |
| 61623A | Extension, Quarter Panel, Outer RH |
| 61624A | Extension, Quarter Panel, Outer LH |
| 61701 | Skirt Sub-assy, Quarter Panel, Front RH |
| 61702 | Skirt Sub-assy, Quarter Panel, Front LH |
| 61703G | Panel Sub-assy, Quarter, Inner RH |
| 61704H | Panel Sub-assy, Quarter, Inner LH |
| 61712B | Panel, Side Window, Outer LH |
| 61732A | Panel, Side Window, Inner LH |
| 61775B | Cover, Cooler Condenser Air Intake, NO.2 |
| 61813A | Plate, Dustproof, NO.1 RH |
| 61823B | Plate, Dust Proof, NO.1 LH |
| 61907A | Strength Sub-assy, Upper Rail, NO.3 RH |
| 61908 | Pillar Sub-assy, NO.1 Outer, Upper LH |
| 61931 | Strength, Upper Rail, NO.1 RH |
| 61933 | Strength, Upper Rail, NO.3 RH |
| 61934 | Strength, Upper Rail, NO.4 RH |
| 61935A | Strength, Upr Rail, NO.5 RH |
| 61936A | Pillar, NO.2 Inner, Lower |
| 61936B | Strength, Upper Rail, NO.5 RH |
| 61936C | Strength, Upper Rail, NO.6 LH |
| 61941B | Strength, Upper Rail, NO.1 LH |
| 61944A | Strength, Upper Rail, NO.4 LH |
| 61944B | Strength, Upper Rail, NO.3 LH |
| 61945 | Strength, Upper Rail, NO.5 RH |
| 64778C | Protector, Spare Wheel Cover |
| 76641D | Bracket, Front Mudguard, RH |
| 76642B | Bracket, Front Mudguard, LH |
| 76645D | Bracket, Rear Body Mudguard, RH |
| 76646D | Bracket, Rear Body Mudguard, LH |
| 76647A | Support, Rear Body Mudguard, RH |
| 76648A | Support, Rear Body Mudguard, LH |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76917 | Mudguard, Side, Rear RH |
| 76918 | Mudguard, Side, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
