Fuel Tank & Tube

19 part groups · 2 illustrations

Illustrations

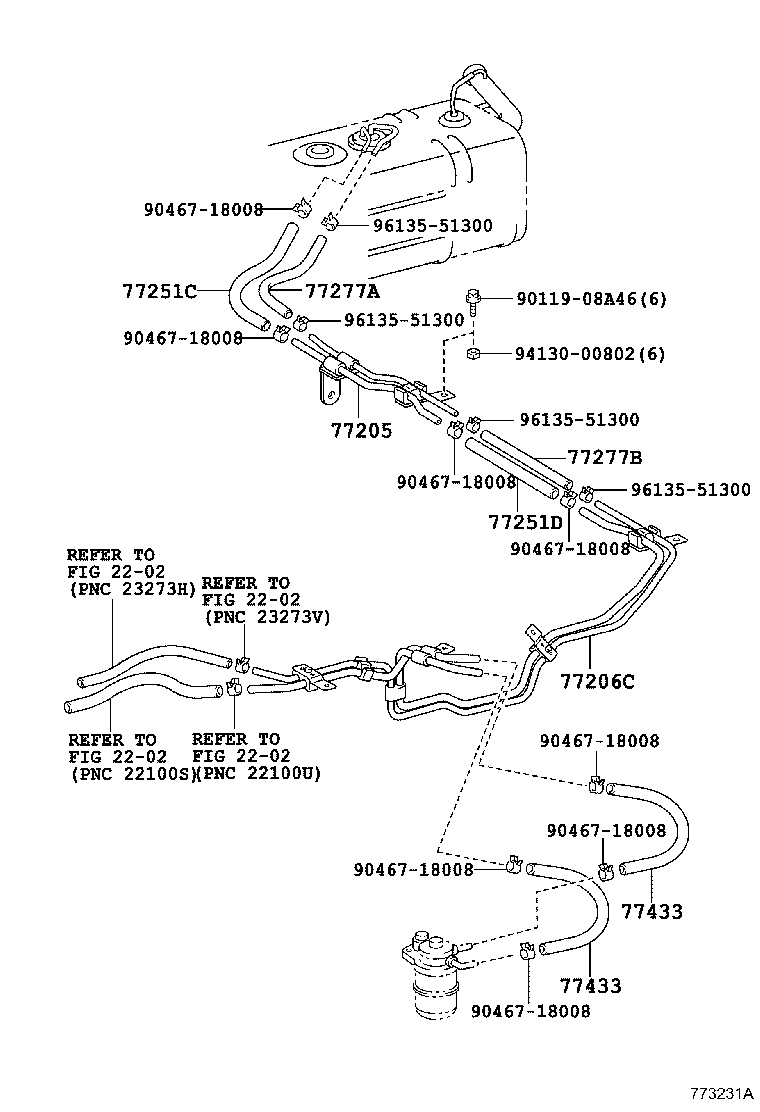

Figure 773230B 773230B 2012-03 → — Figure 773231A 773231A 2012-03 → —

Part groups

PNCDescription
77017B Tube Sub-assy, Fuel Tank Vent
77018C Hose, Fuel NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77197 Orifice, Fuel Vapor
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77259C Hose, Fuel
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77433 Hose, Fuel Main, NO.1
77601A Band Sub-assy, Fuel Tank, NO.1
77633 Stay, Fuel Tank
77651 Packing, Fuel Tank Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
